Satellite Name: Intelsat 34 (IS-34, Hispasat 55W-2, H55W-2)
Status: active
Position: 55° W (55.5° W)
NORAD: 40874
Cospar number: 2015-039A
Operator: Intelsat
Launch date: 18-Aug-2015
Launch site: Guiana Space Center
Launch vehicle: Ariane 5 ECA
Launch mass (kg): 3300
Dry mass (kg): 1818
Manufacturer: Space Systems Loral (SSL)
Model (bus): LS-1300
Orbit: GEO
Expected lifetime: 15+ yrs.
Call sign: S2915
Beacon(s): 3949R, 3949.5R, 3950.5R, 3951R
Details:

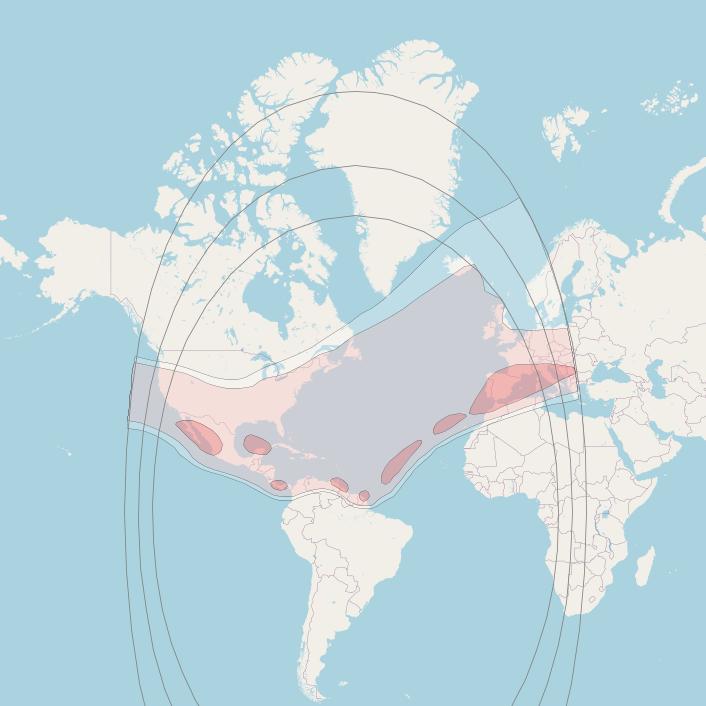

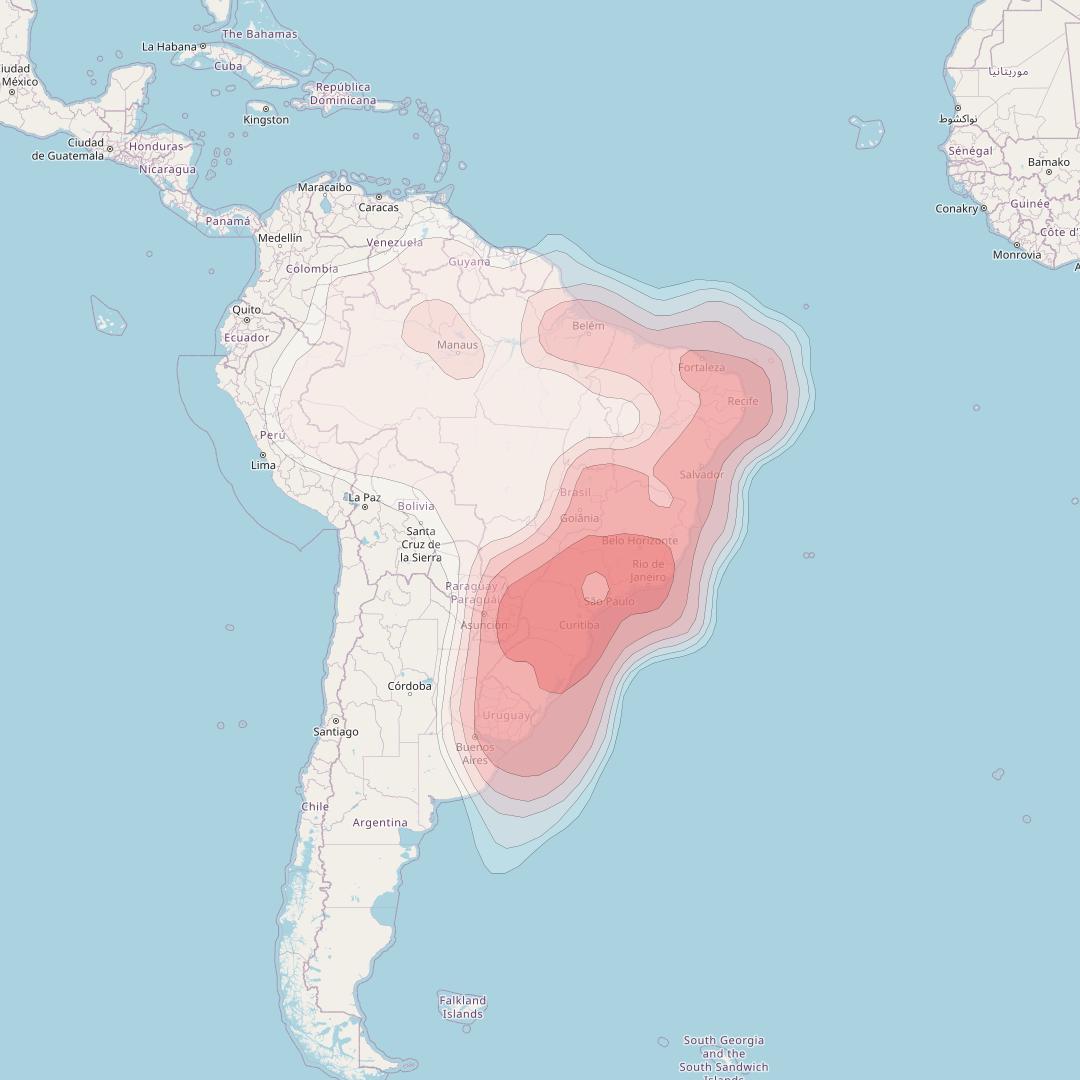

22 C-band channels to provide services to to North and South America and Europe and 18 Ku-band channels to provide services to Mexico, Central America, Brazil, the Caribbean, Europe, a portion of the United States, and the northern part of the Atlantic Ocean. It will serve the role originally intended for Intelsat 27 that was lost at launch failure and will replace Intelsat 805 and Galaxy 11 at 304.5 degrees East longitude position.
Beams:Charts: list

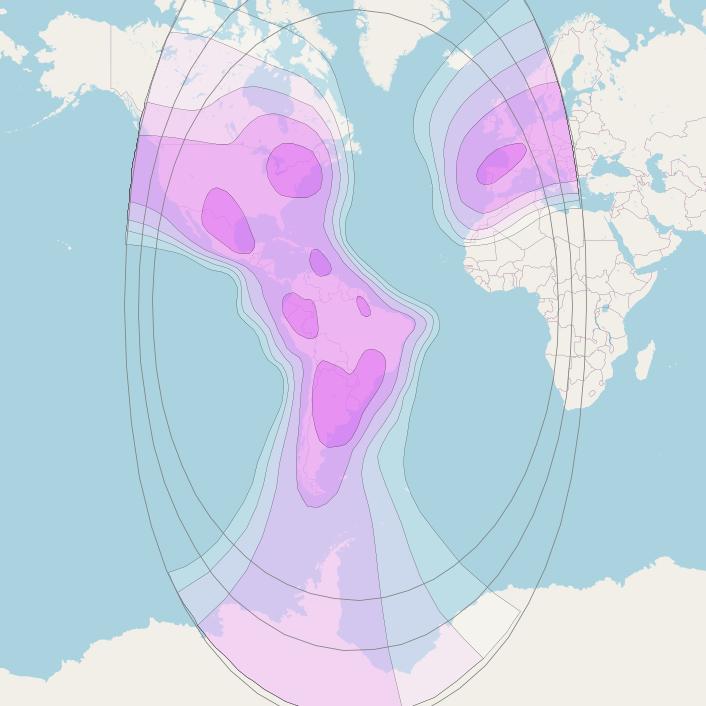

Intelsat 34 at 55° W downlink C-band Americas/Europe (AMECH) beam coverage map
