Satellite Name: Inmarsat-5F1 (Inmarsat 5F1, I5-IOR)
Status: active
Position: 63° E (63° E)
NORAD: 39476
Cospar number: 2013-073A
Operator: Inmarsat plc
Launch date: 8-Dec-2013
Launch site: Baikonur Cosmodrome
Launch vehicle: Proton M
Launch mass (kg): 6070
Dry mass (kg):
Manufacturer: Boeing (Hughes)
Model (bus): BSS-702HP
Orbit: GEO
Expected lifetime: 15 yrs.
Call sign:
Beacon(s): 4199V, 4199L,4199.5V, 4199.5L, 19700.5R, 19700.5L, 19702.5R, 19702.5L
Details:
89 Ka-band beams generated by two transmit and two receive apertures to provide high-speed broadband mobile satellite communication services up to 50Mbps to Indian Ocean Region. 6 Steerable spot beams to direct additional capacity where it is needed. First satellite of Global Xpress network.
Beams:Charts: list

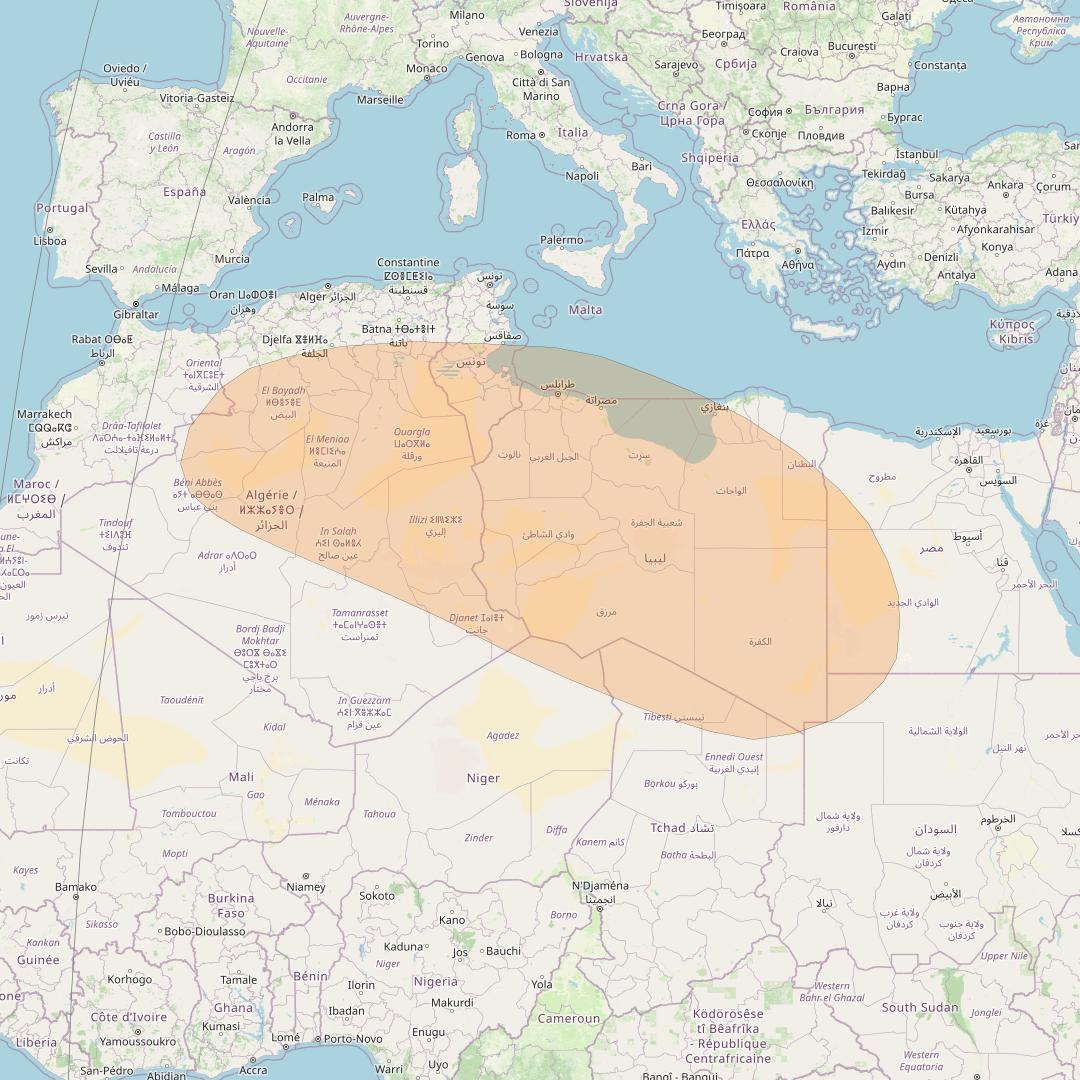

  • Inmarsat-5F1 at 63° E downlink Ka-band S10DL Spot beam coverage map

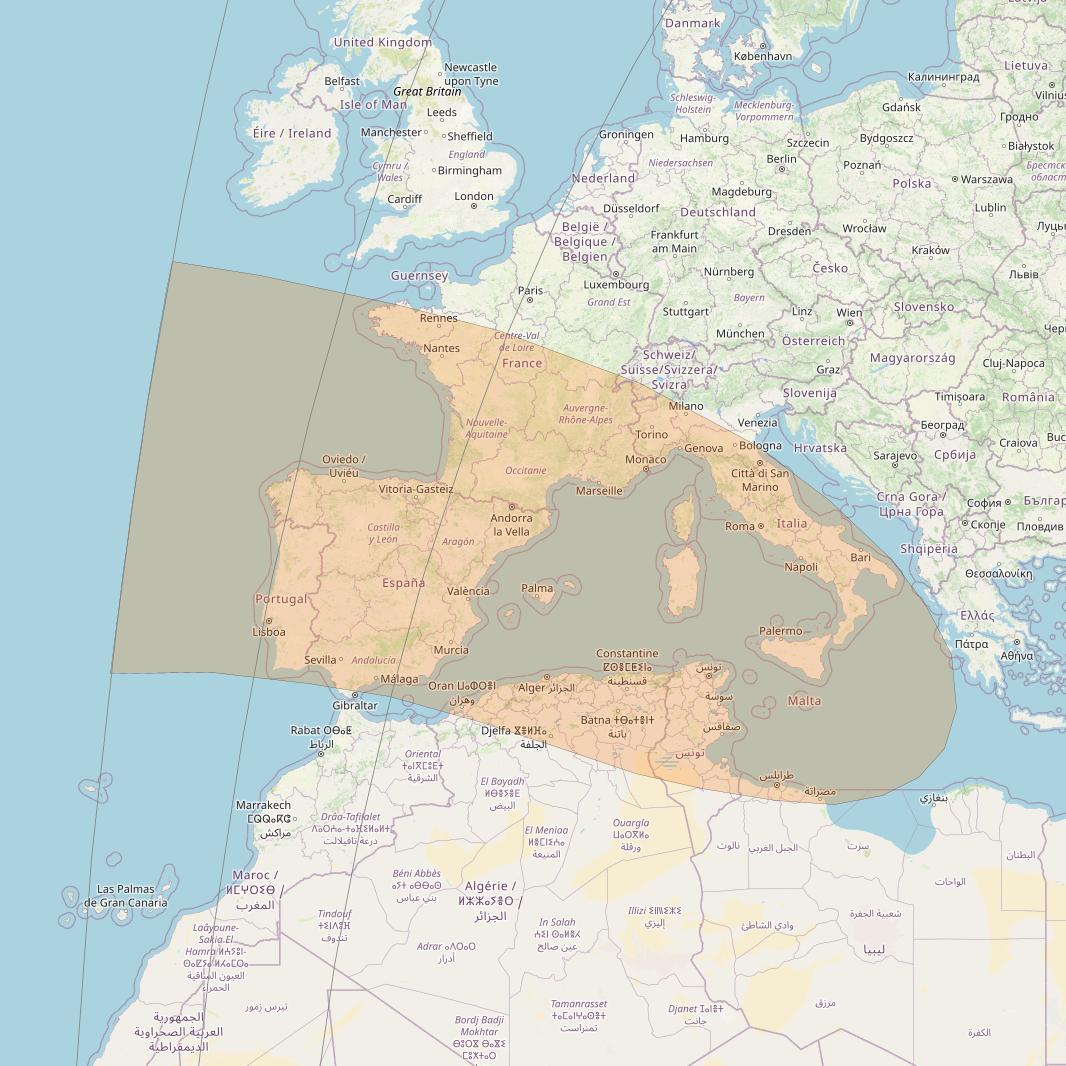

  • Inmarsat-5F1 at 63° E downlink Ka-band S11DL Spot beam coverage map

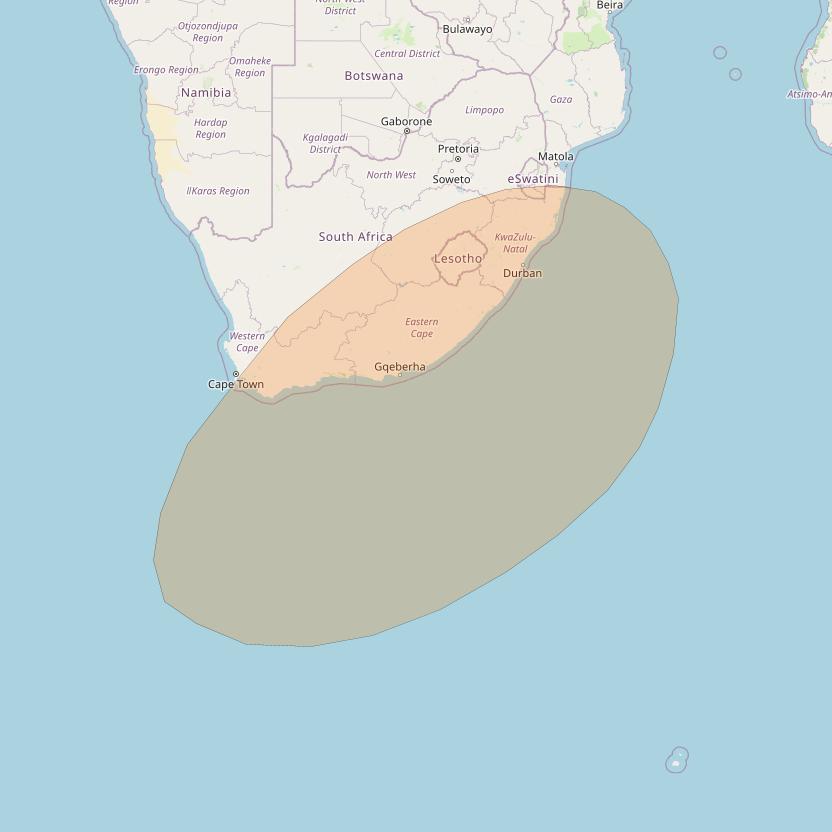

  • Inmarsat-5F1 at 63° E downlink Ka-band S12DL Spot beam coverage map

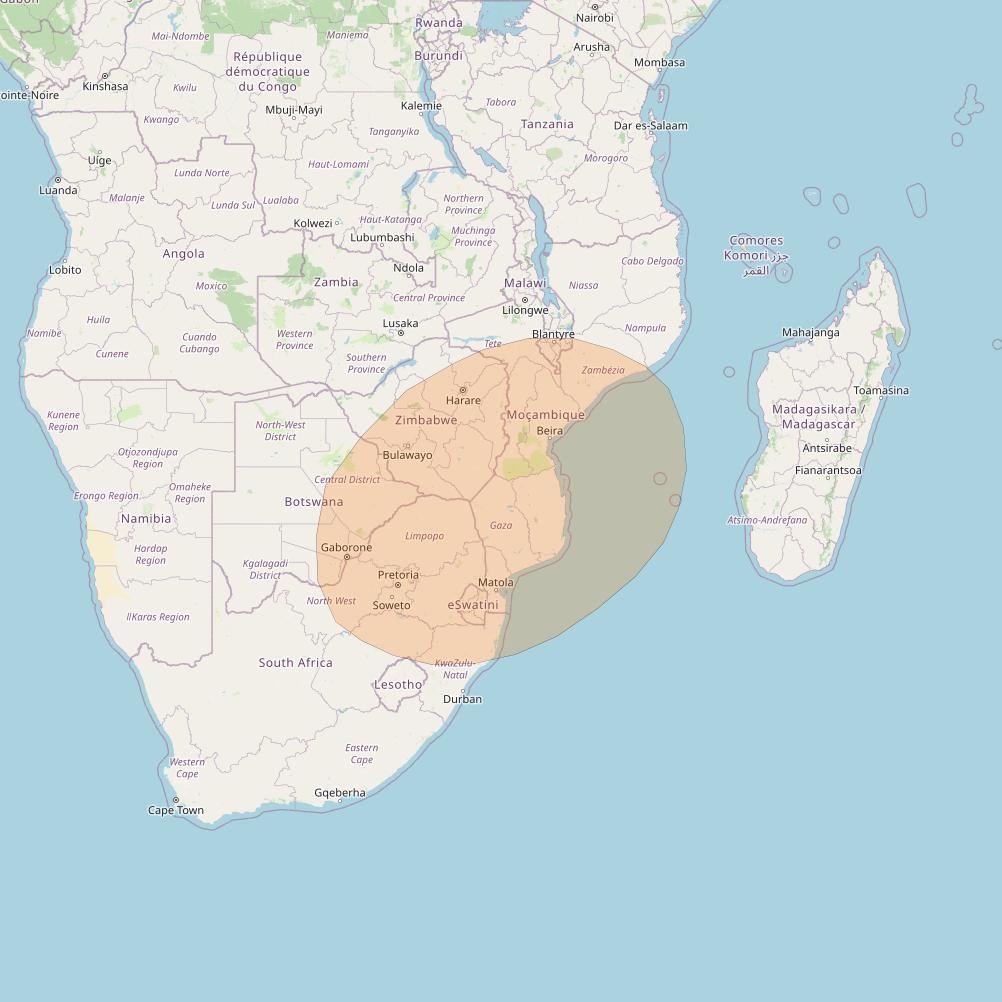

  • Inmarsat-5F1 at 63° E downlink Ka-band S13DL Spot beam coverage map

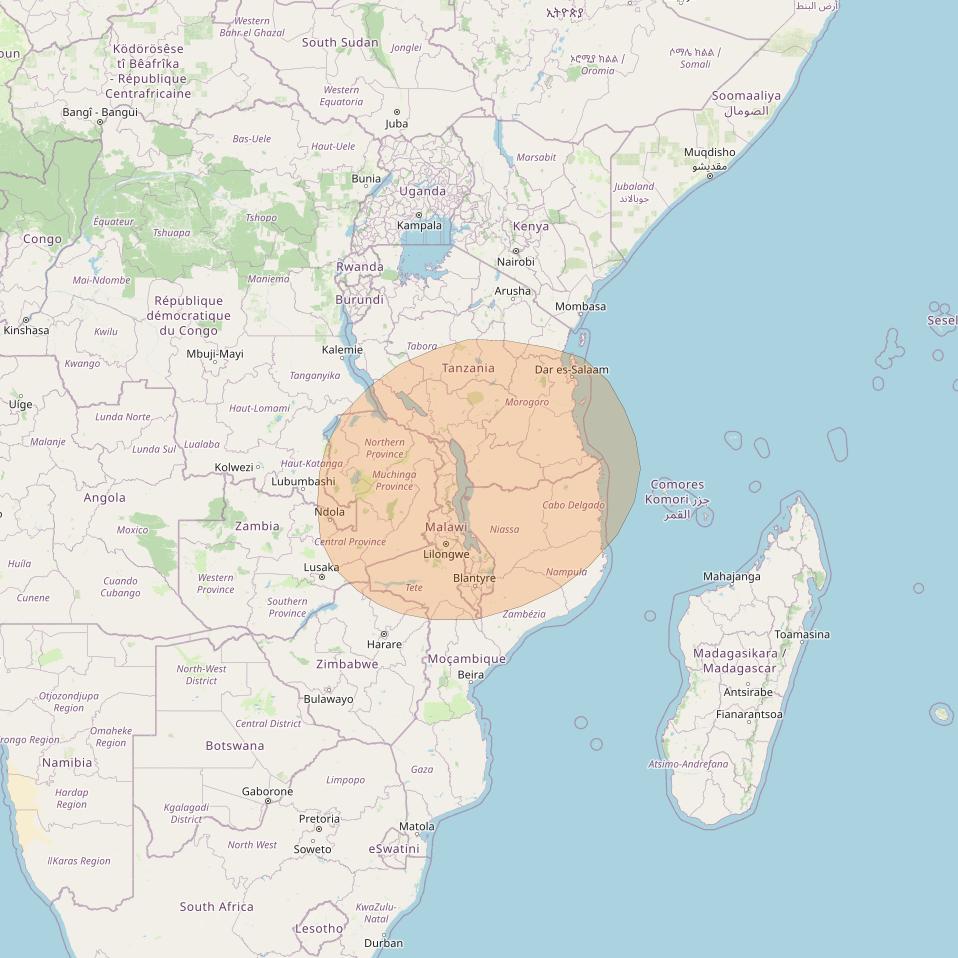

  • Inmarsat-5F1 at 63° E downlink Ka-band S14DL Spot beam coverage map

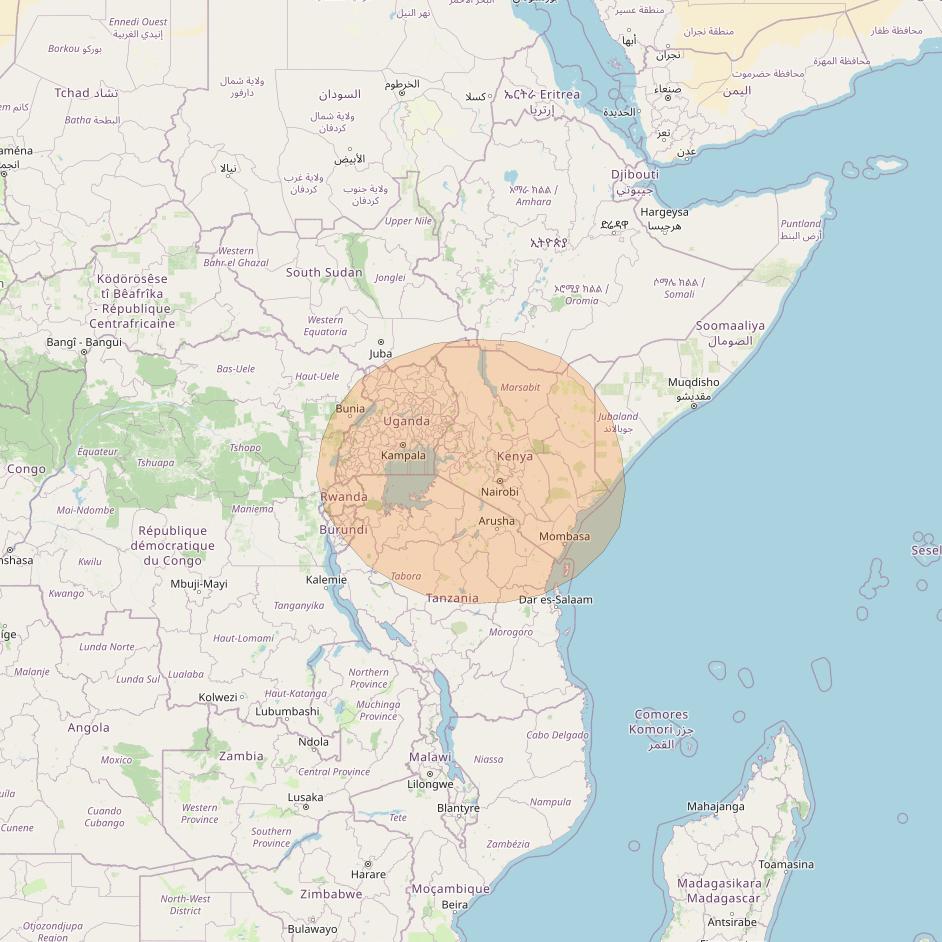

  • Inmarsat-5F1 at 63° E downlink Ka-band S15DL Spot beam coverage map

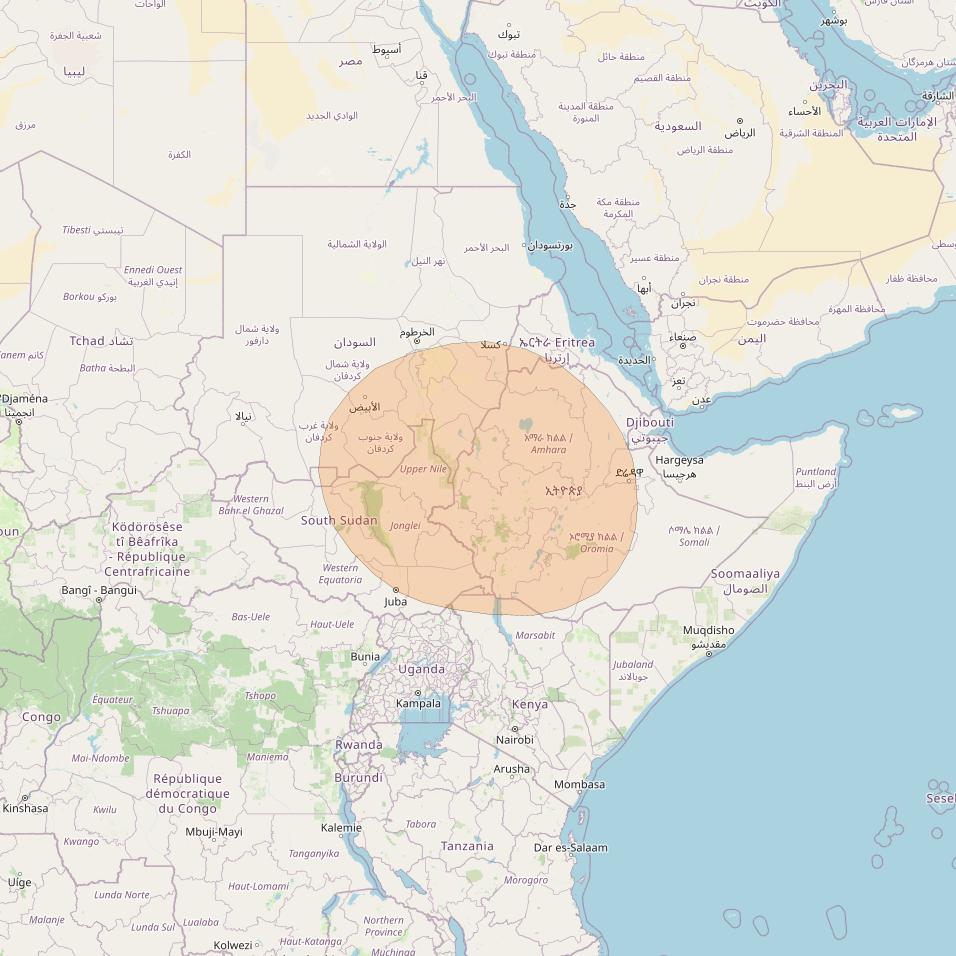

  • Inmarsat-5F1 at 63° E downlink Ka-band S16DL Spot beam coverage map

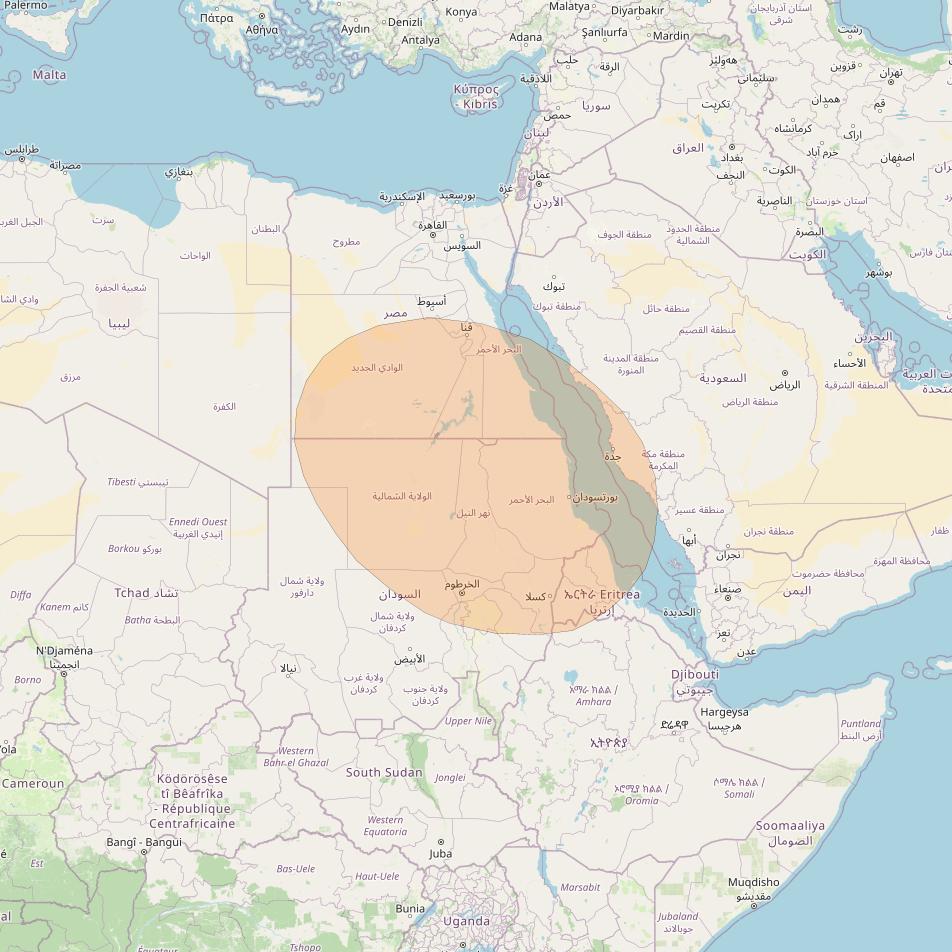

  • Inmarsat-5F1 at 63° E downlink Ka-band S17DL Spot beam coverage map

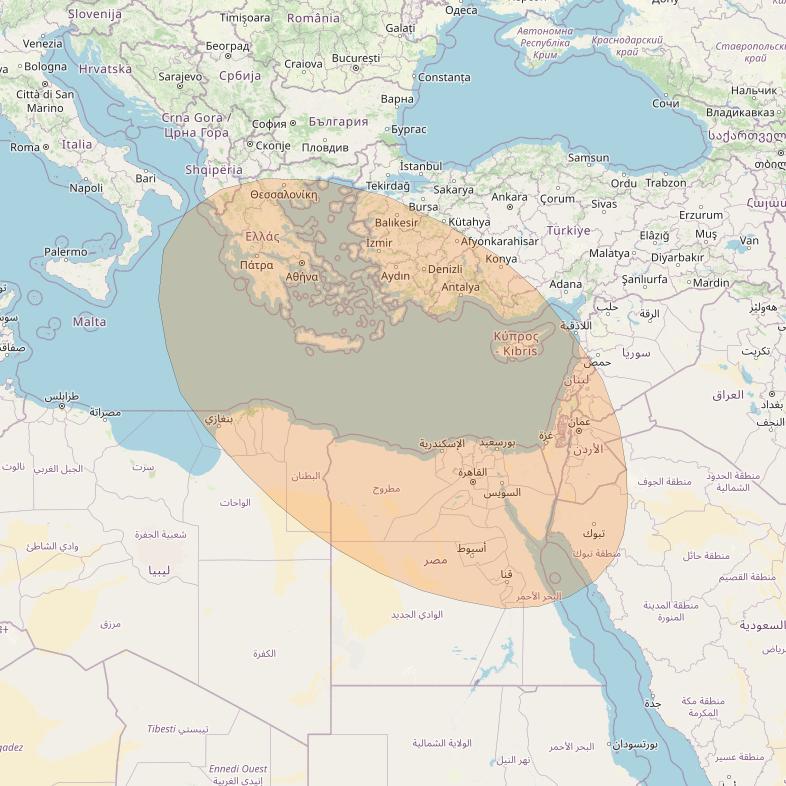

  • Inmarsat-5F1 at 63° E downlink Ka-band S18DL Spot beam coverage map

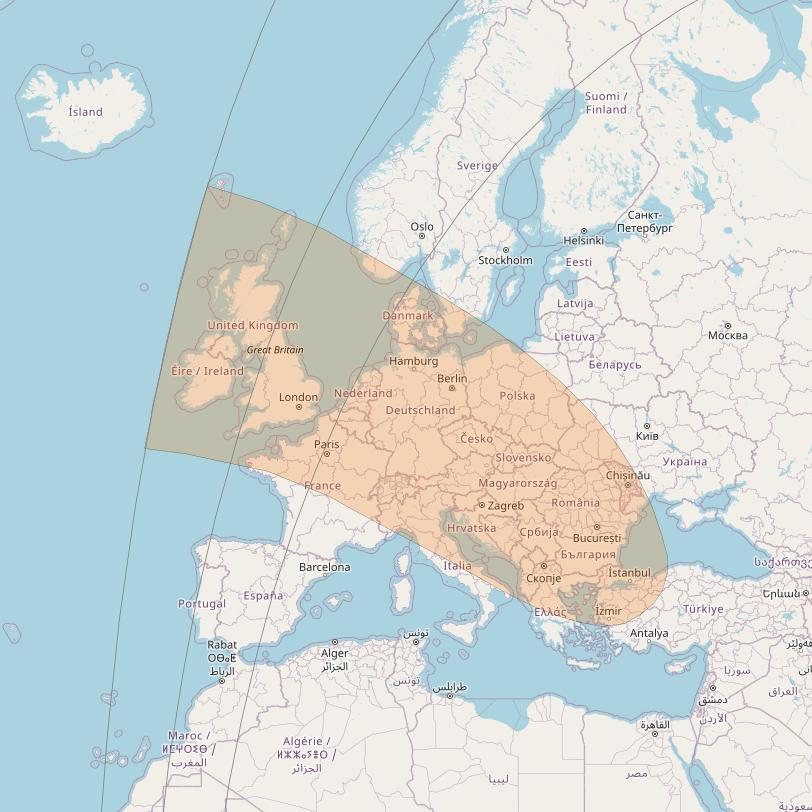

  • Inmarsat-5F1 at 63° E downlink Ka-band S19DL Spot beam coverage map

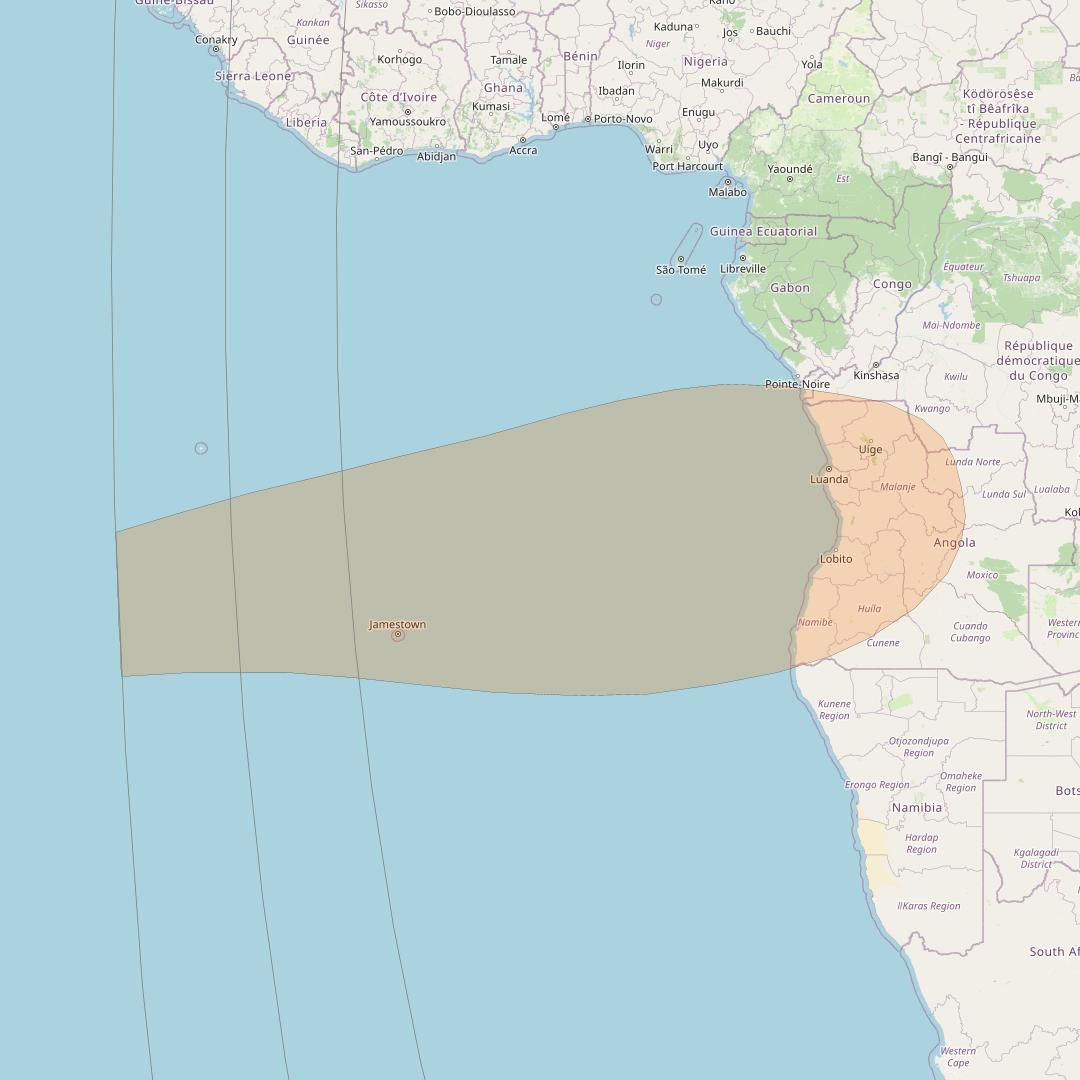

  • Inmarsat-5F1 at 63° E downlink Ka-band S1DL Spot beam coverage map

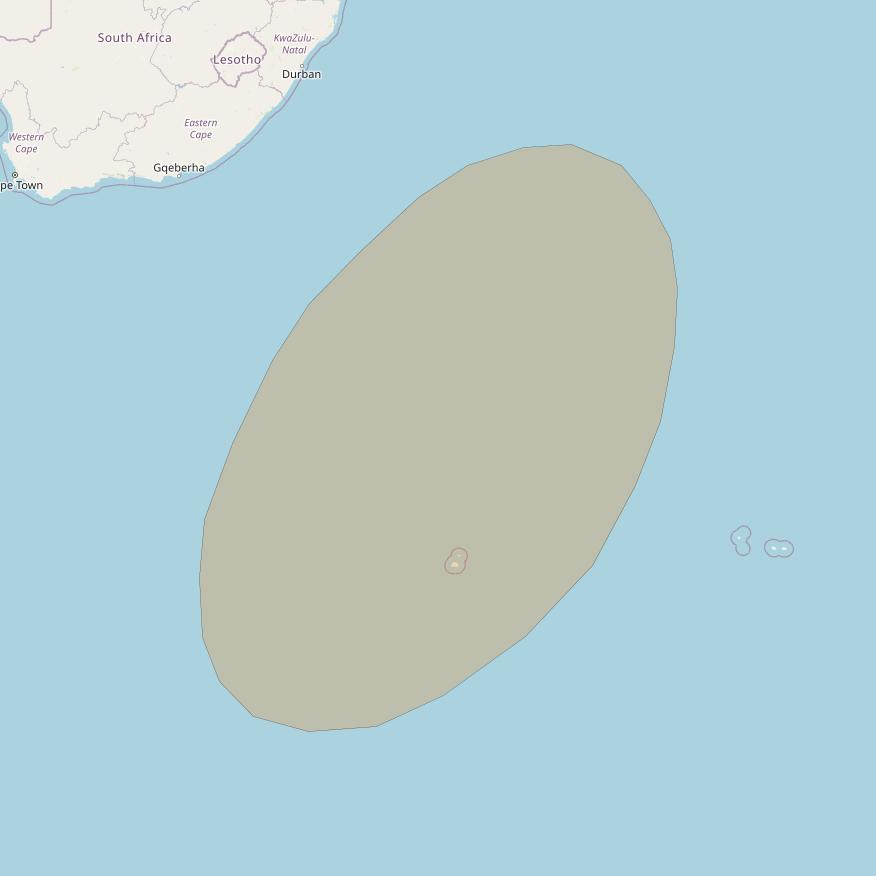

  • Inmarsat-5F1 at 63° E downlink Ka-band S20DL Spot beam coverage map

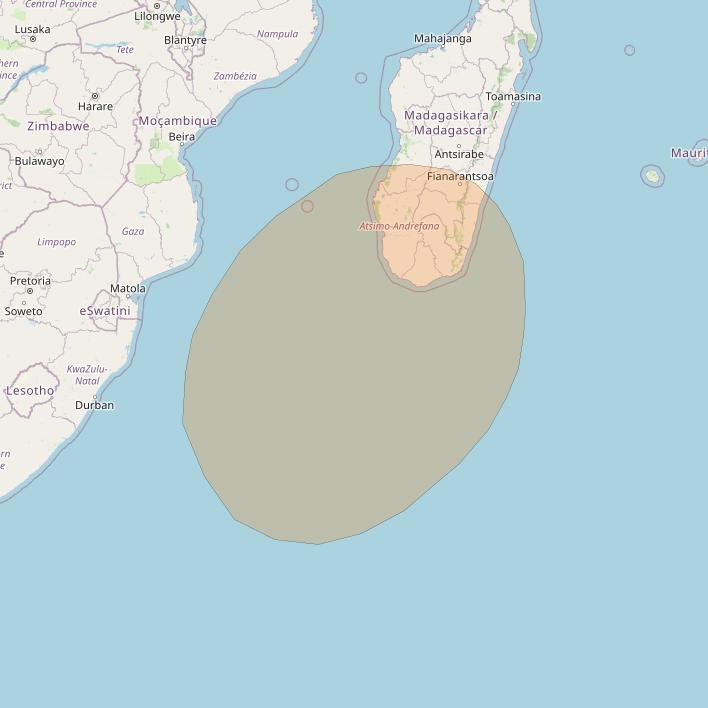

  • Inmarsat-5F1 at 63° E downlink Ka-band S21DL Spot beam coverage map

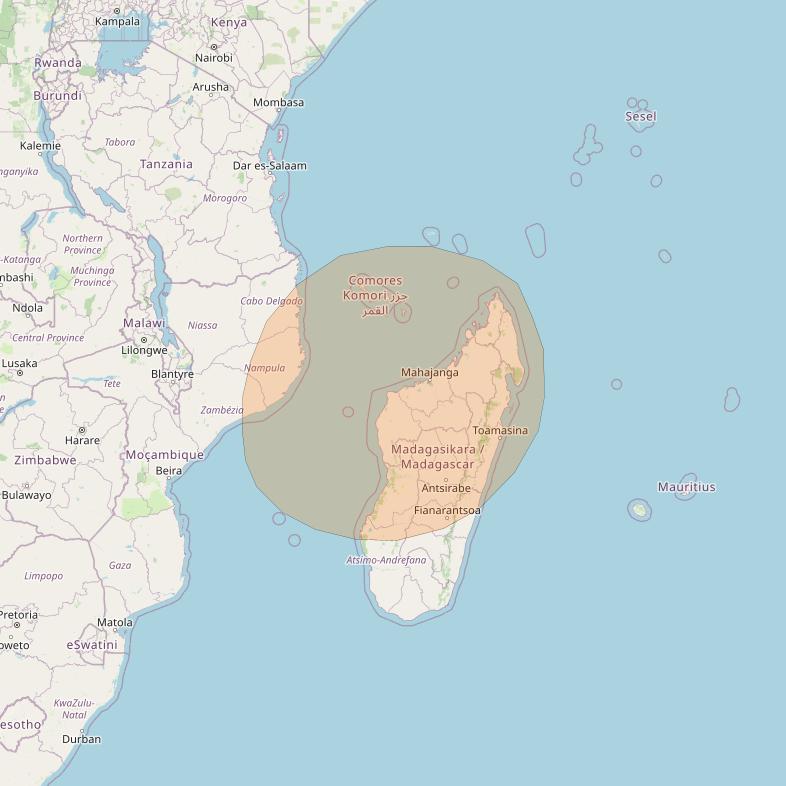

  • Inmarsat-5F1 at 63° E downlink Ka-band S22DL Spot beam coverage map

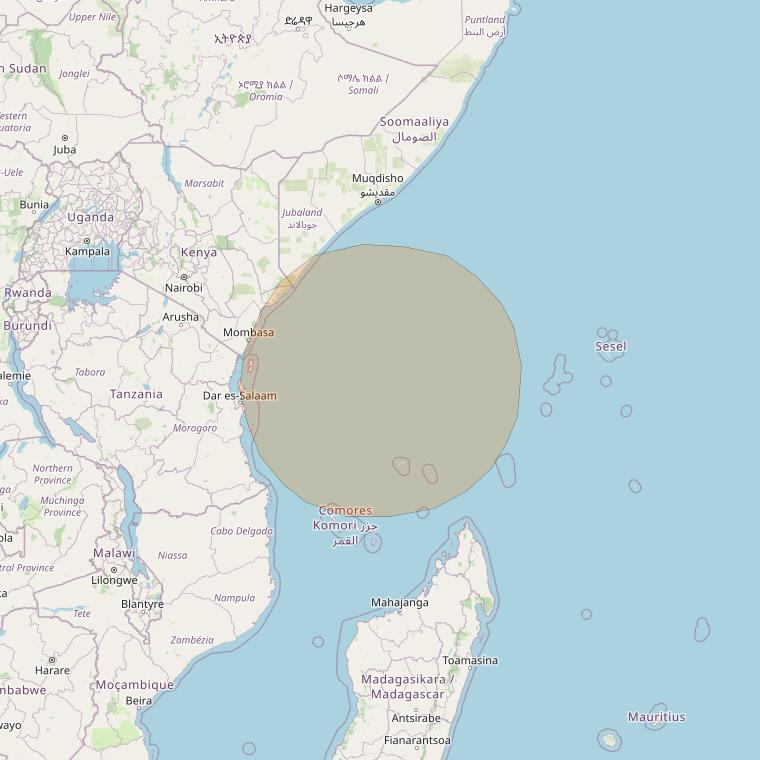

  • Inmarsat-5F1 at 63° E downlink Ka-band S23DL Spot beam coverage map

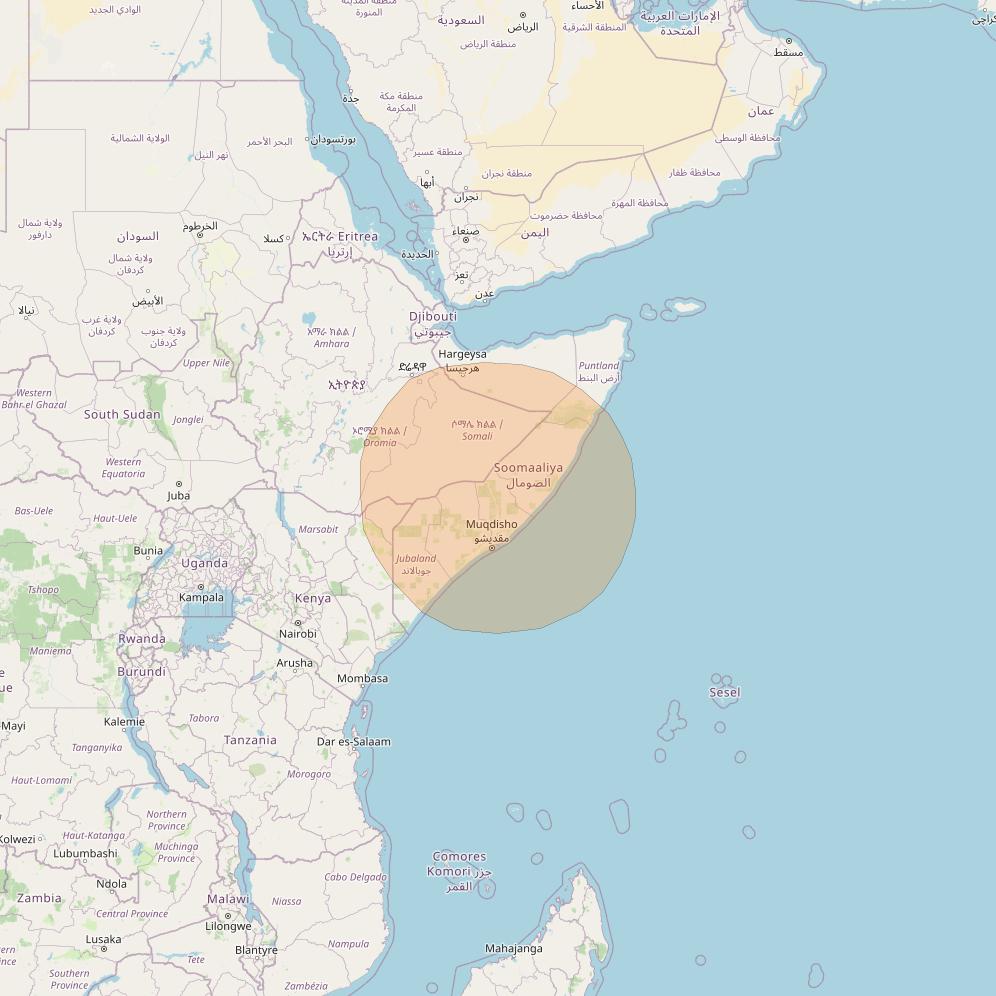

  • Inmarsat-5F1 at 63° E downlink Ka-band S24DL Spot beam coverage map

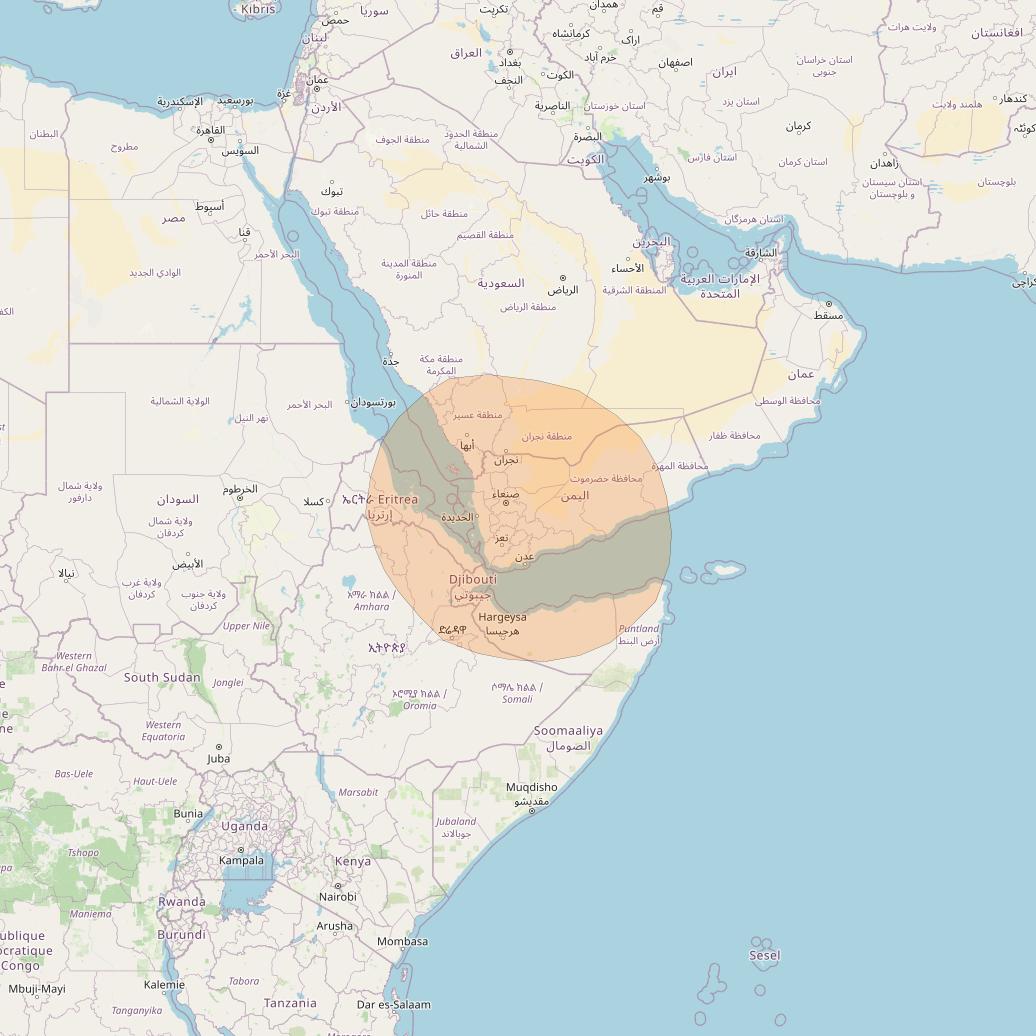

  • Inmarsat-5F1 at 63° E downlink Ka-band S25DL Spot beam coverage map

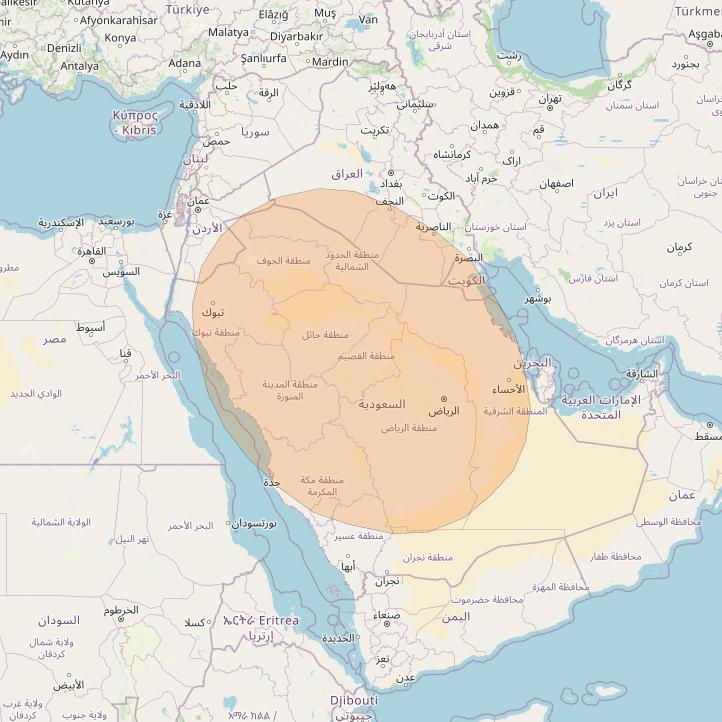

  • Inmarsat-5F1 at 63° E downlink Ka-band S26DL Spot beam coverage map

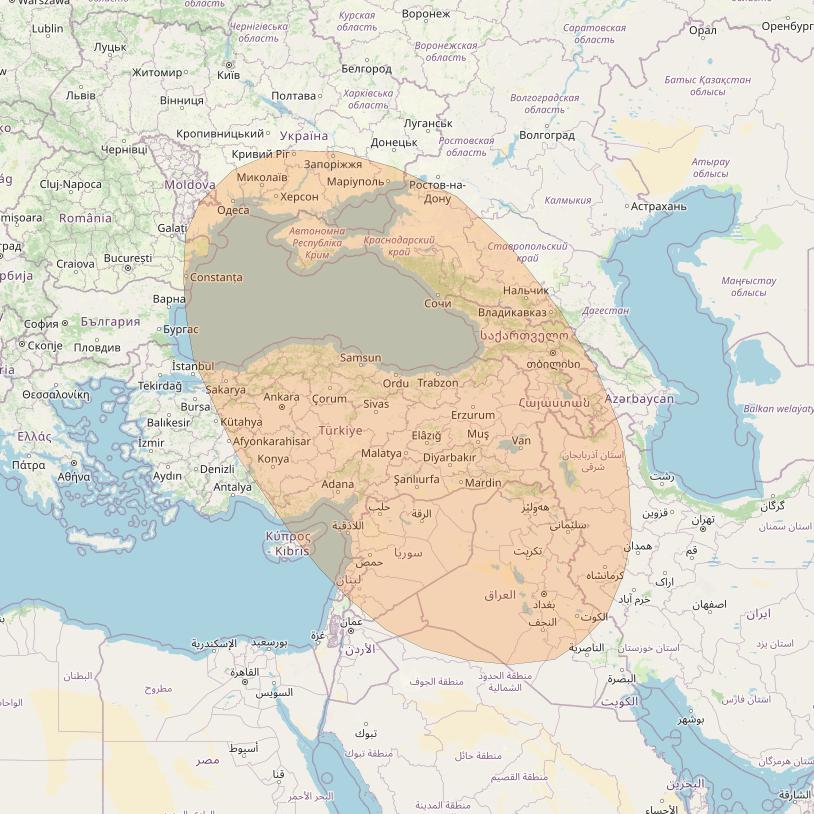

  • Inmarsat-5F1 at 63° E downlink Ka-band S27DL Spot beam coverage map

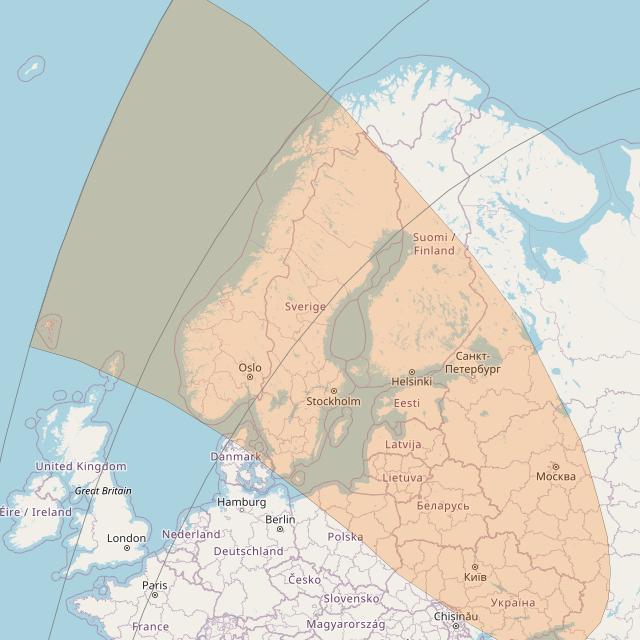

  • Inmarsat-5F1 at 63° E downlink Ka-band S28DL Spot beam coverage map

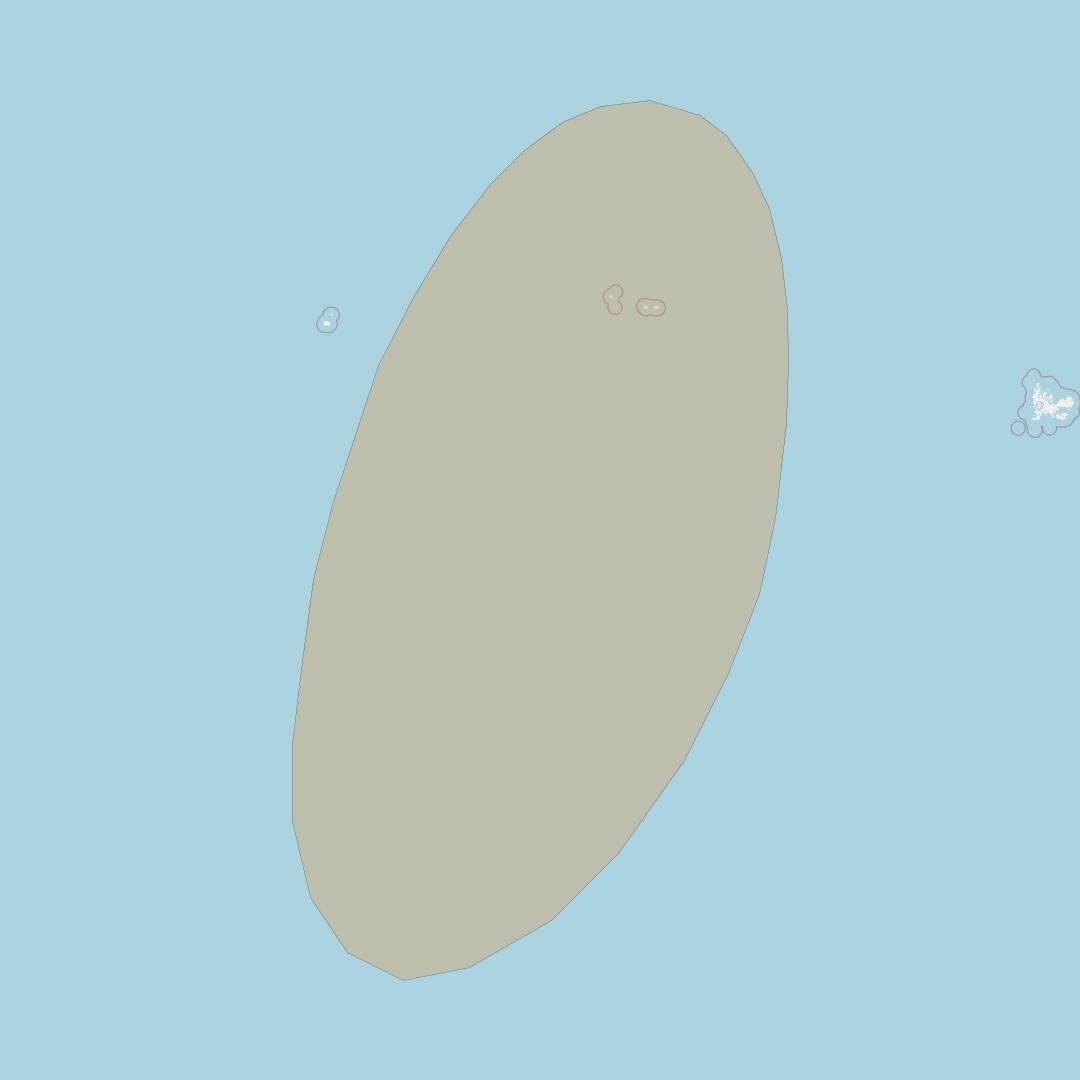

  • Inmarsat-5F1 at 63° E downlink Ka-band S29DL Spot beam coverage map

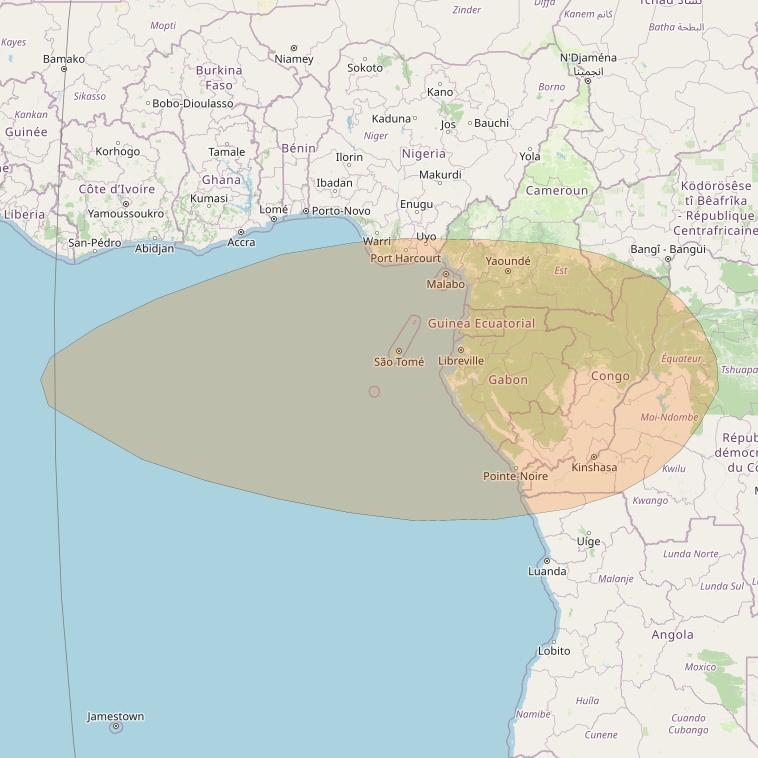

  • Inmarsat-5F1 at 63° E downlink Ka-band S2DL Spot beam coverage map

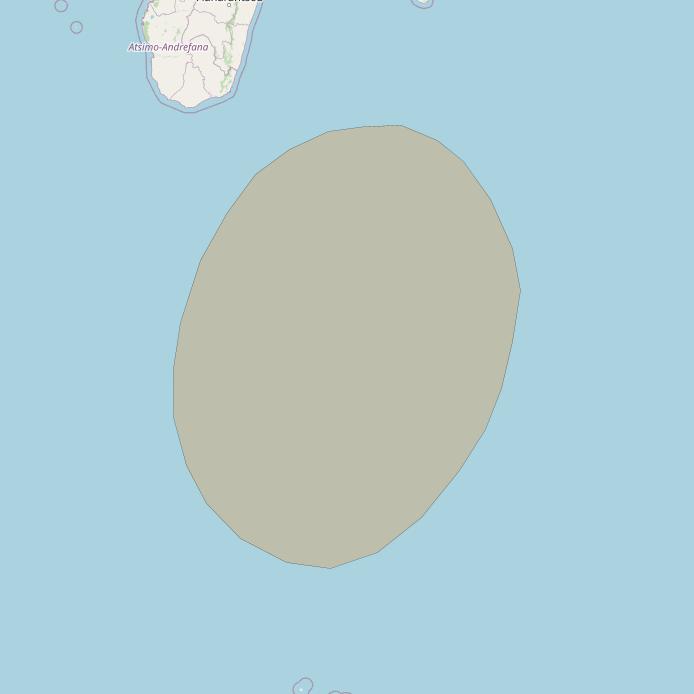

  • Inmarsat-5F1 at 63° E downlink Ka-band S30DL Spot beam coverage map

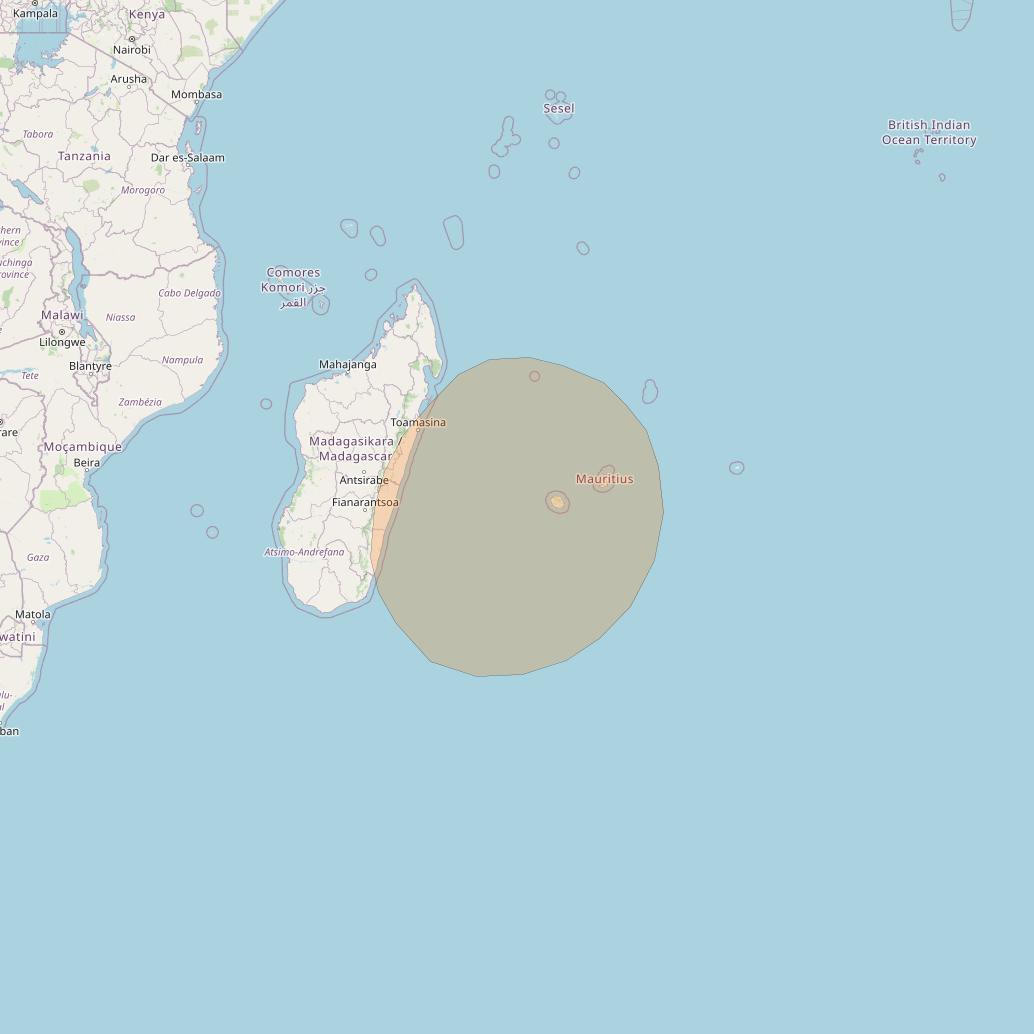

  • Inmarsat-5F1 at 63° E downlink Ka-band S31DL Spot beam coverage map

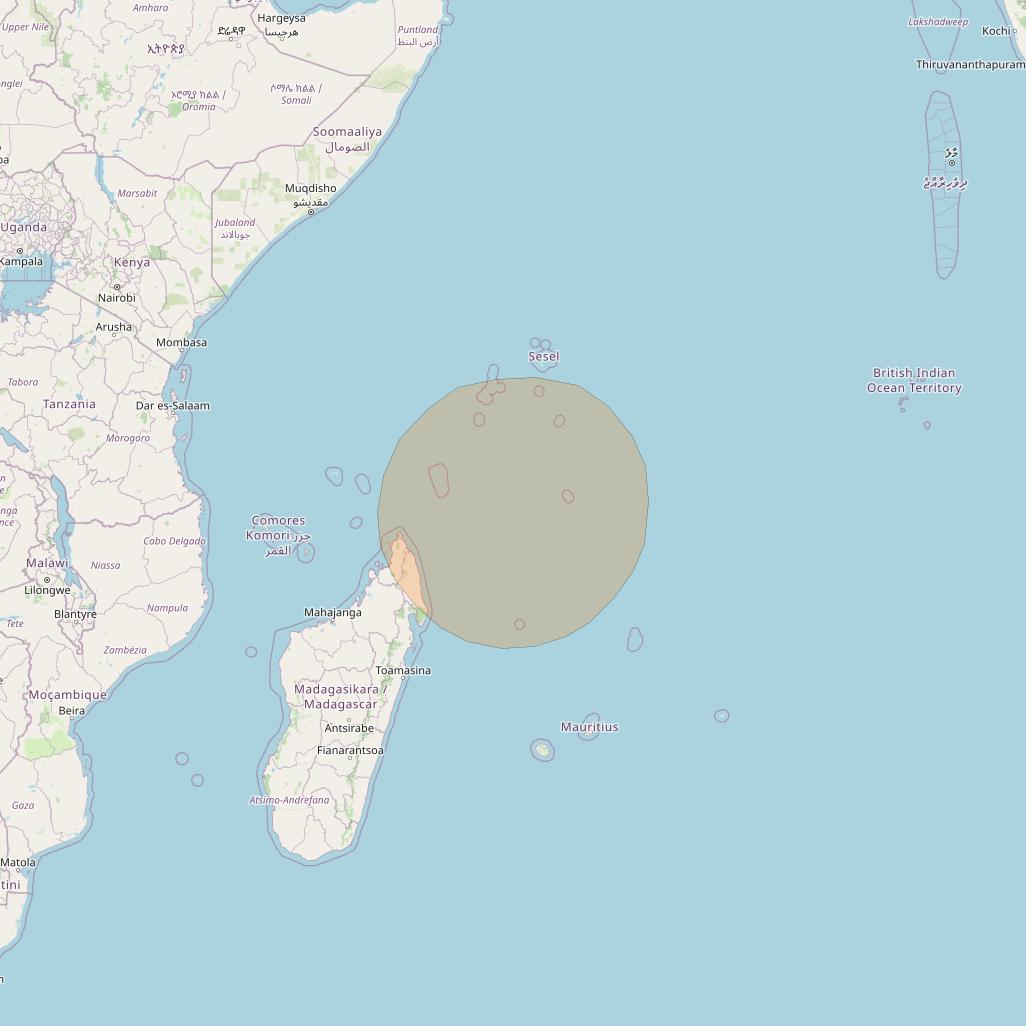

  • Inmarsat-5F1 at 63° E downlink Ka-band S32DL Spot beam coverage map

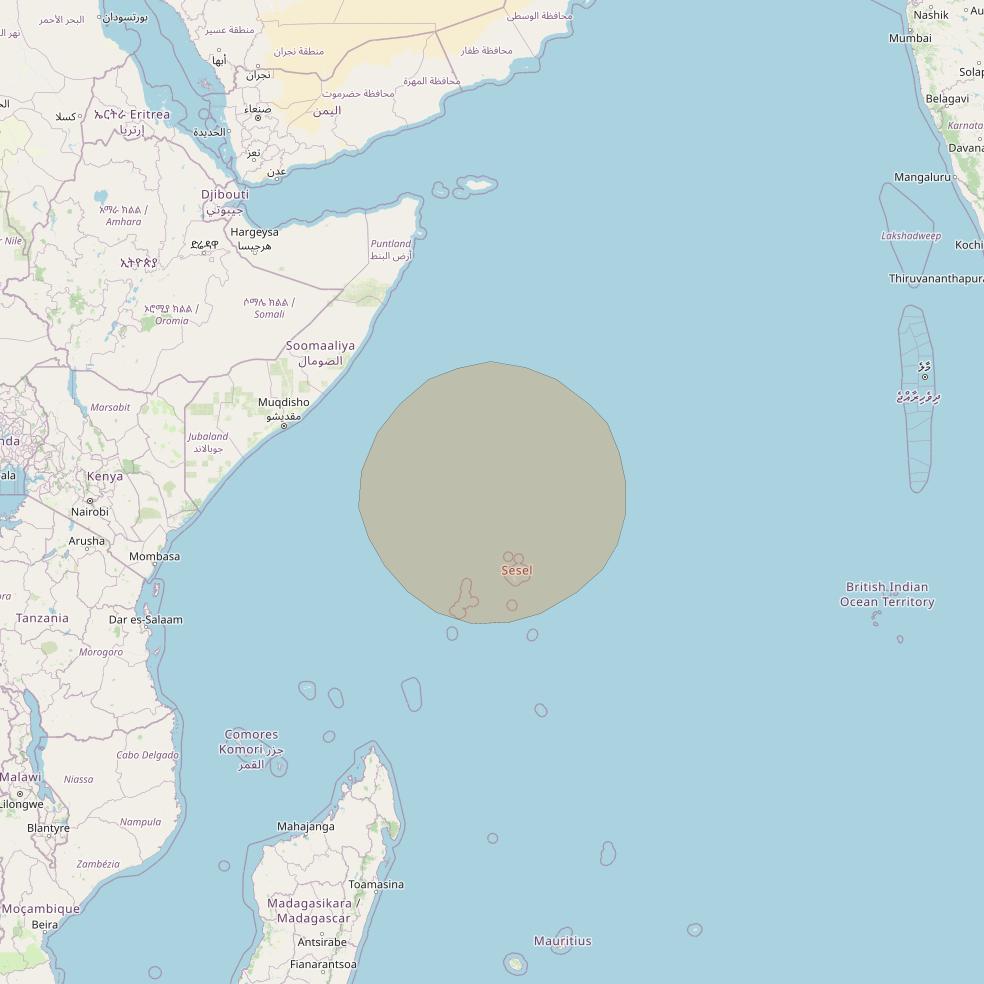

  • Inmarsat-5F1 at 63° E downlink Ka-band S33DL Spot beam coverage map

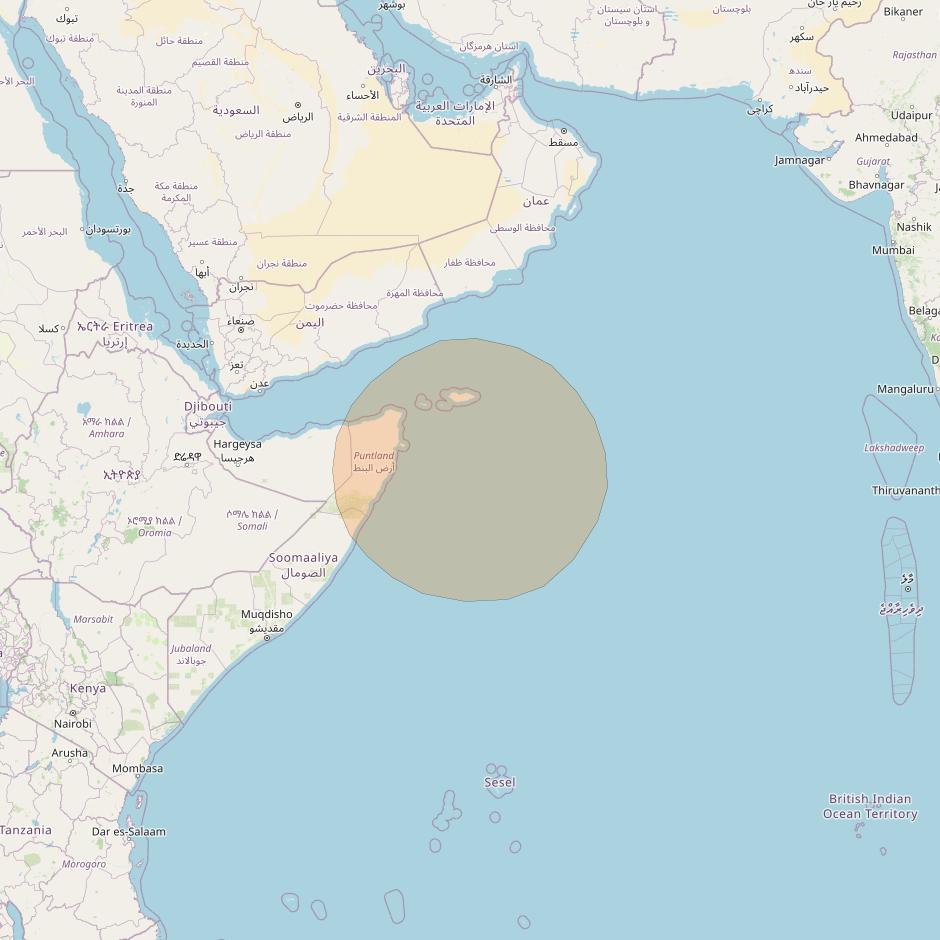

  • Inmarsat-5F1 at 63° E downlink Ka-band S34DL Spot beam coverage map

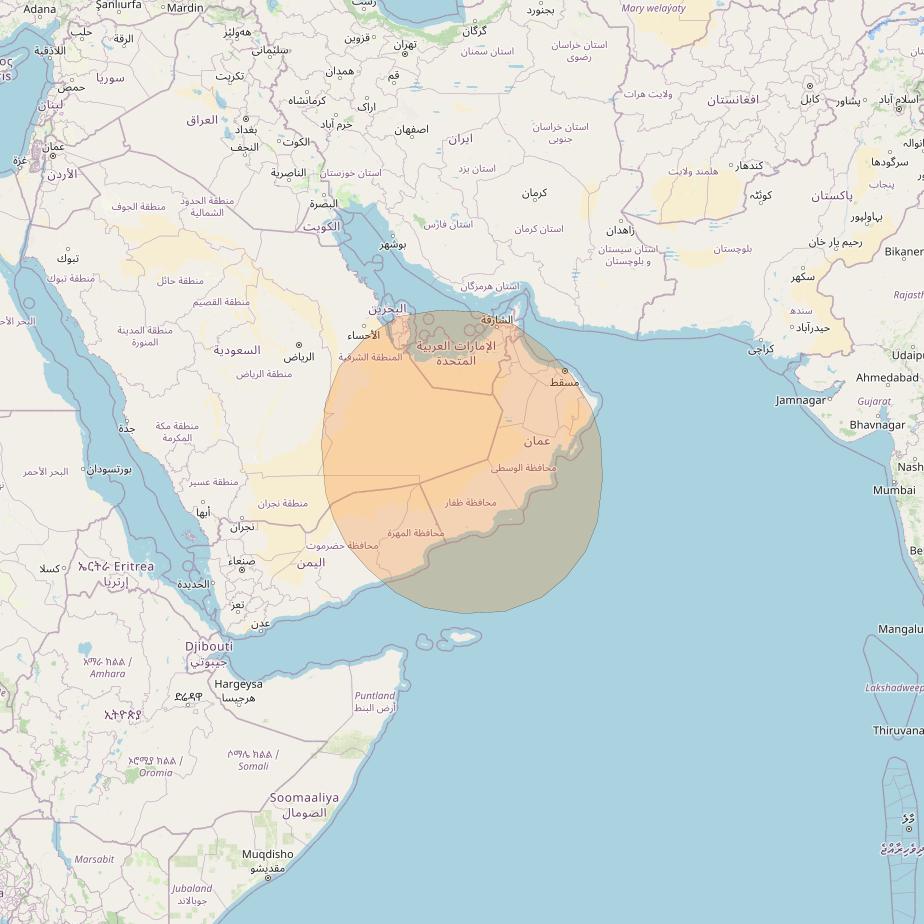

  • Inmarsat-5F1 at 63° E downlink Ka-band S35DL Spot beam coverage map

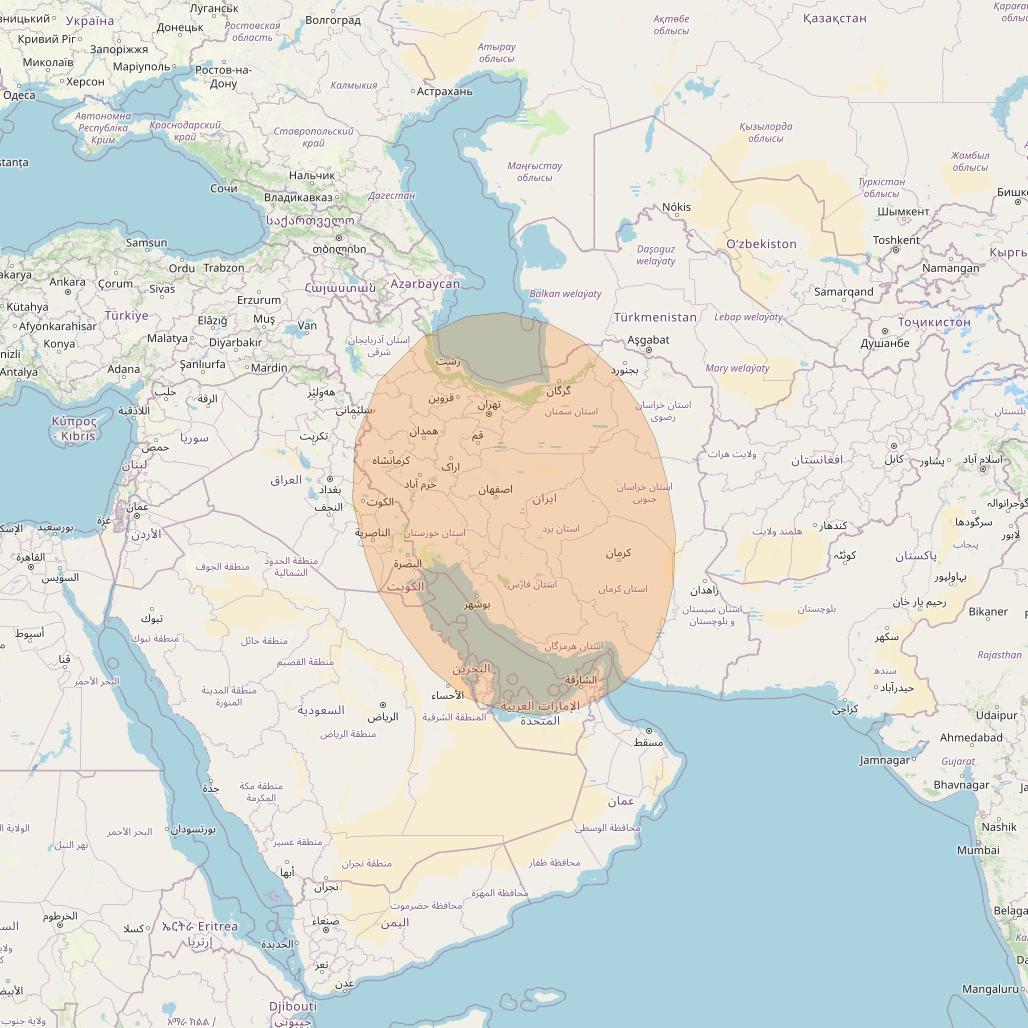

  • Inmarsat-5F1 at 63° E downlink Ka-band S36DL Spot beam coverage map

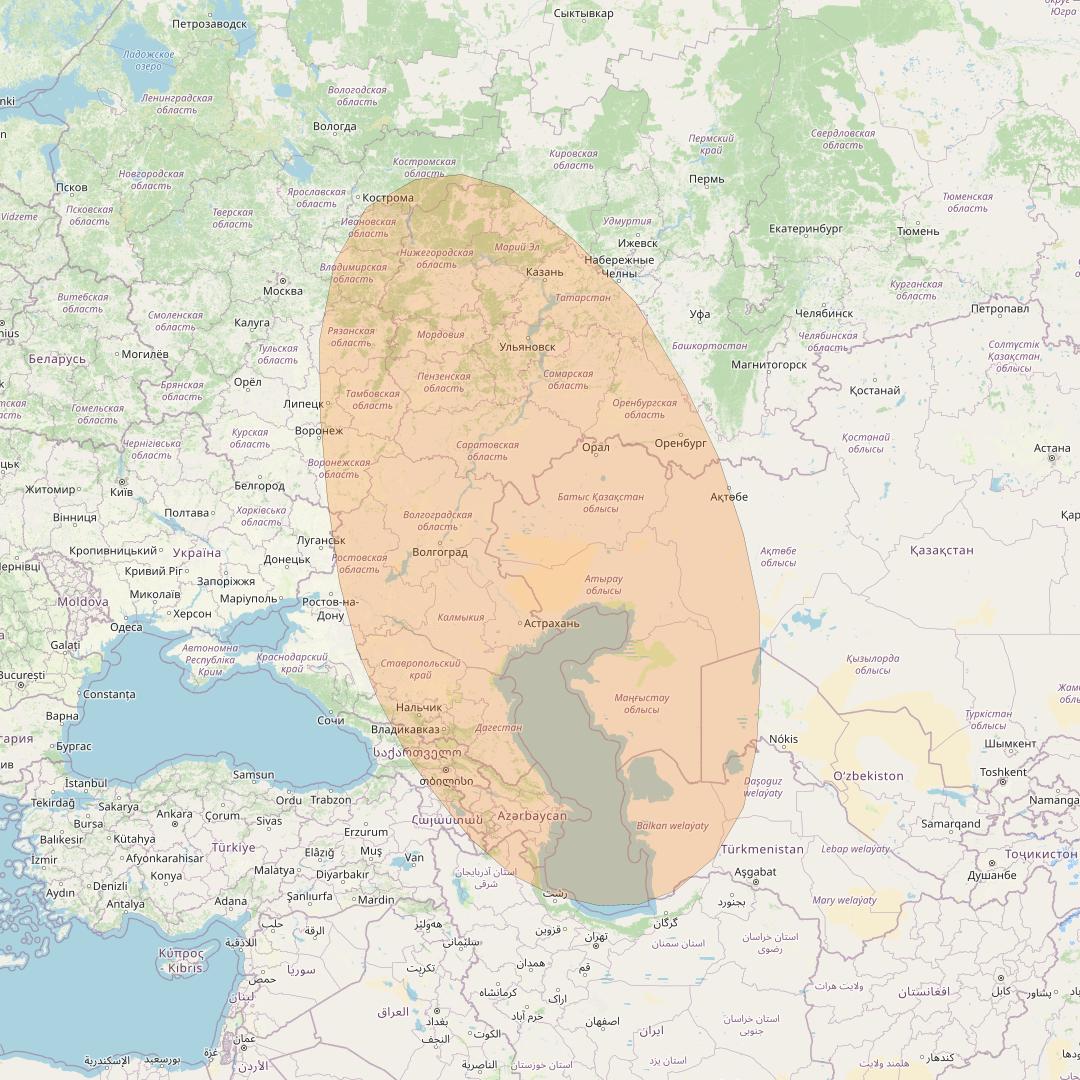

  • Inmarsat-5F1 at 63° E downlink Ka-band S37DL Spot beam coverage map

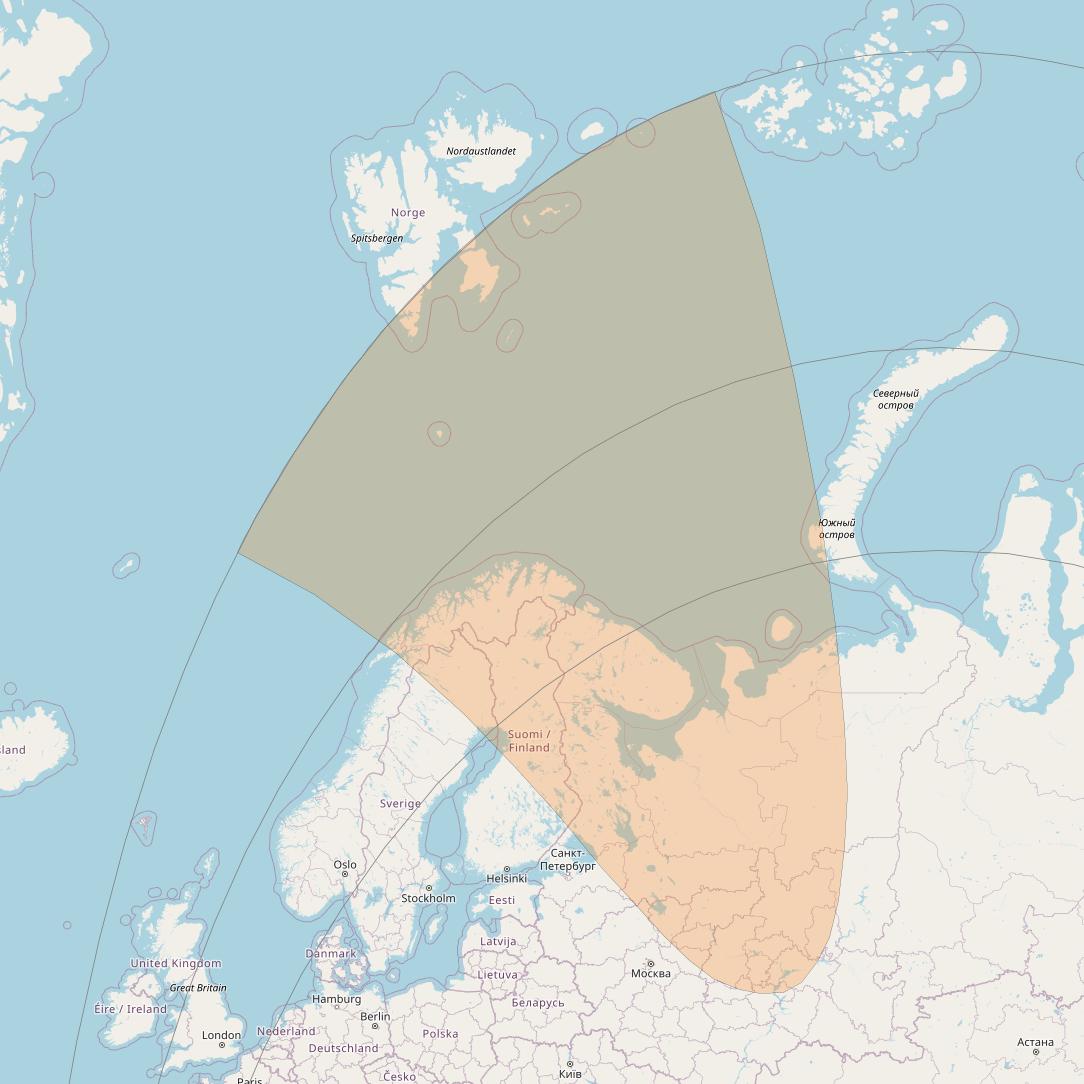

  • Inmarsat-5F1 at 63° E downlink Ka-band S38DL Spot beam coverage map

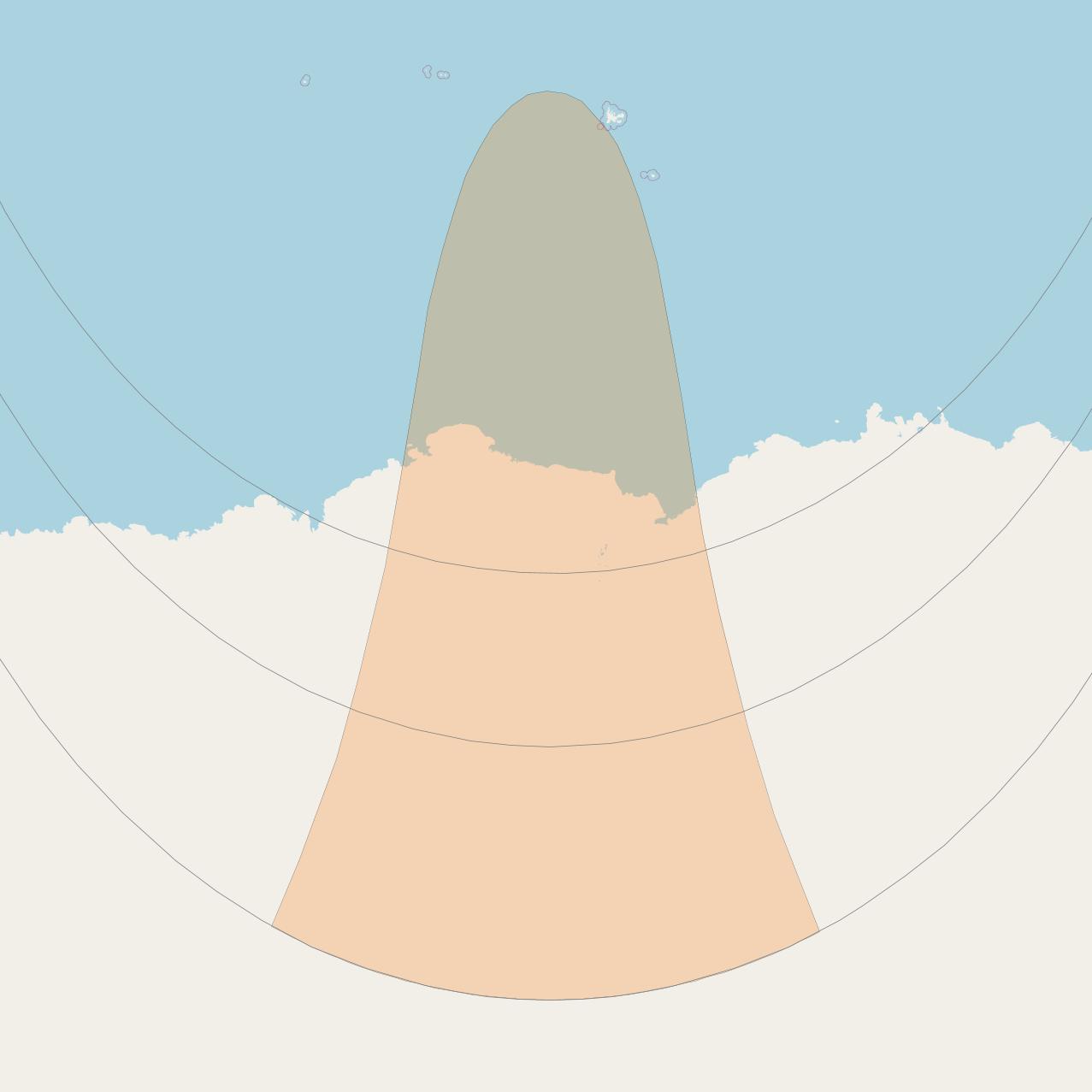

  • Inmarsat-5F1 at 63° E downlink Ka-band S39DL Spot beam coverage map

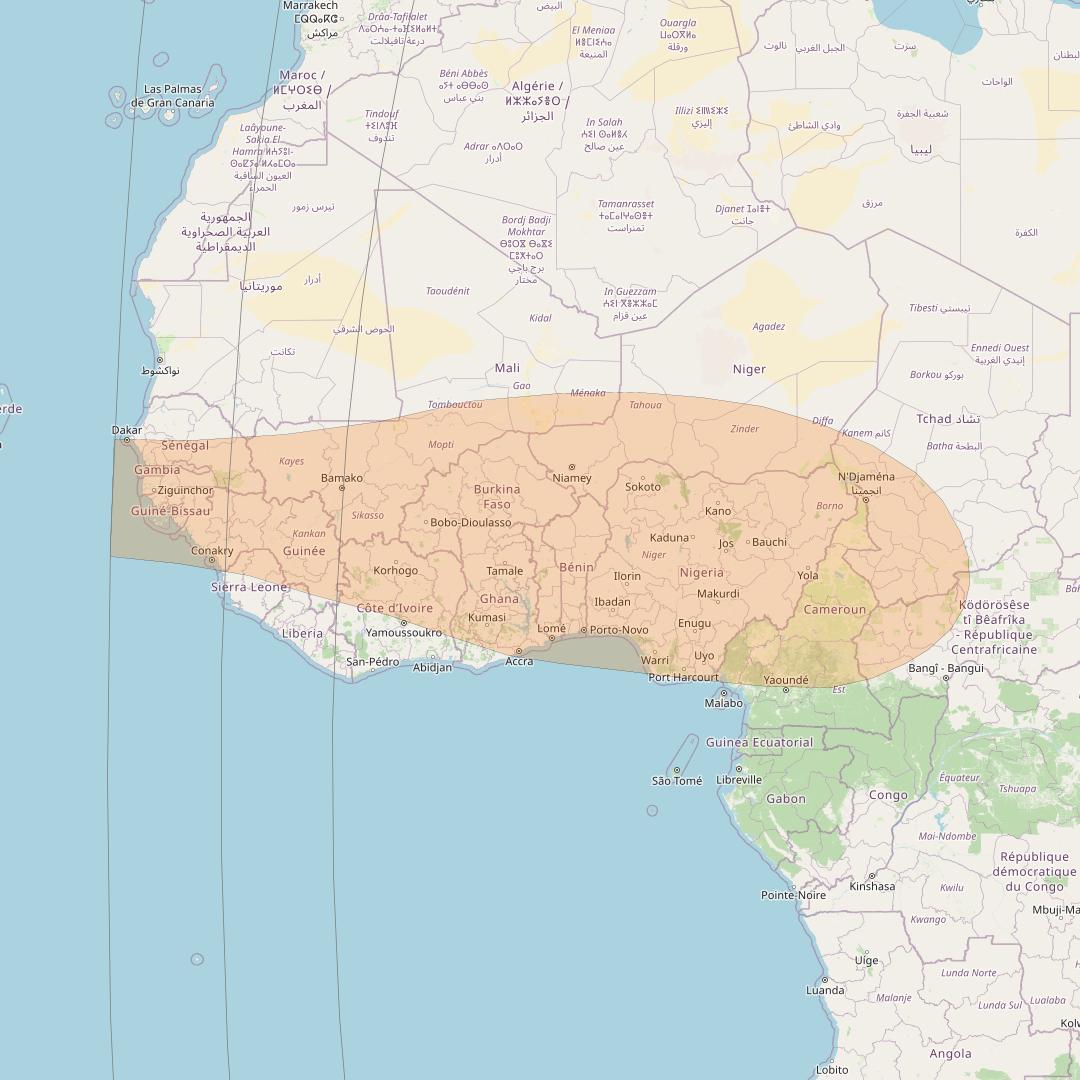

  • Inmarsat-5F1 at 63° E downlink Ka-band S3DL Spot beam coverage map

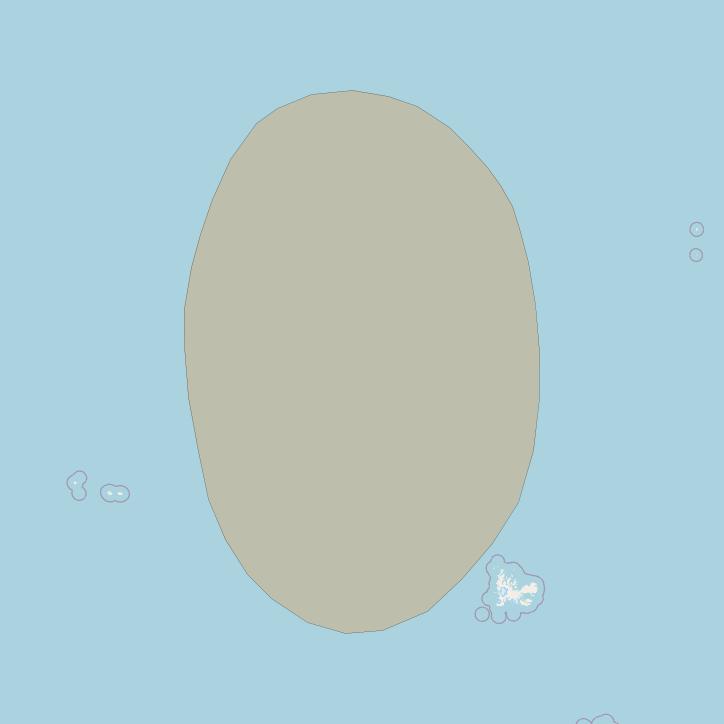

  • Inmarsat-5F1 at 63° E downlink Ka-band S40DL Spot beam coverage map

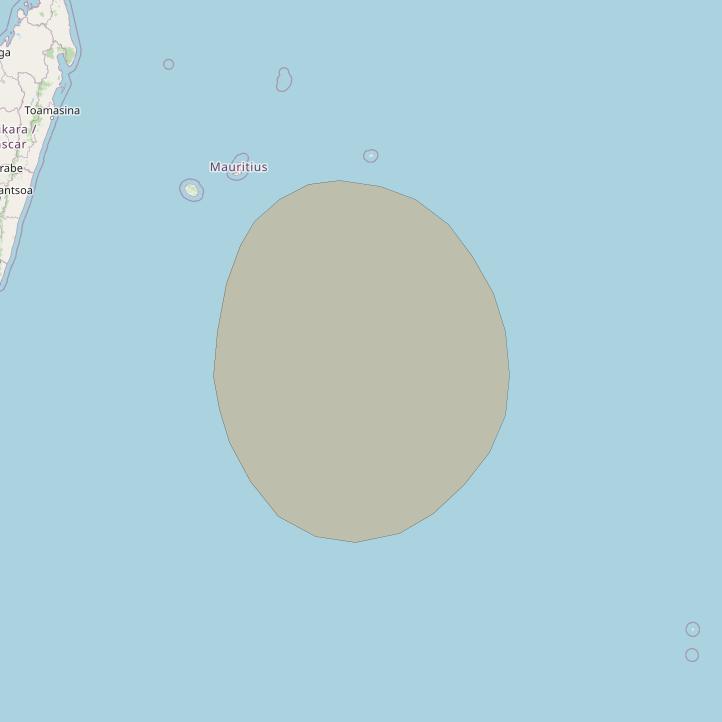

  • Inmarsat-5F1 at 63° E downlink Ka-band S41DL Spot beam coverage map

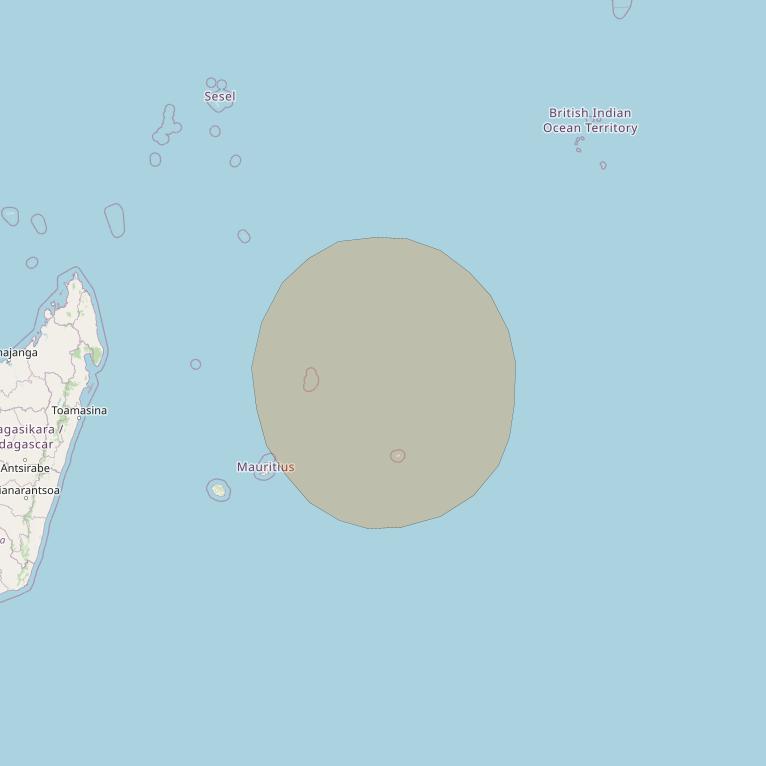

  • Inmarsat-5F1 at 63° E downlink Ka-band S42DL Spot beam coverage map

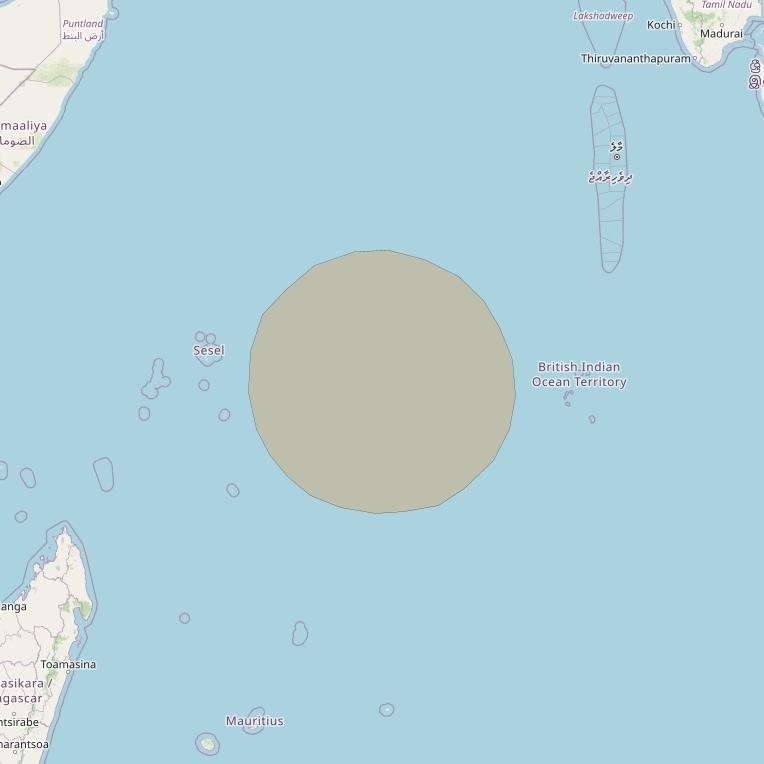

  • Inmarsat-5F1 at 63° E downlink Ka-band S43DL Spot beam coverage map

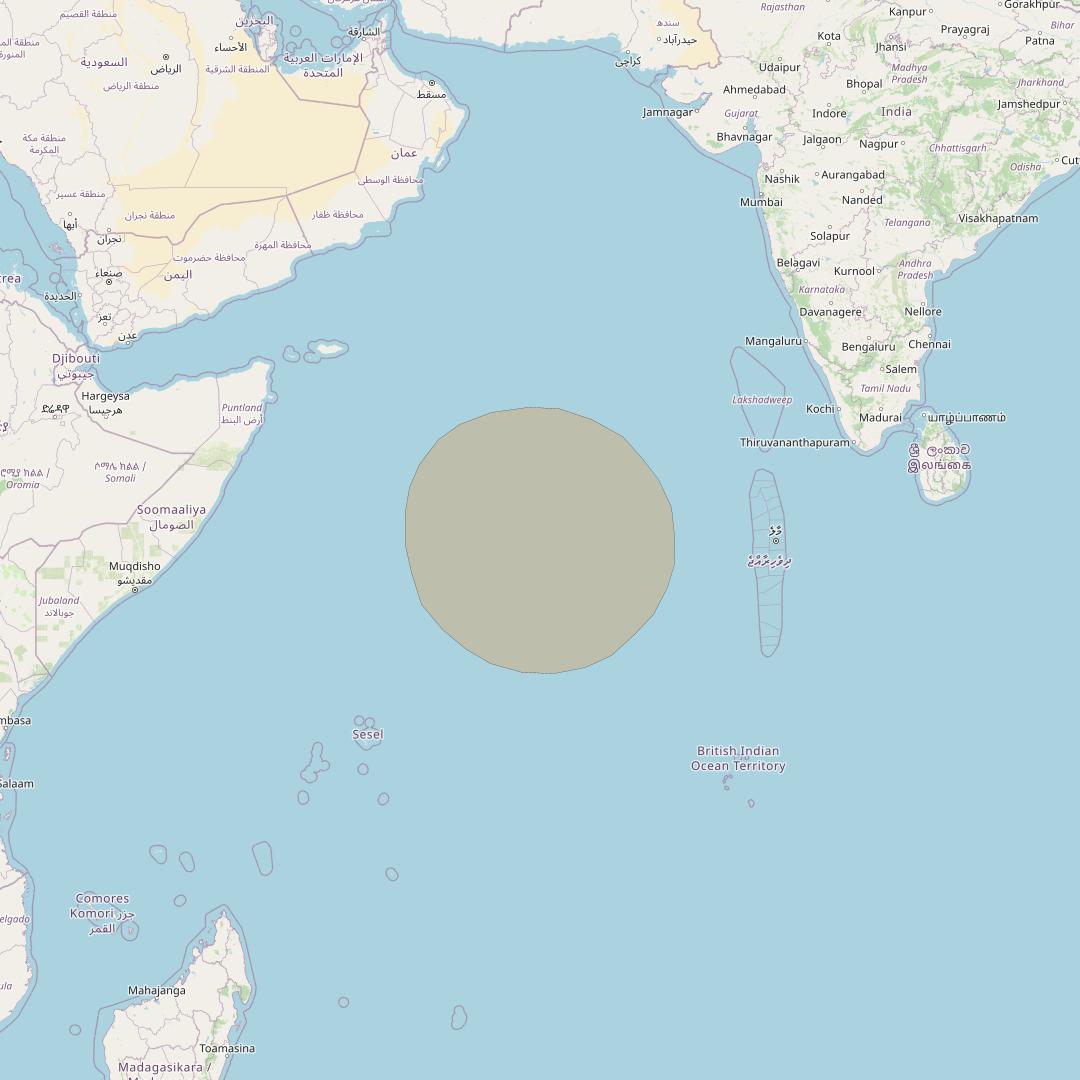

  • Inmarsat-5F1 at 63° E downlink Ka-band S44DL Spot beam coverage map

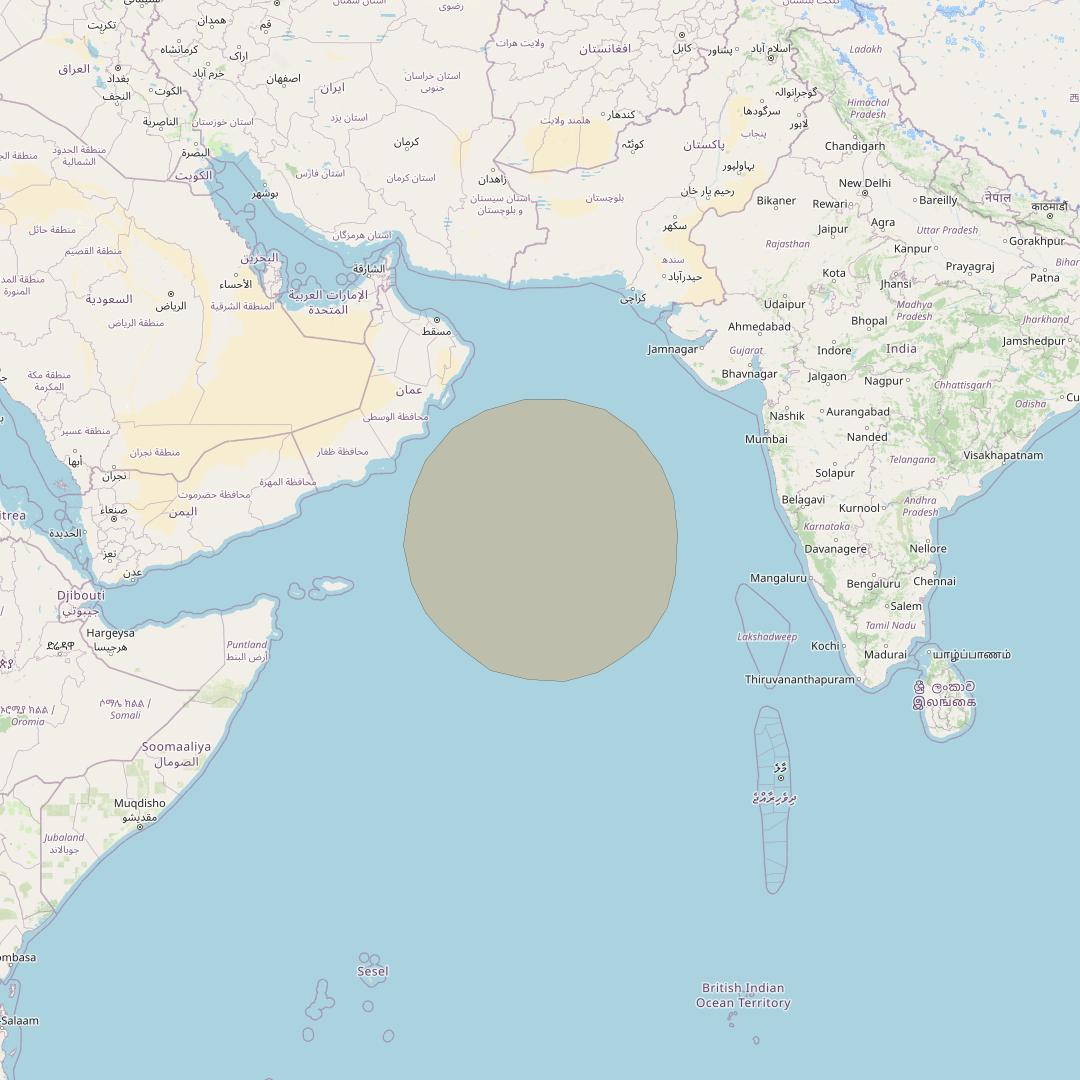

  • Inmarsat-5F1 at 63° E downlink Ka-band S45DL Spot beam coverage map

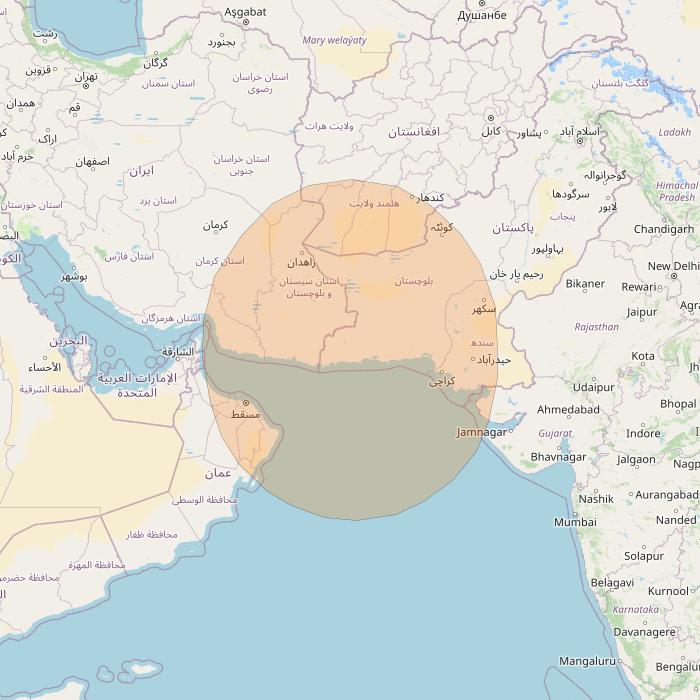

  • Inmarsat-5F1 at 63° E downlink Ka-band S46DL Spot beam coverage map

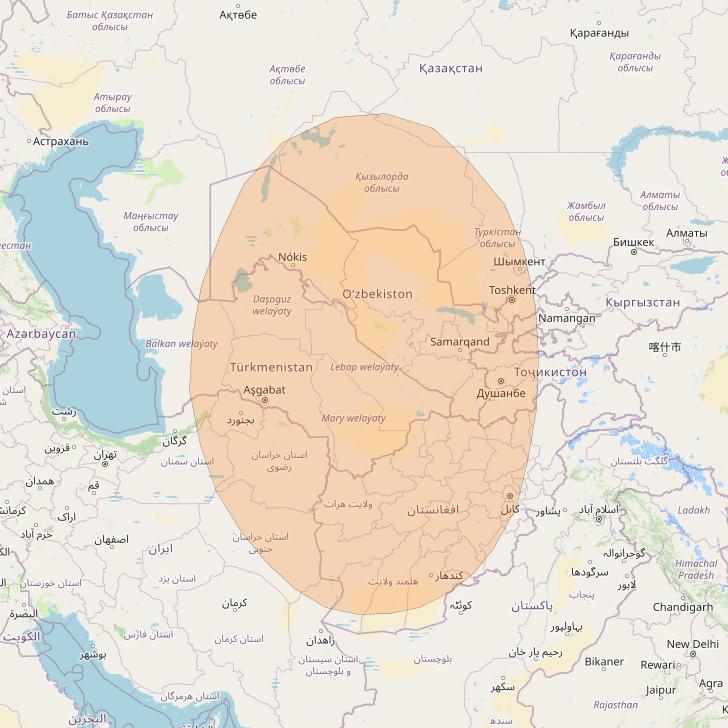

  • Inmarsat-5F1 at 63° E downlink Ka-band S47DL Spot beam coverage map

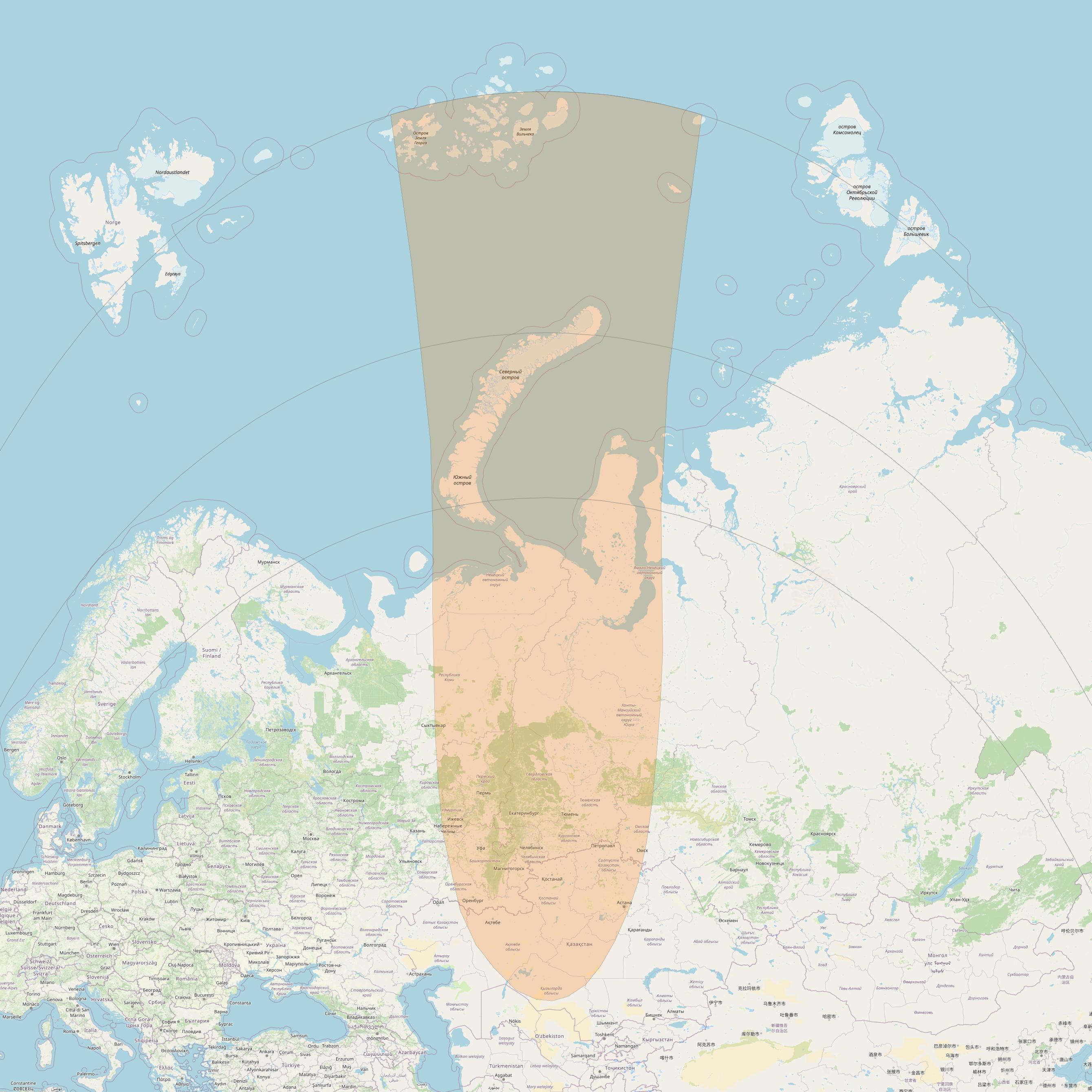

  • Inmarsat-5F1 at 63° E downlink Ka-band S48DL Spot beam coverage map

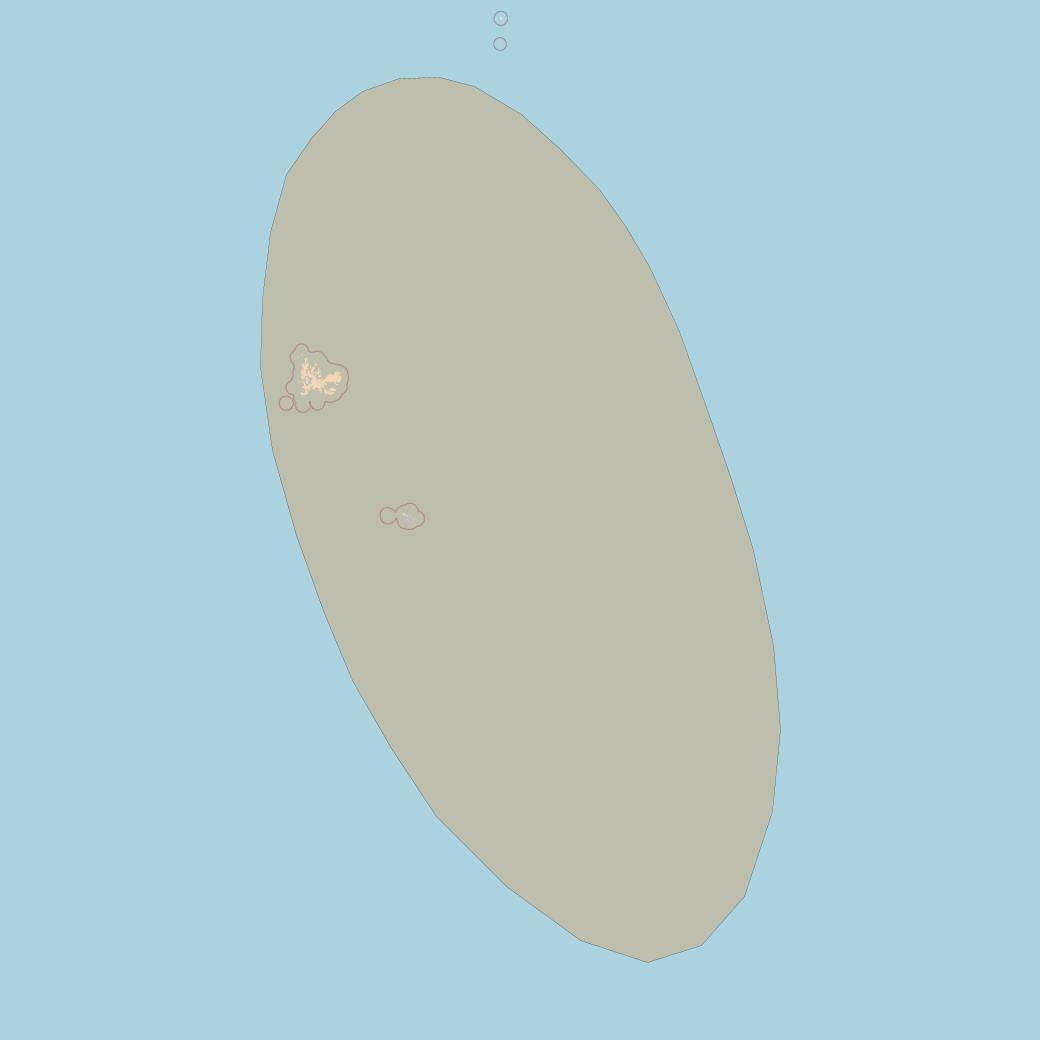

  • Inmarsat-5F1 at 63° E downlink Ka-band S49DL Spot beam coverage map

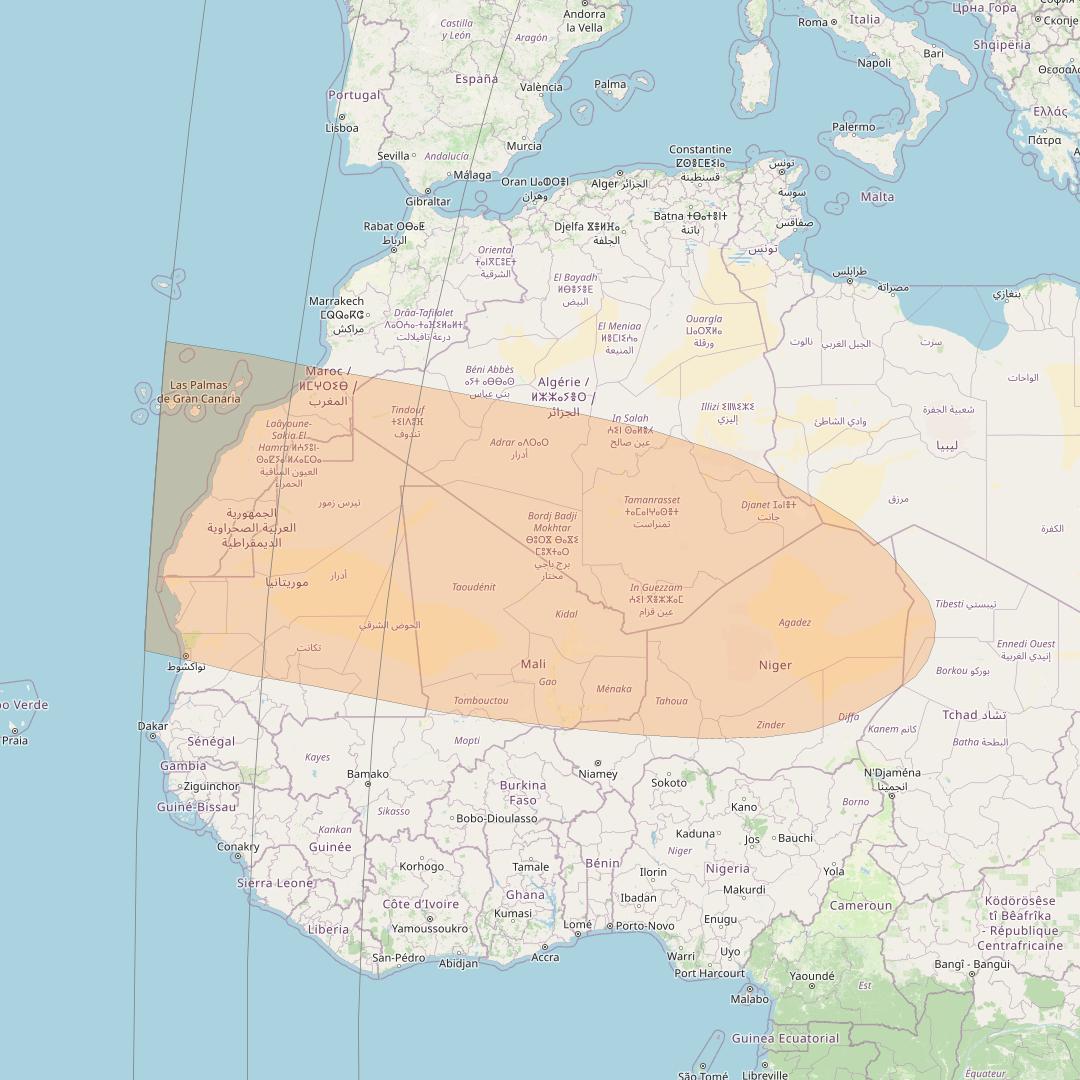

  • Inmarsat-5F1 at 63° E downlink Ka-band S4DL Spot beam coverage map

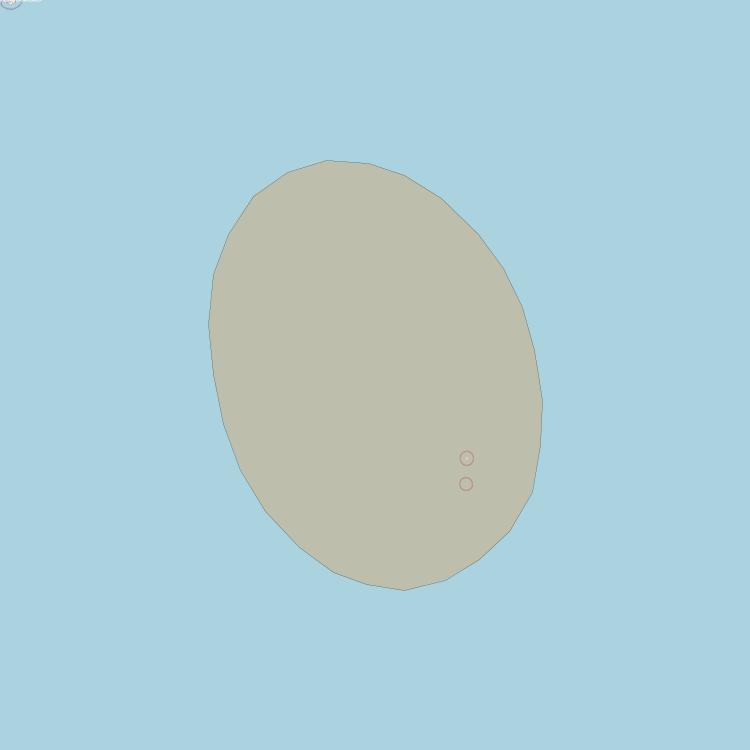

  • Inmarsat-5F1 at 63° E downlink Ka-band S50DL Spot beam coverage map

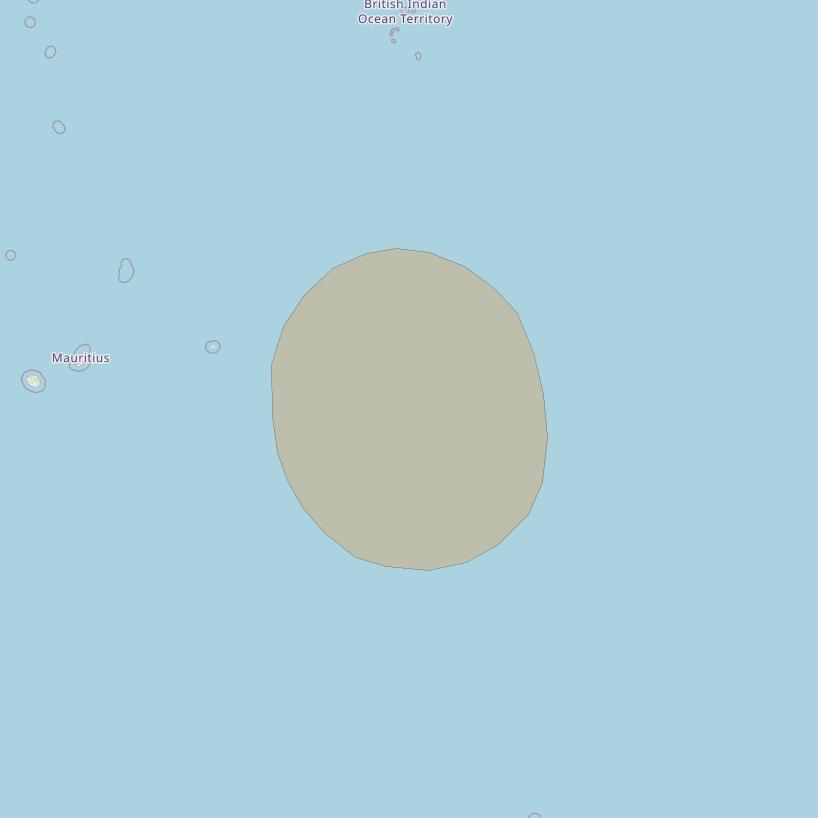

  • Inmarsat-5F1 at 63° E downlink Ka-band S51DL Spot beam coverage map

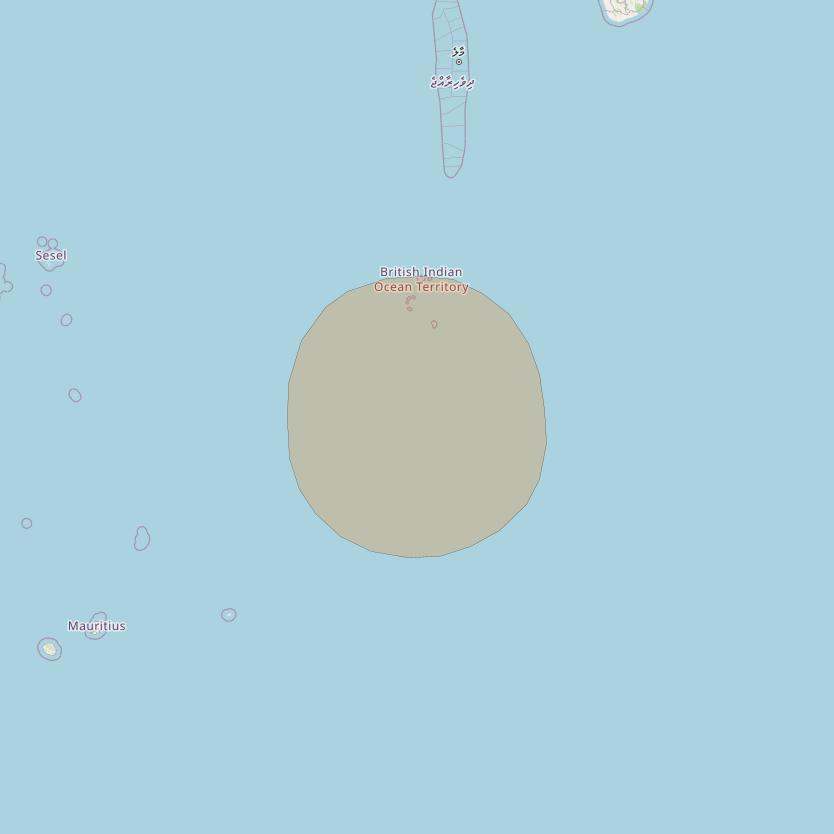

  • Inmarsat-5F1 at 63° E downlink Ka-band S52DL Spot beam coverage map

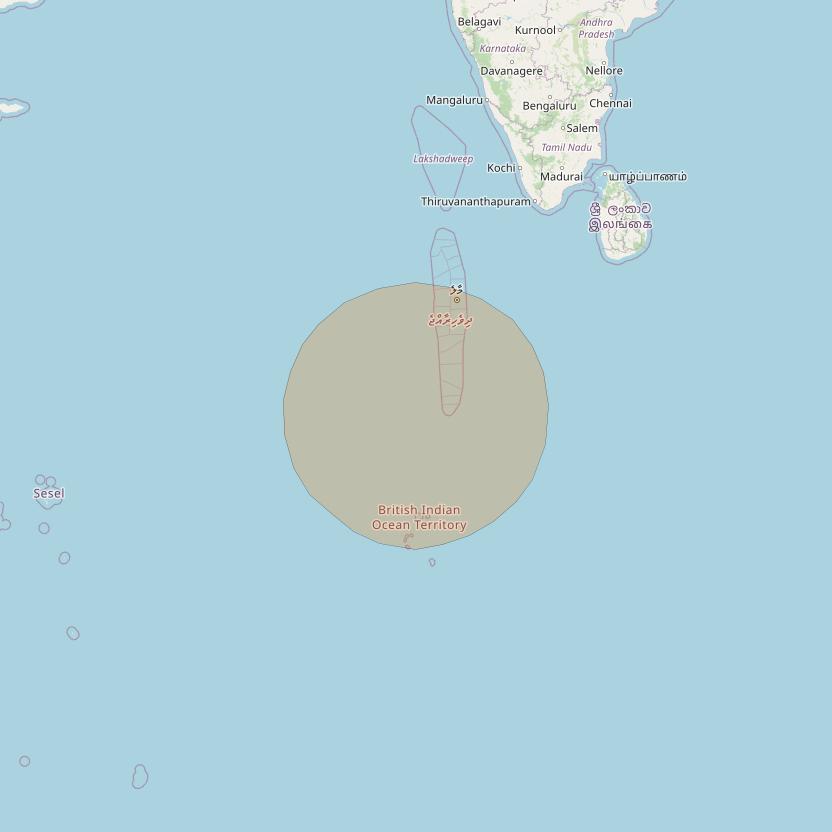

  • Inmarsat-5F1 at 63° E downlink Ka-band S53DL Spot beam coverage map

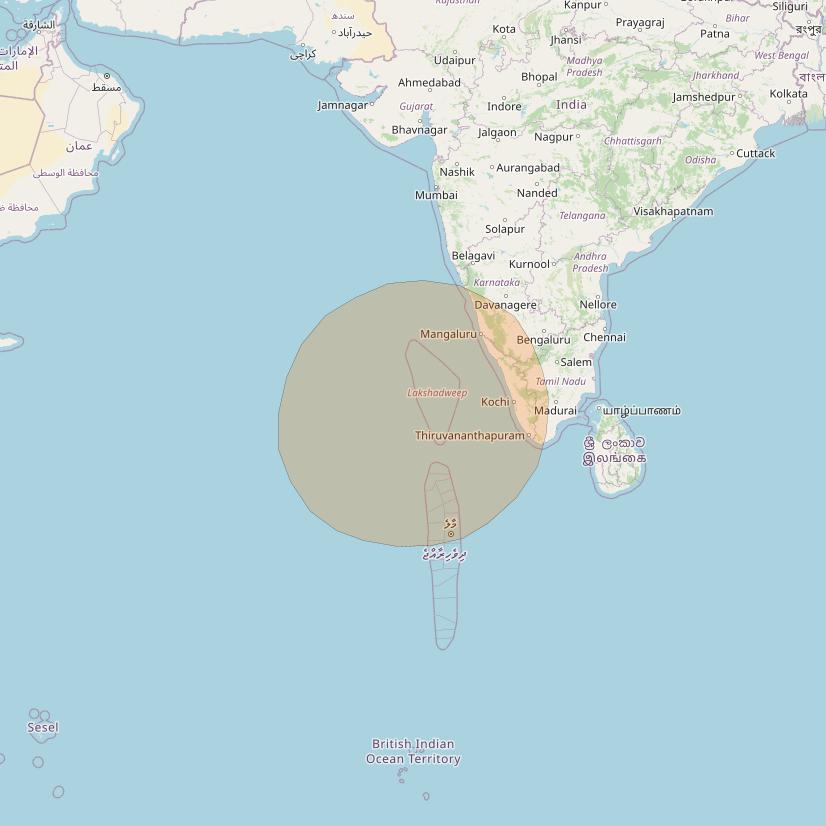

  • Inmarsat-5F1 at 63° E downlink Ka-band S54DL Spot beam coverage map

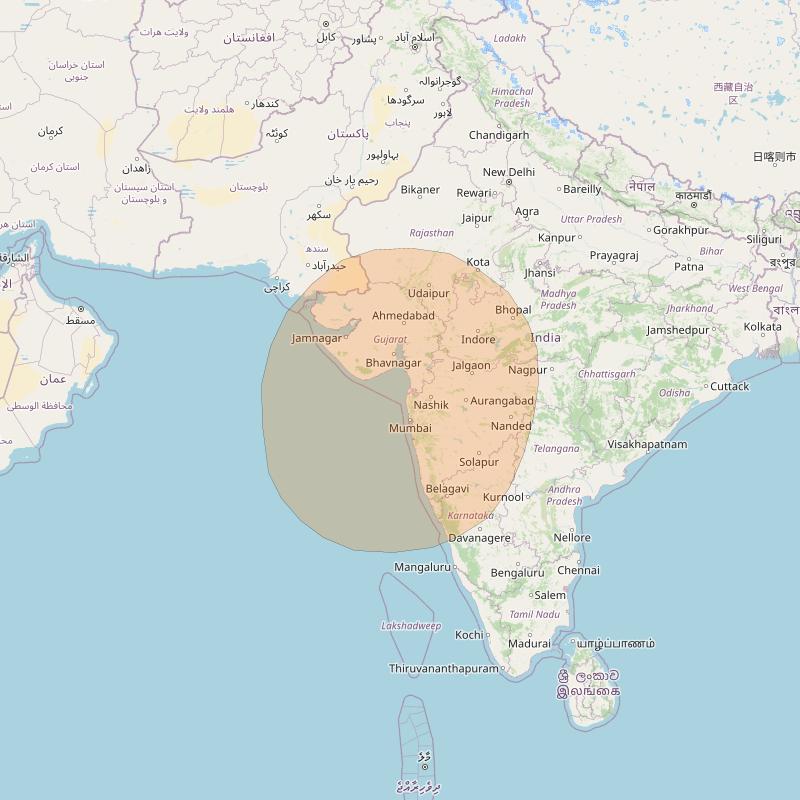

  • Inmarsat-5F1 at 63° E downlink Ka-band S55DL Spot beam coverage map

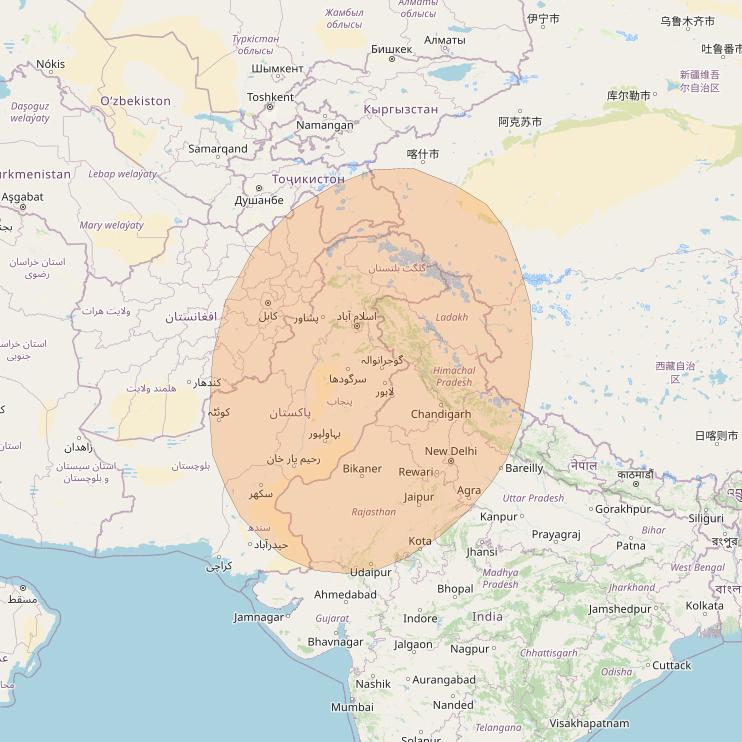

  • Inmarsat-5F1 at 63° E downlink Ka-band S56DL Spot beam coverage map

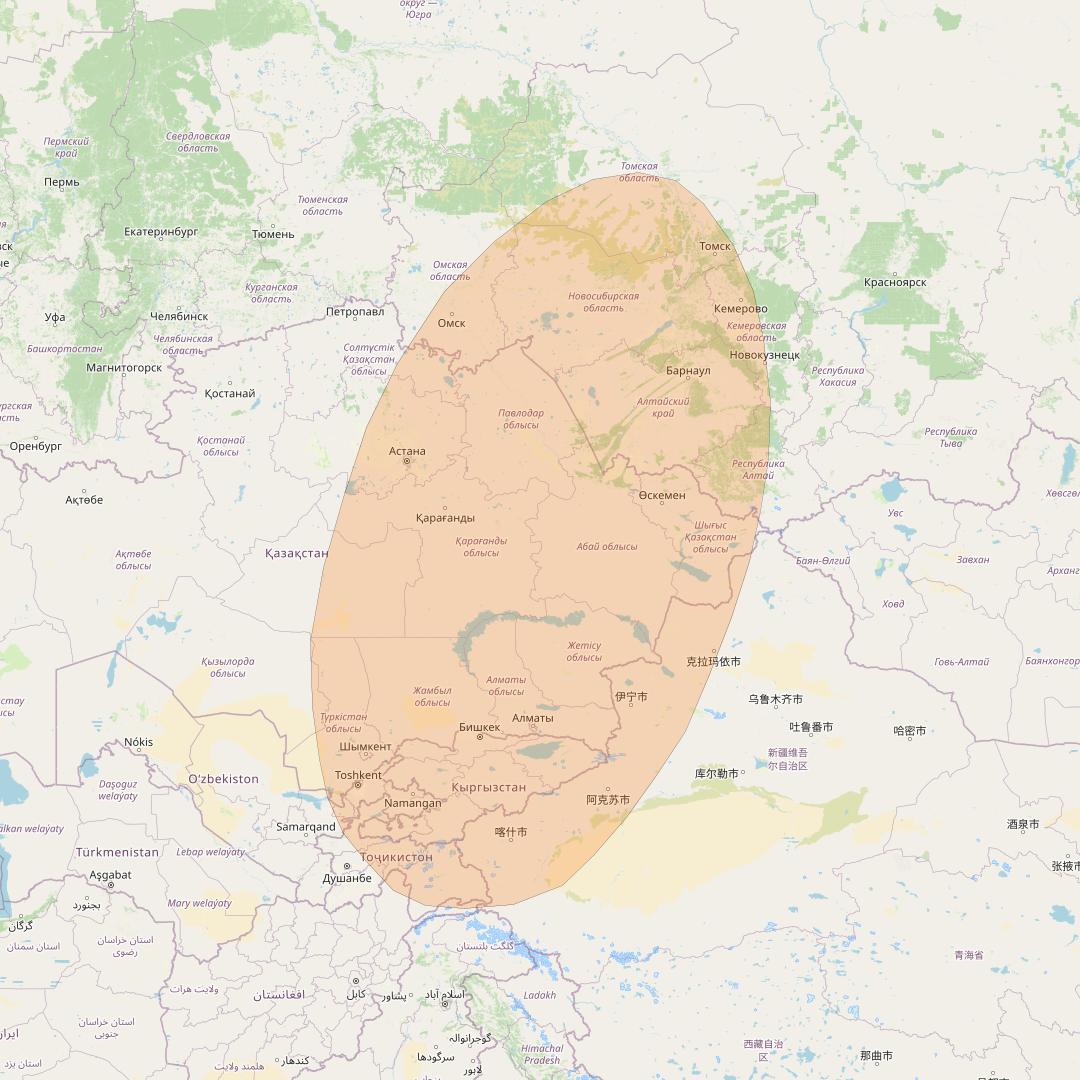

  • Inmarsat-5F1 at 63° E downlink Ka-band S57DL Spot beam coverage map

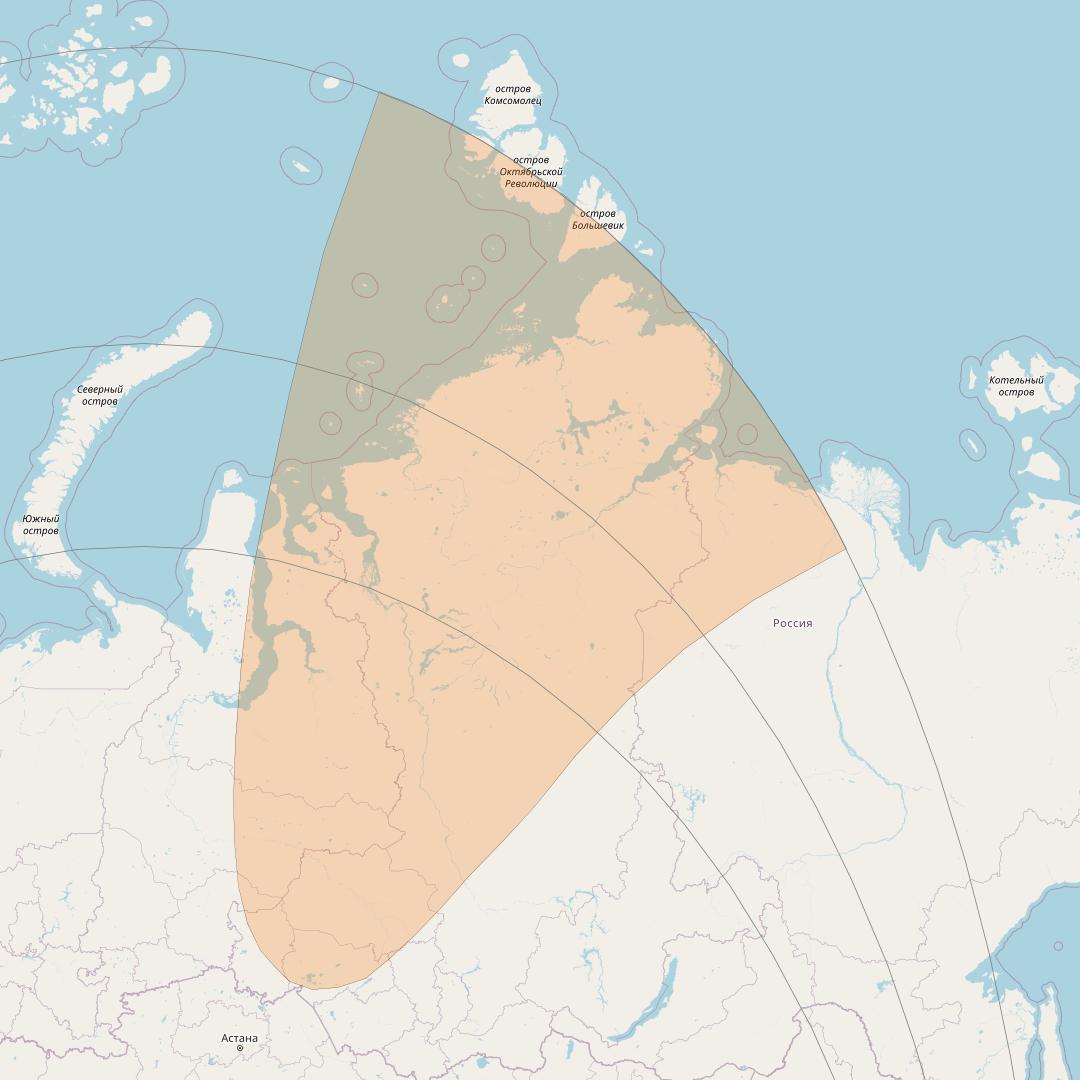

  • Inmarsat-5F1 at 63° E downlink Ka-band S58DL Spot beam coverage map

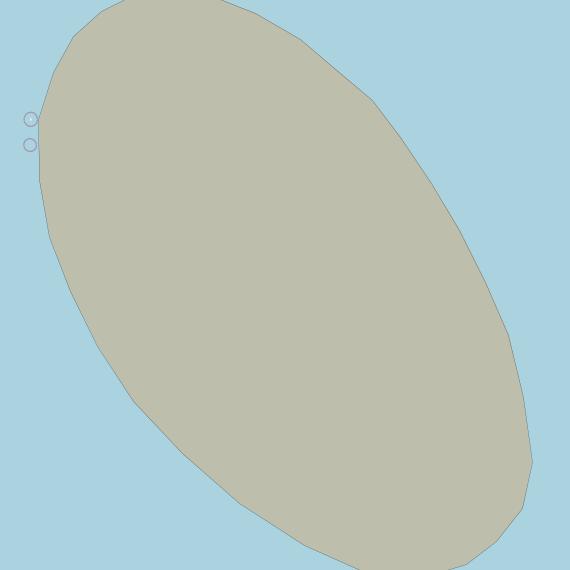

  • Inmarsat-5F1 at 63° E downlink Ka-band S59DL Spot beam coverage map

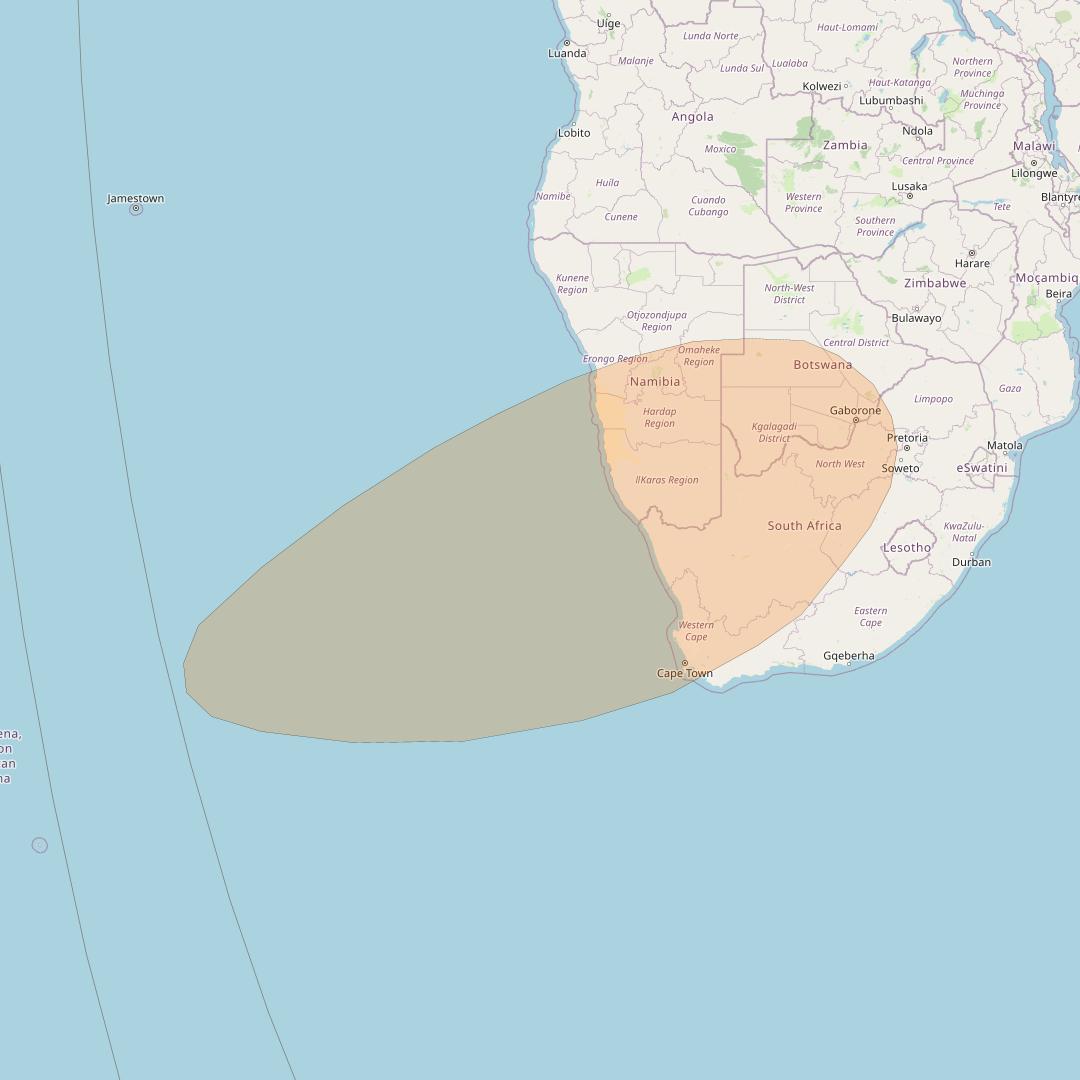

  • Inmarsat-5F1 at 63° E downlink Ka-band S5DL Spot beam coverage map

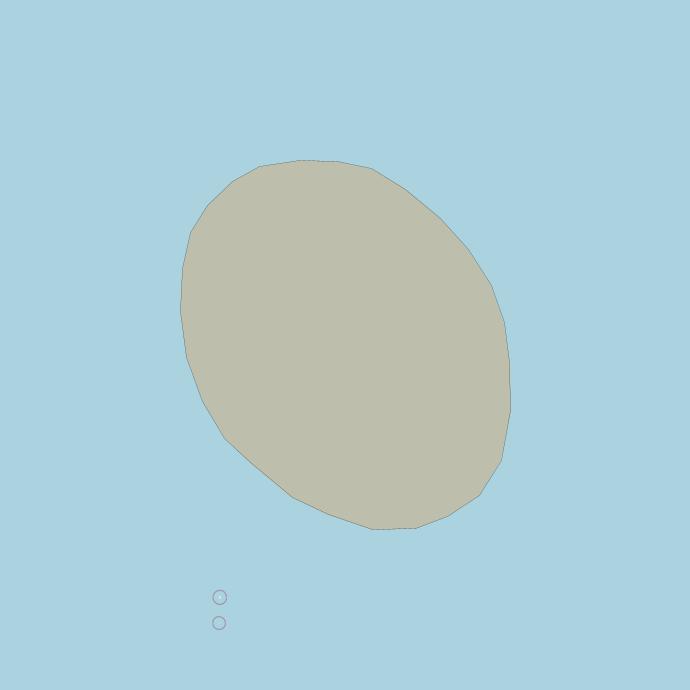

  • Inmarsat-5F1 at 63° E downlink Ka-band S60DL Spot beam coverage map
  • Inmarsat-5F1 at 63° E downlink Ka-band S61DL Spot beam coverage map

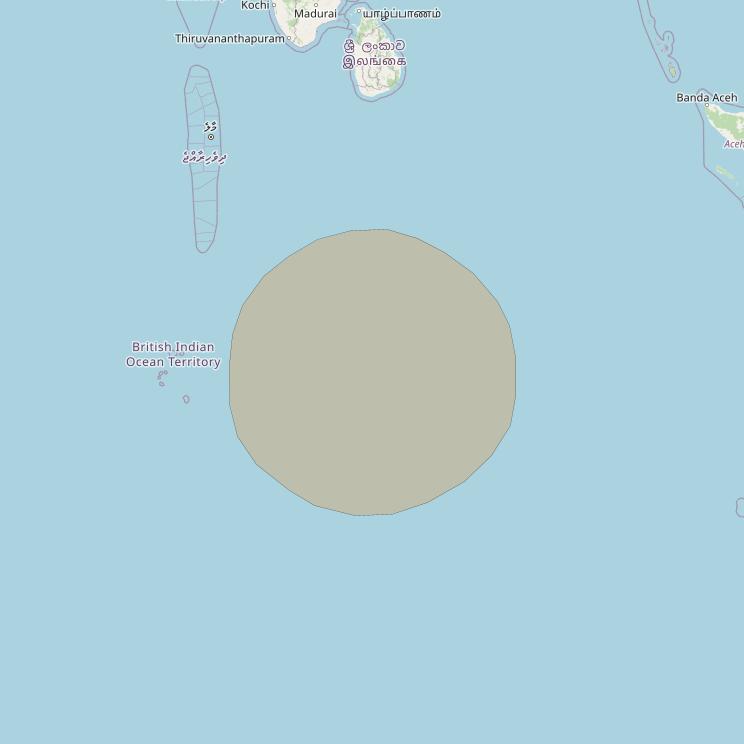

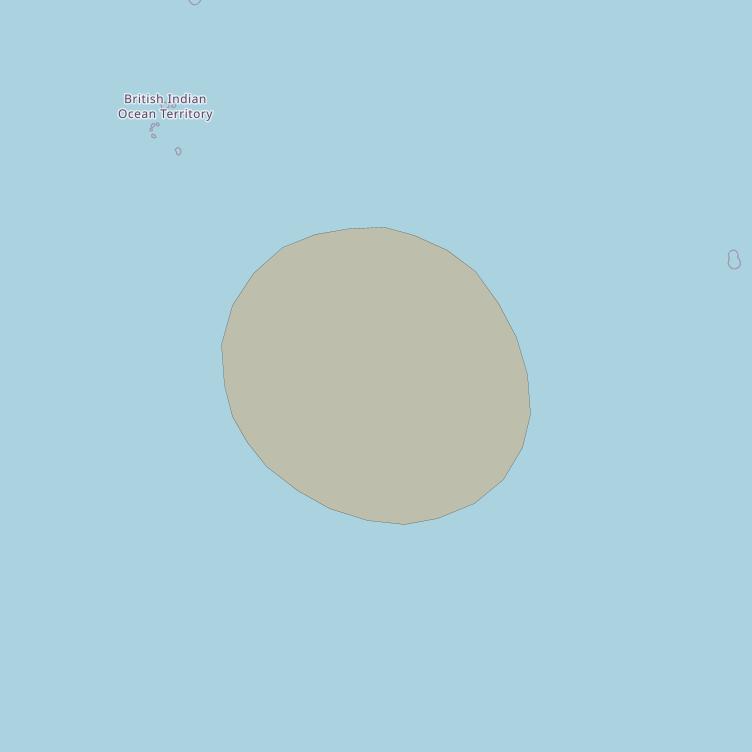

  • Inmarsat-5F1 at 63° E downlink Ka-band S62DL Spot beam coverage map

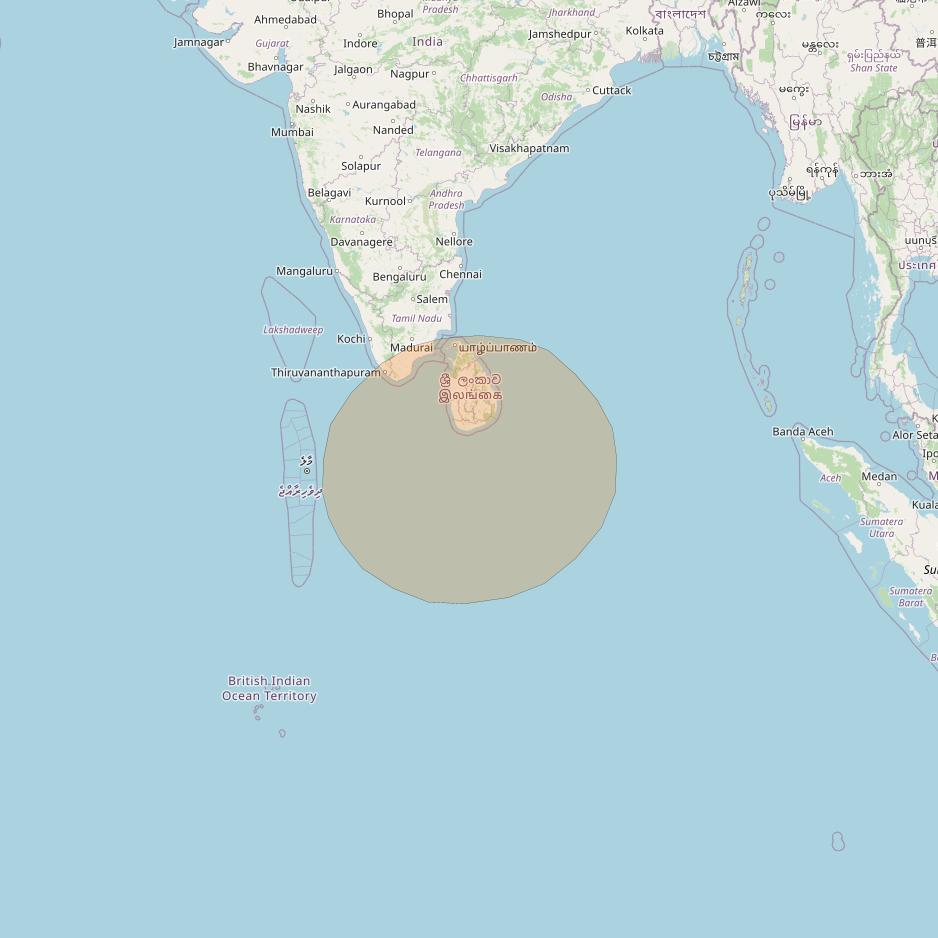

  • Inmarsat-5F1 at 63° E downlink Ka-band S63DL Spot beam coverage map

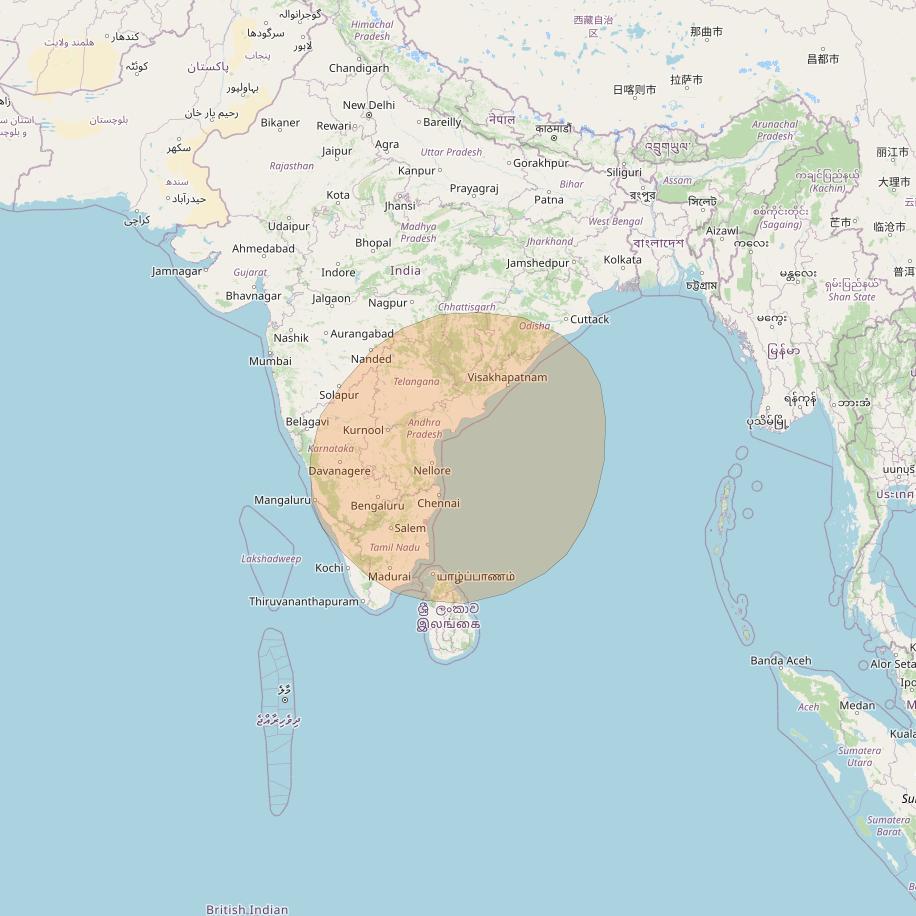

  • Inmarsat-5F1 at 63° E downlink Ka-band S64DL Spot beam coverage map

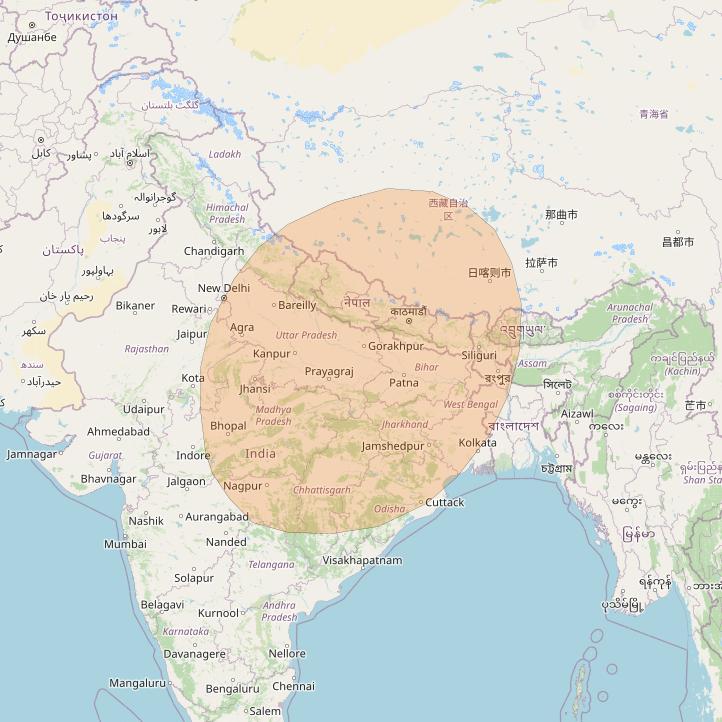

  • Inmarsat-5F1 at 63° E downlink Ka-band S65DL Spot beam coverage map

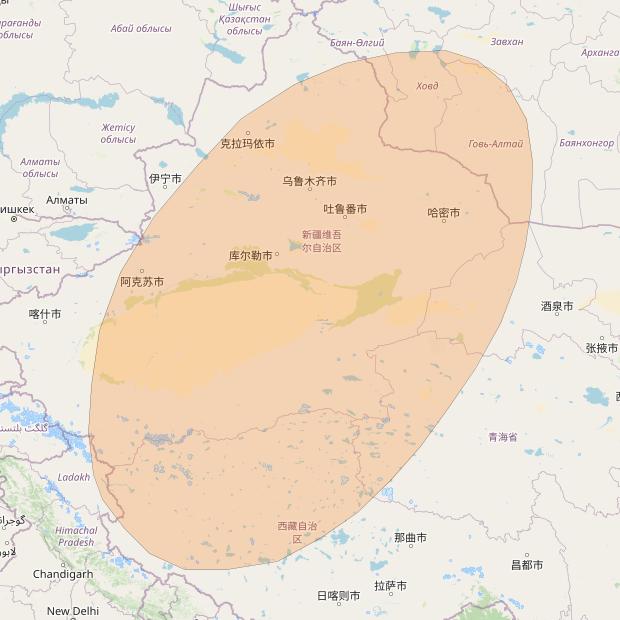

  • Inmarsat-5F1 at 63° E downlink Ka-band S66DL Spot beam coverage map

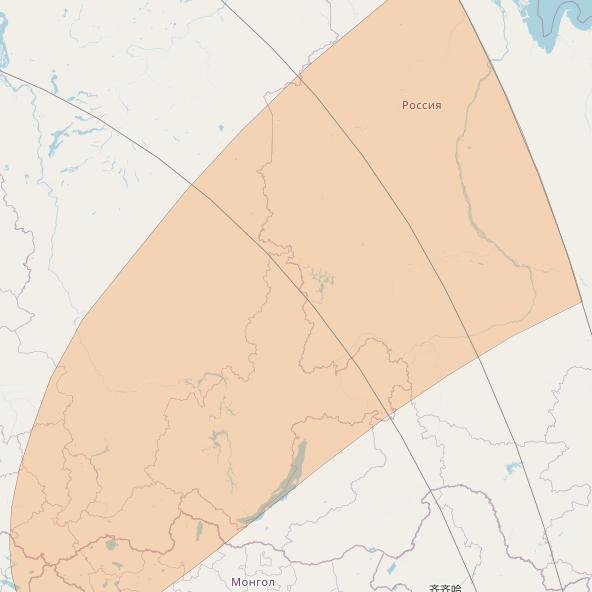

  • Inmarsat-5F1 at 63° E downlink Ka-band S67DL Spot beam coverage map

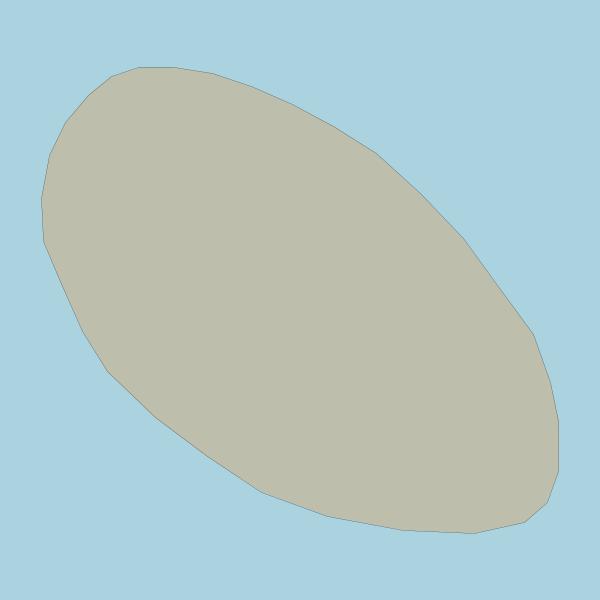

  • Inmarsat-5F1 at 63° E downlink Ka-band S68DL Spot beam coverage map

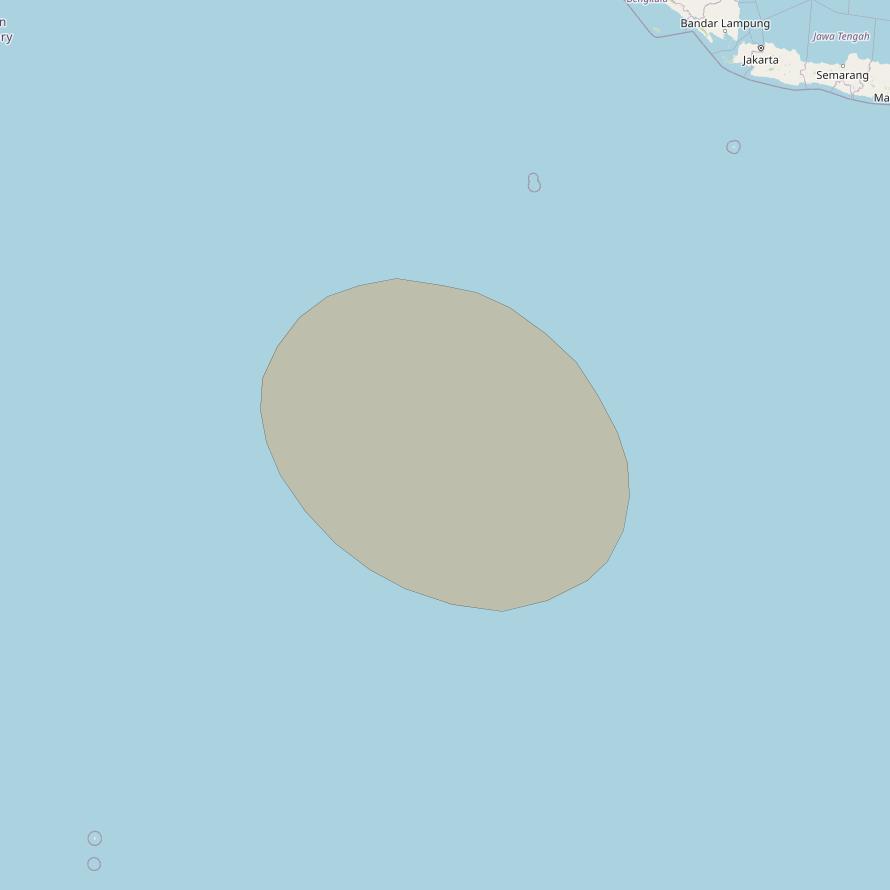

  • Inmarsat-5F1 at 63° E downlink Ka-band S69DL Spot beam coverage map

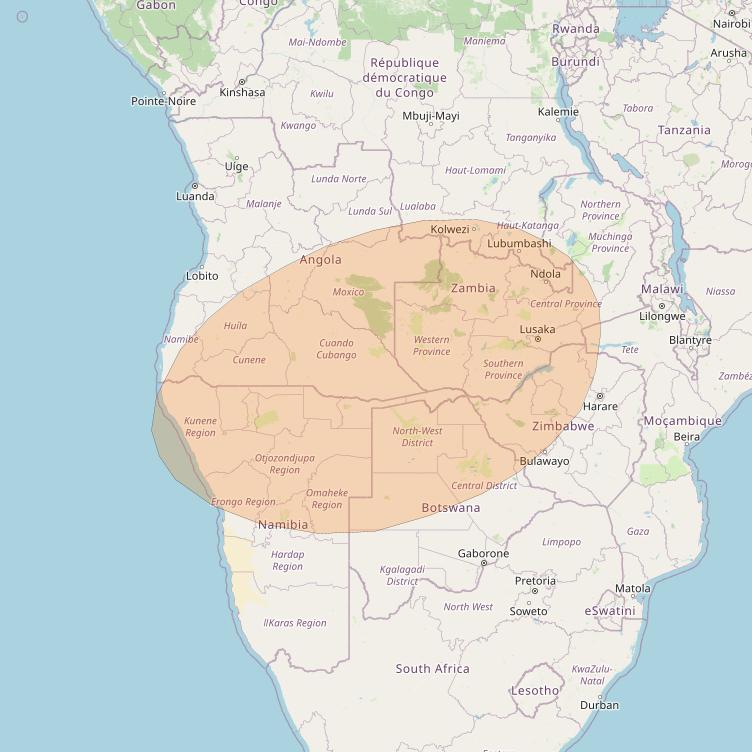

  • Inmarsat-5F1 at 63° E downlink Ka-band S6DL Spot beam coverage map

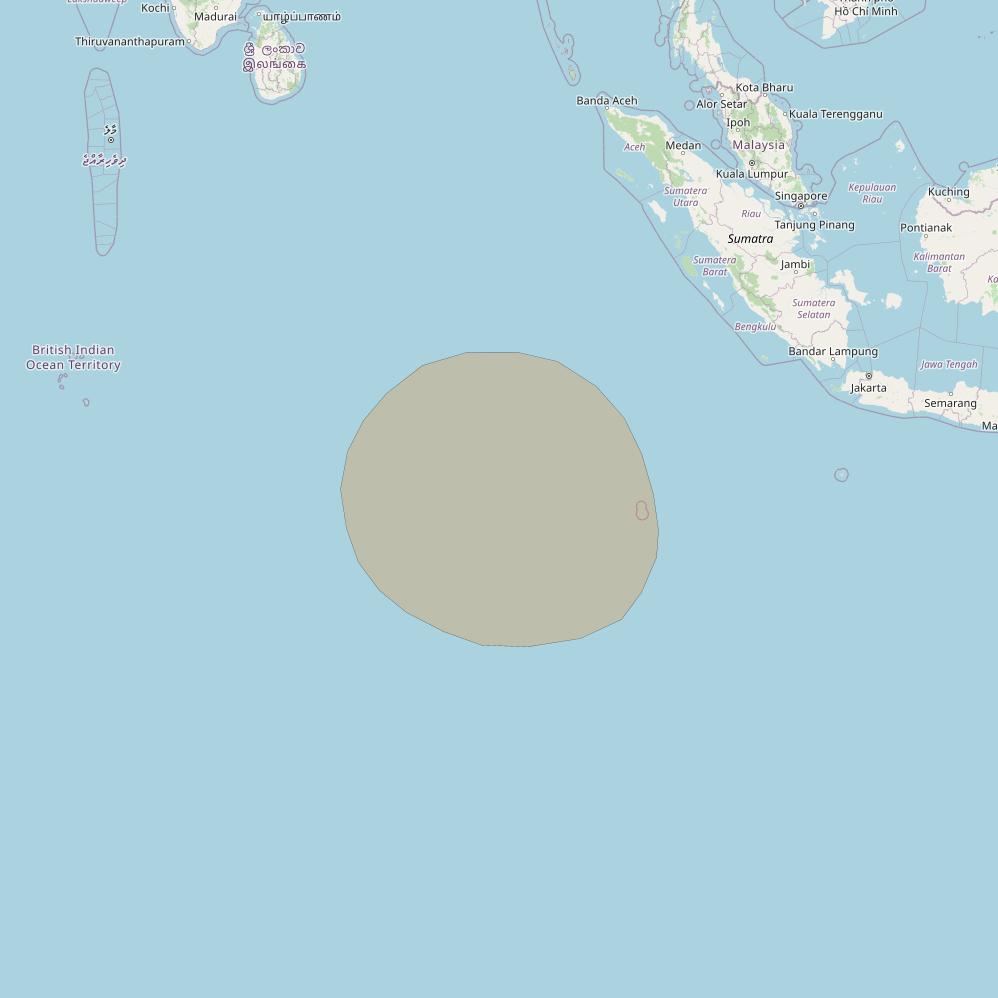

  • Inmarsat-5F1 at 63° E downlink Ka-band S70DL Spot beam coverage map

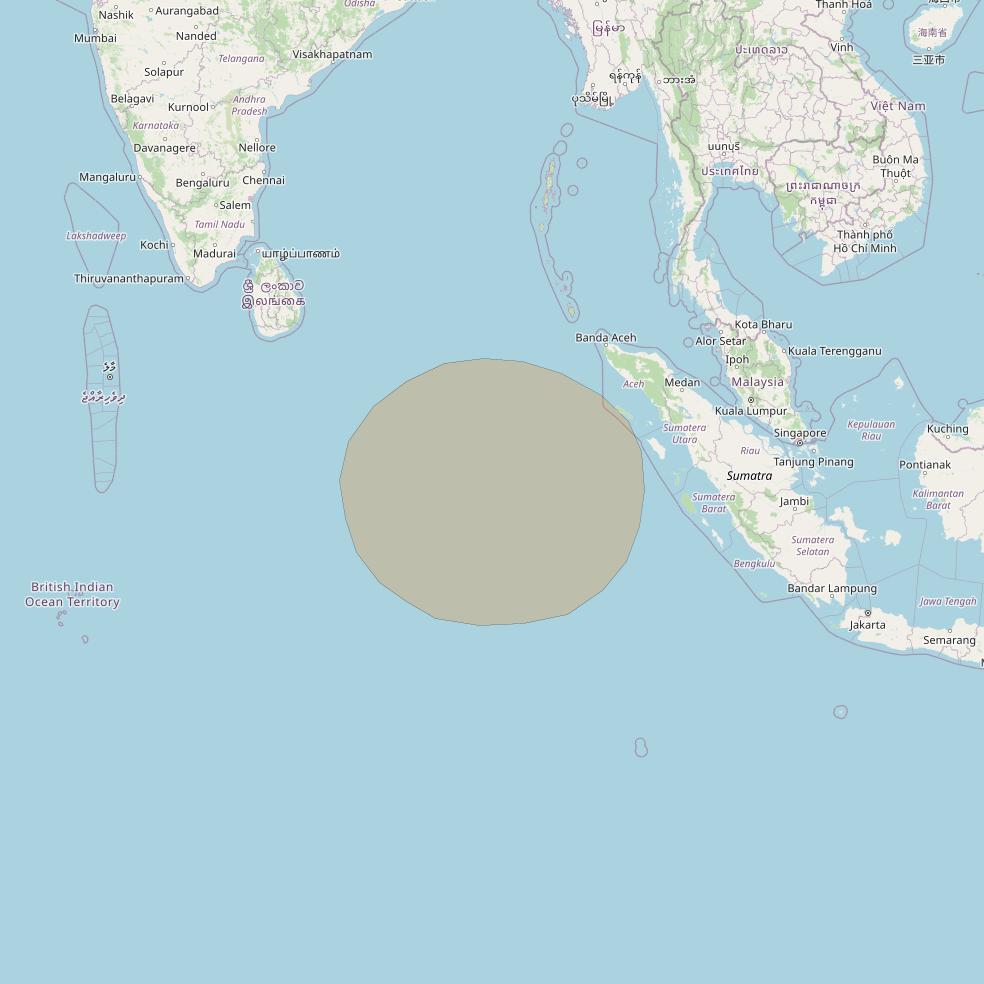

  • Inmarsat-5F1 at 63° E downlink Ka-band S71DL Spot beam coverage map

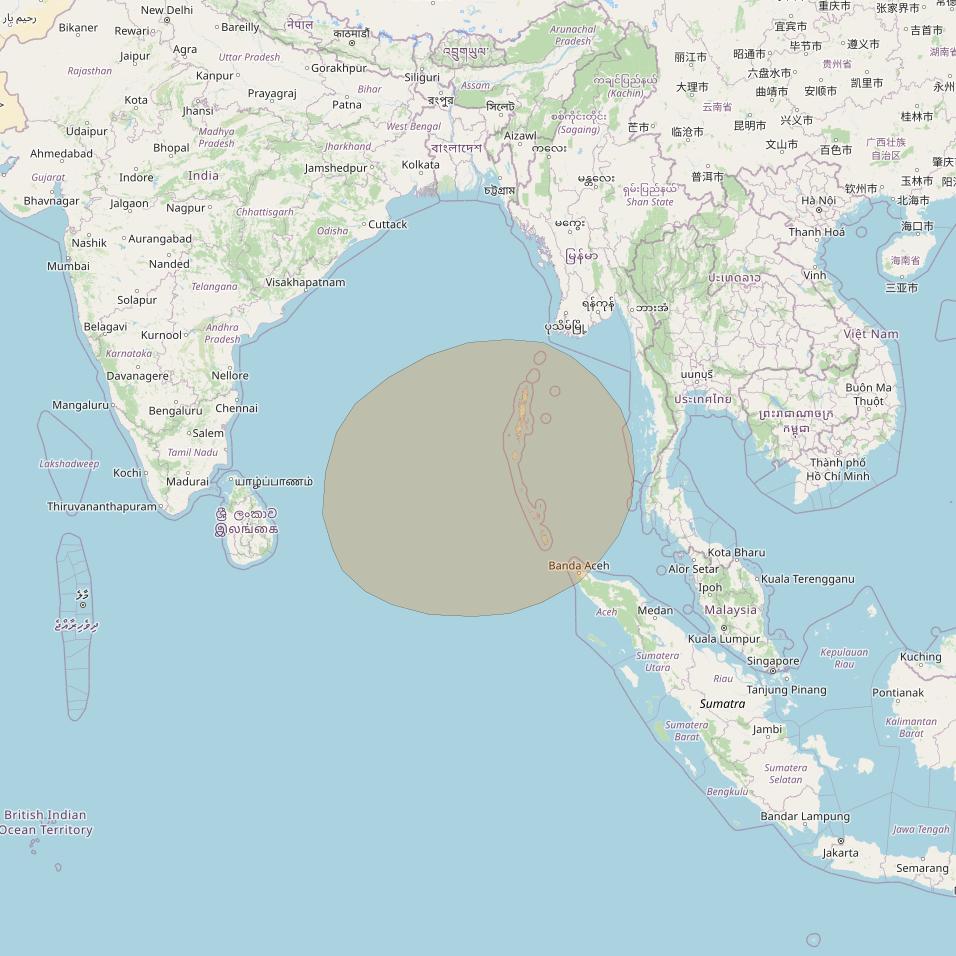

  • Inmarsat-5F1 at 63° E downlink Ka-band S72DL Spot beam coverage map

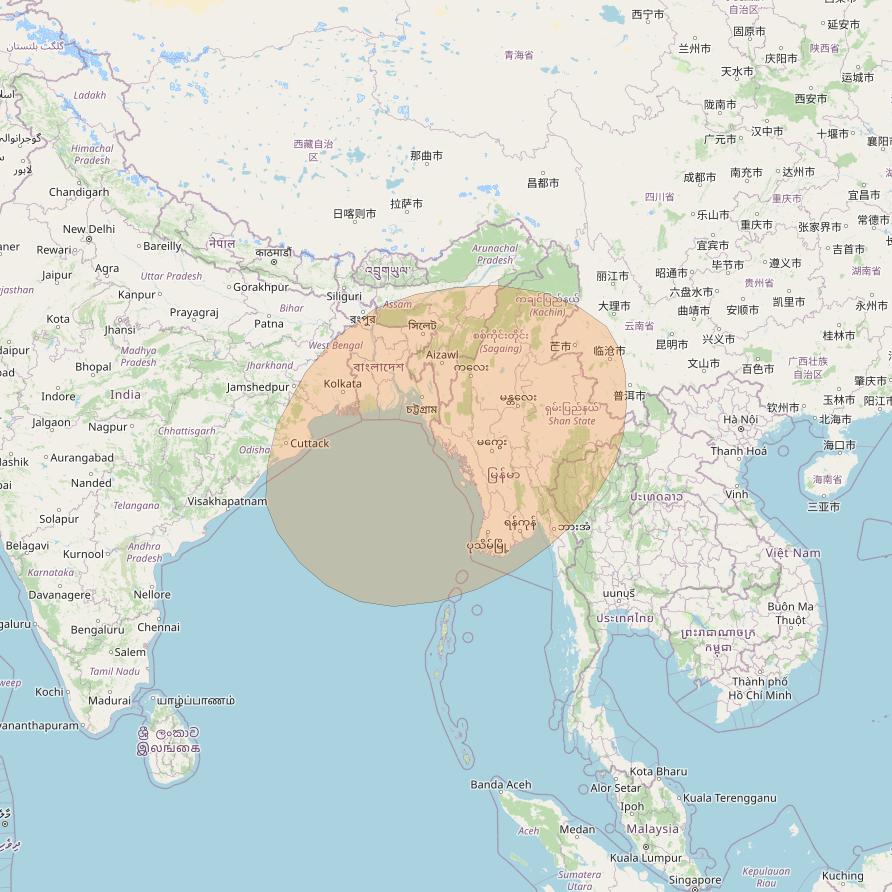

  • Inmarsat-5F1 at 63° E downlink Ka-band S73DL Spot beam coverage map

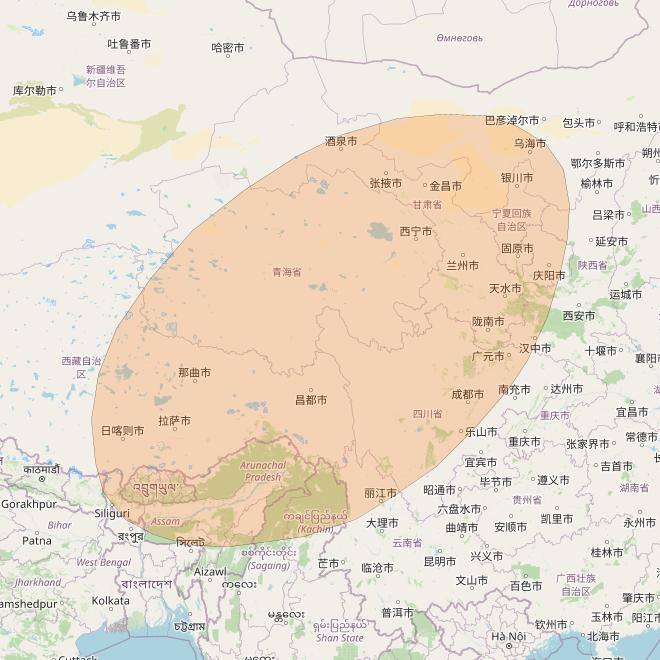

  • Inmarsat-5F1 at 63° E downlink Ka-band S74DL Spot beam coverage map

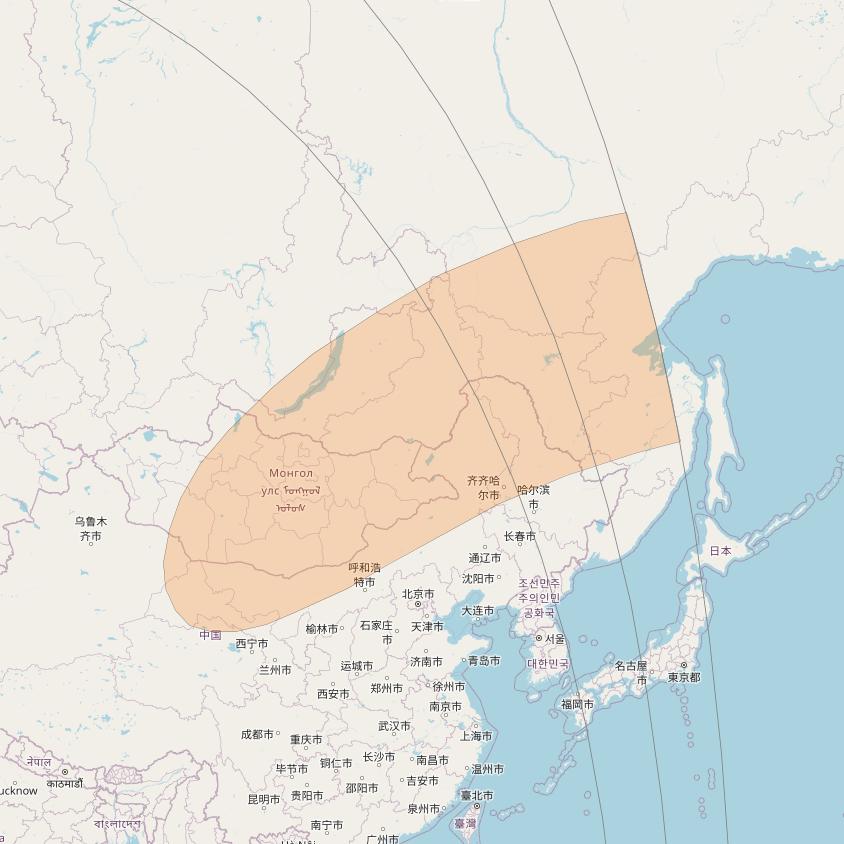

  • Inmarsat-5F1 at 63° E downlink Ka-band S75DL Spot beam coverage map

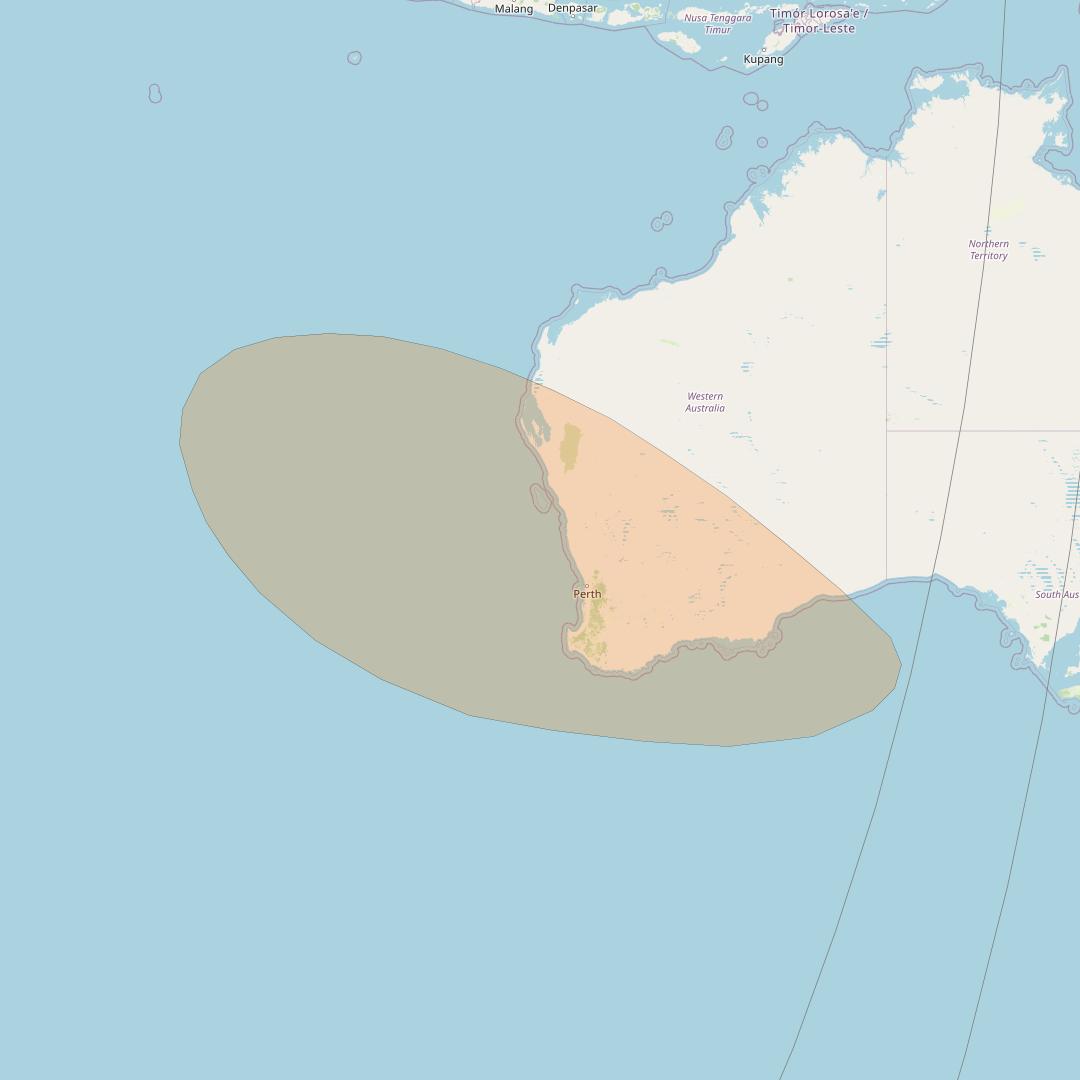

  • Inmarsat-5F1 at 63° E downlink Ka-band S76DL Spot beam coverage map

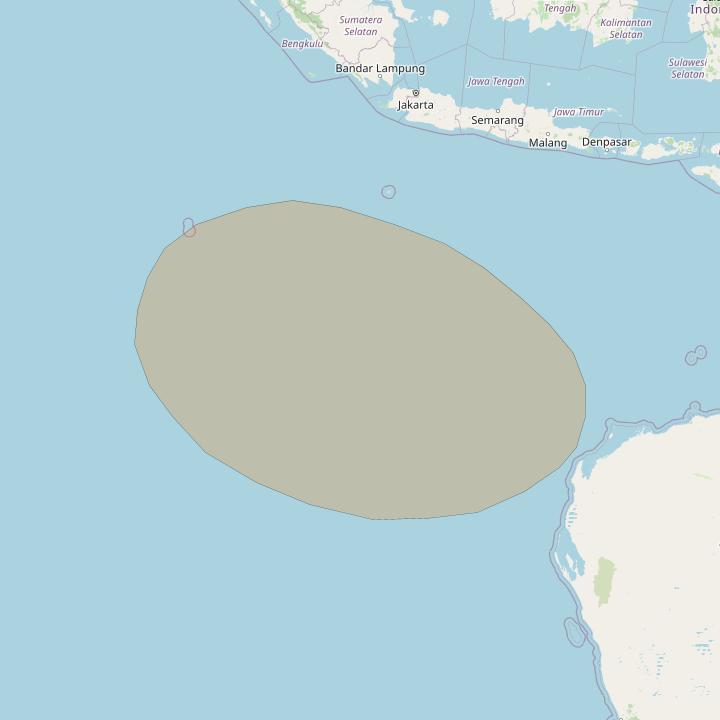

  • Inmarsat-5F1 at 63° E downlink Ka-band S77DL Spot beam coverage map

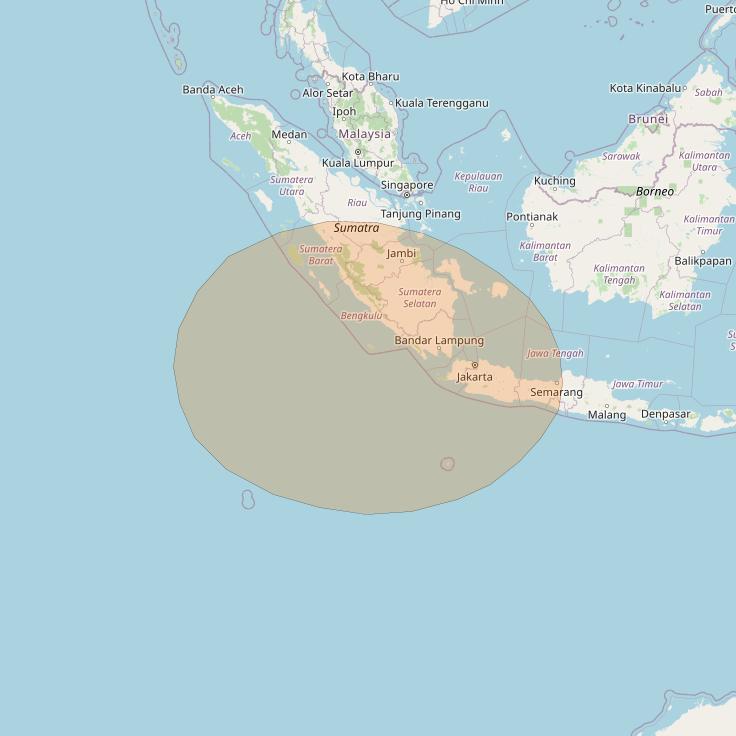

  • Inmarsat-5F1 at 63° E downlink Ka-band S78DL Spot beam coverage map

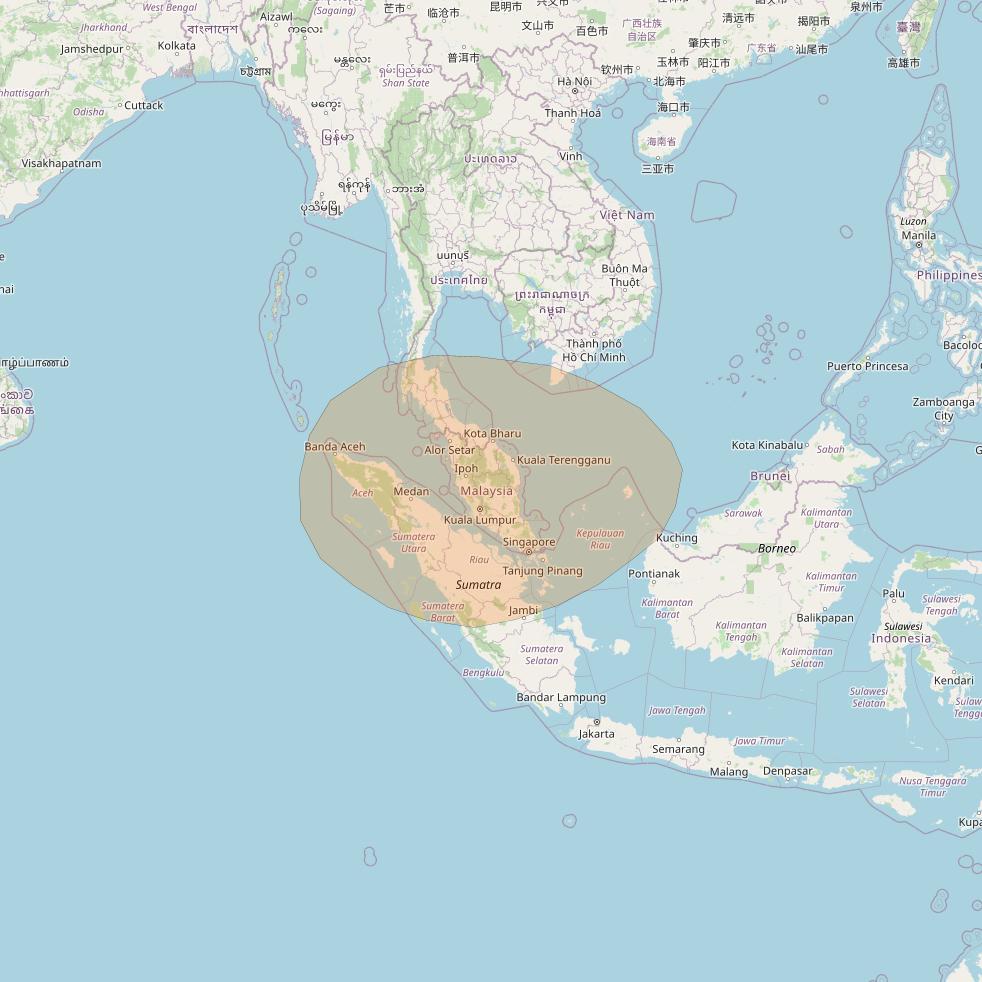

  • Inmarsat-5F1 at 63° E downlink Ka-band S79DL Spot beam coverage map

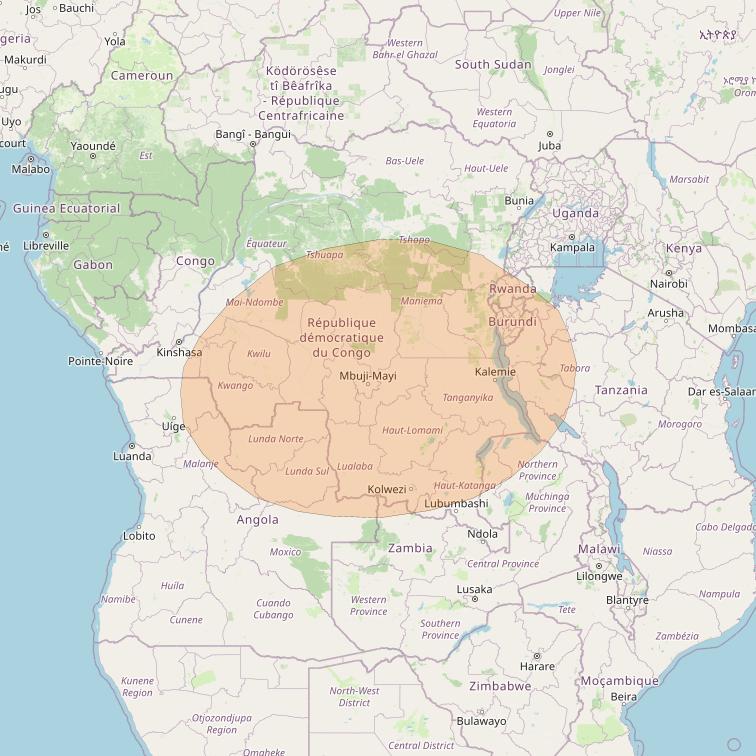

  • Inmarsat-5F1 at 63° E downlink Ka-band S7DL Spot beam coverage map

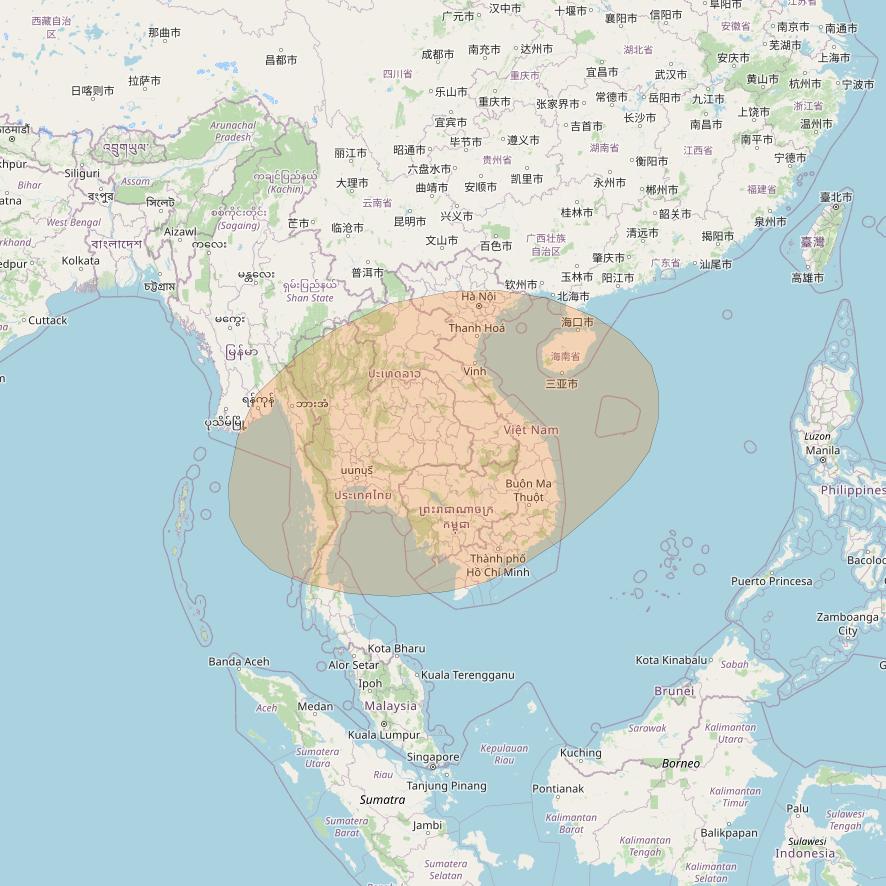

  • Inmarsat-5F1 at 63° E downlink Ka-band S80DL Spot beam coverage map

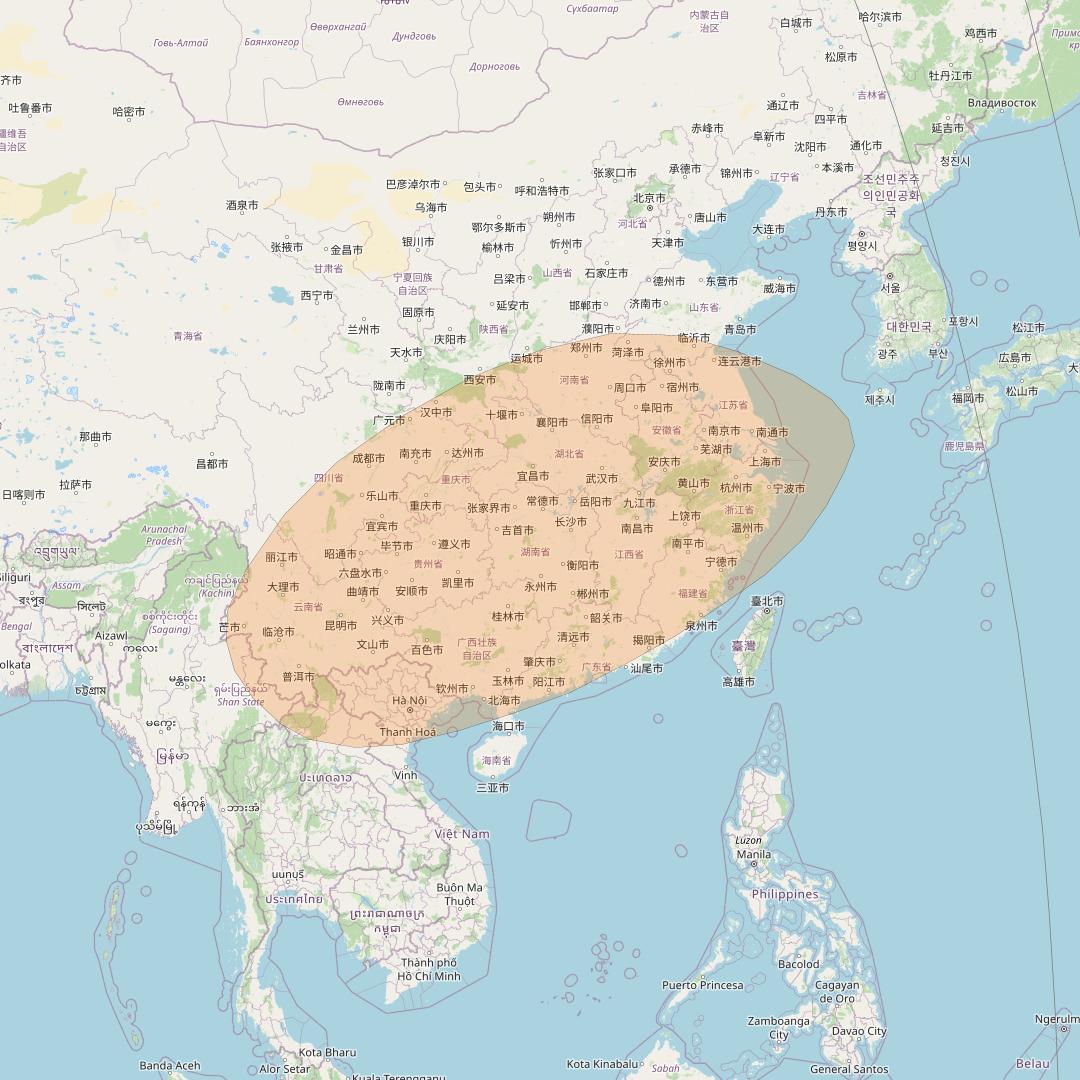

  • Inmarsat-5F1 at 63° E downlink Ka-band S81DL Spot beam coverage map

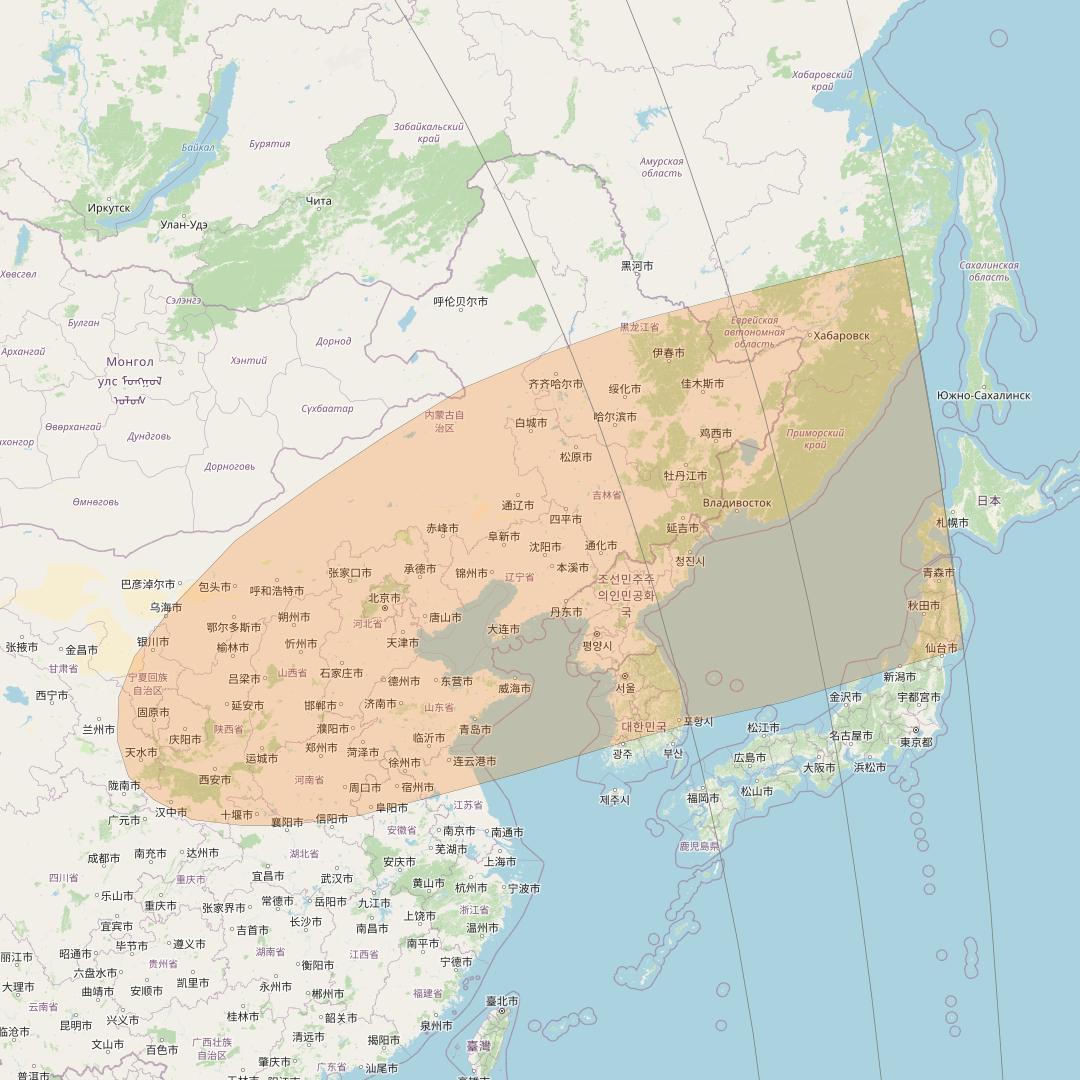

  • Inmarsat-5F1 at 63° E downlink Ka-band S82DL Spot beam coverage map

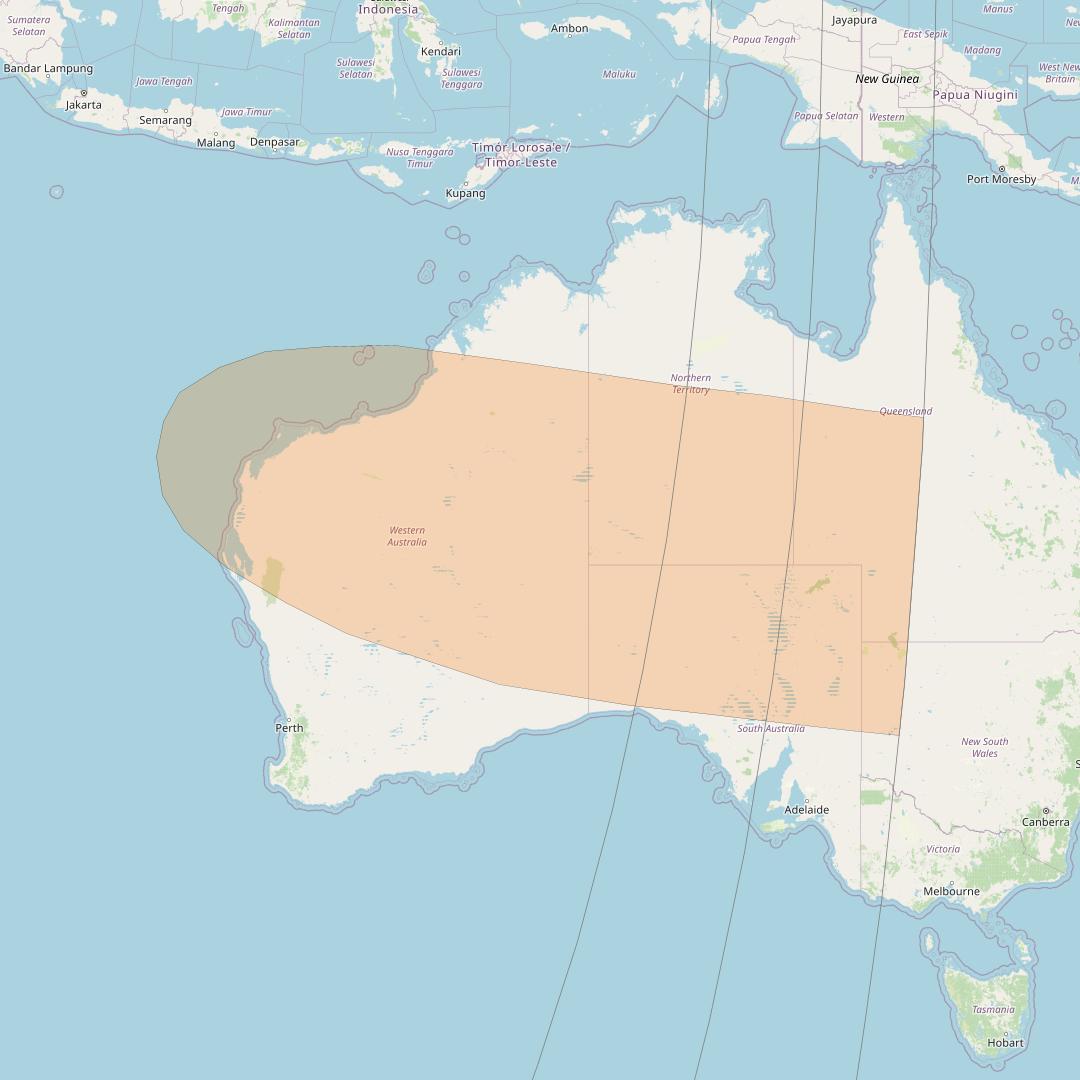

  • Inmarsat-5F1 at 63° E downlink Ka-band S83DL Spot beam coverage map

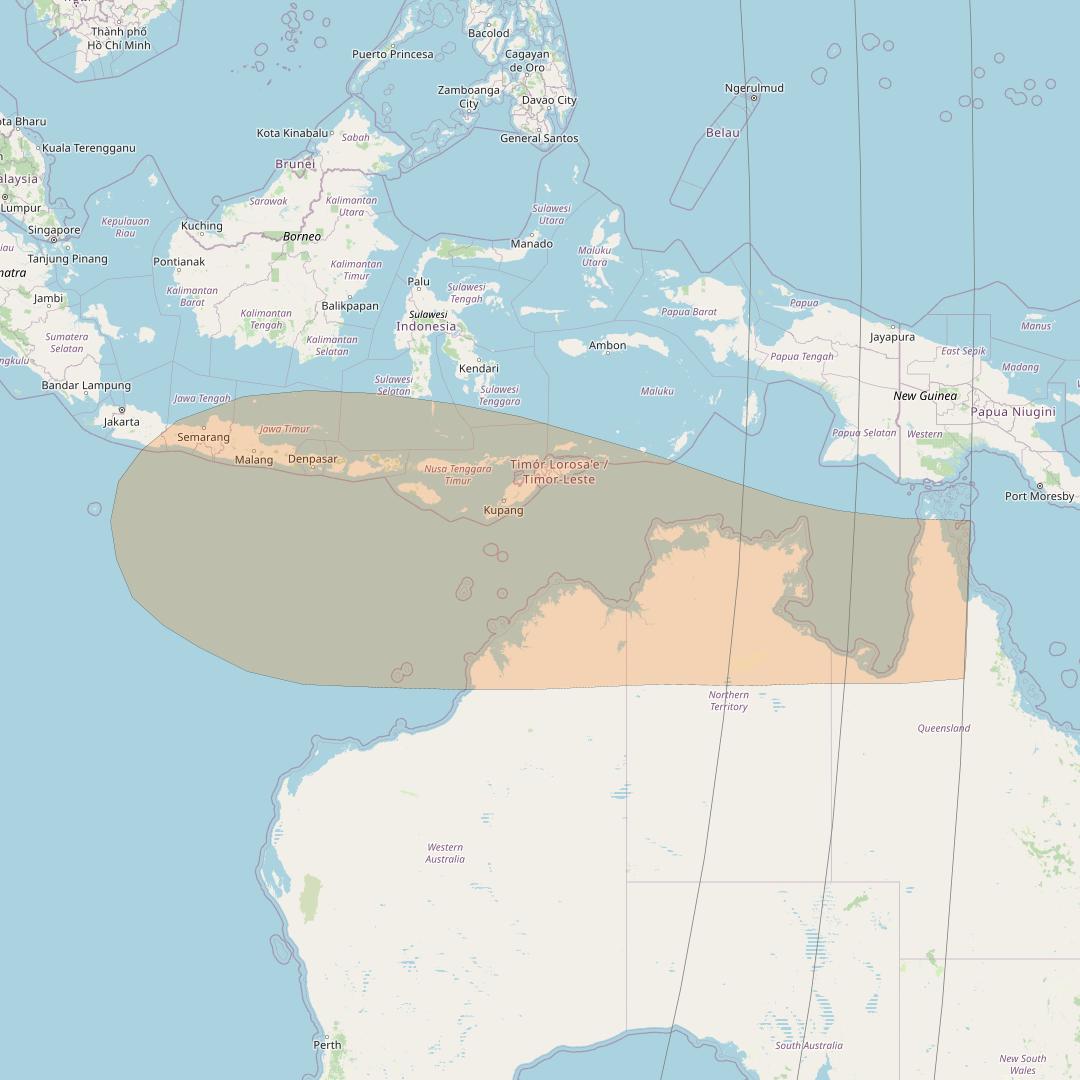

  • Inmarsat-5F1 at 63° E downlink Ka-band S84DL Spot beam coverage map

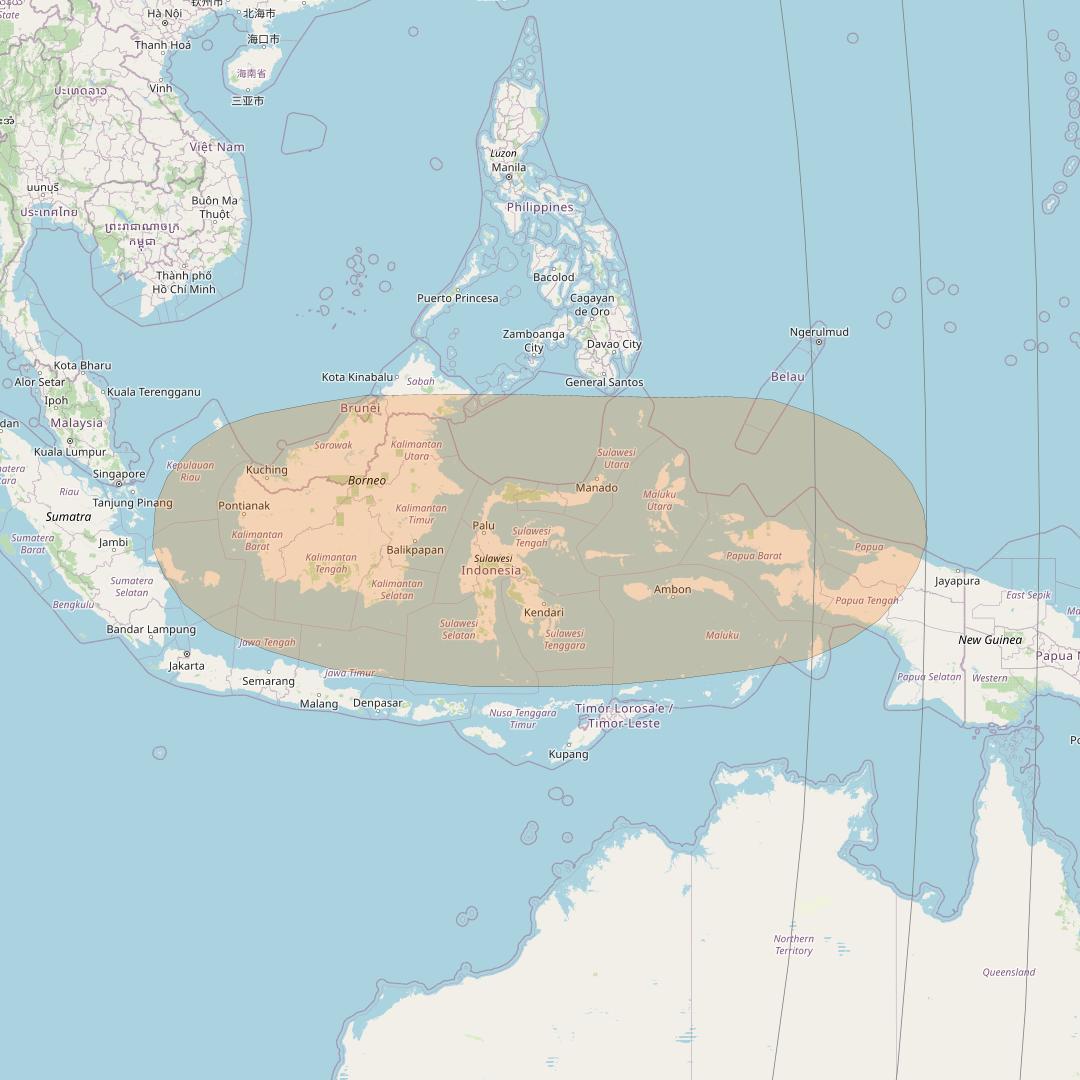

  • Inmarsat-5F1 at 63° E downlink Ka-band S85DL Spot beam coverage map

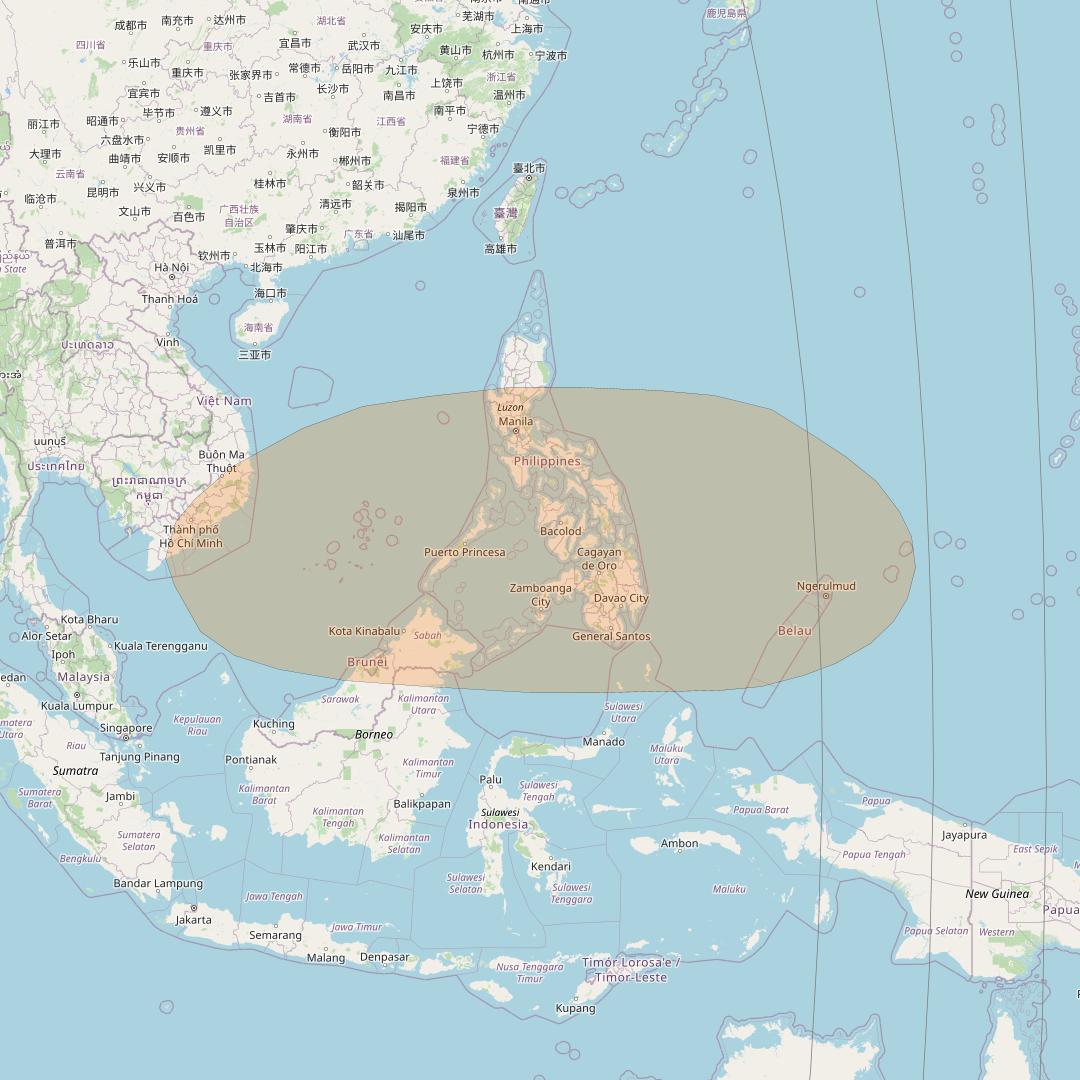

  • Inmarsat-5F1 at 63° E downlink Ka-band S86DL Spot beam coverage map

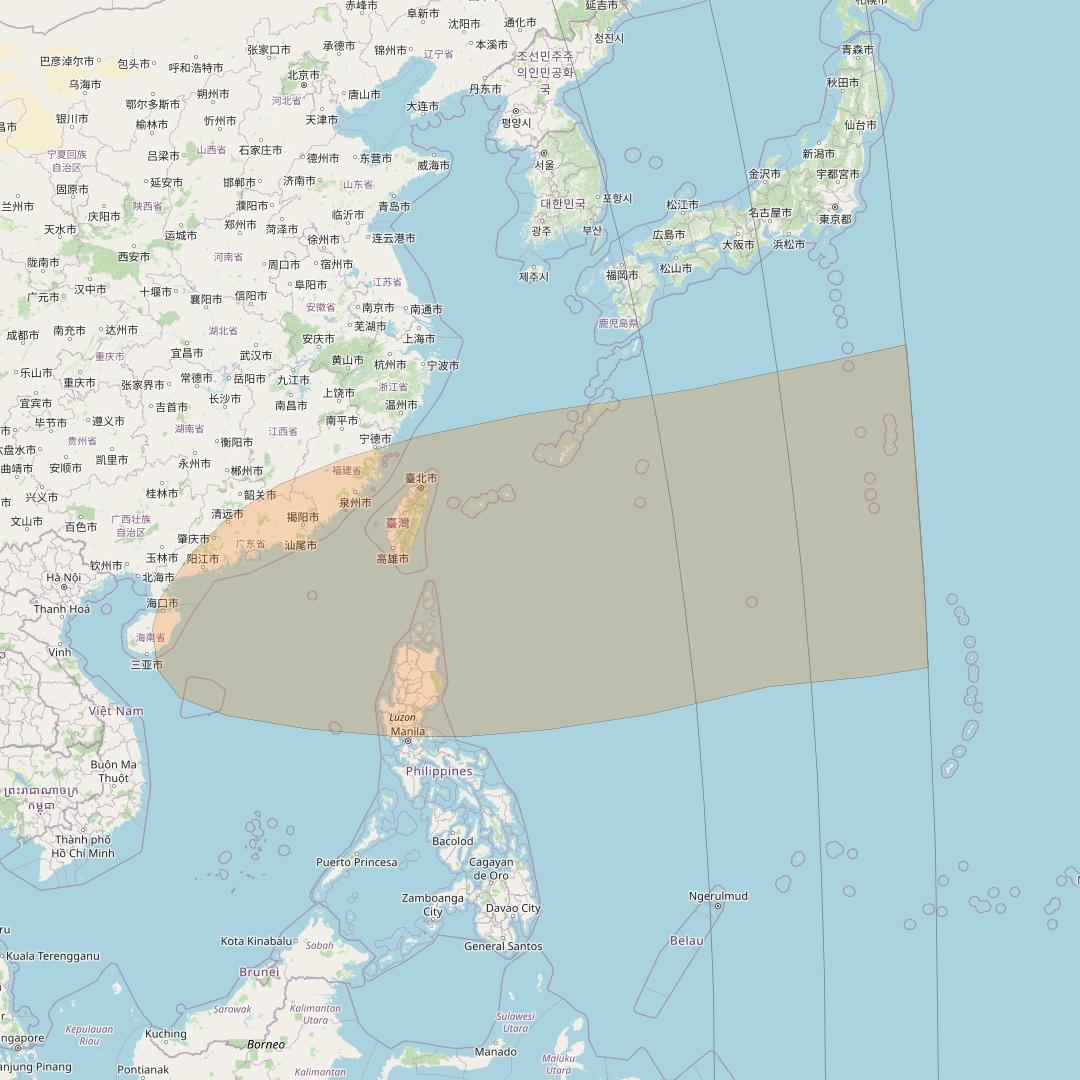

  • Inmarsat-5F1 at 63° E downlink Ka-band S87DL Spot beam coverage map

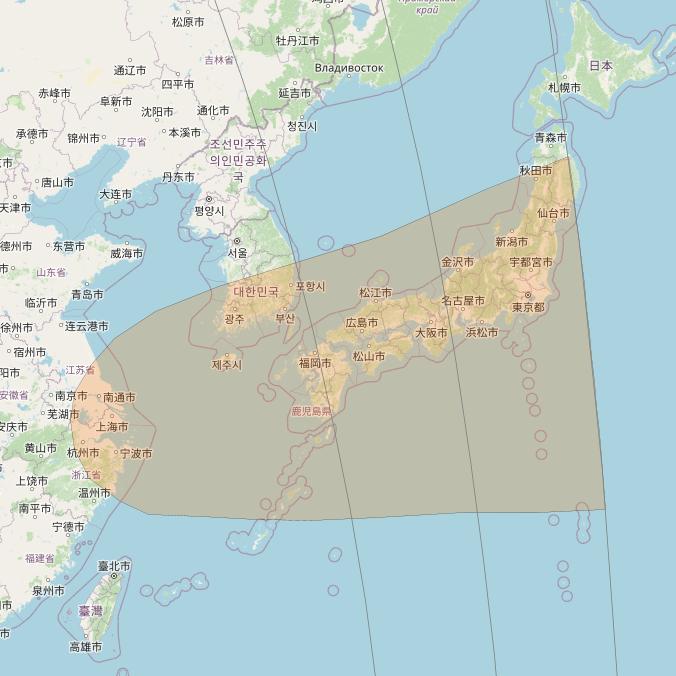

  • Inmarsat-5F1 at 63° E downlink Ka-band S88DL Spot beam coverage map

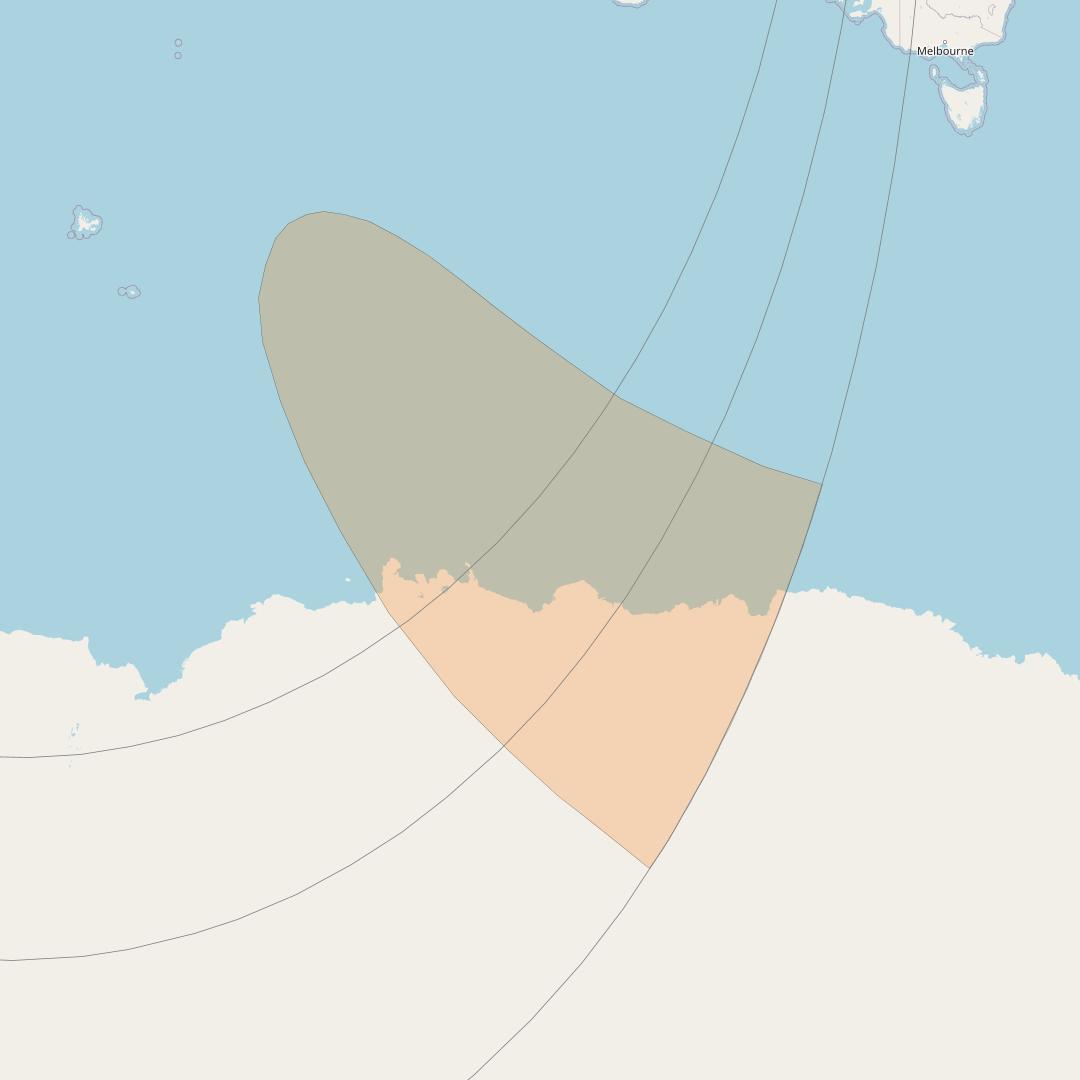

  • Inmarsat-5F1 at 63° E downlink Ka-band S89DL Spot beam coverage map

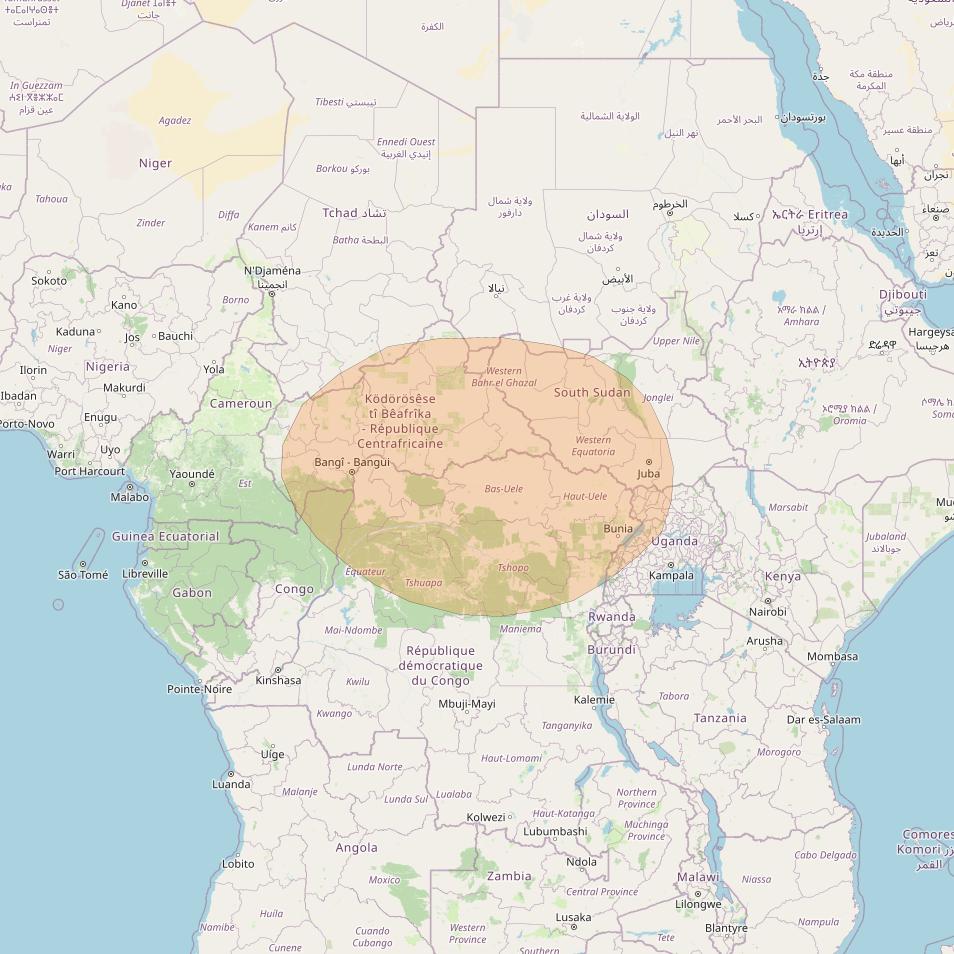

  • Inmarsat-5F1 at 63° E downlink Ka-band S8DL Spot beam coverage map

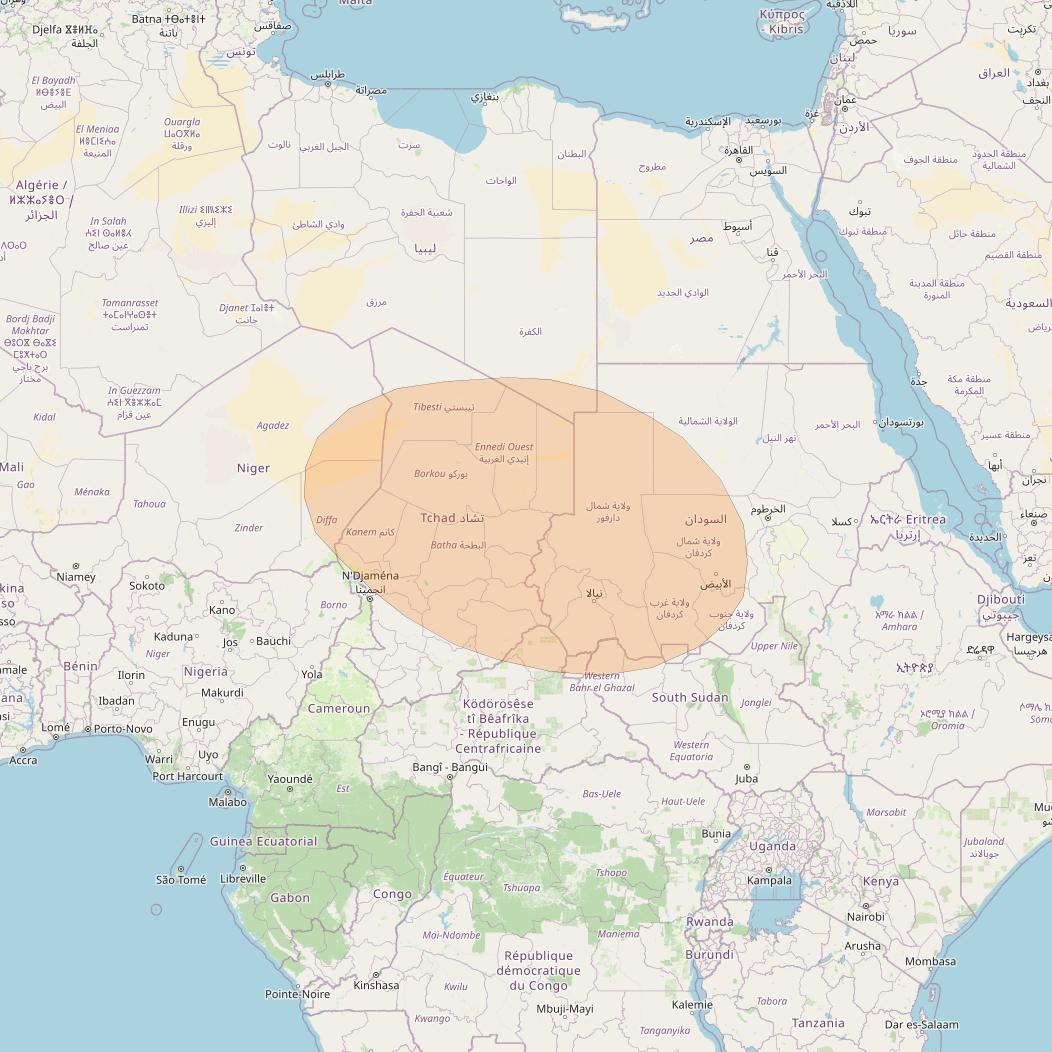

  • Inmarsat-5F1 at 63° E downlink Ka-band S9DL Spot beam coverage map
