Satellite Name: Arabsat 5A
Status: active
Position: 31° E (30.5° E)
NORAD: 36745
Cospar number: 2010-032B
Operator: Arabsat
Launch date: 26-Jun-2010
Launch site: Guiana Space Center
Launch vehicle: Ariane 5
Launch mass (kg): 4940
Dry mass (kg):
Manufacturer: EADS Astrium
Model (bus): Eurostar-3000
Orbit: GEO
Expected lifetime: 15 yrs.
Call sign:
Beacon(s): 3705.1L, 4191R, 10706, 12749V/H, 12706V/H
Details:
16 active C-band transponders, 24 active Ku-band transponders to provide the large range of satellite communications services such as television backhauling and broadcasting, telephony, business communications, Internet trunking and the provision of VSAT and other interactive services, over sub-Saharan Africa, North-Africa and the Middle East. Planned to be launched in pair with COMS 1.
Beams:Charts: list

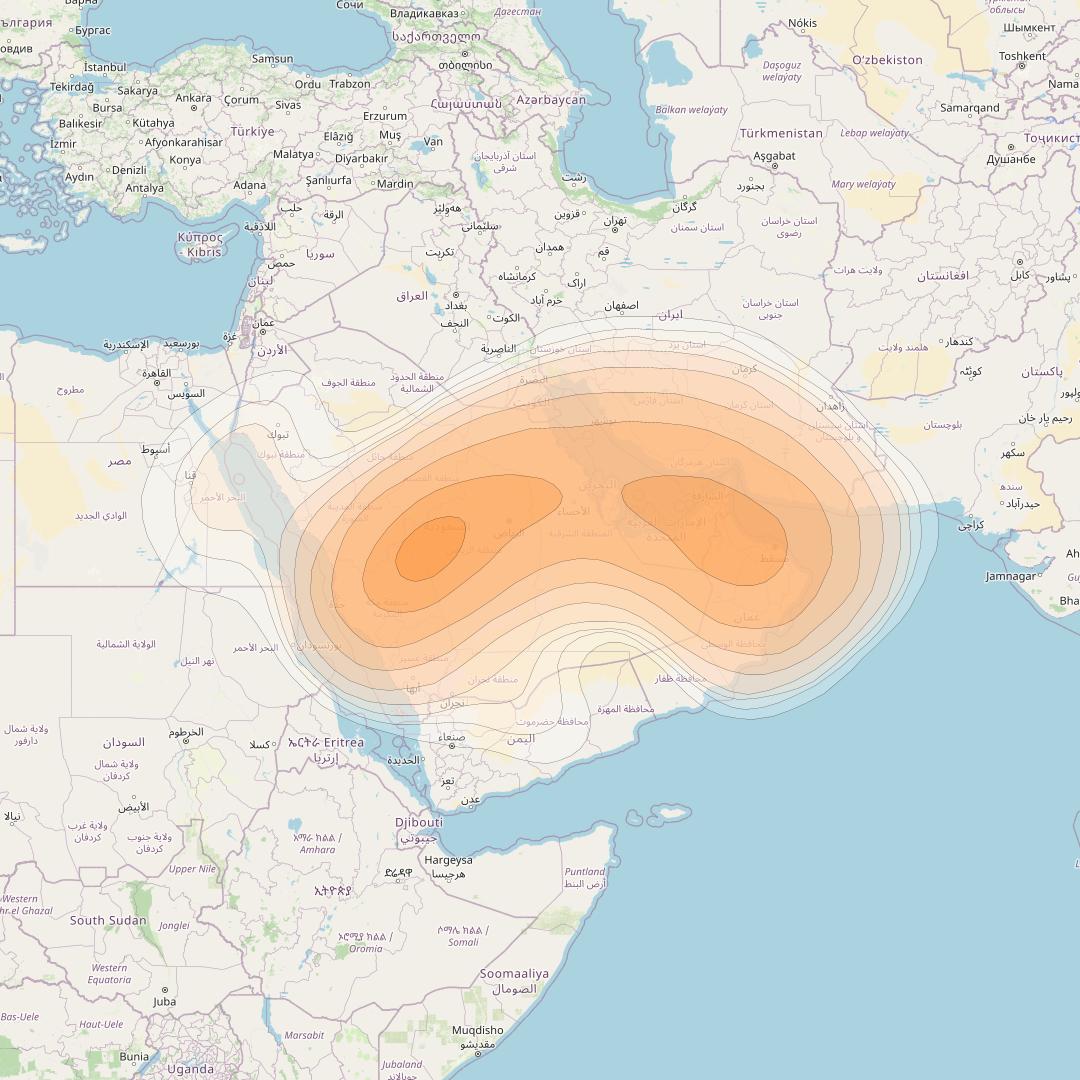

Arabsat 5A at 31° E downlink Ka-band Steerable beam coverage map
