Satellite Name: Telstar 11N (Telstar 11R)
Status: active
Position: 37° W (37.5° W)
NORAD: 34111
Cospar number: 2009-009A
Operator: Telesat Canada Ltd.
Launch date: 26-Feb-2009
Launch site: Baikonur Cosmodrome
Launch vehicle: Zenit 3SLB
Launch mass (kg): 4012
Dry mass (kg): 1773
Manufacturer: Space Systems Loral (SSL)
Model (bus): LS-1300
Orbit: GEO
Expected lifetime: 15 yrs.
Call sign: S2357
Beacon(s): 11199.25V, 11699.50V, 11198.25H, 11698.50H
Details:
39 high-power Ku-band transponders to provide telecommunication services (video and data applications) to North America, Europe and Africa continents as well as mobile communication services to the Atlantic ocean region.
Beams:Charts: list

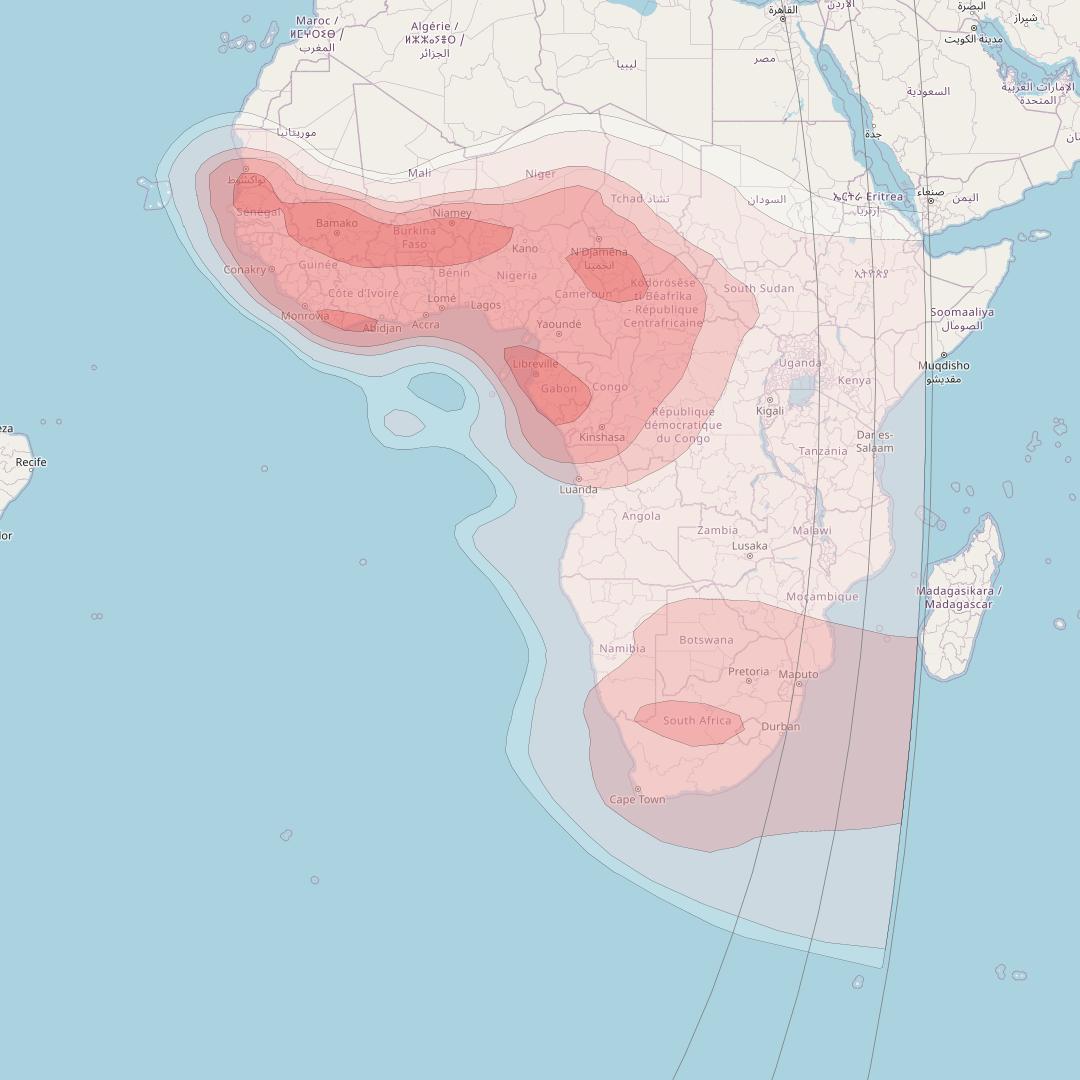

  • Telstar 11N at 37° W downlink Ku-band Africa Beam coverage map

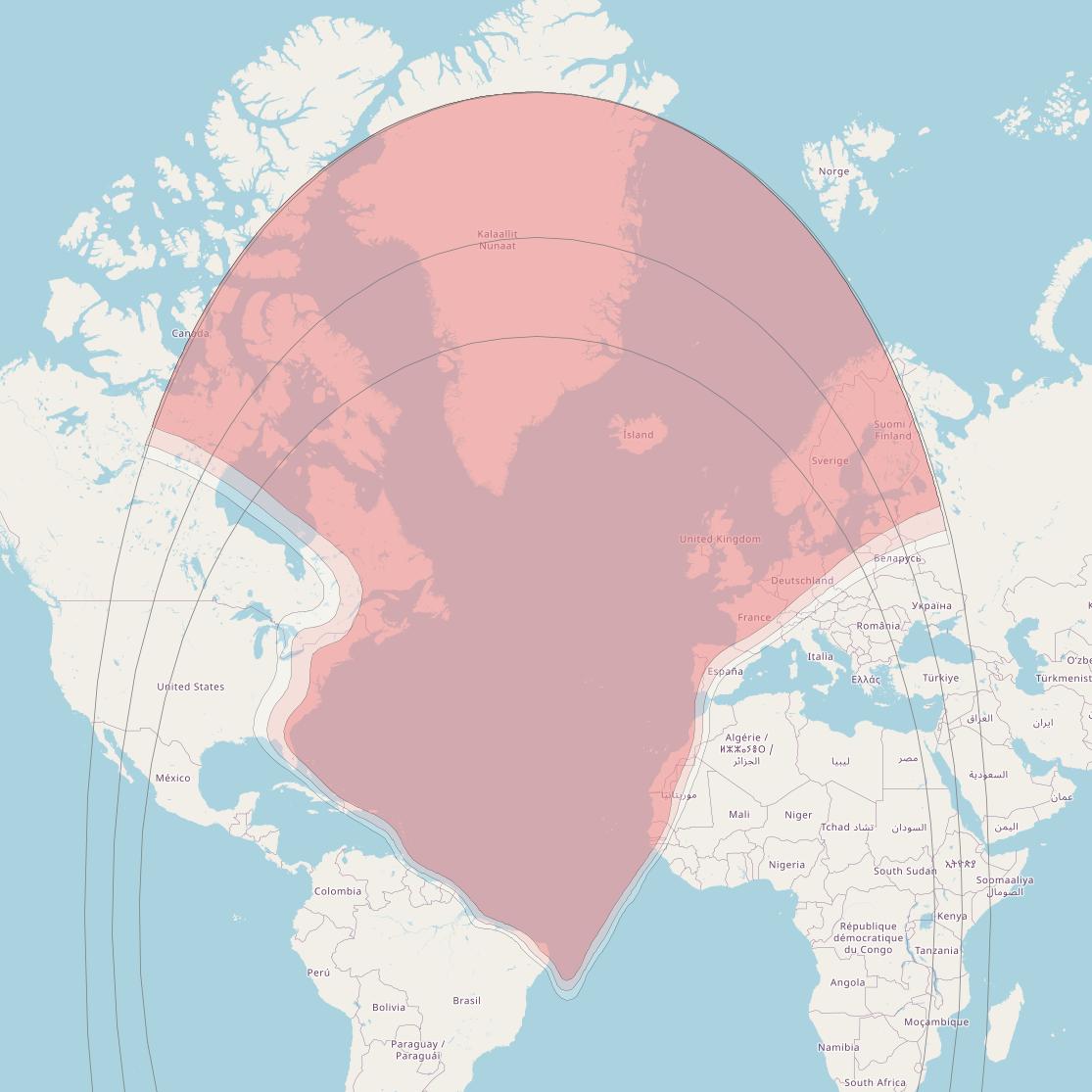

  • Telstar 11N at 37° W downlink Ku-band Atlantic Ocean Beam coverage map

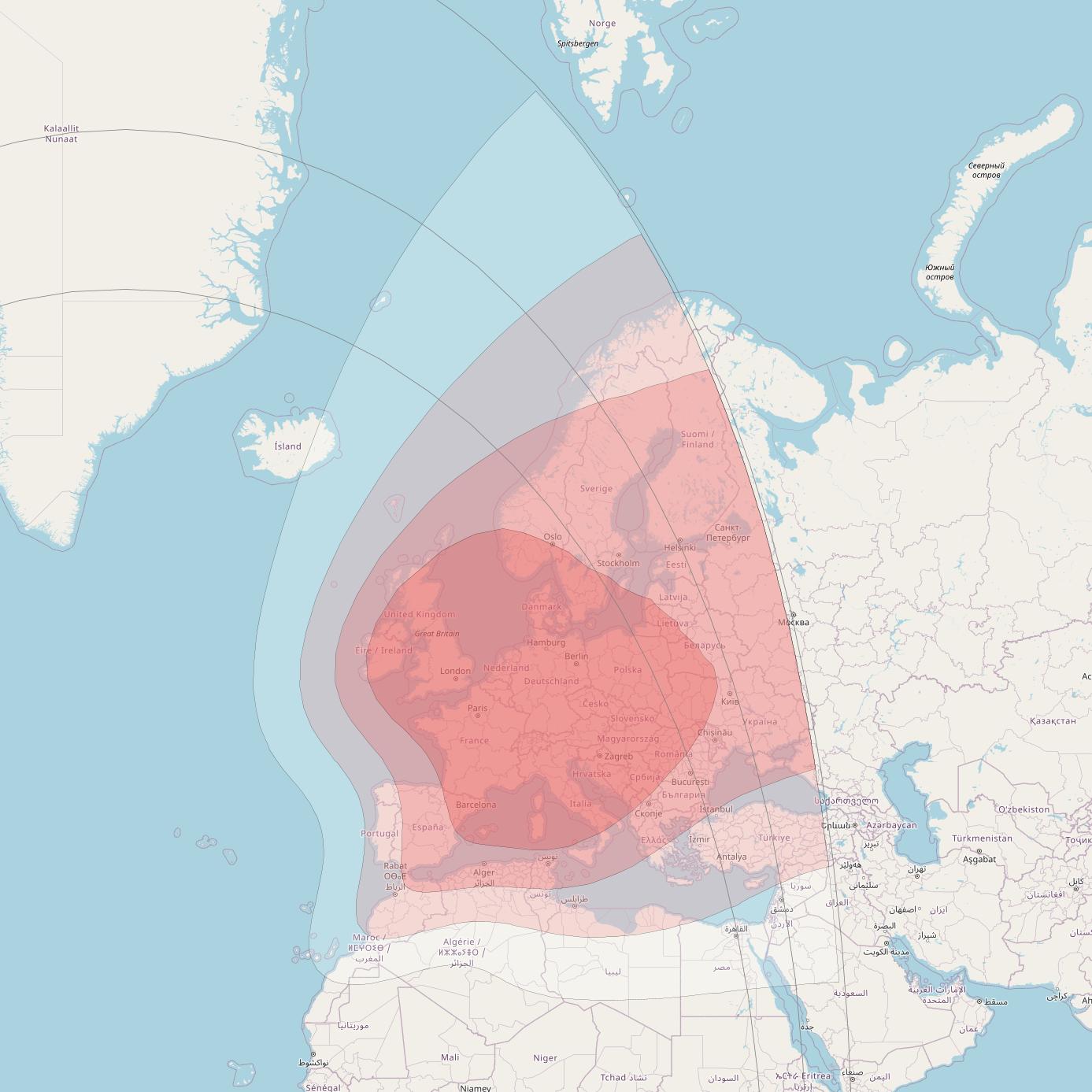

  • Telstar 11N at 37° W downlink Ku-band Europe Beam coverage map

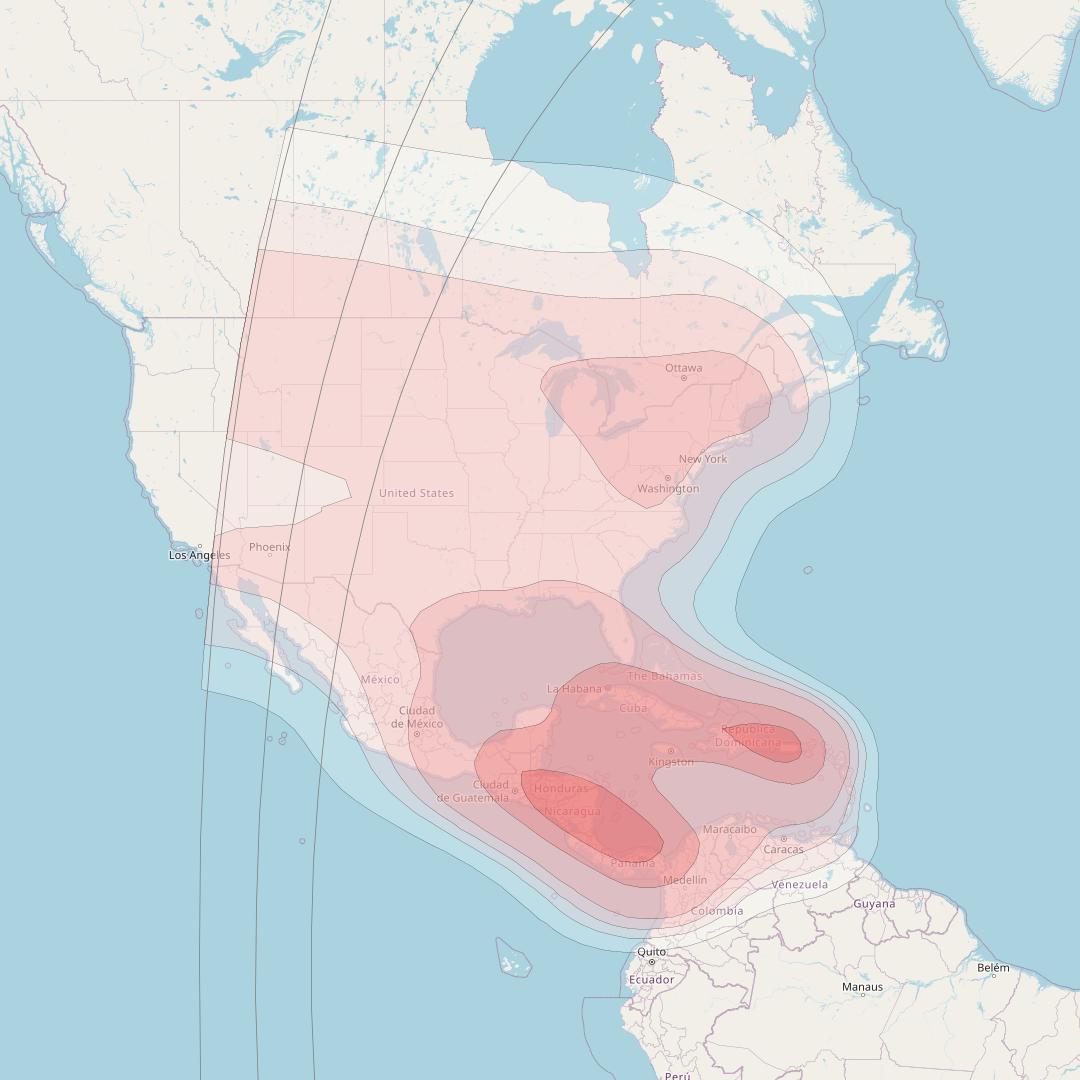

  • Telstar 11N at 37° W downlink Ku-band North and Central America beam coverage map
