Satellite Name: Intelsat 37e
Status: active
Position: 18° W (18° W)
NORAD: 42950
Cospar number: 2017-059A
Operator: Intelsat
Launch date: 29-Sep-2017
Launch site: Guiana Space Center
Launch vehicle: Ariane 5 ECA
Launch mass (kg): 6438
Dry mass (kg):
Manufacturer: Boeing (Hughes)
Model (bus): BSS-702MP
Orbit: GEO
Expected lifetime: 15+ yrs.
Call sign: S2972
Beacon(s): 4197.75, 4199.25, 4198.25, 4198.75 LHCP/H
Details:

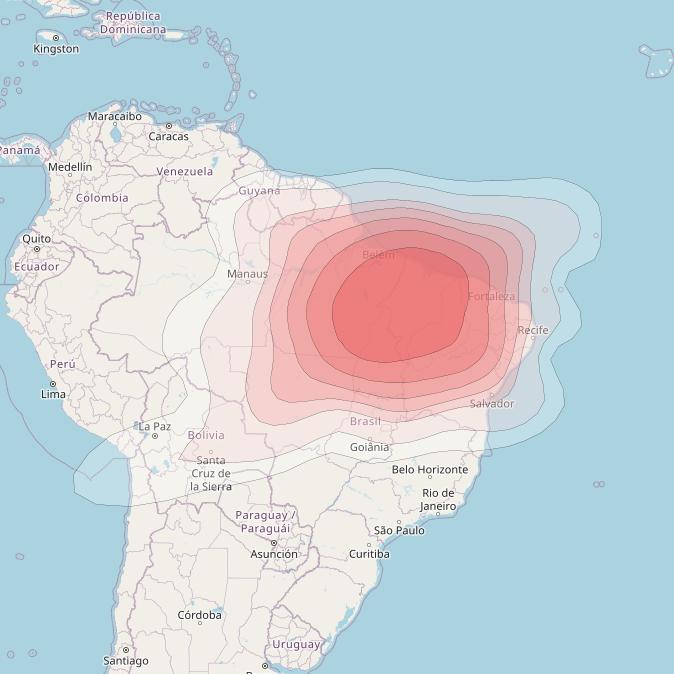

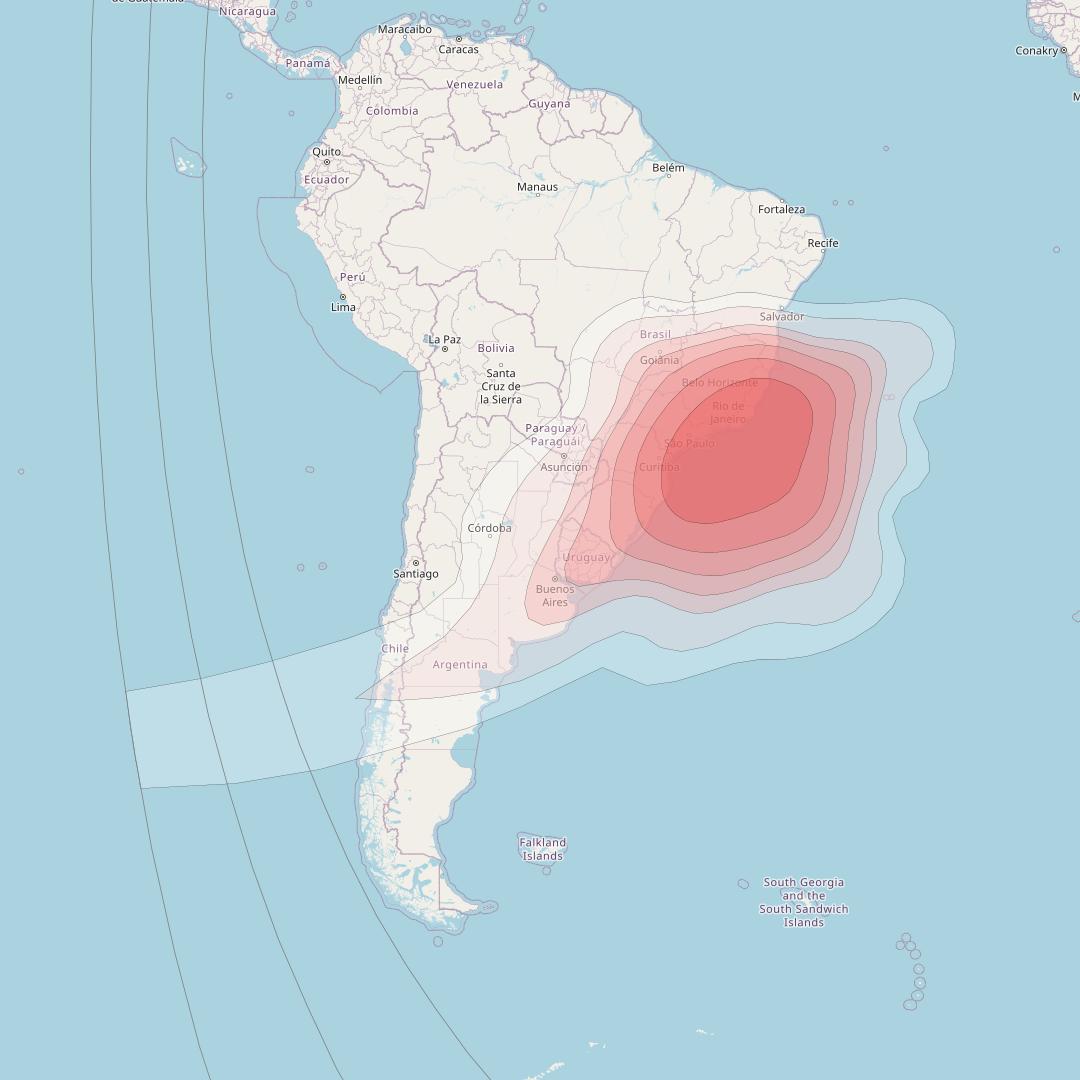

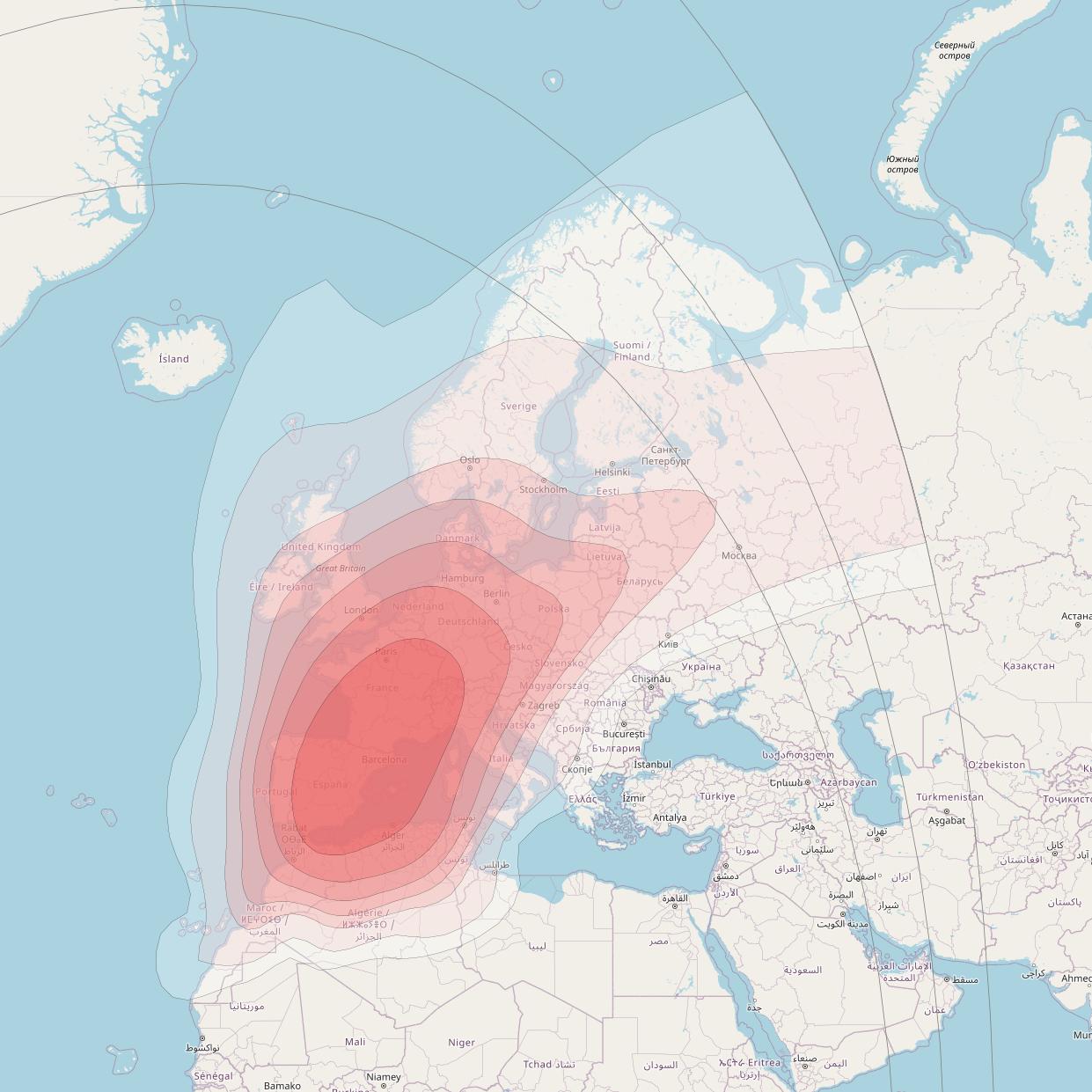

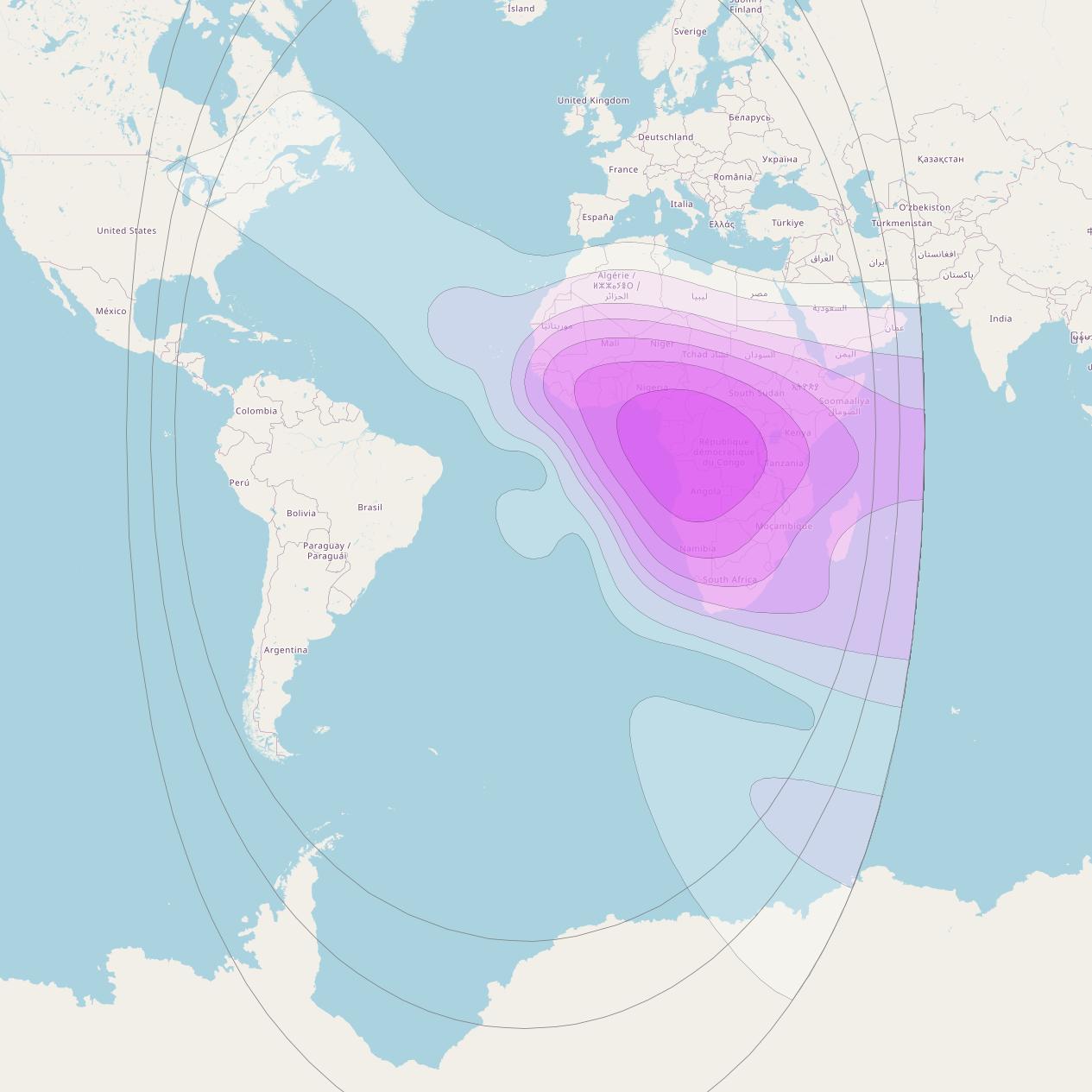

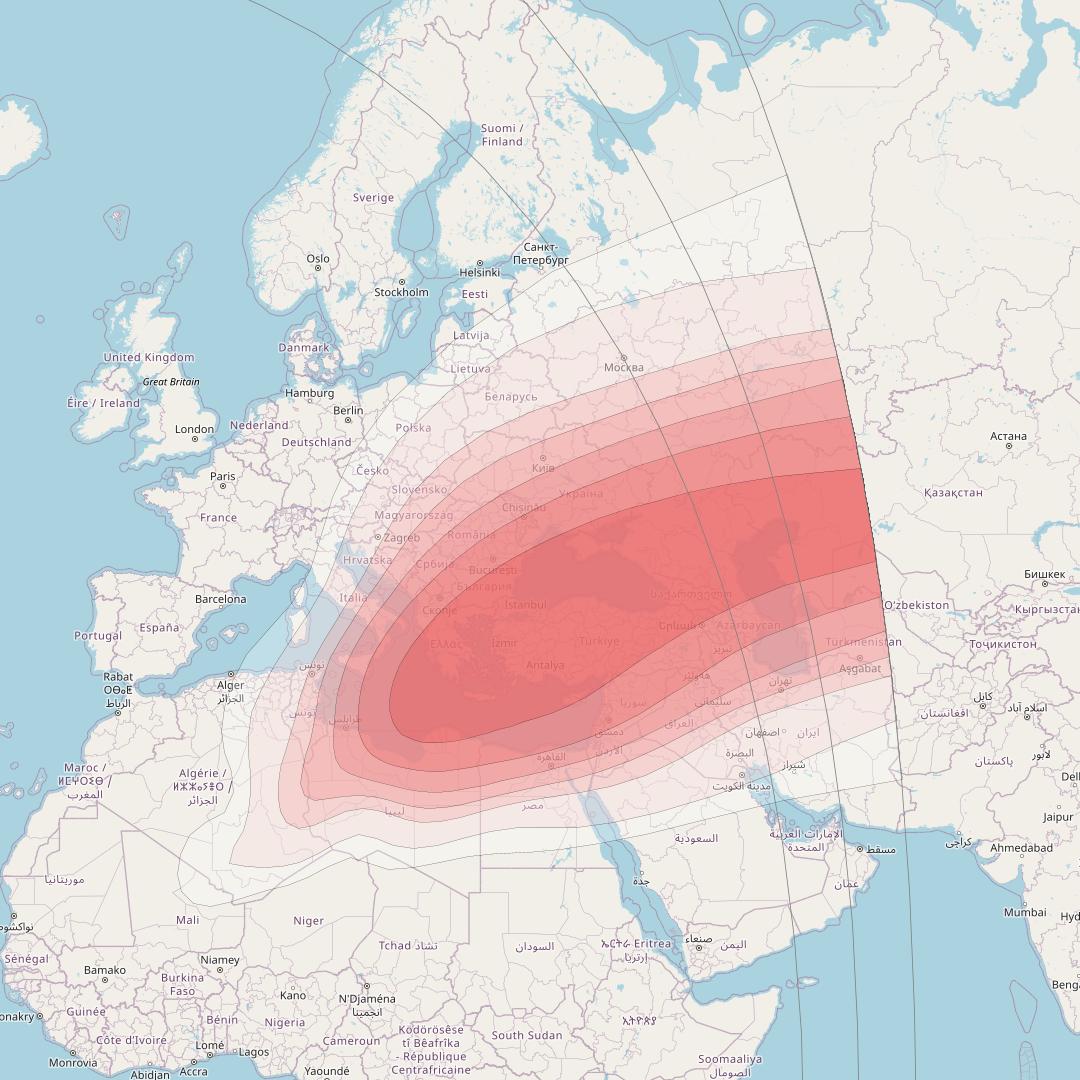

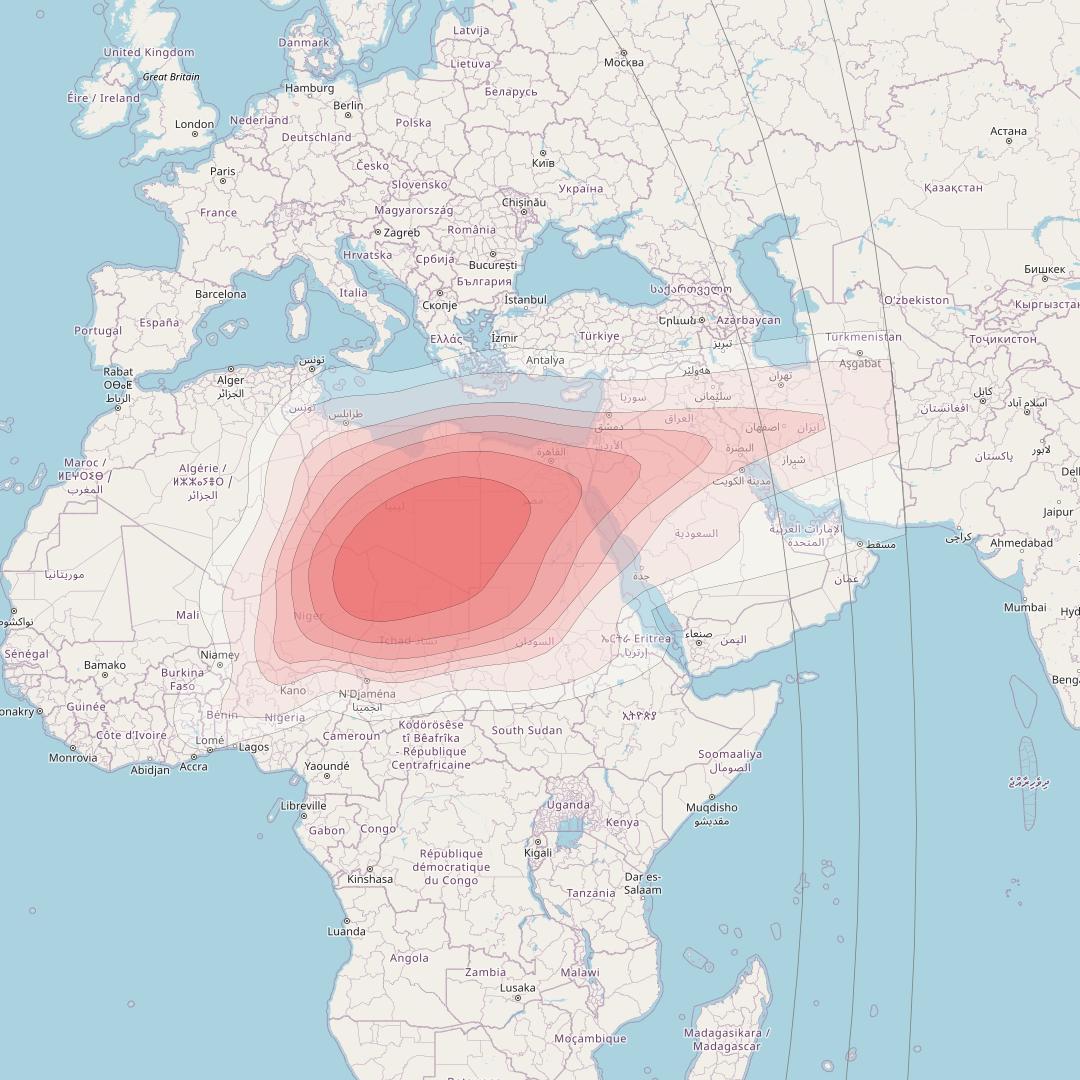

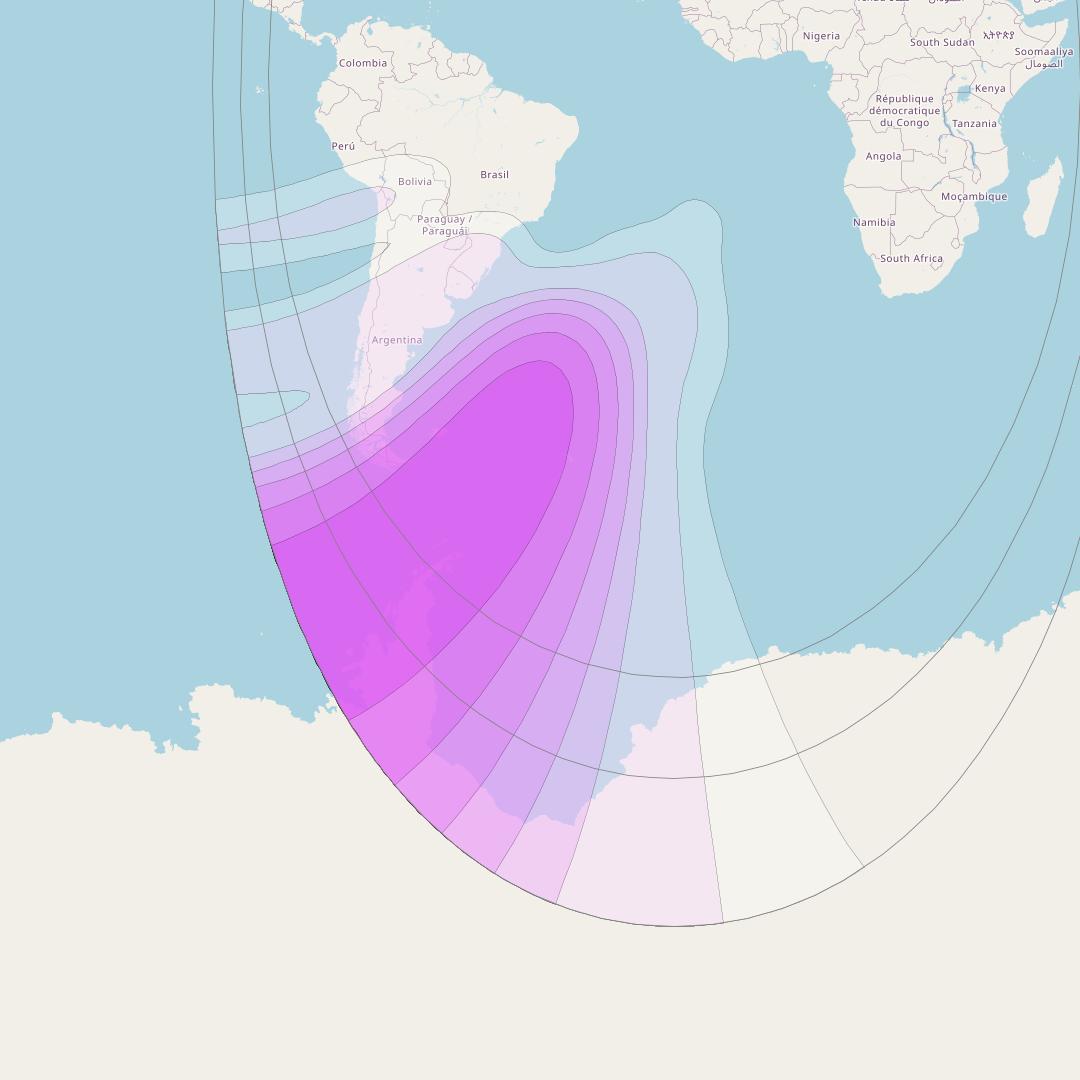

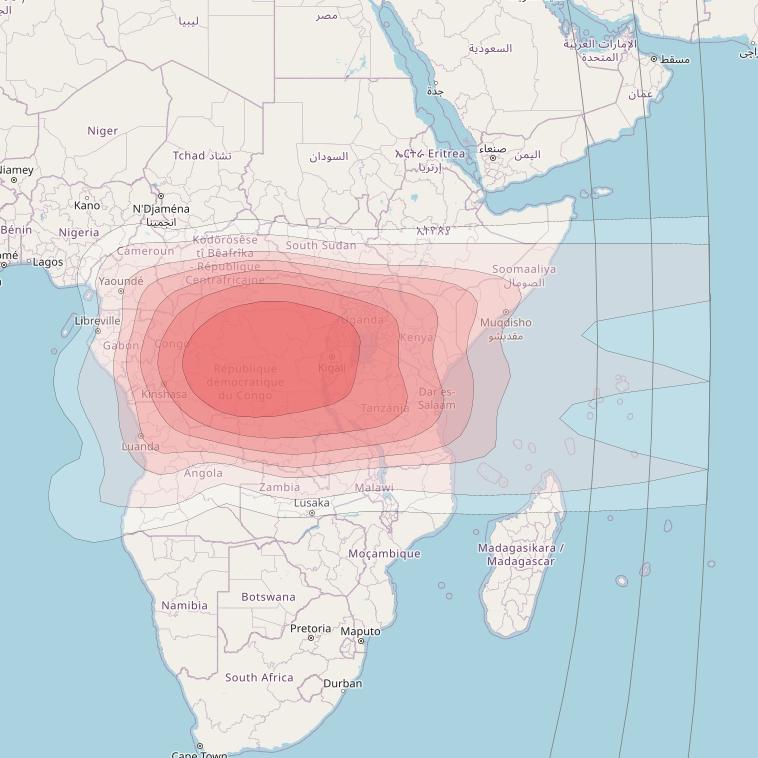

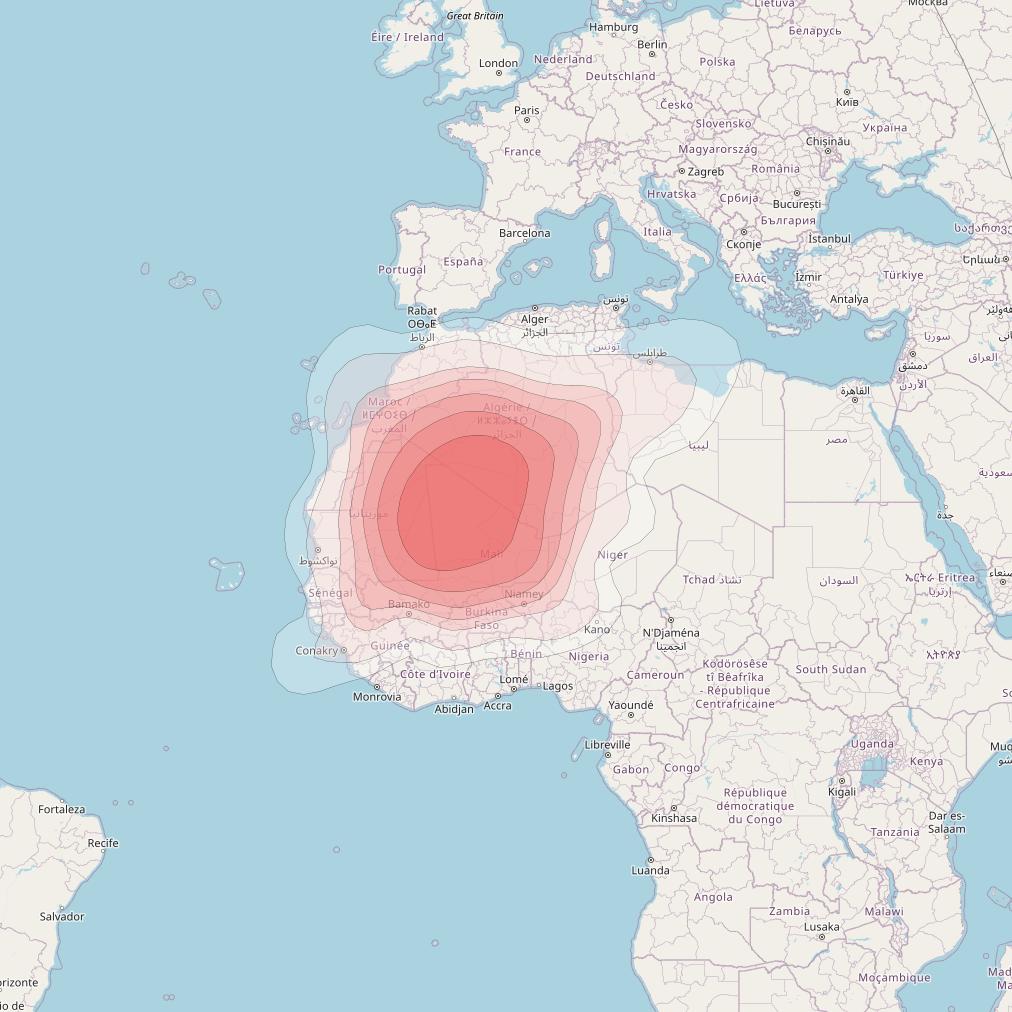

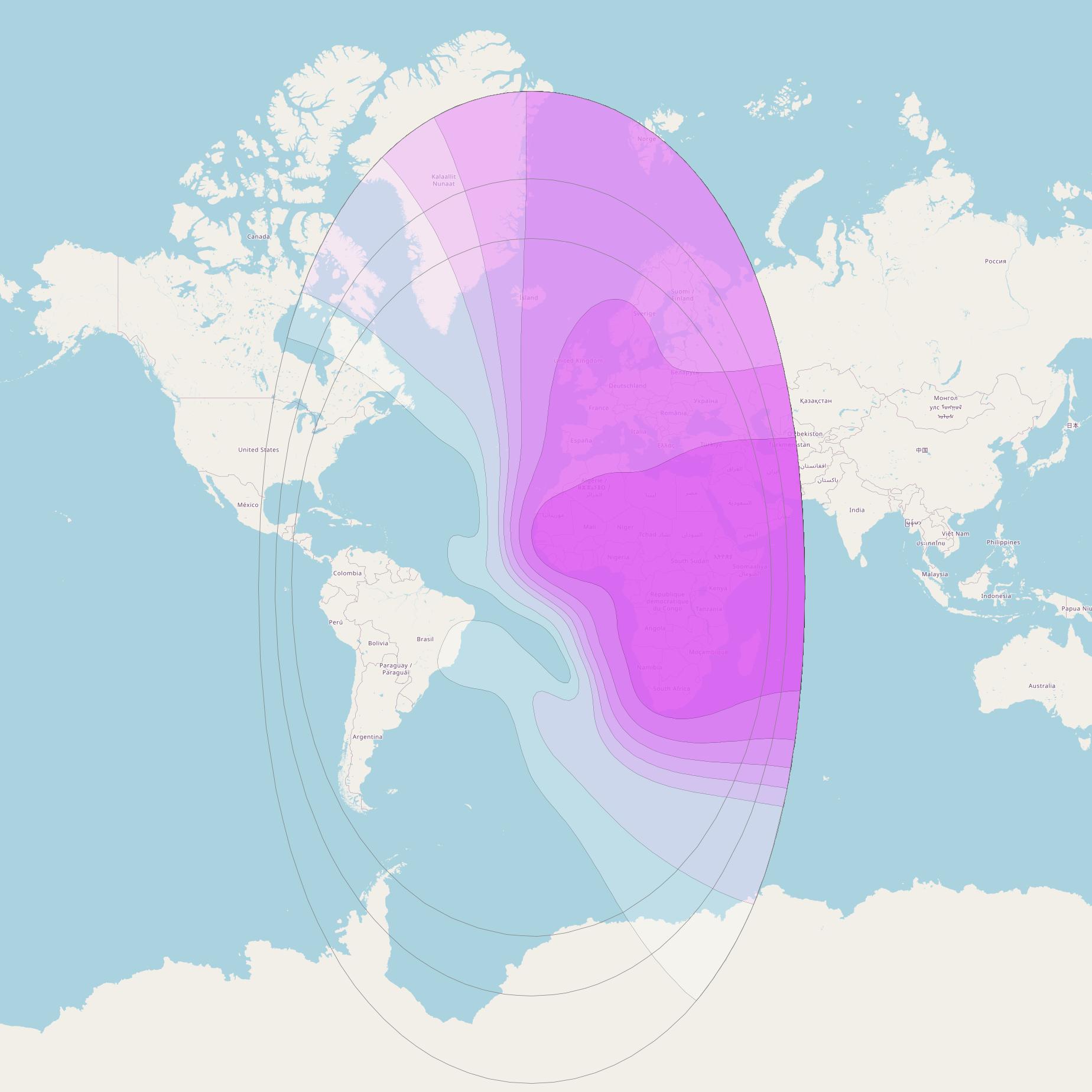

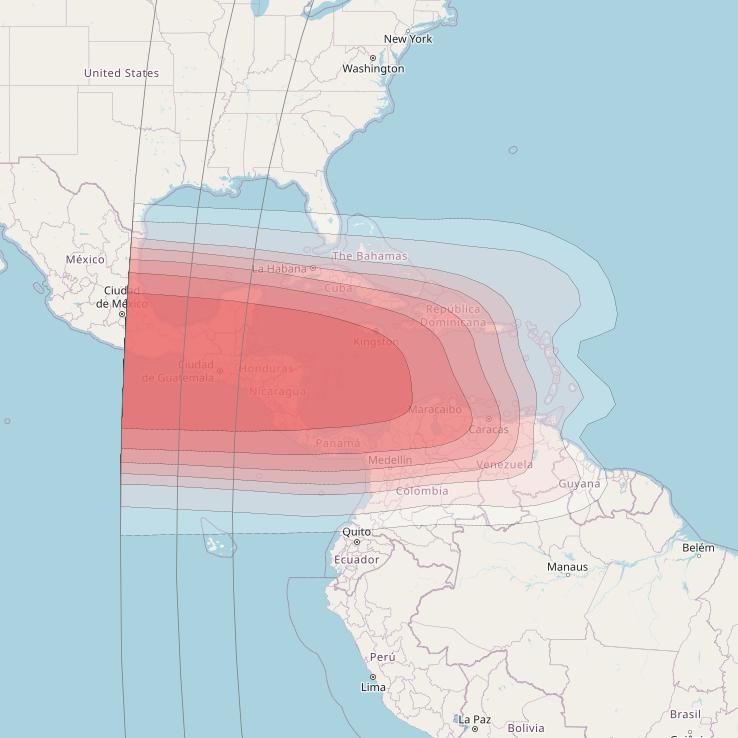

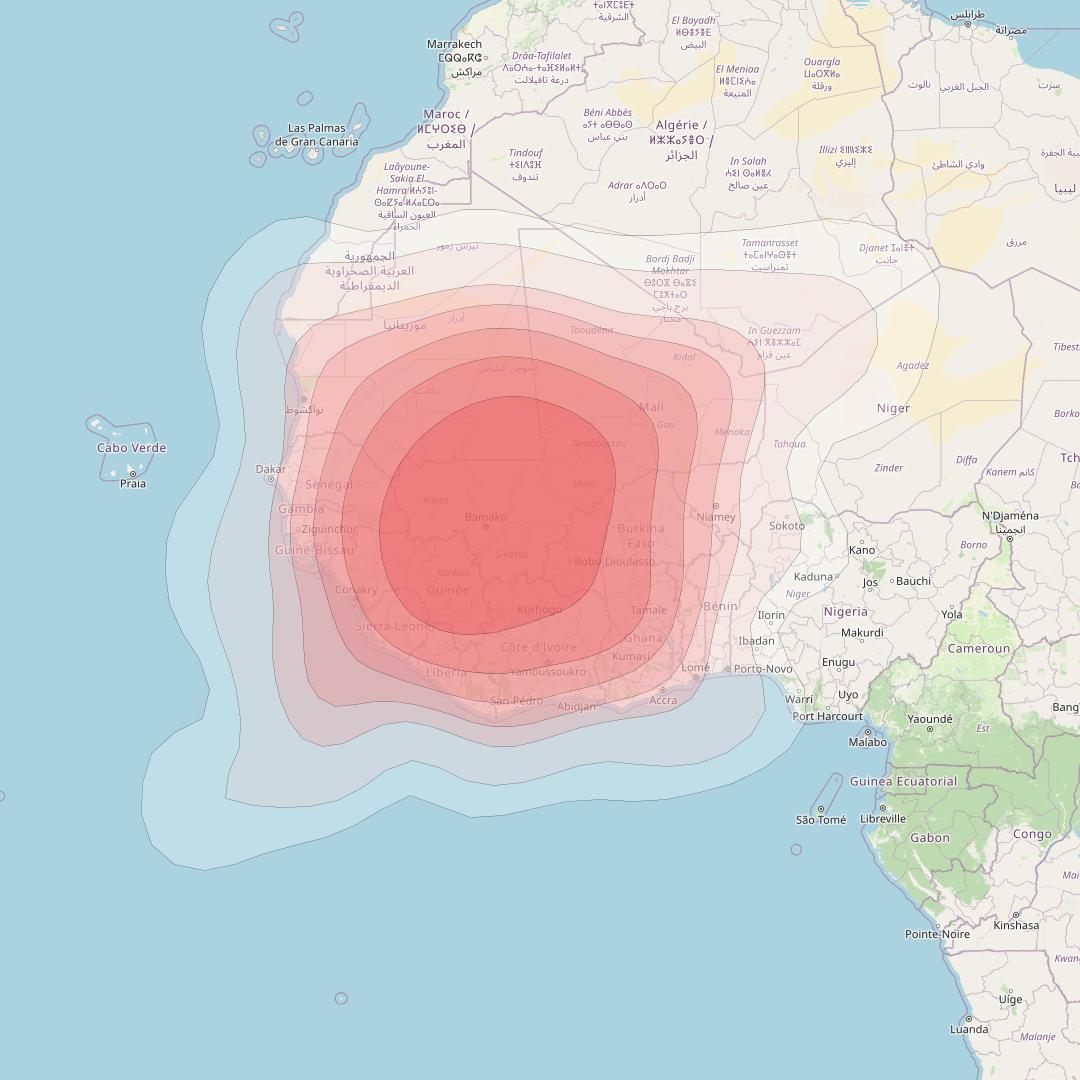

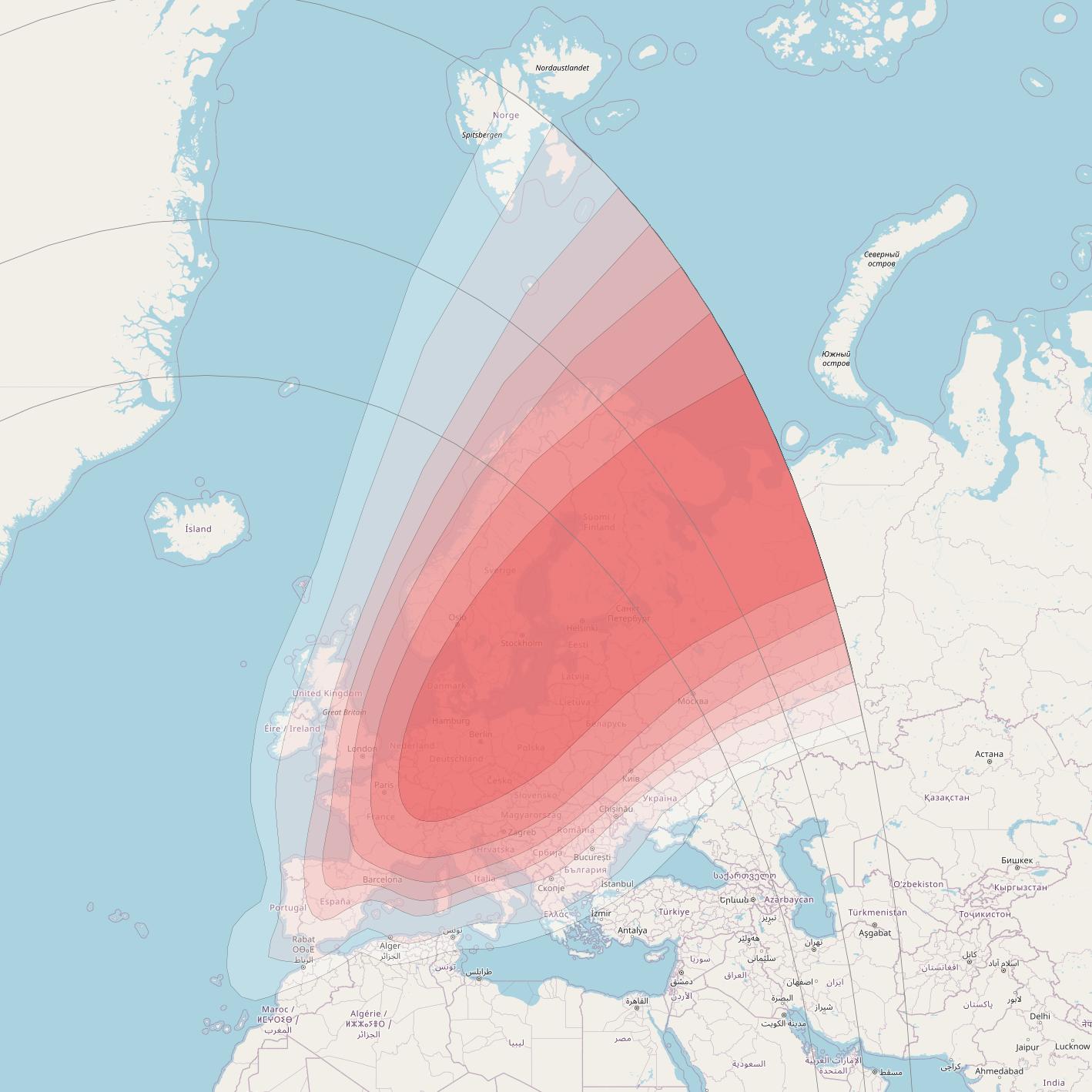

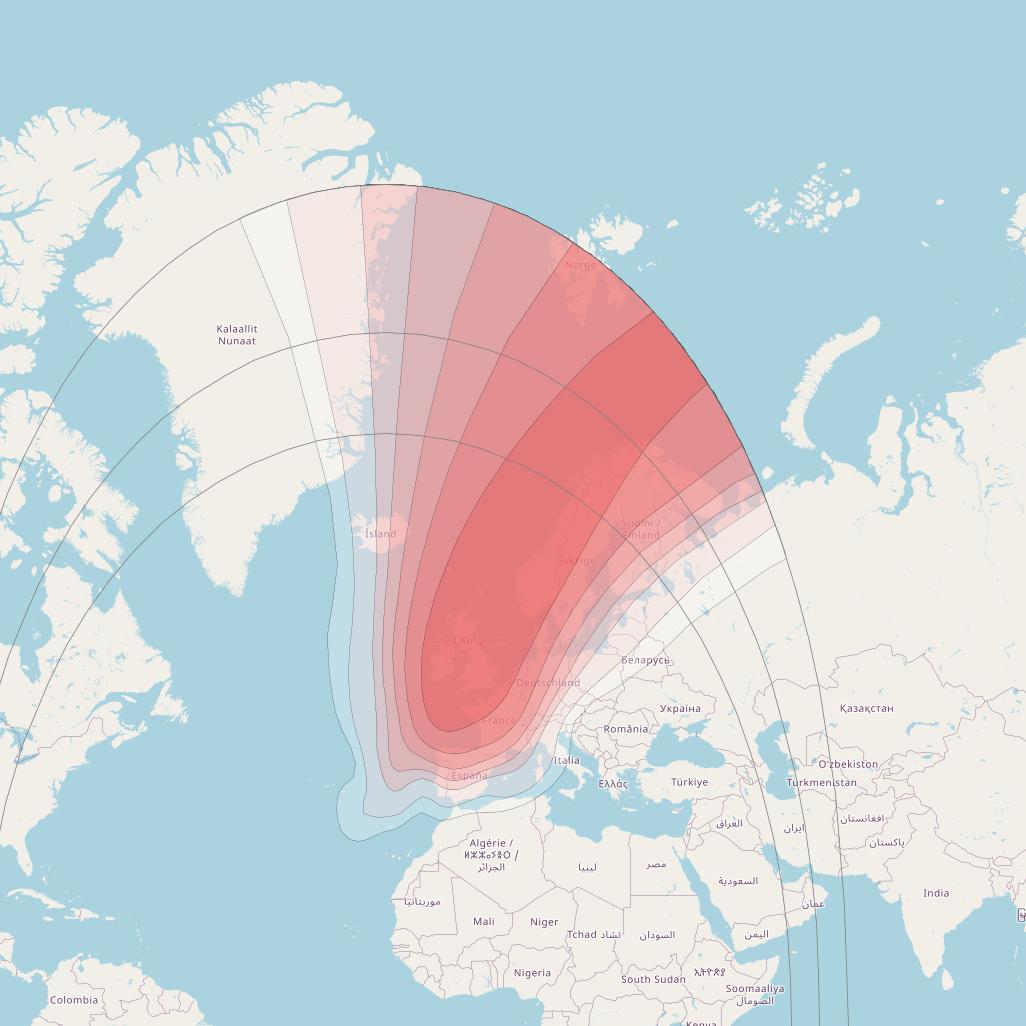

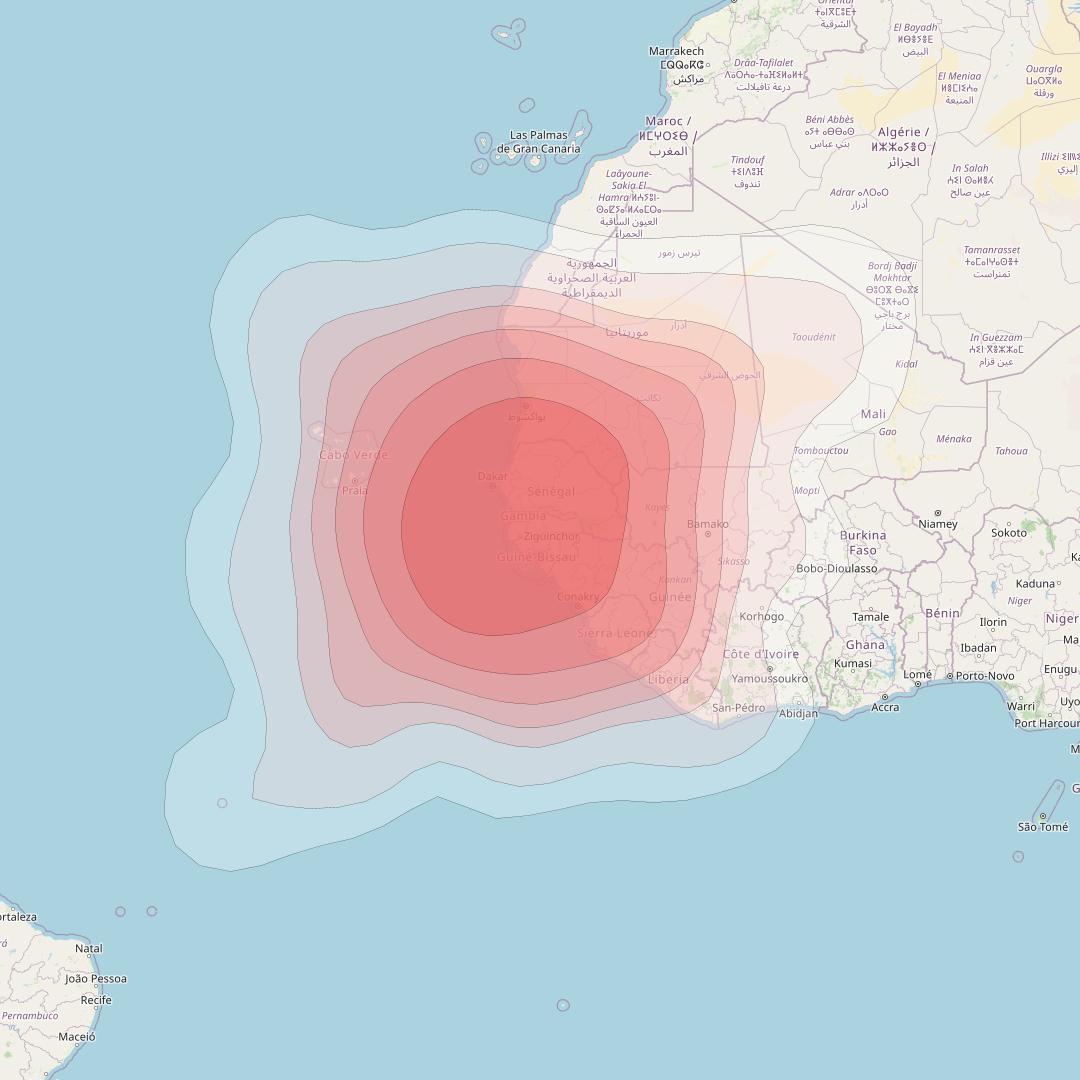

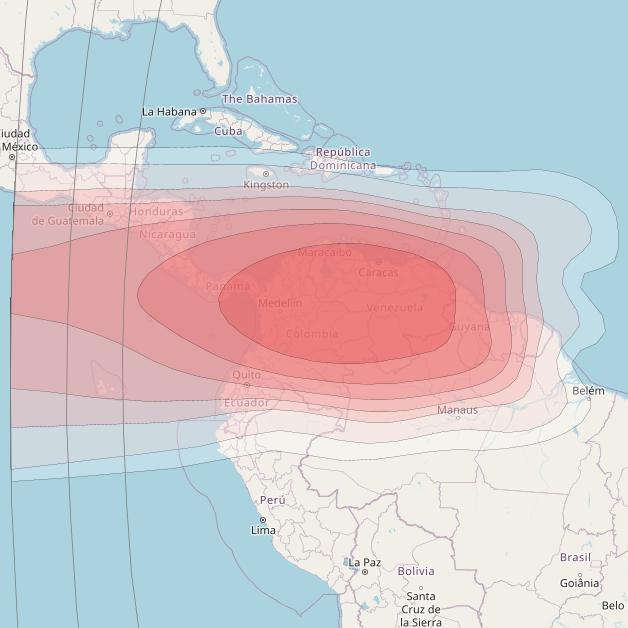

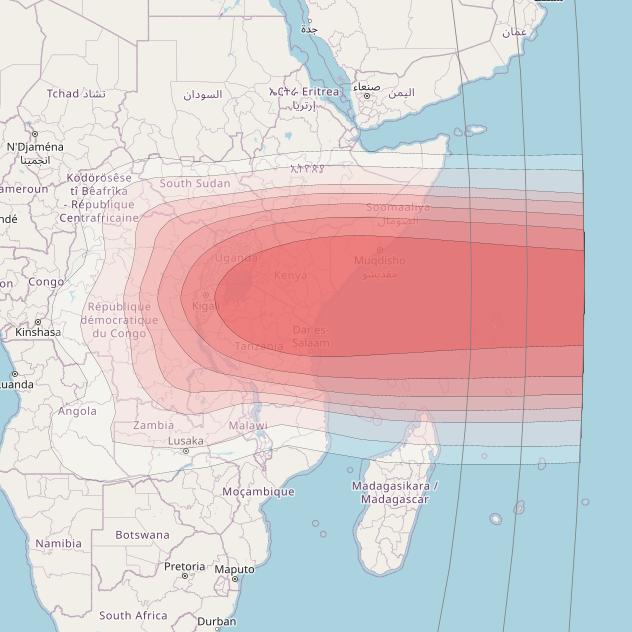

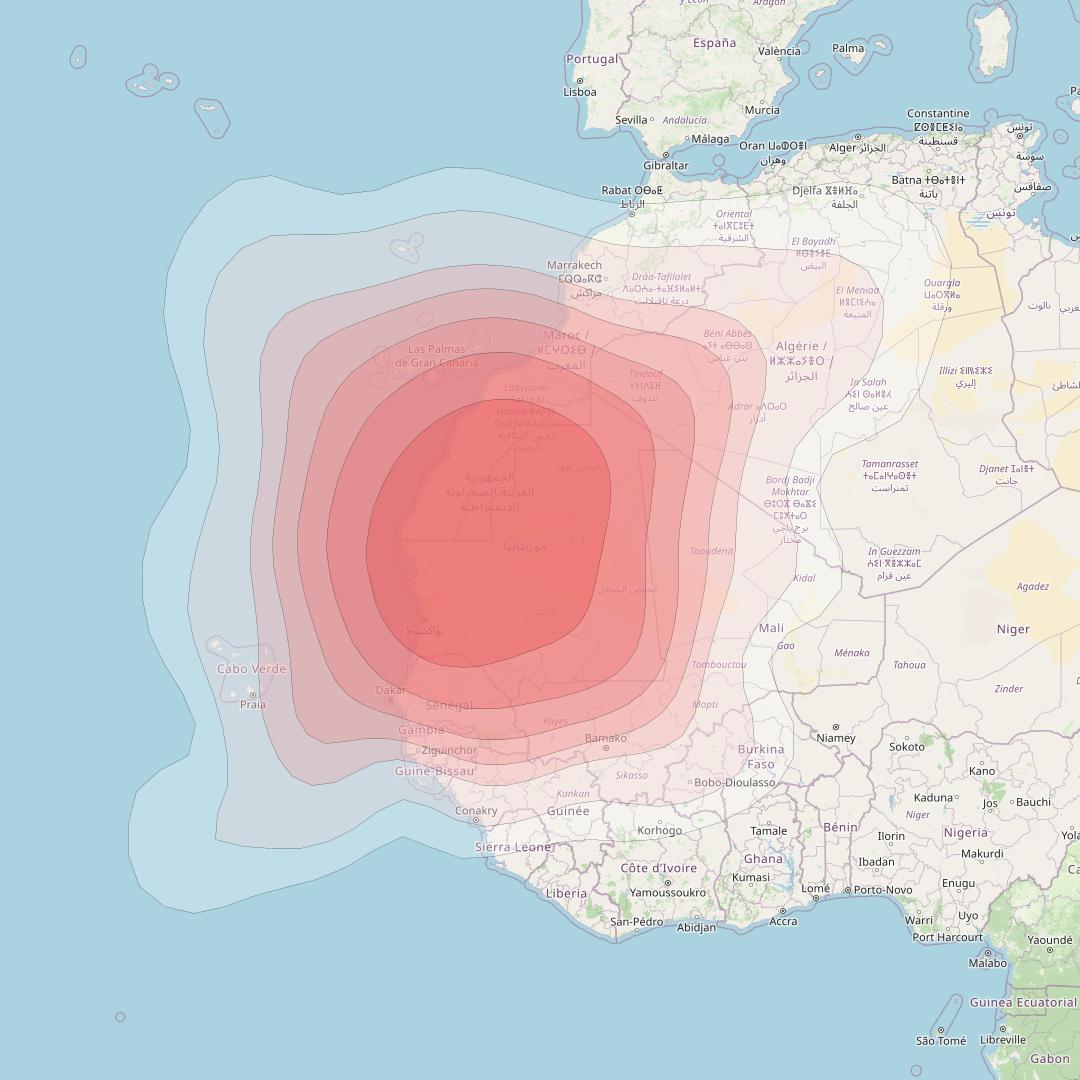

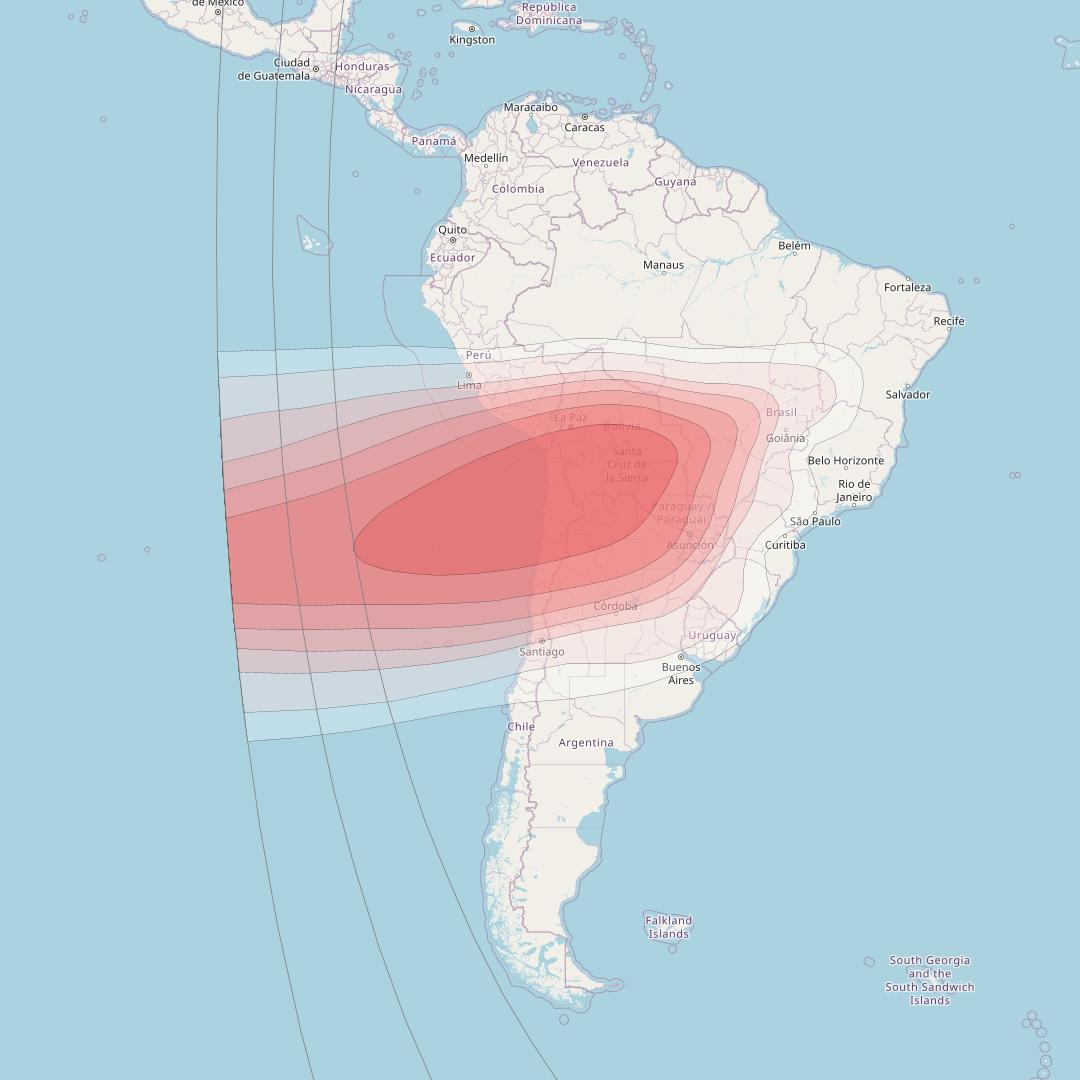

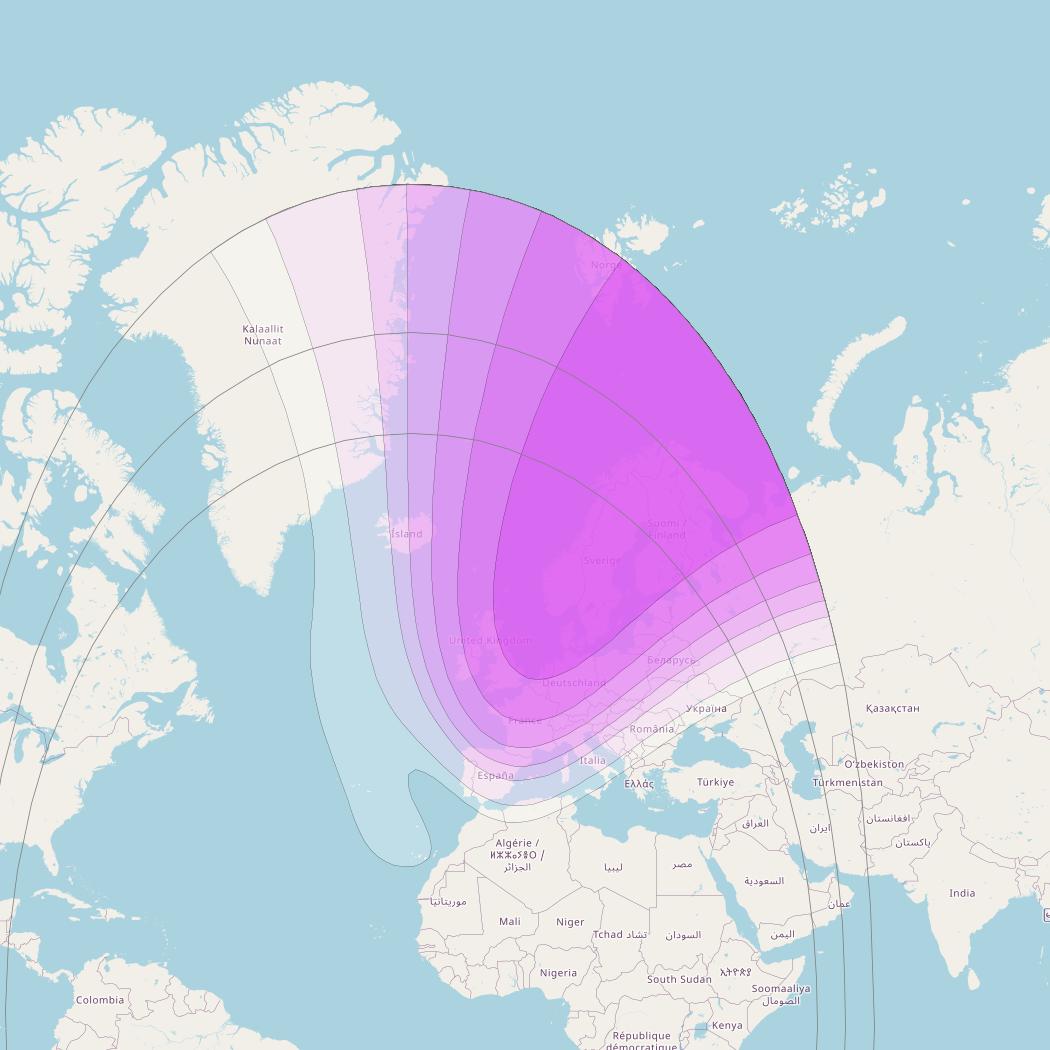

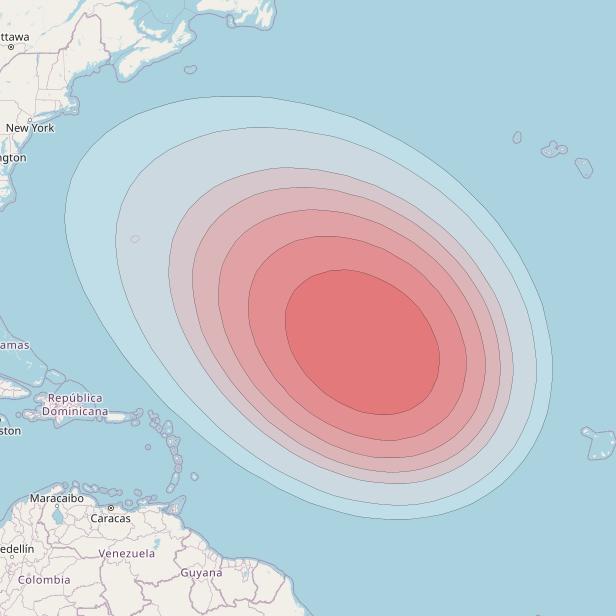

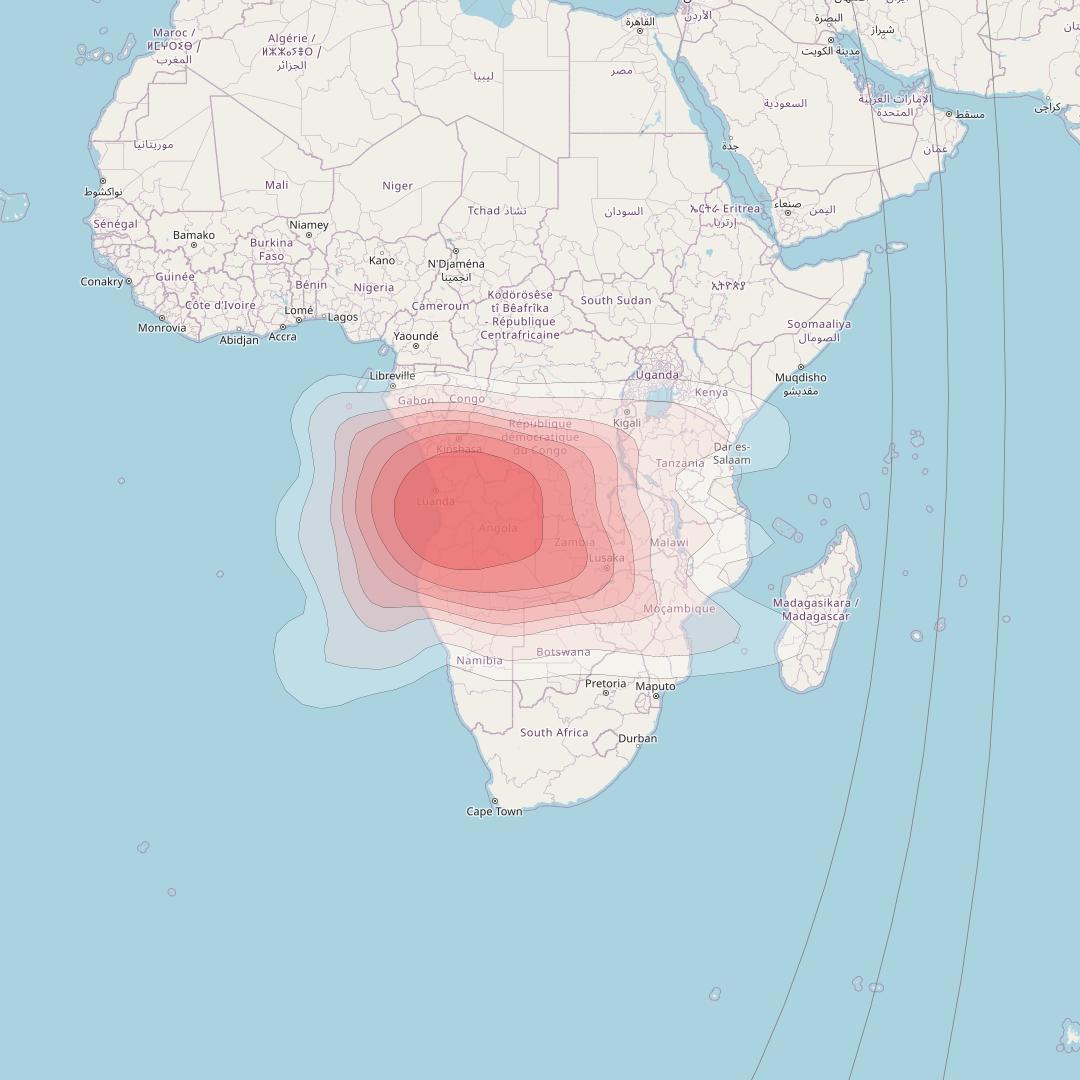

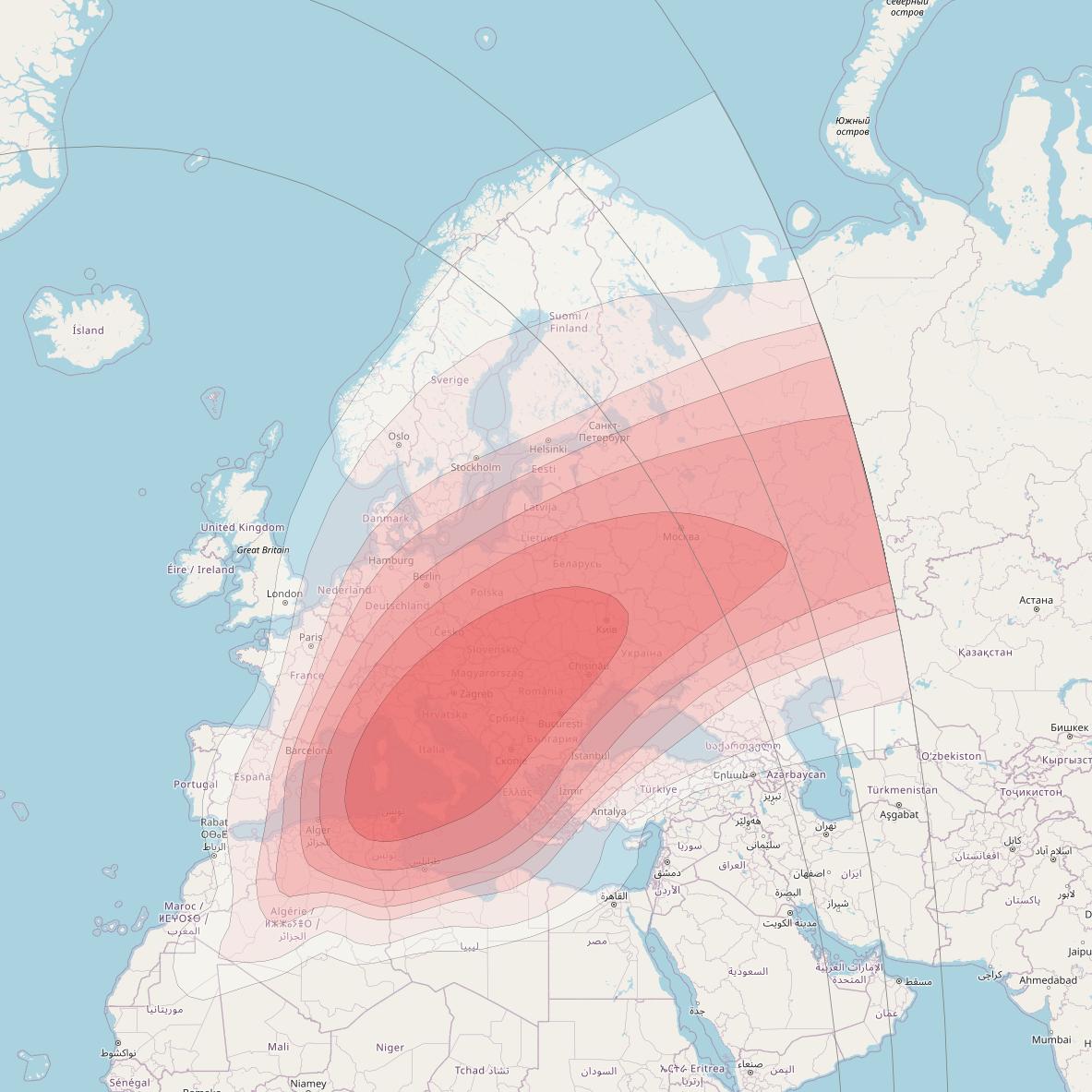

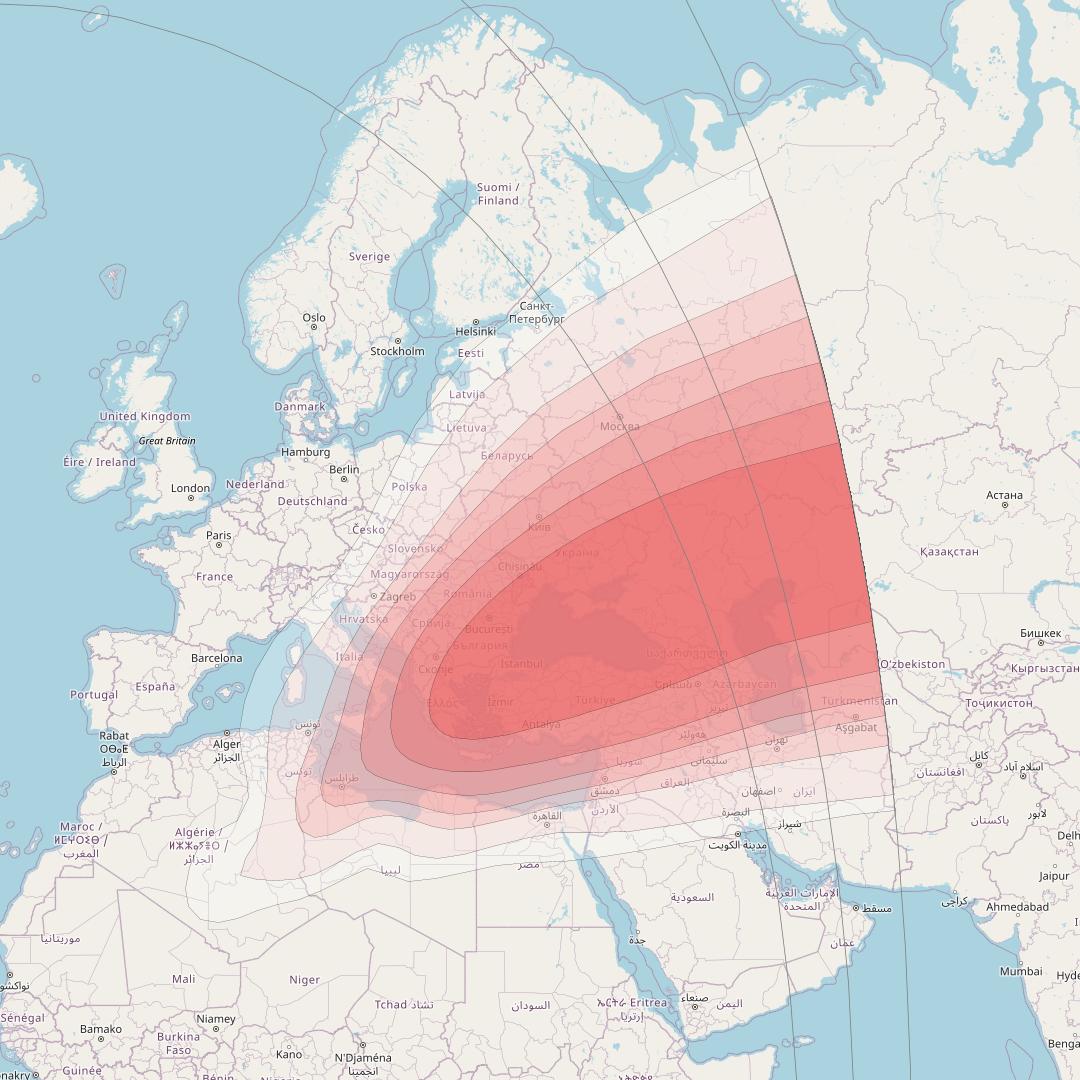

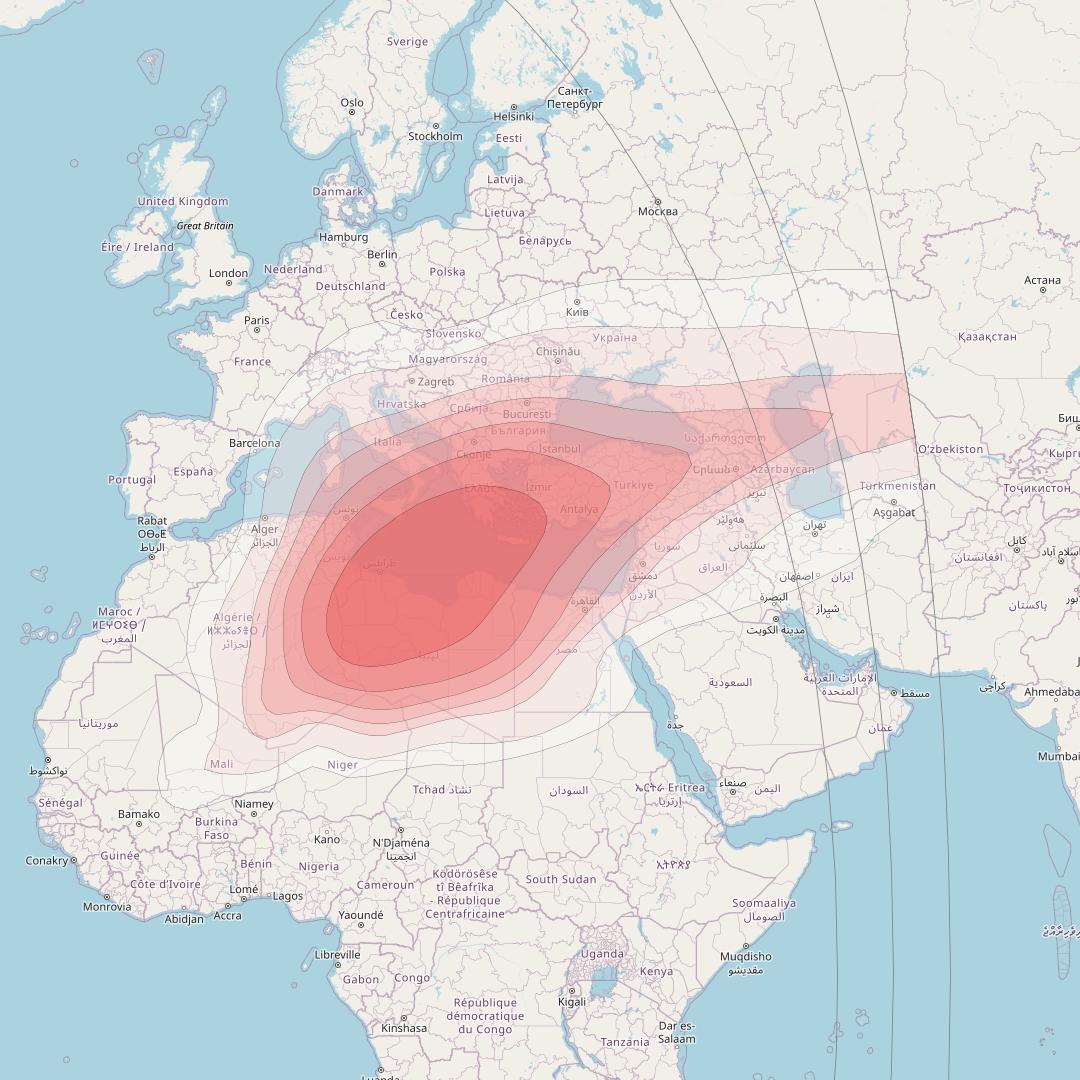

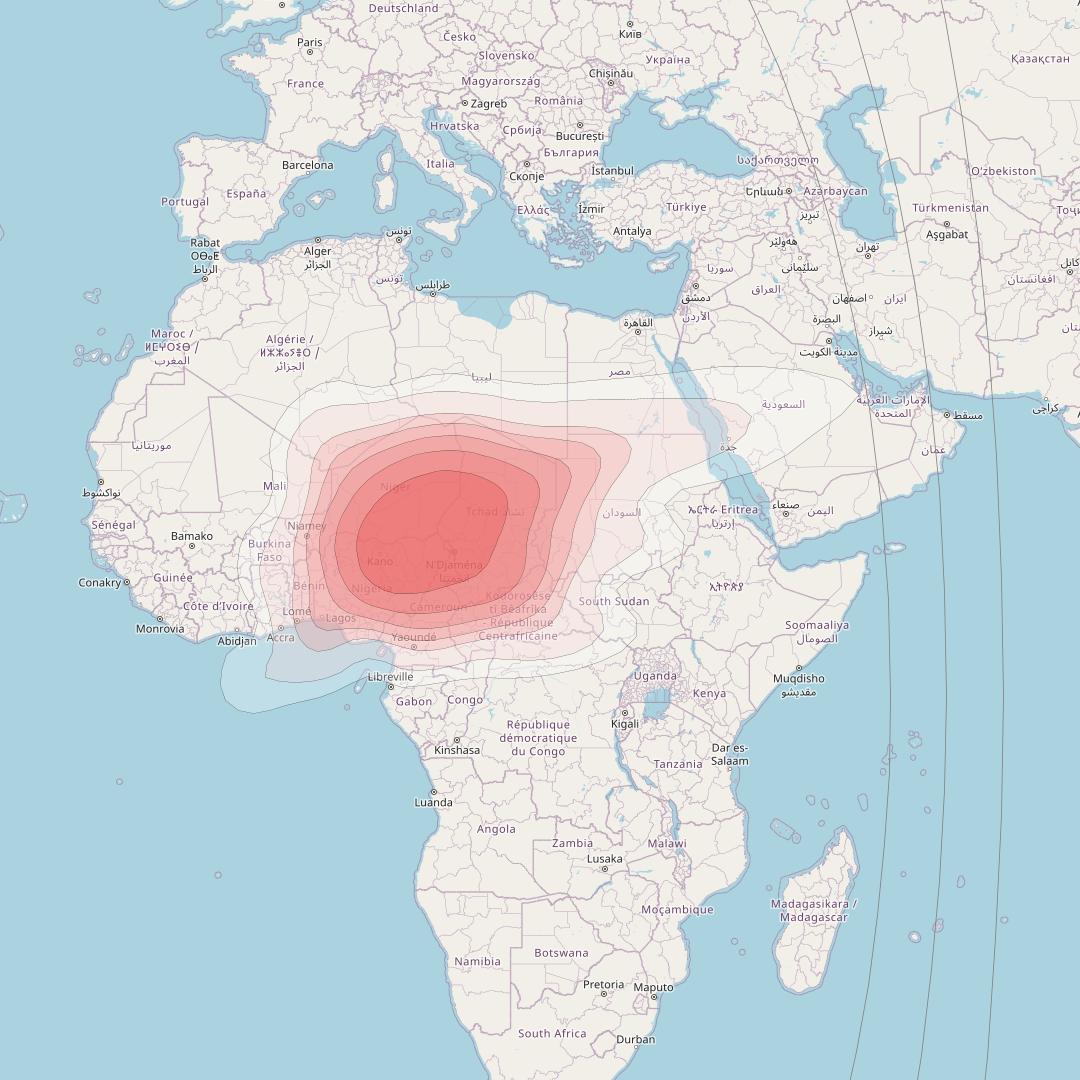

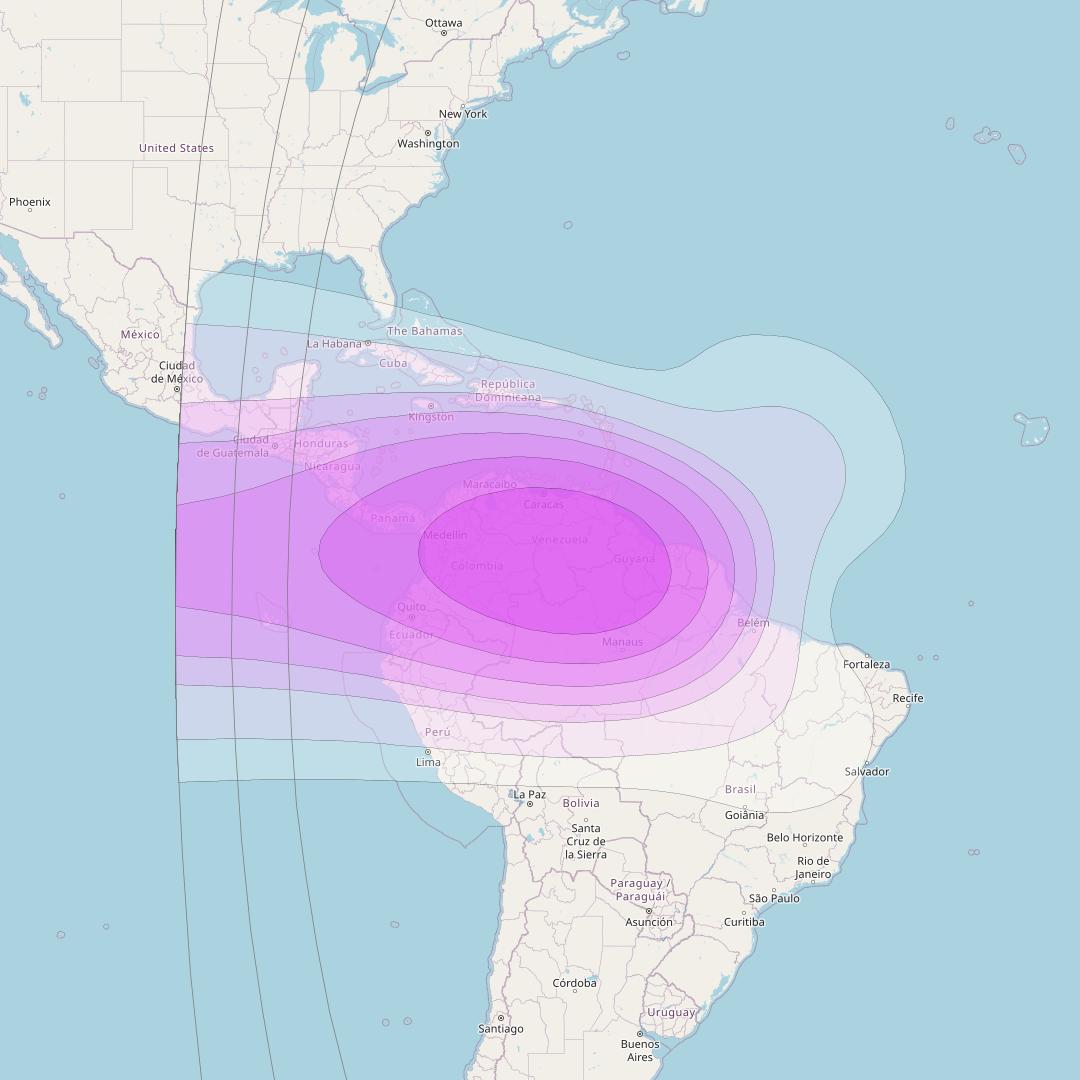

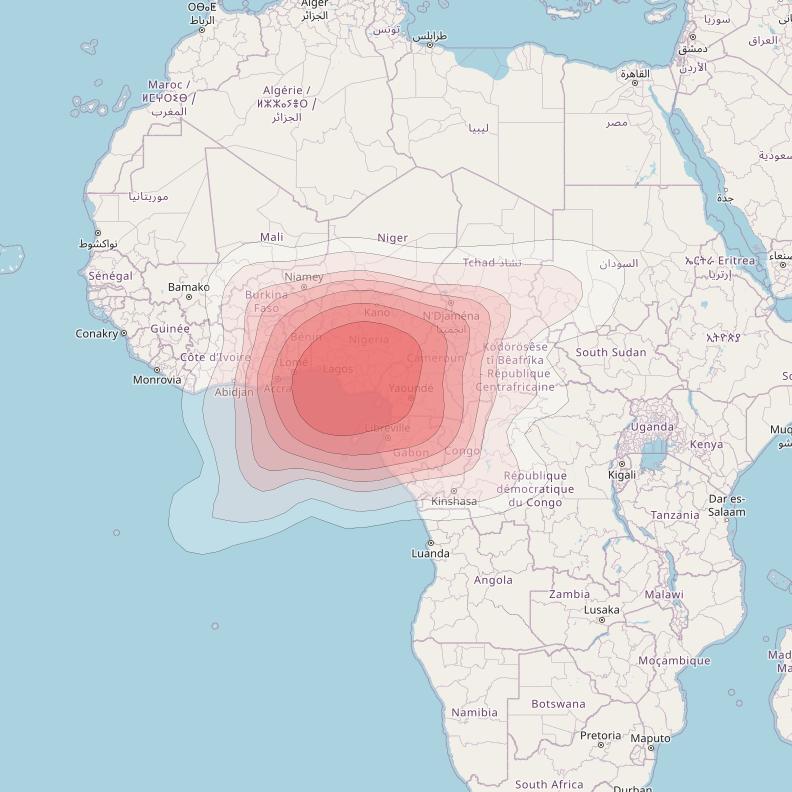

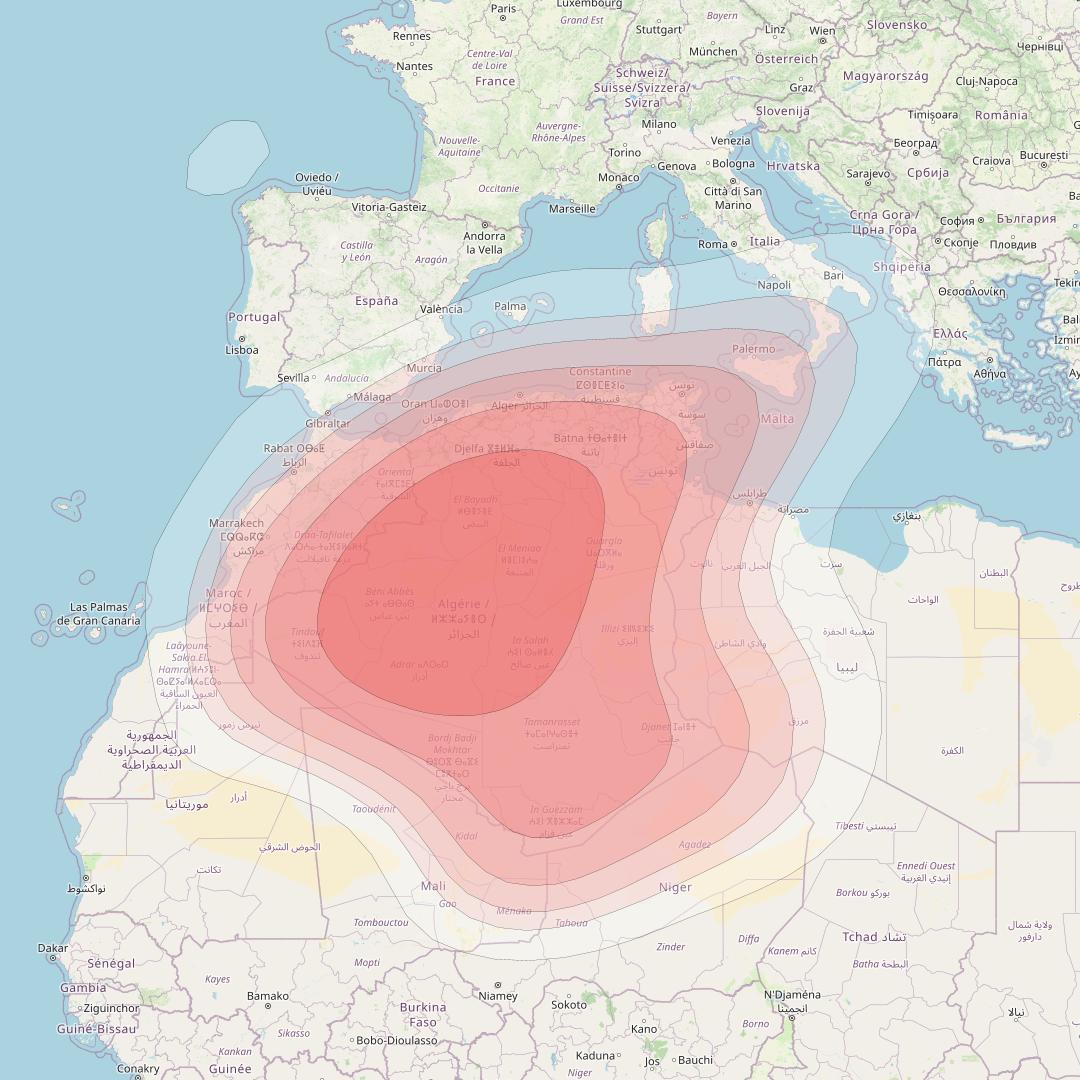

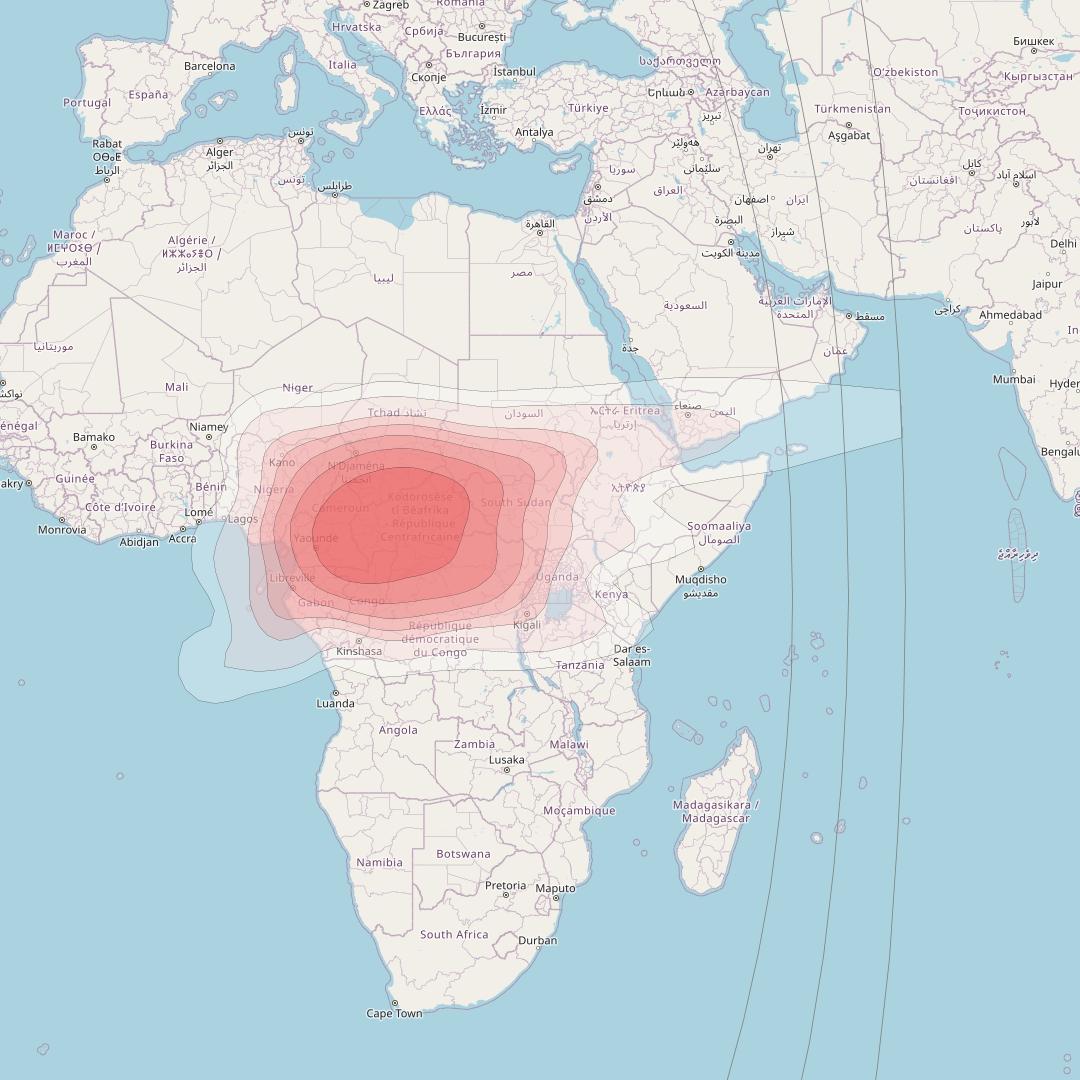

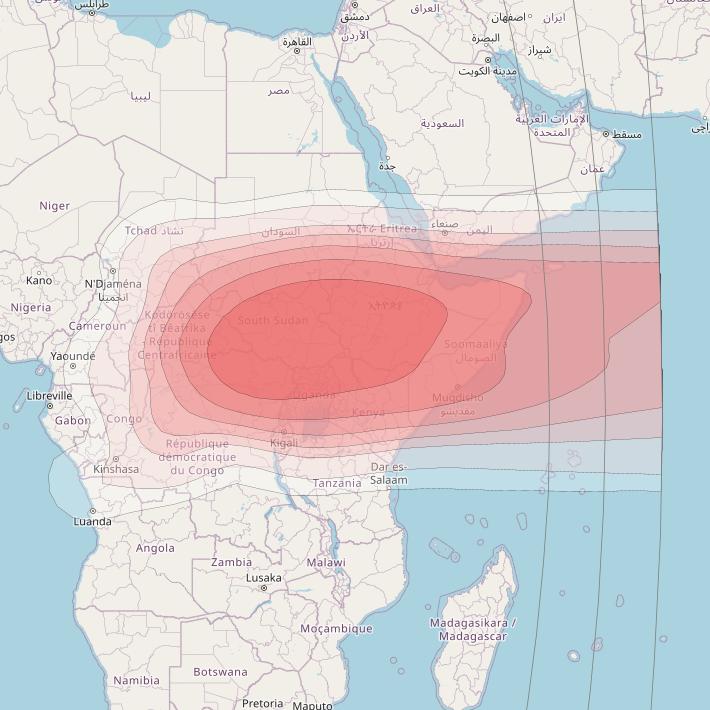

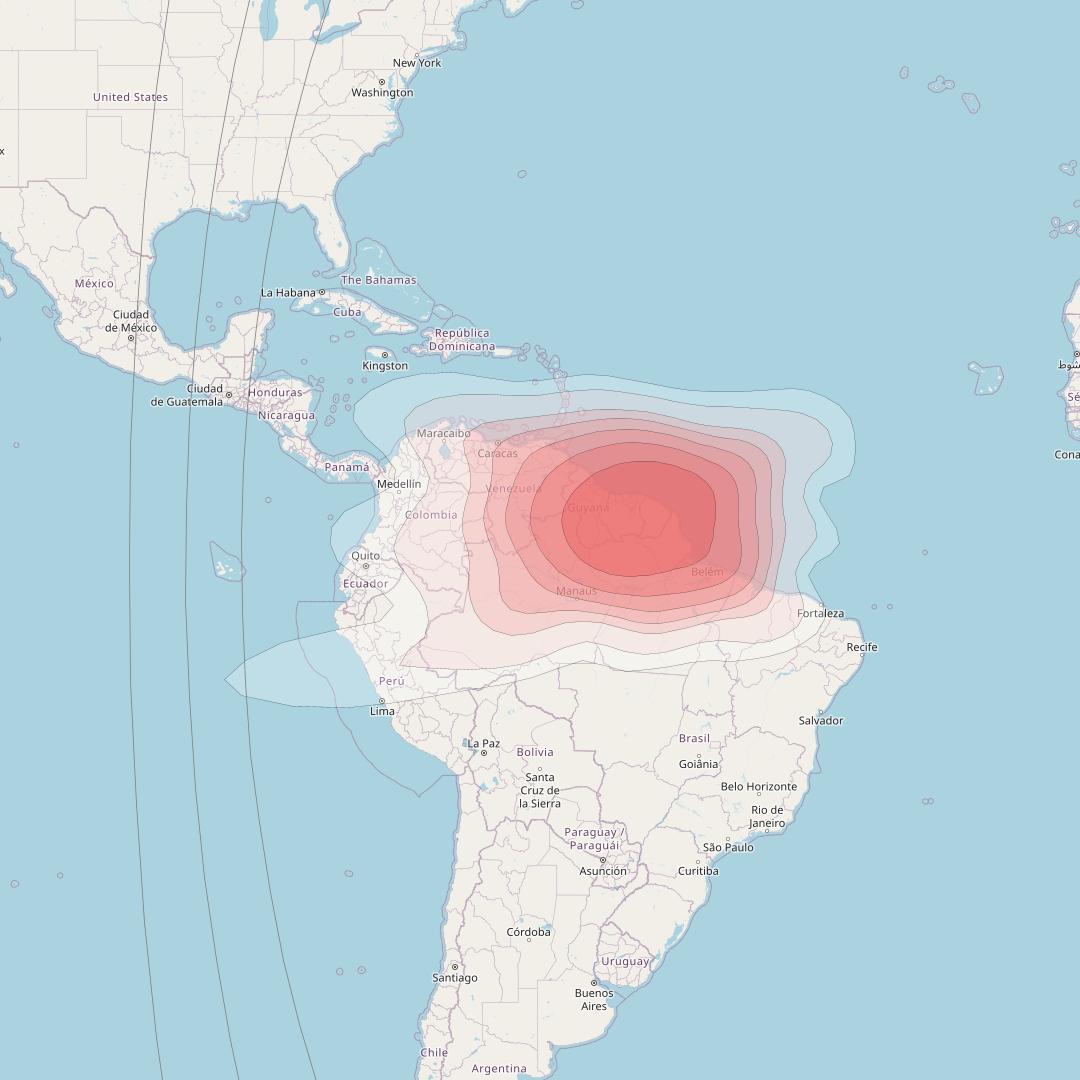

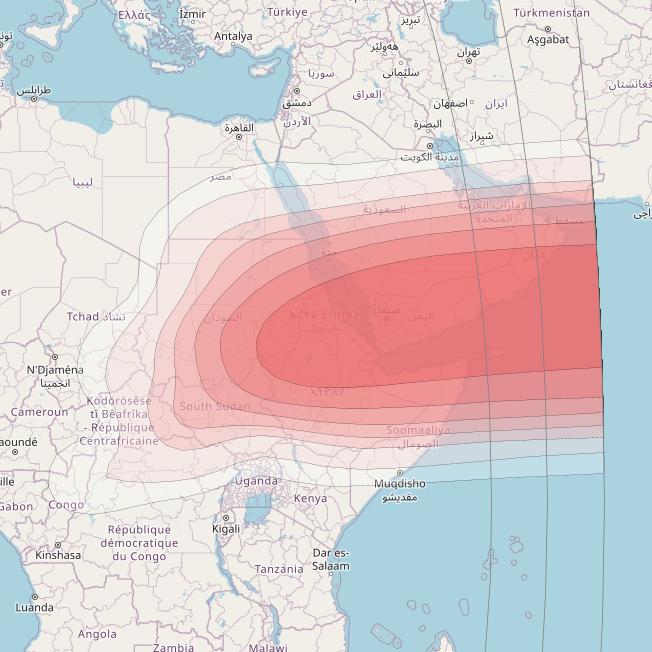

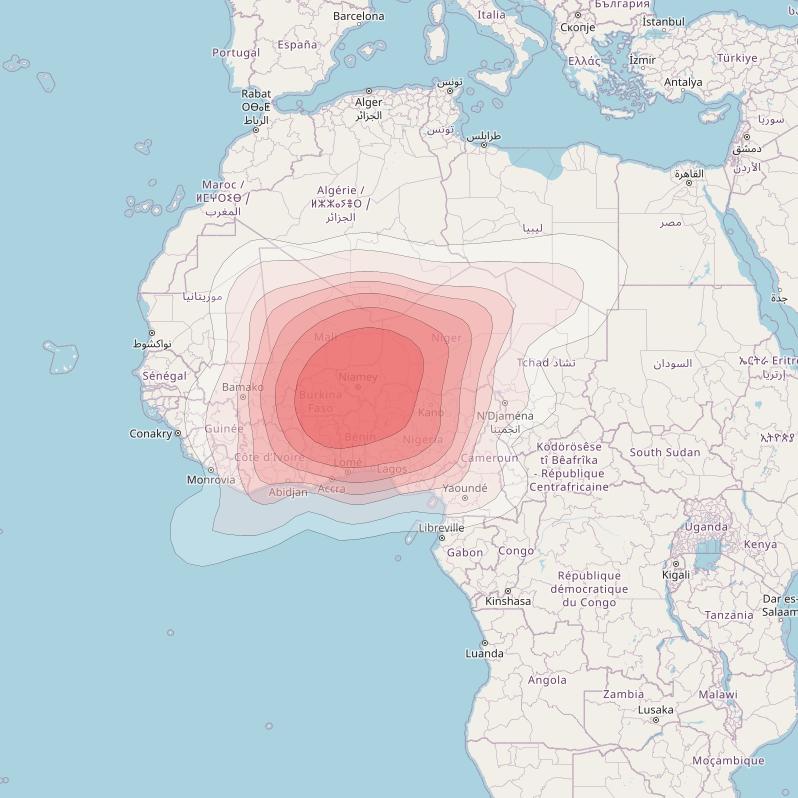

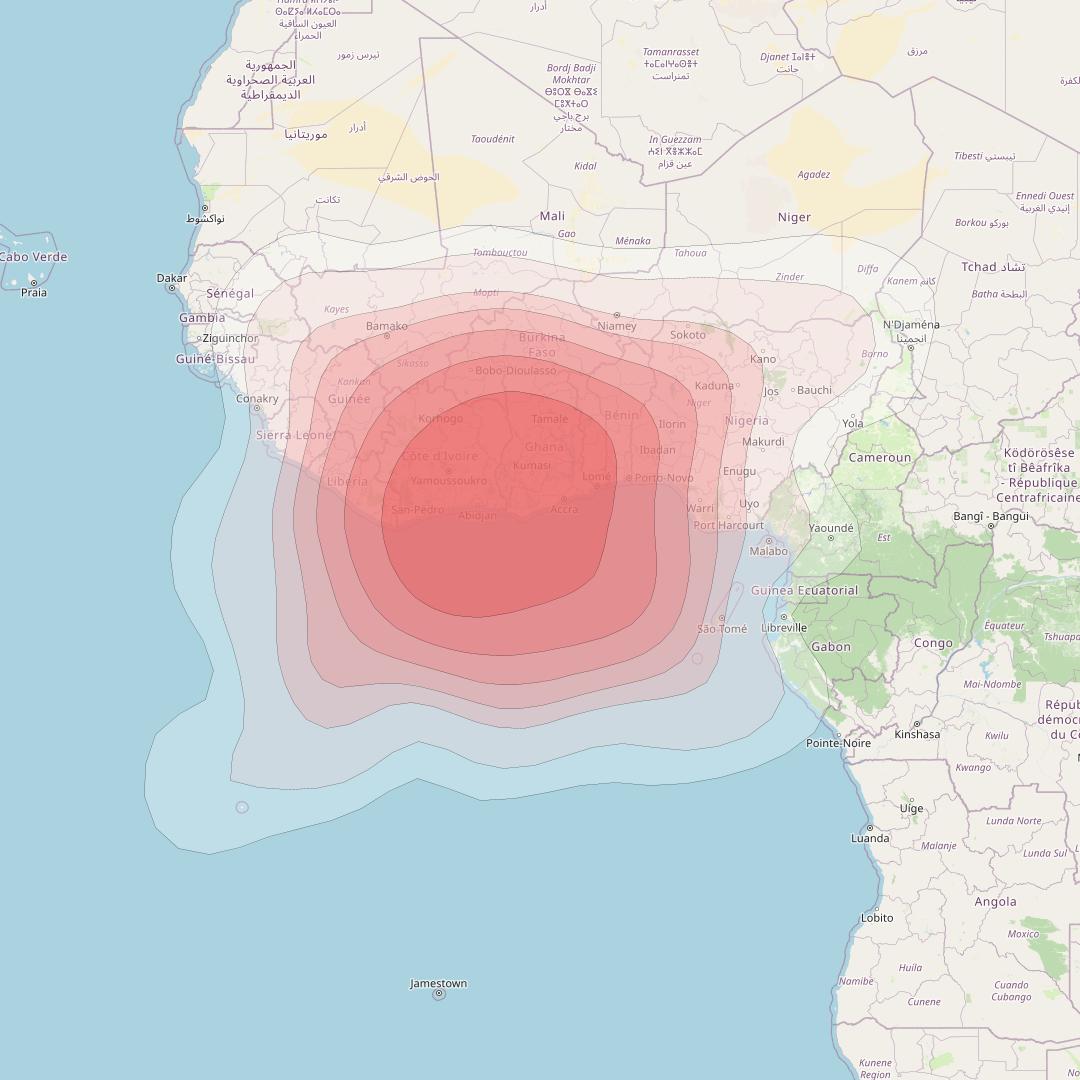

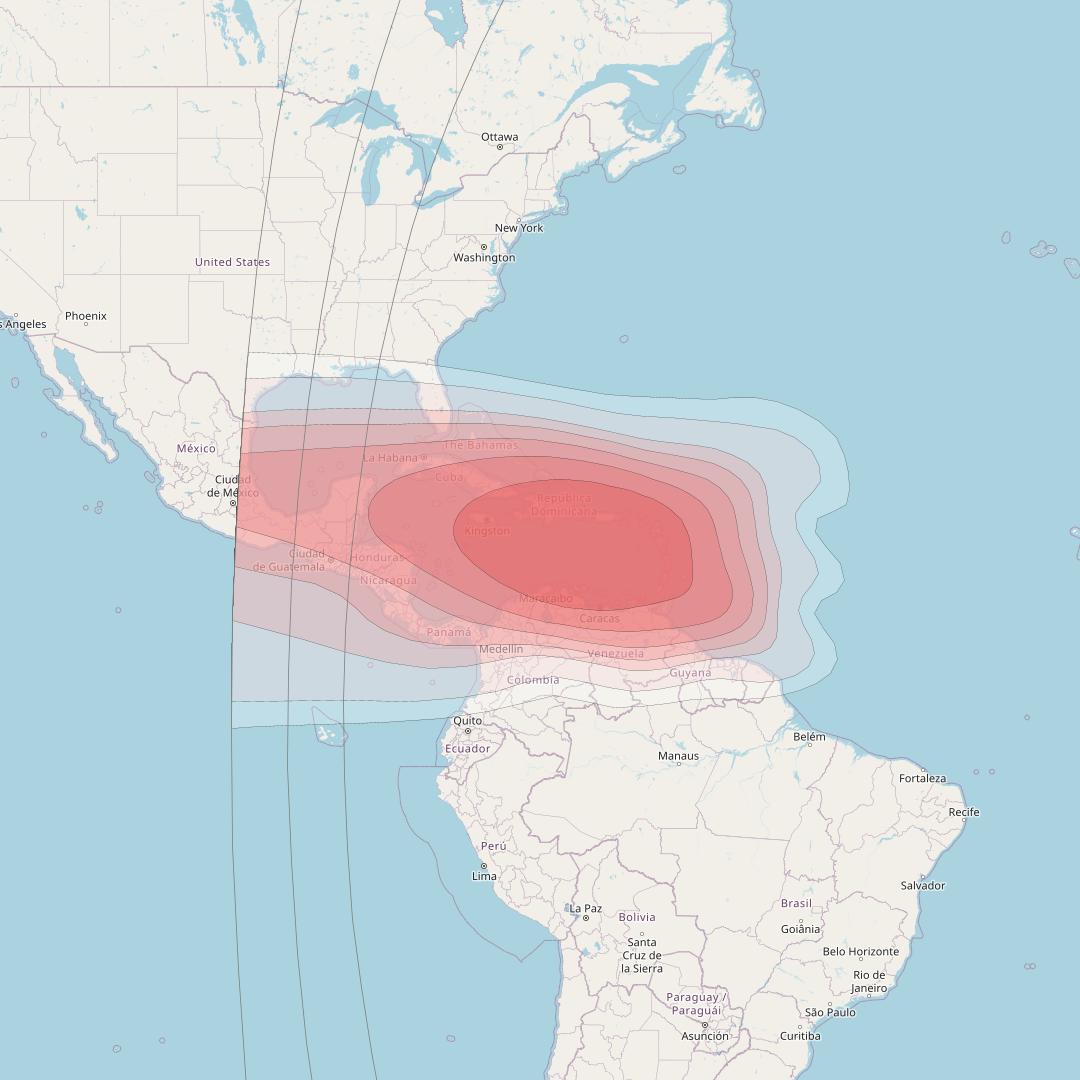

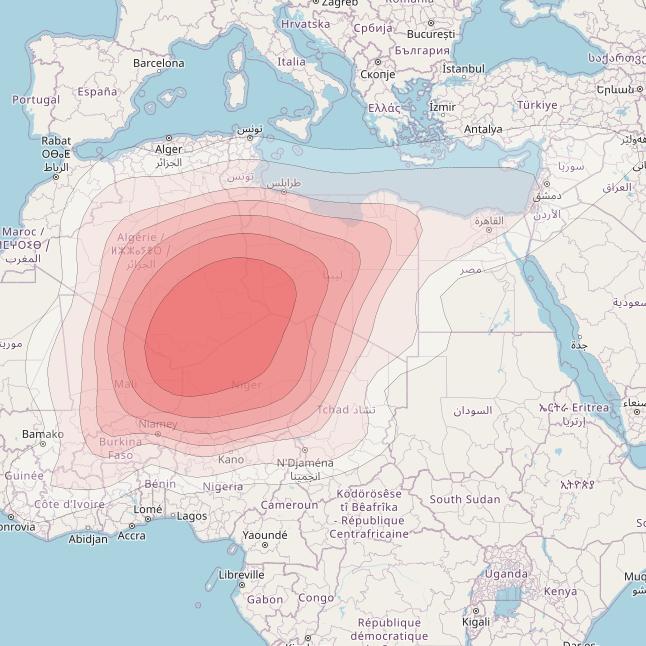

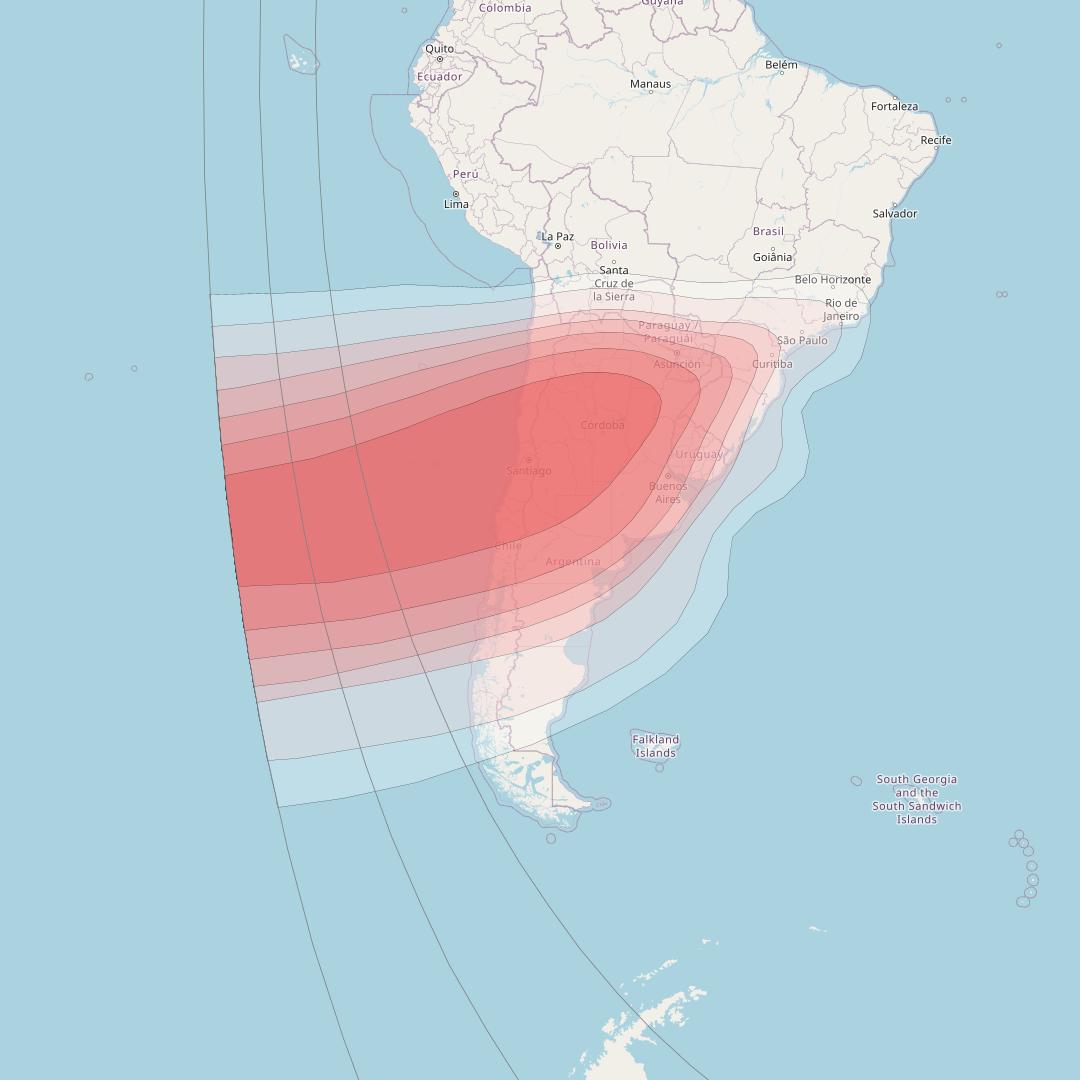

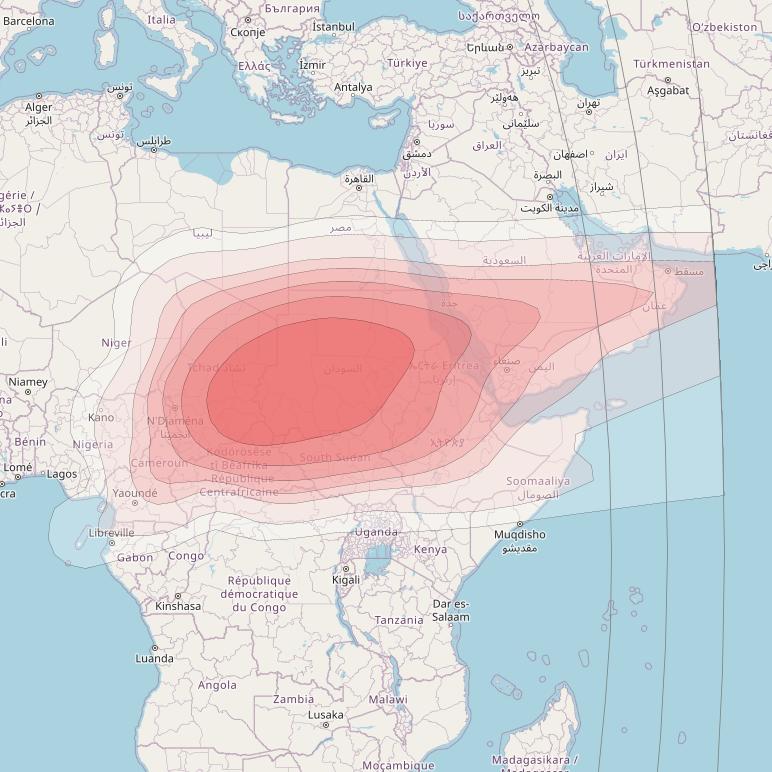

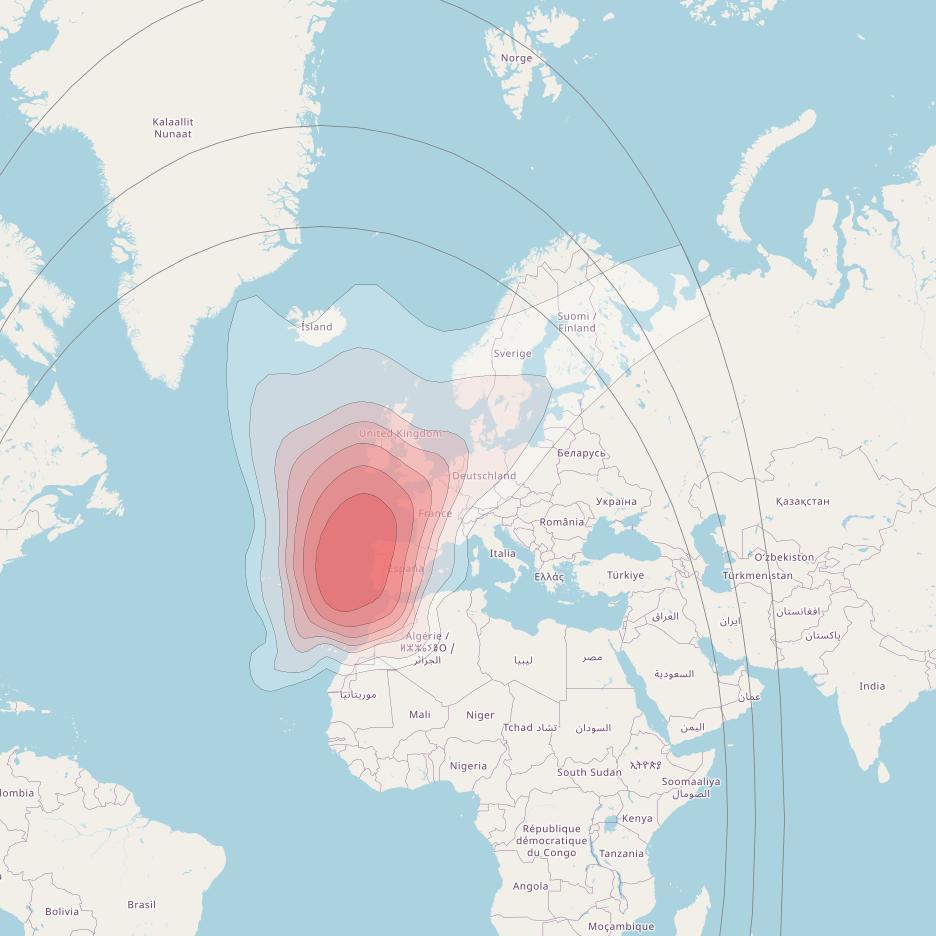

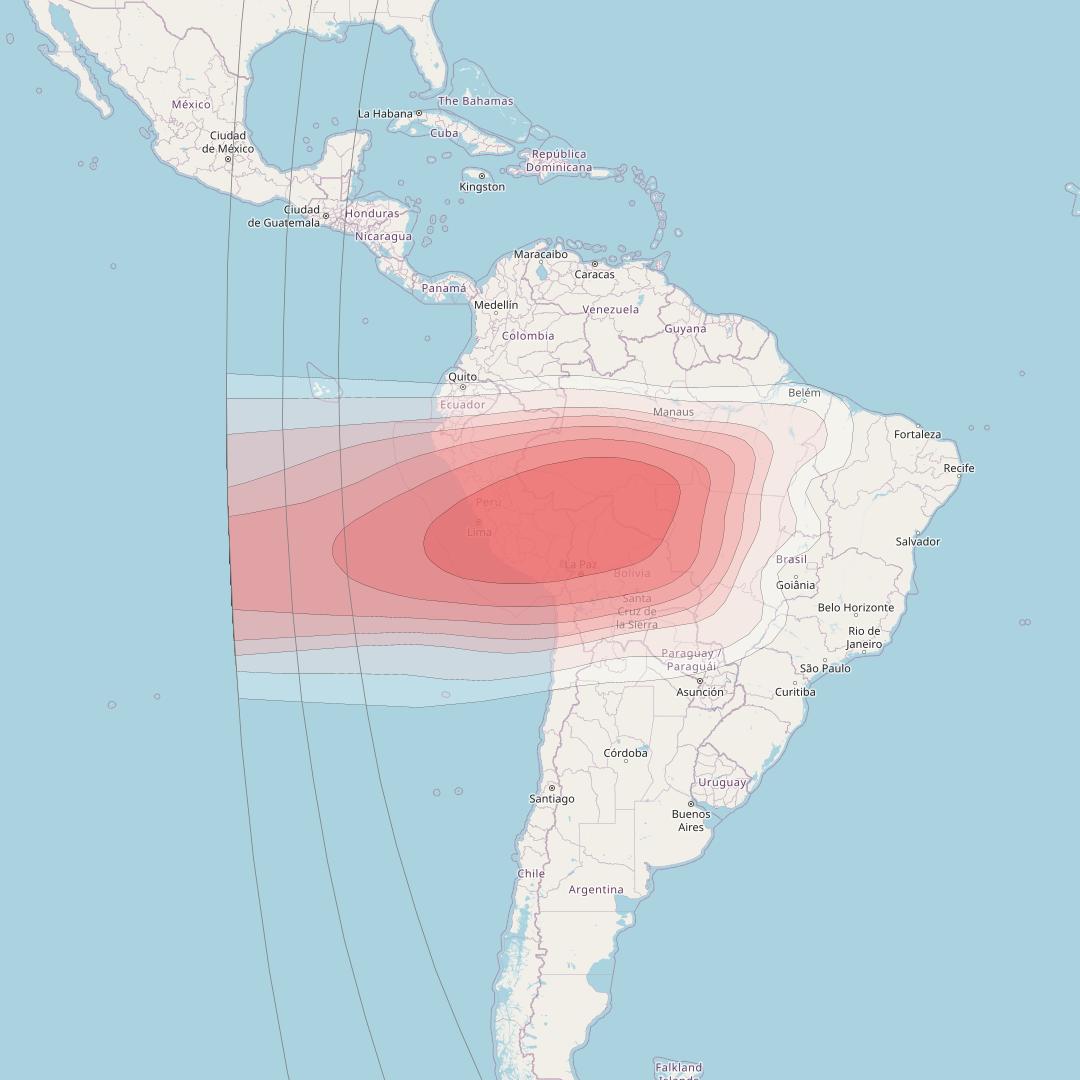

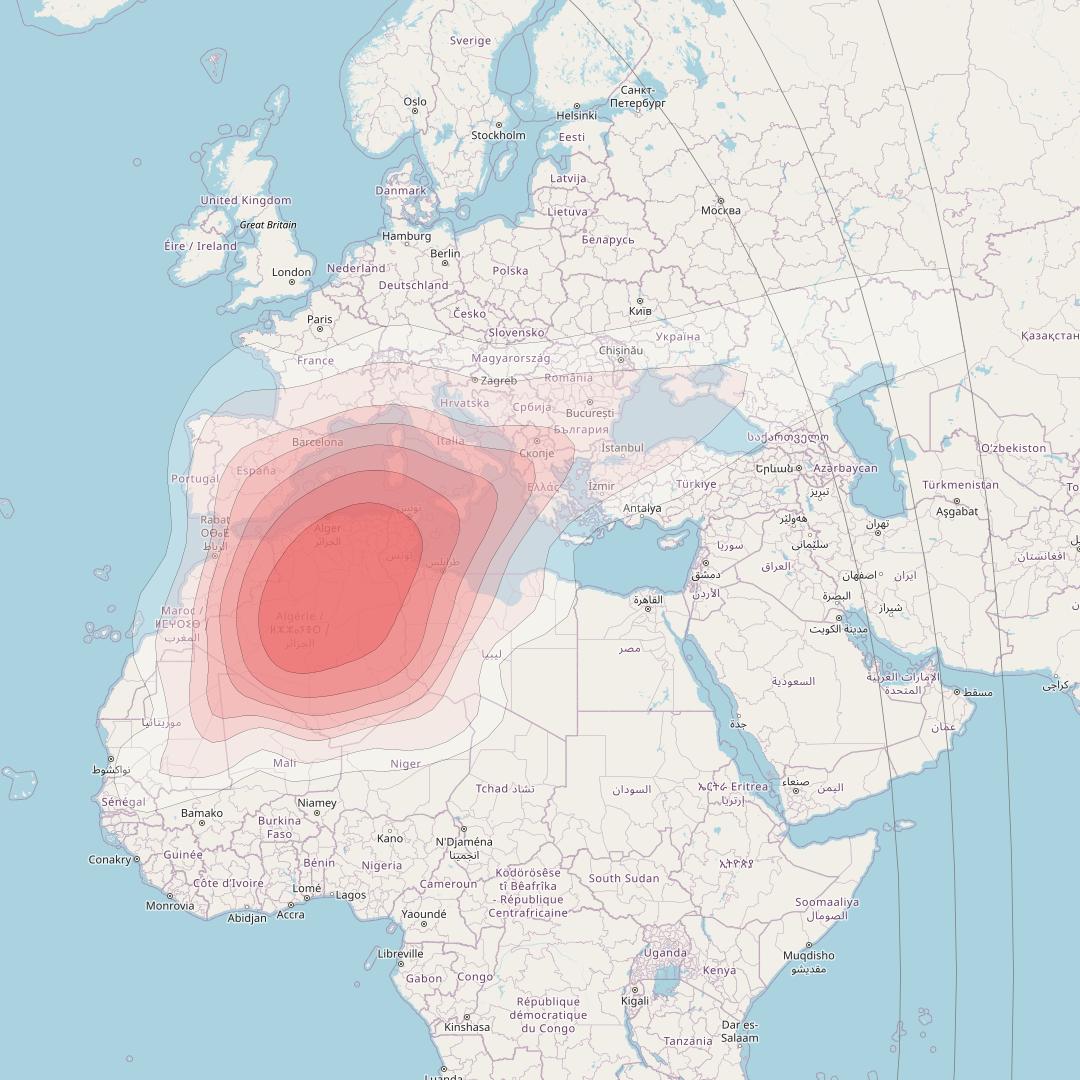

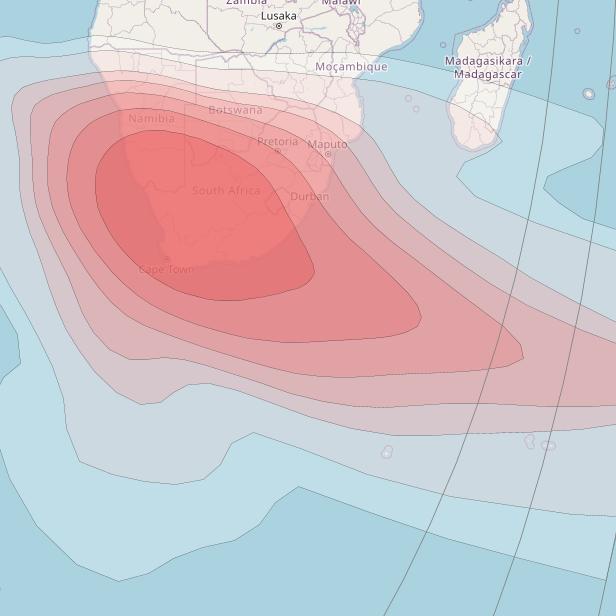

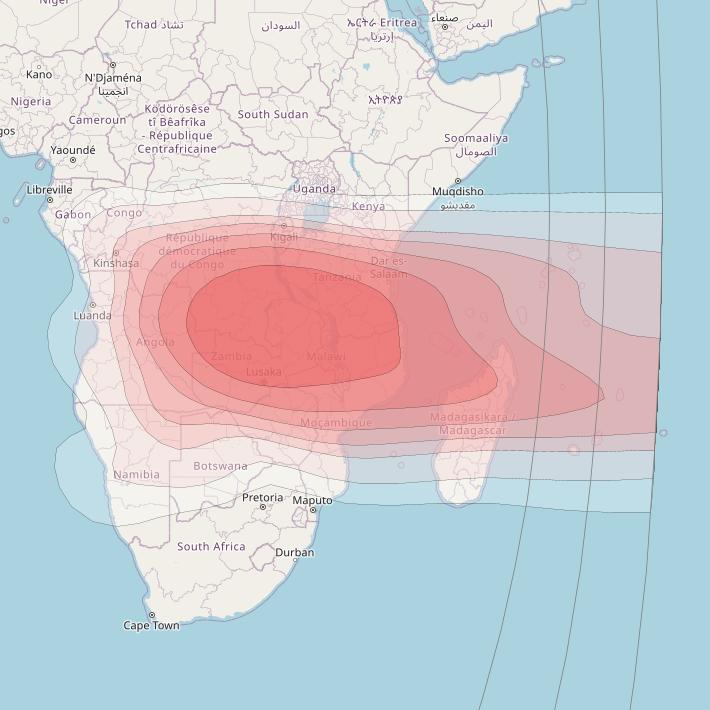

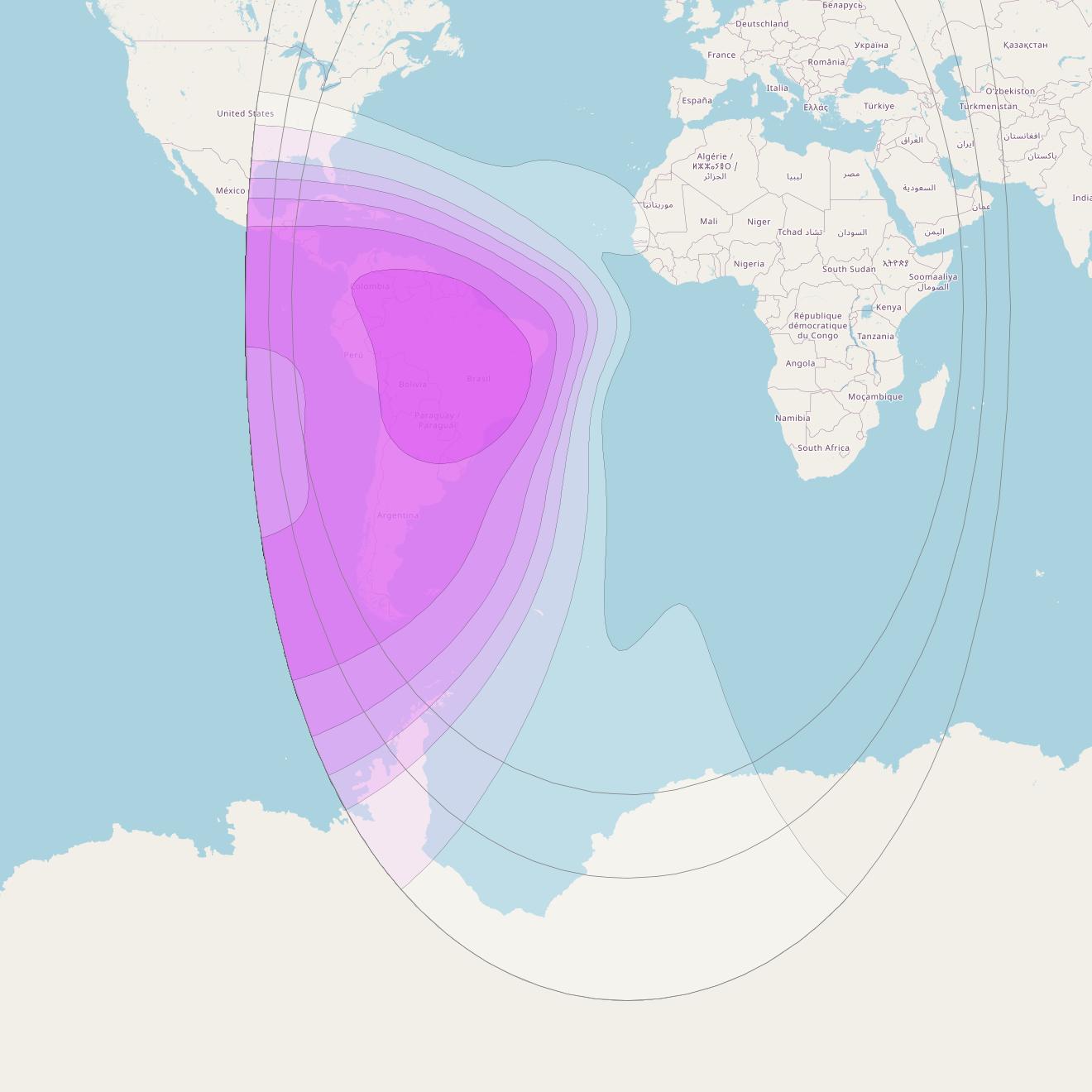

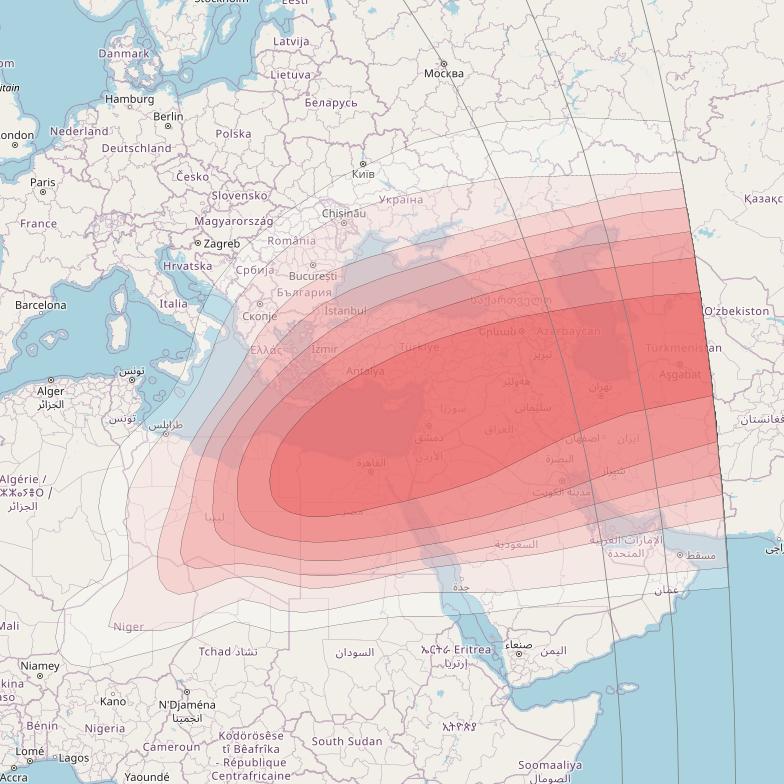

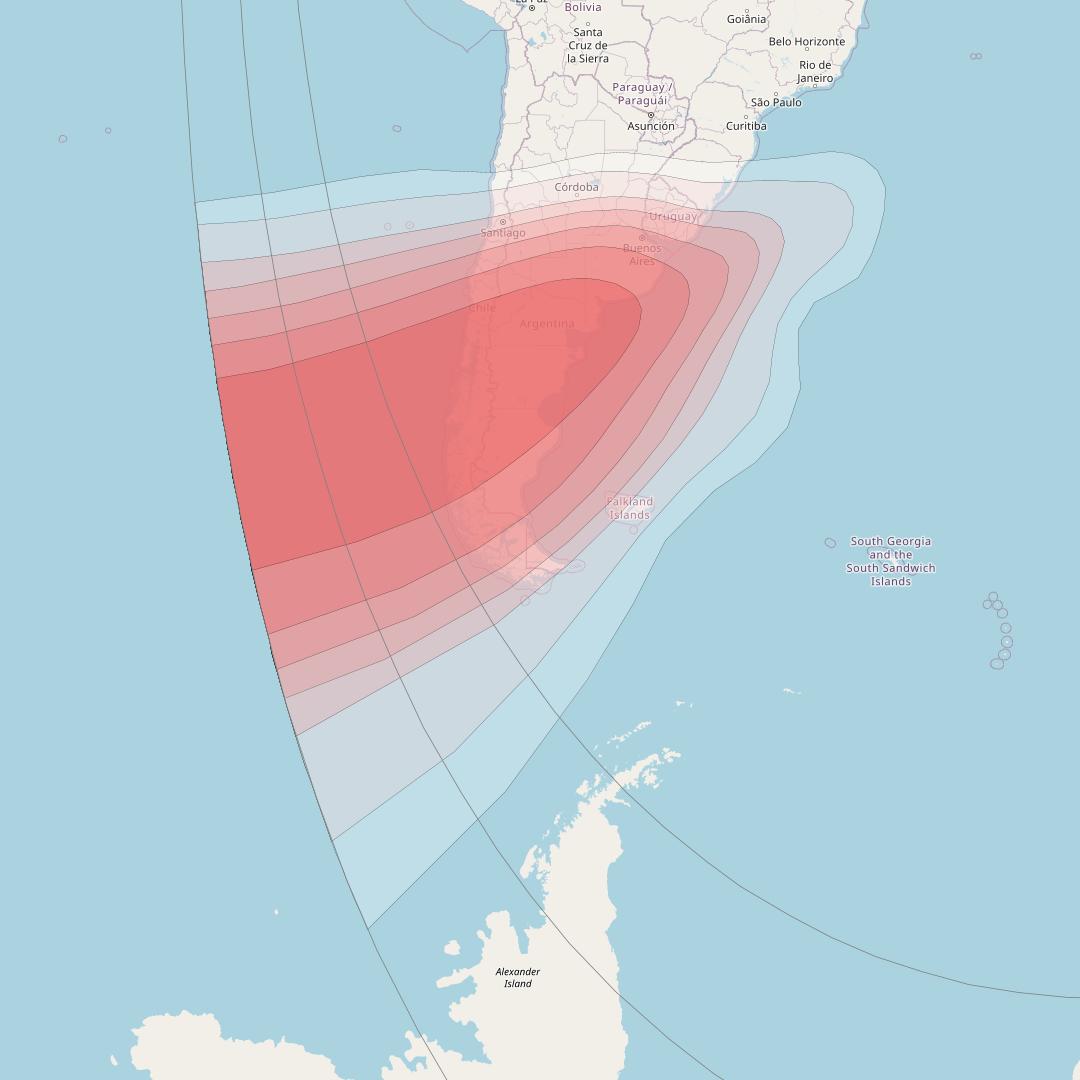

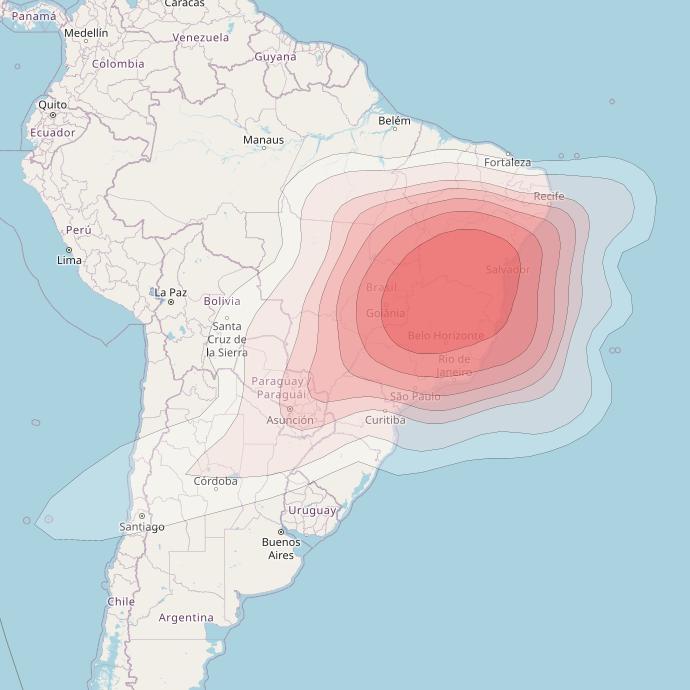

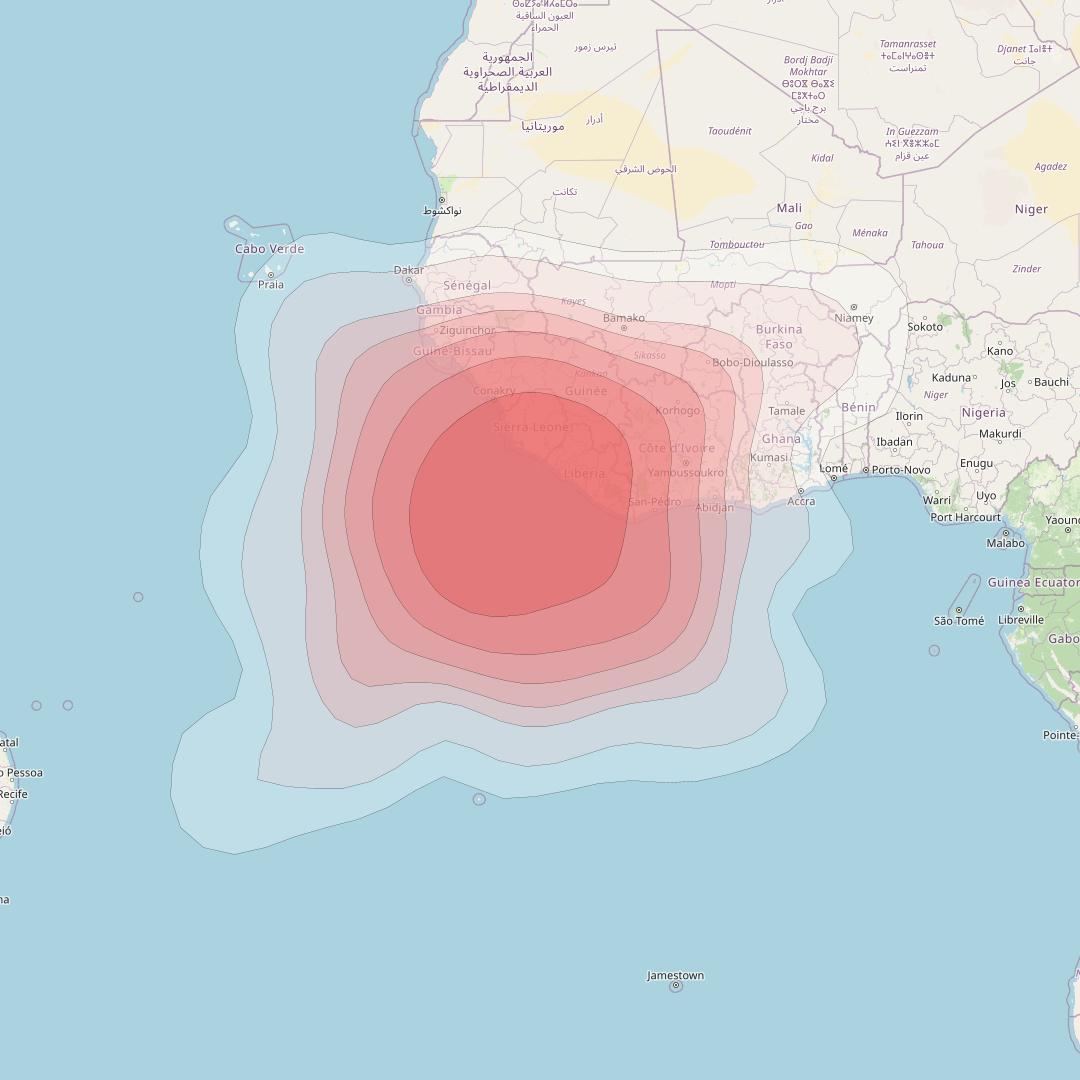

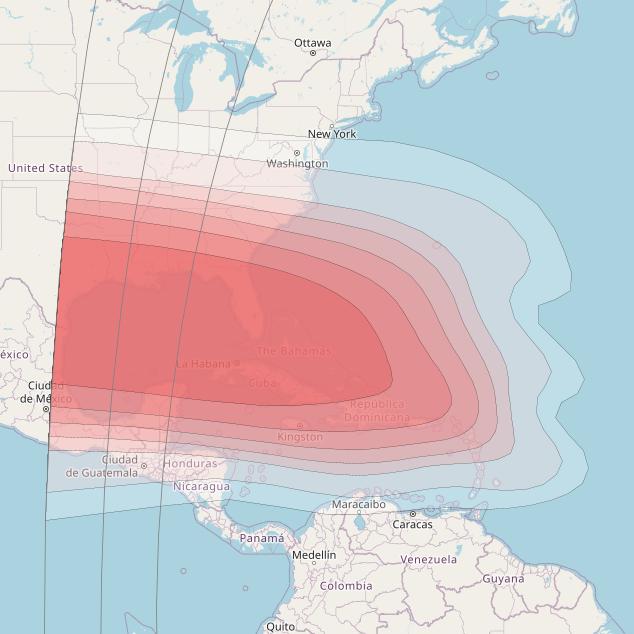

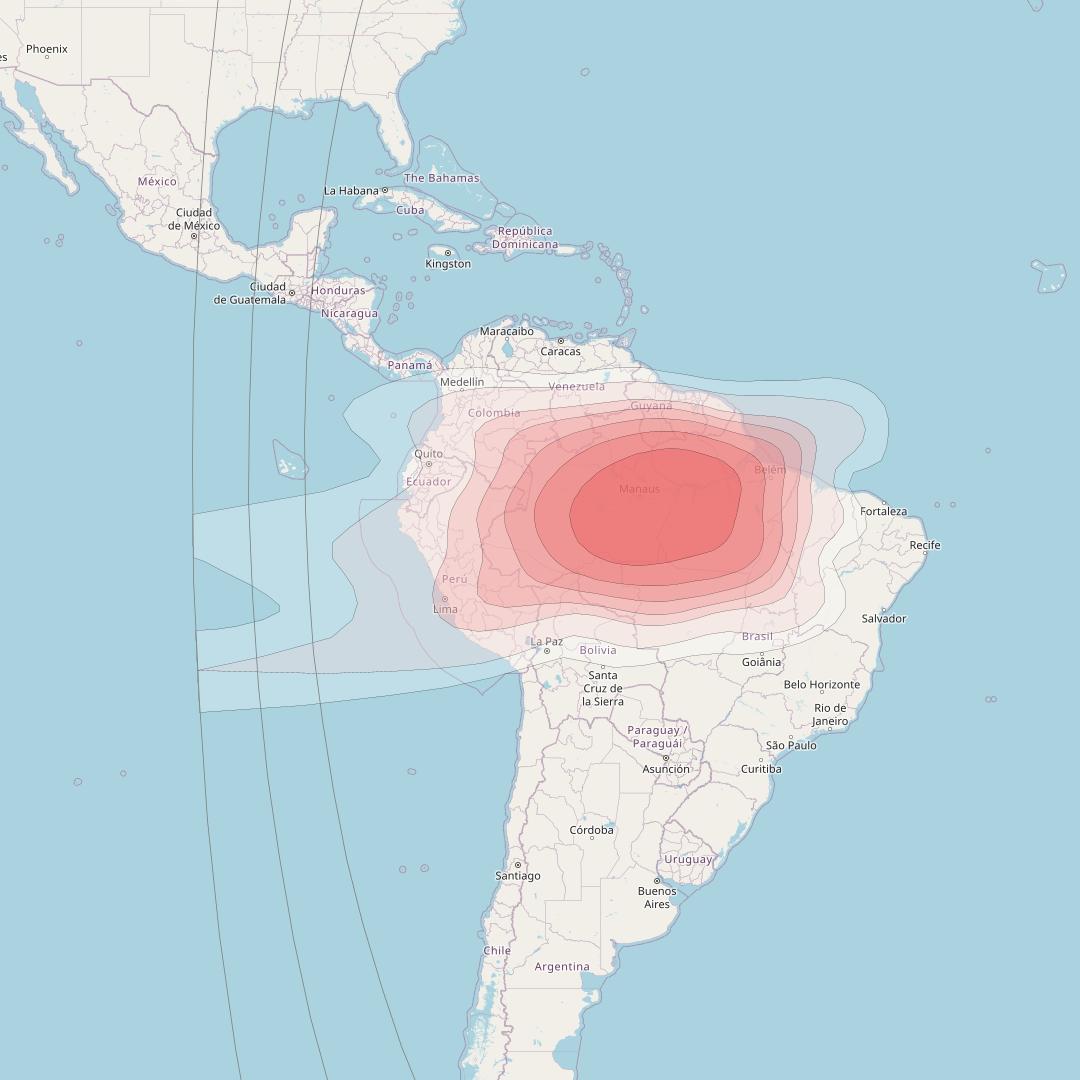

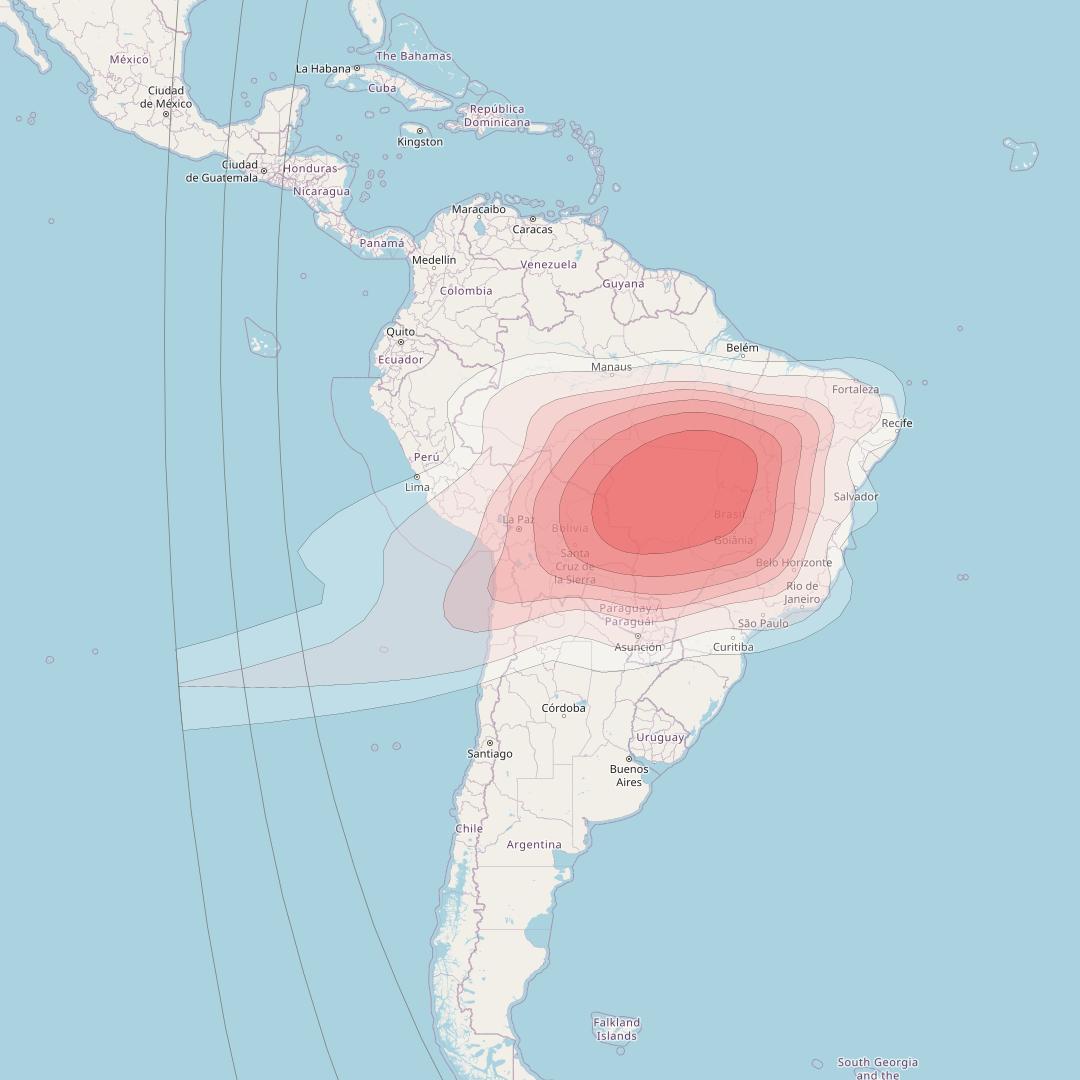

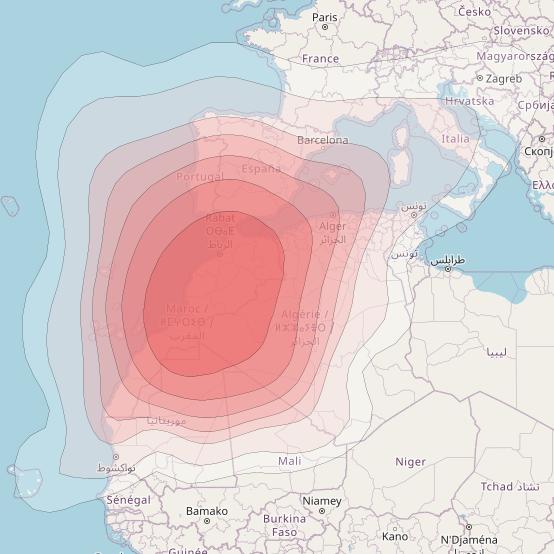

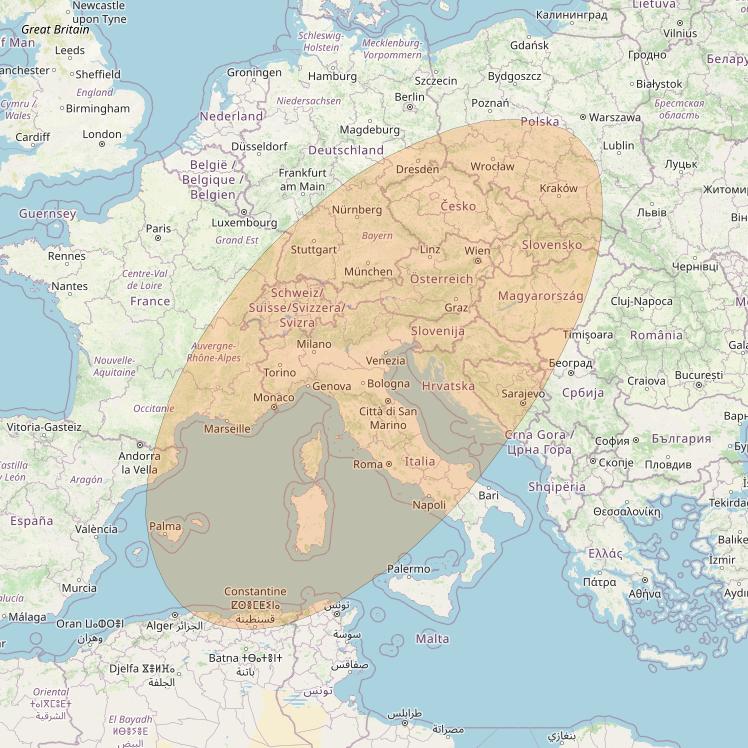

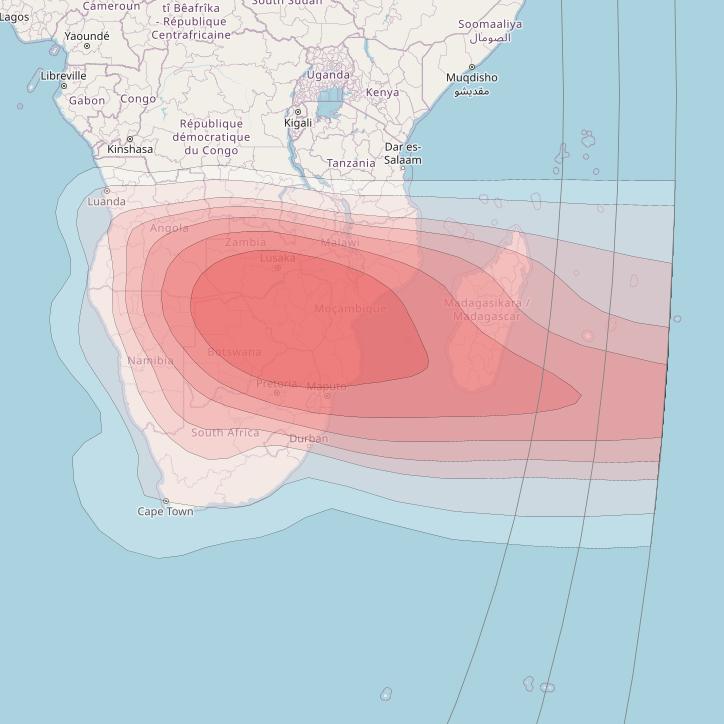

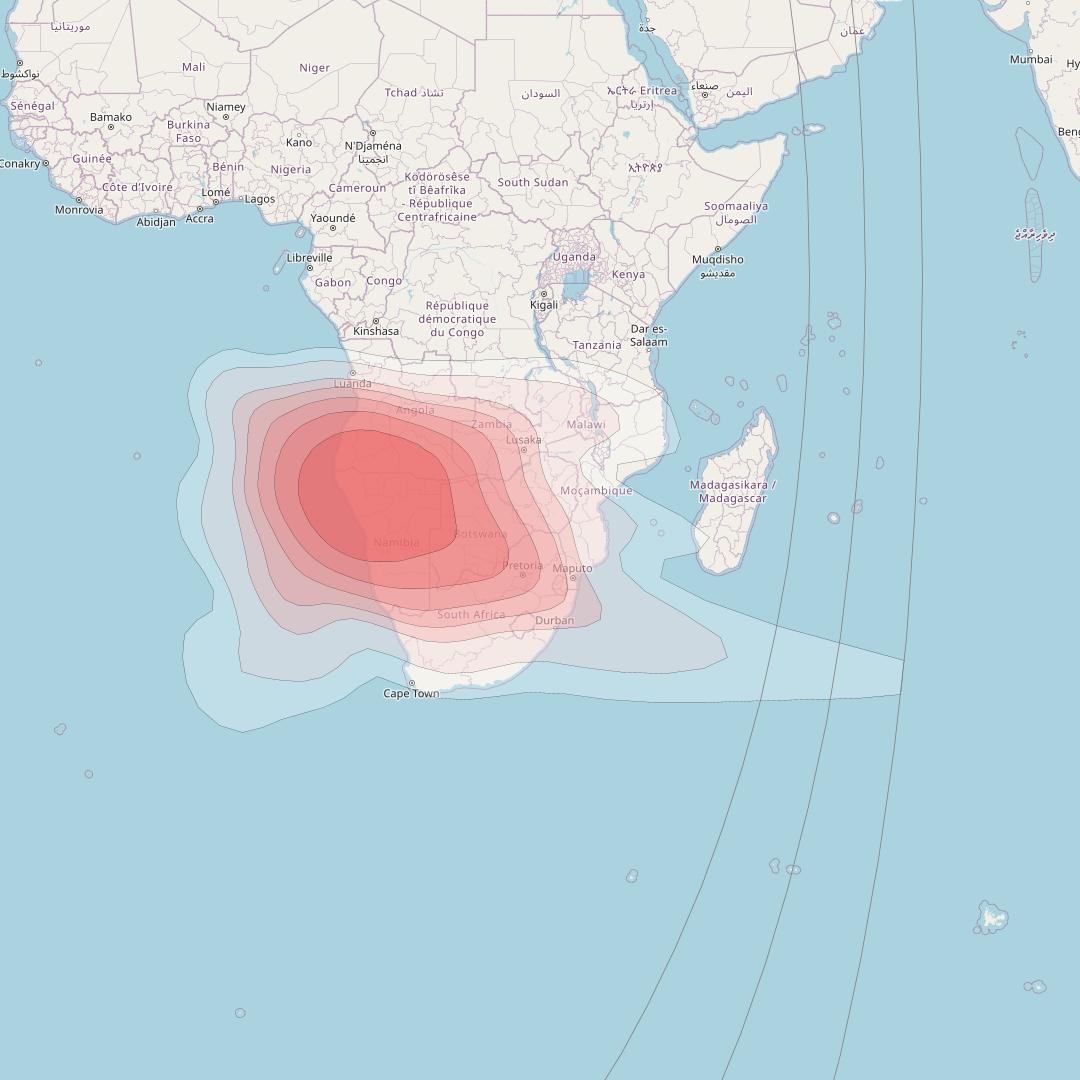

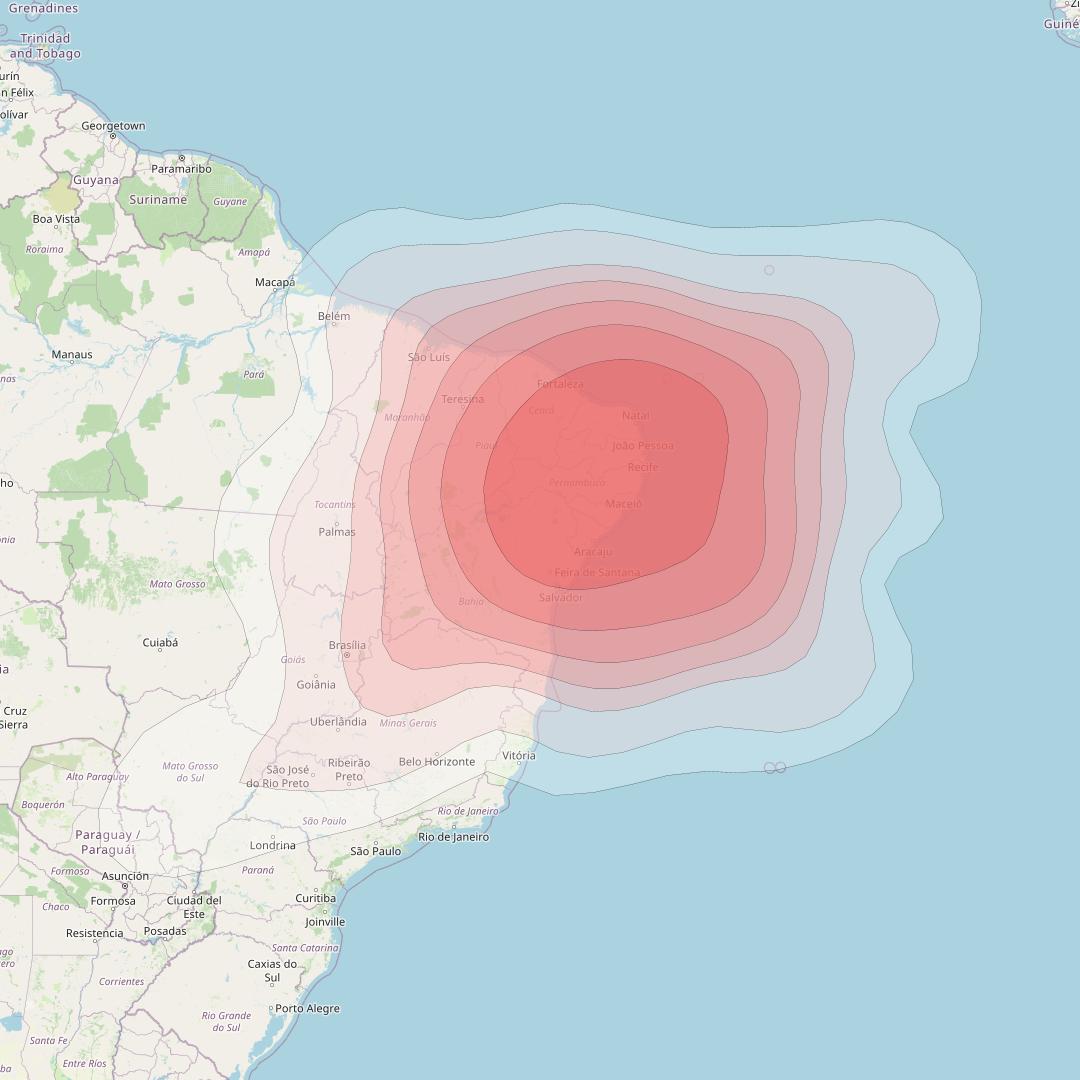

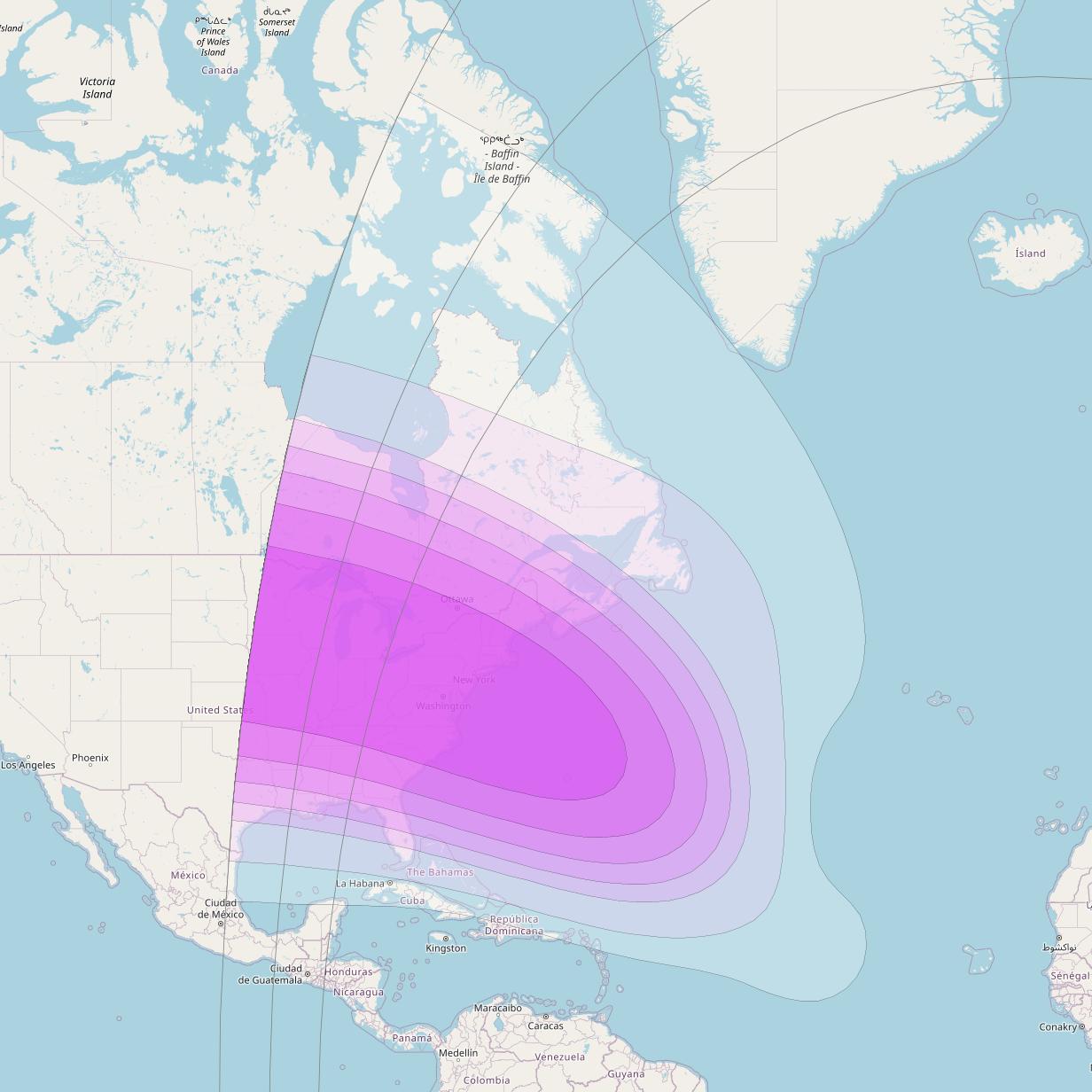

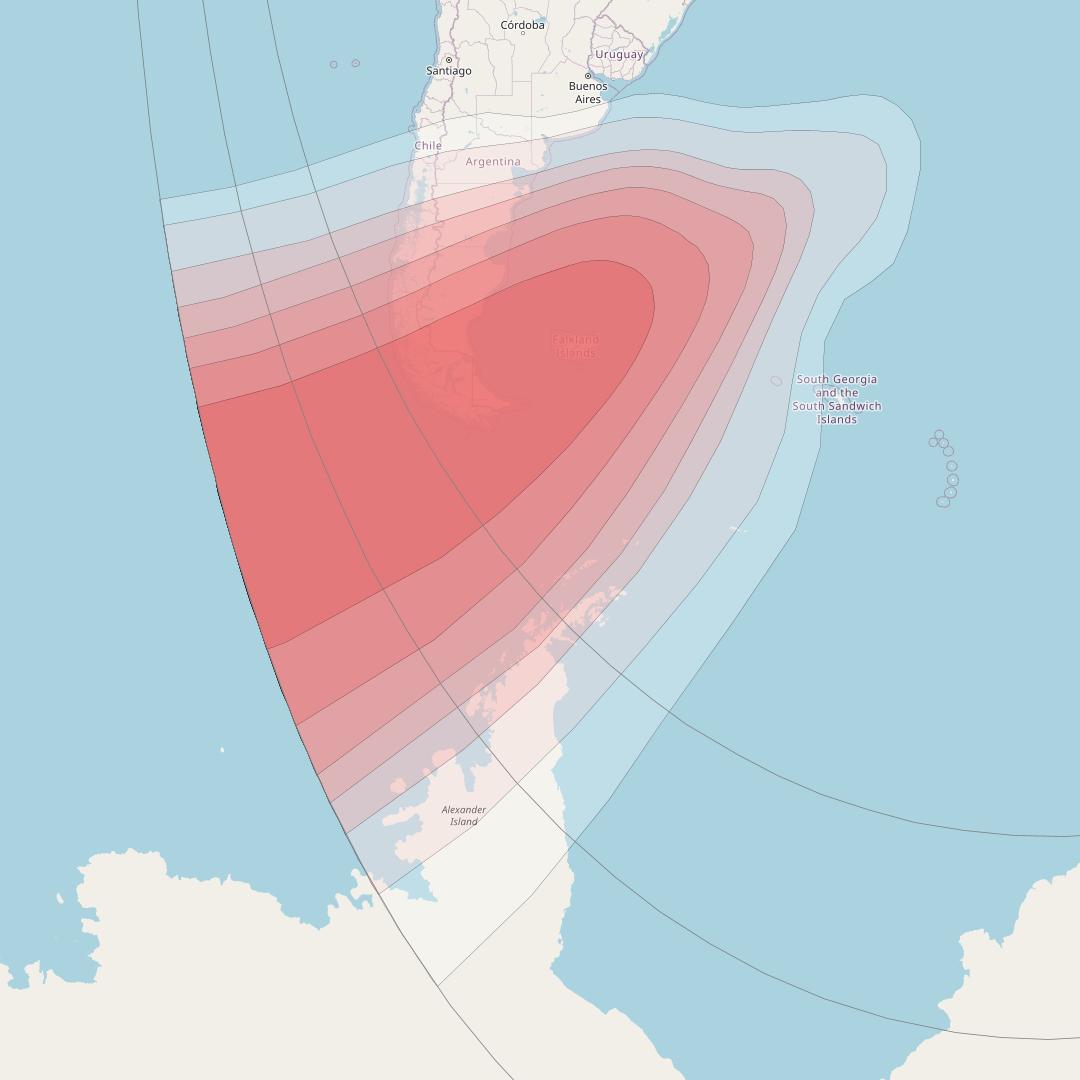

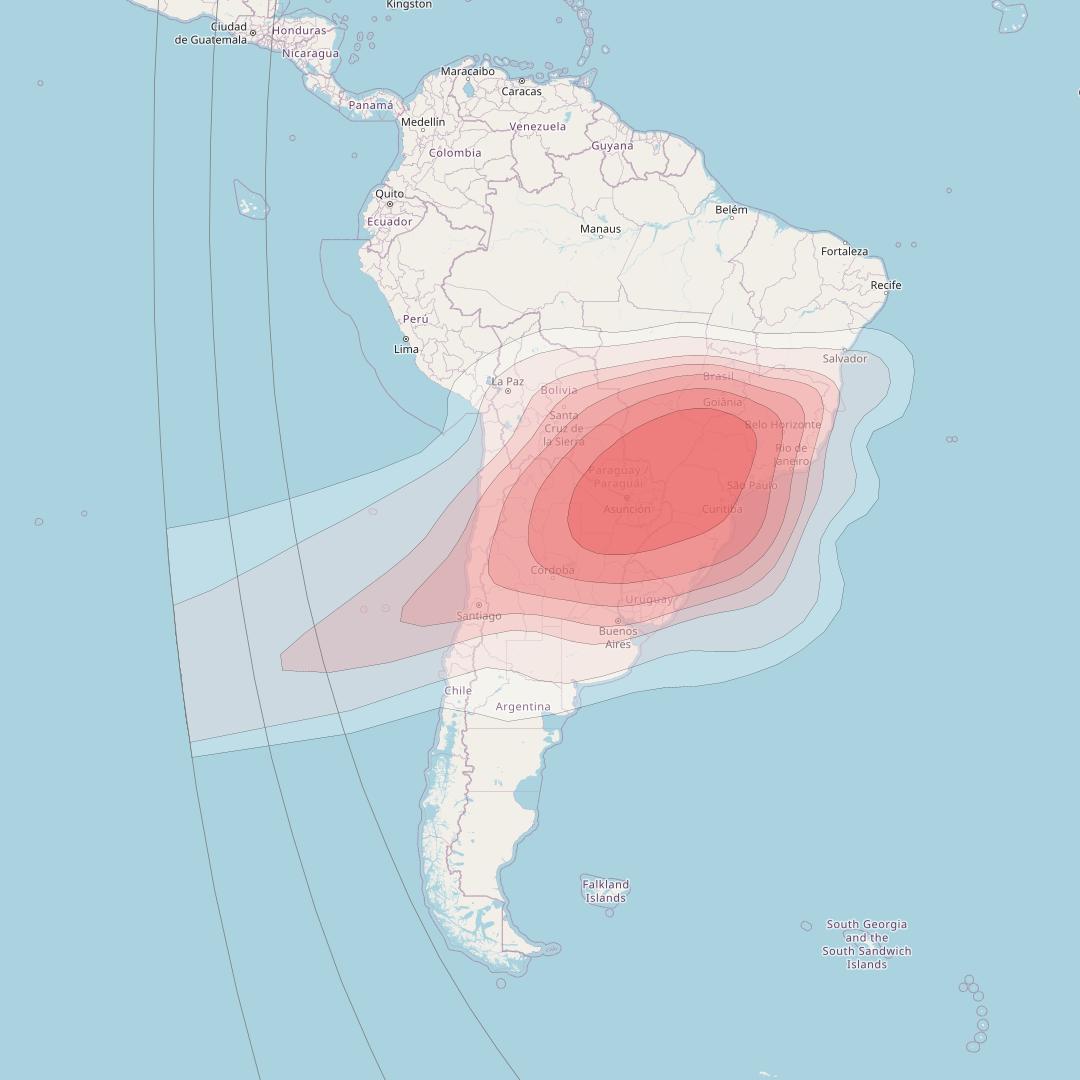

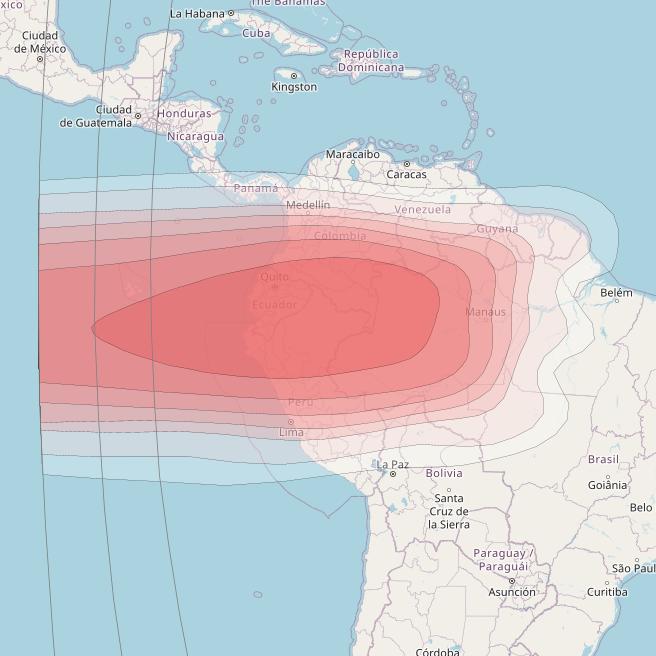

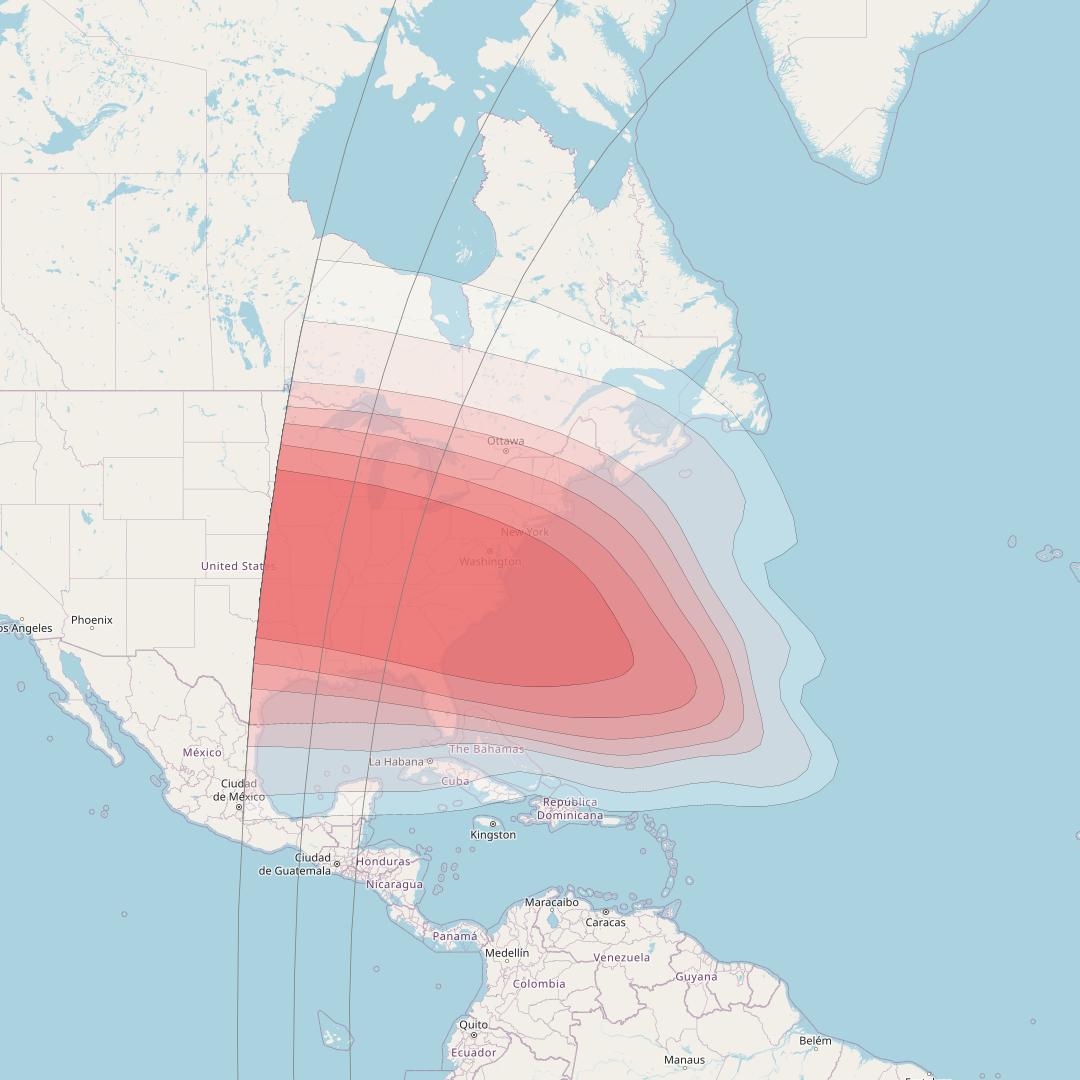

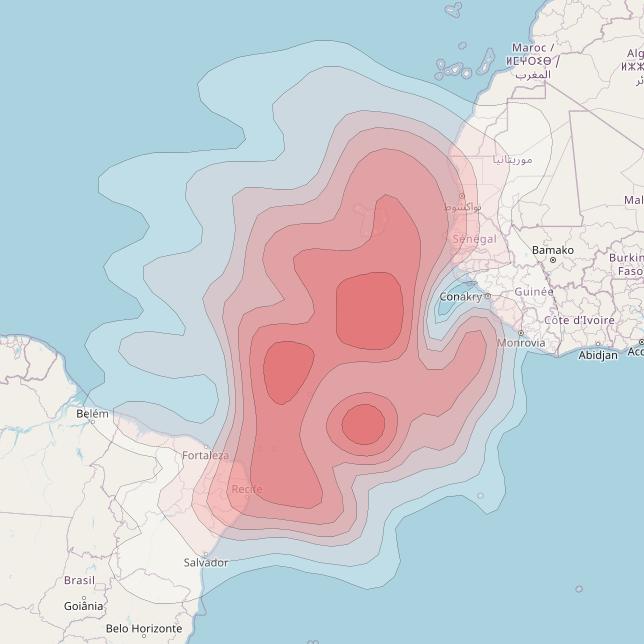

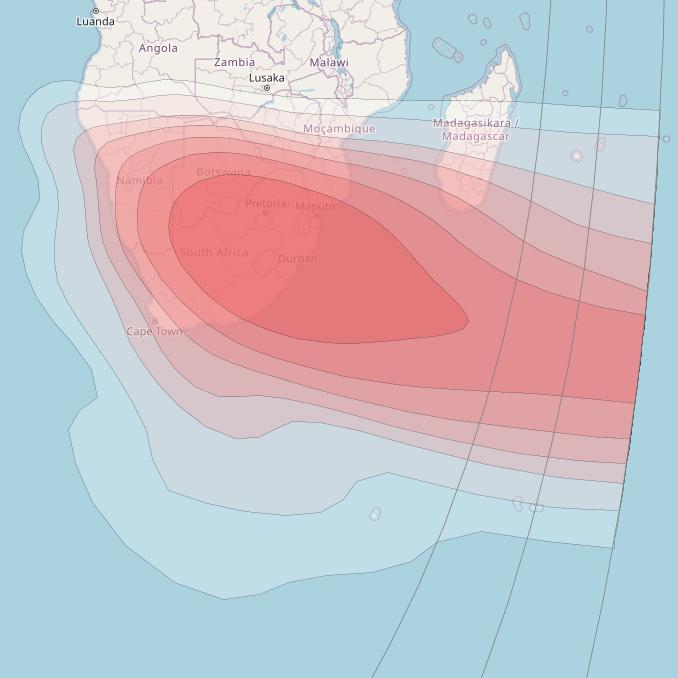

C-band, Ku-band and Ka-band capacity to will replace the Intelsat 901 spacecraft currently operating at that location. The satellite will have the following beams: C-band Wide Beams to cover Africa/Europe, Central Africa, and Latin America; 4 Spot Beams to cover Europe, North America, South America and Falkland Islands and one Global Beam with Global Coverage. 55 Ku-band Spot beams to cover Africa, Europe, Middle East, South America, North America, and Asia; Wide beam for Europe, Middle East and Asia; Algeria Shaped beam and steerable spot beam; Steerable Ka-band Spot beam. Planned for IOT at 84.55 East Orbital position
Charts: list
