Satellite Name: Directv 9S (USABSS-21)
Status: active
Position: 101° W (101° W)
NORAD: 29494
Cospar number: 2006-043A
Operator: DirecTV, Inc.
Launch date: 13-Oct-2006
Launch site: Guiana Space Center
Launch vehicle: Ariane 5 ECA
Launch mass (kg): 5535
Dry mass (kg): 2364
Manufacturer: Space Systems Loral (SSL)
Model (bus): LS-1300
Orbit: GEO
Expected lifetime: 15 yrs.
Call sign: S2669/S2689
Beacon(s): 12695.5 RHCP, 12696.5 RHCP
Details:
52 Ku-band and 2 Ka-band transponders to cover Conus, Alaska, Hawaii with 27 spot beams
Beams:Charts: list

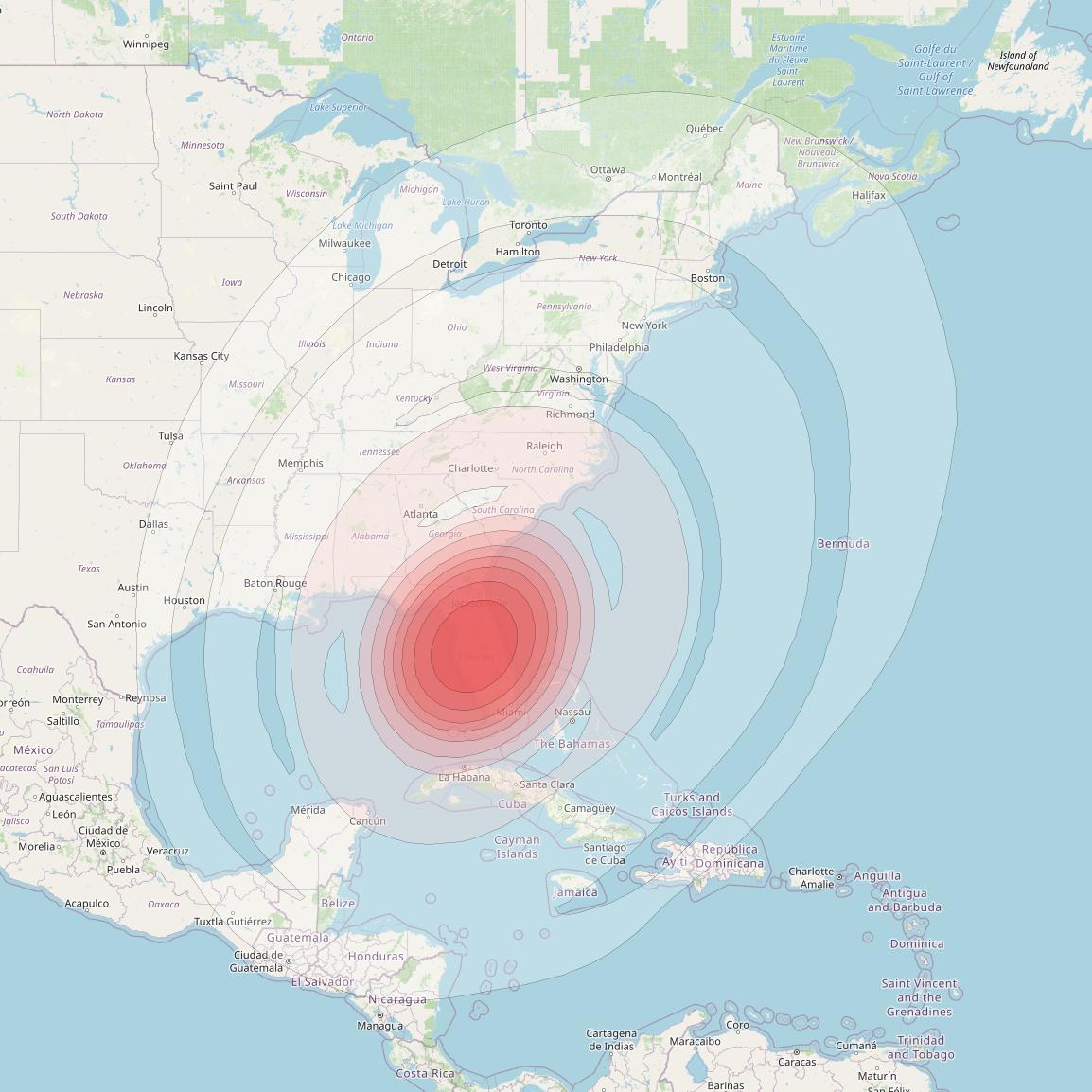

  • Directv 9S at 101° W downlink Ku-band BB03 (Orlando) Beam coverage map

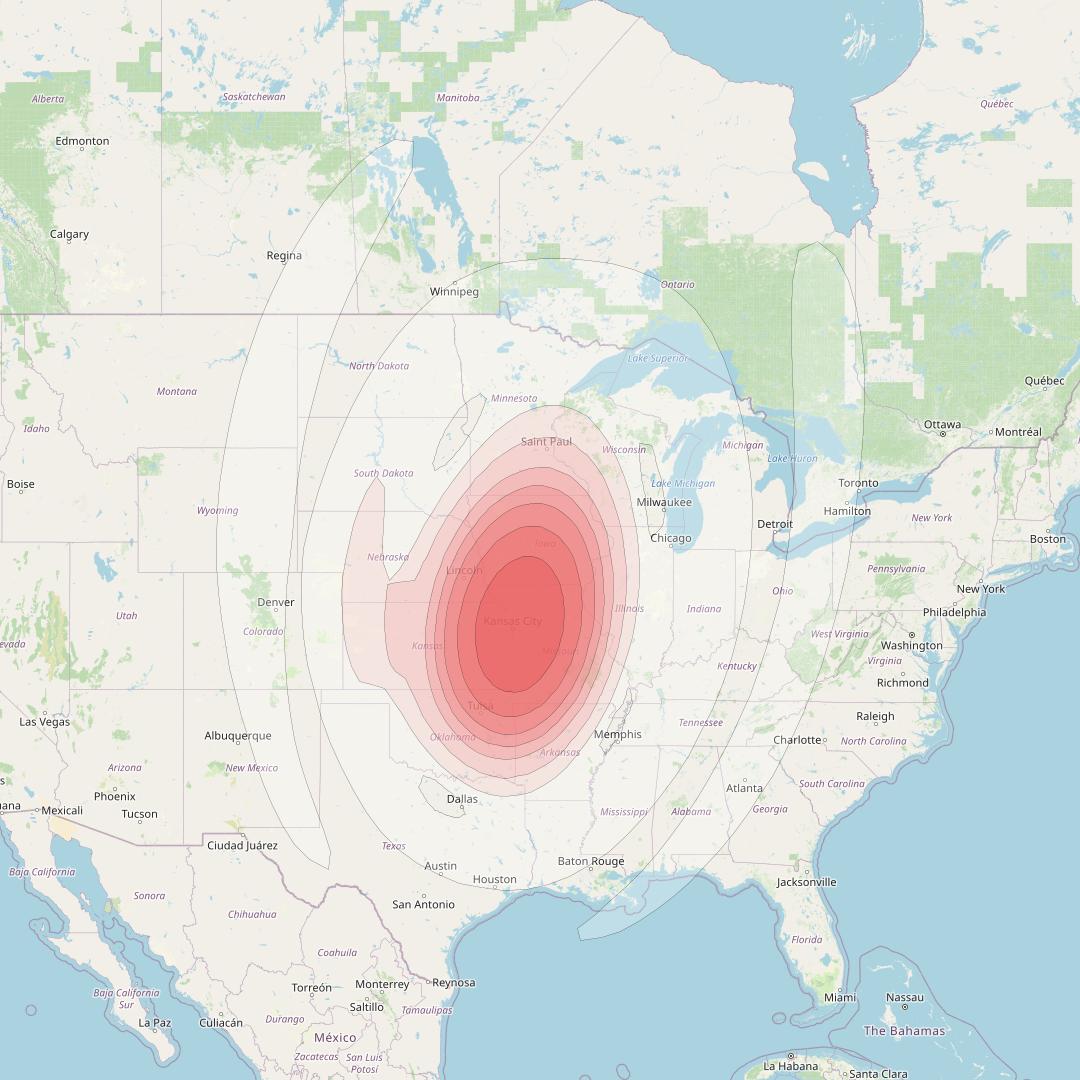

  • Directv 9S at 101° W downlink Ku-band BB07 (Kansas City) Beam coverage map

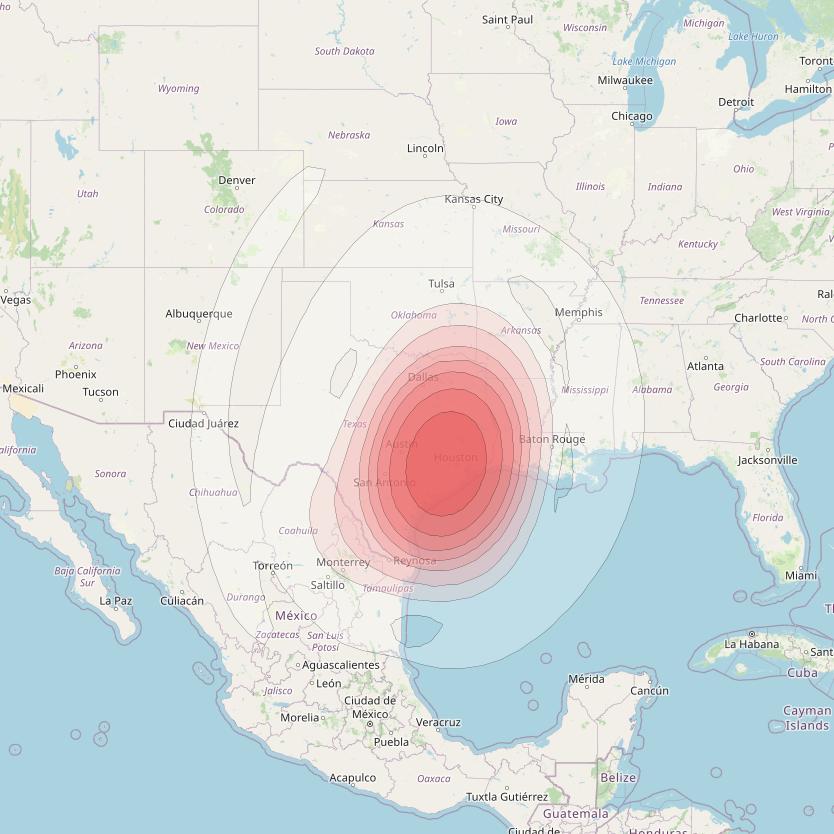

  • Directv 9S at 101° W downlink Ku-band BB08 (Houston) Beam coverage map

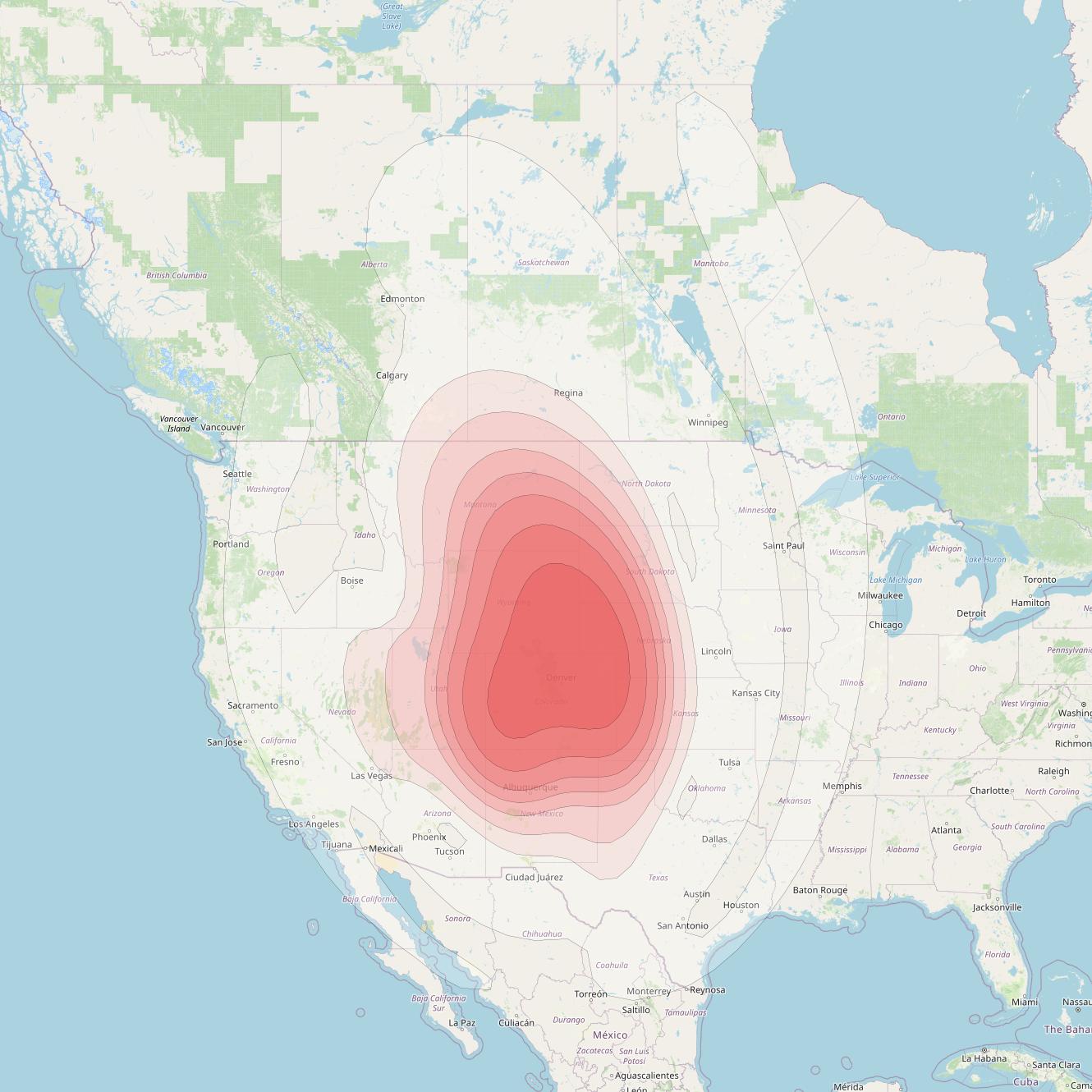

  • Directv 9S at 101° W downlink Ku-band BB09 (Denver) Beam coverage map

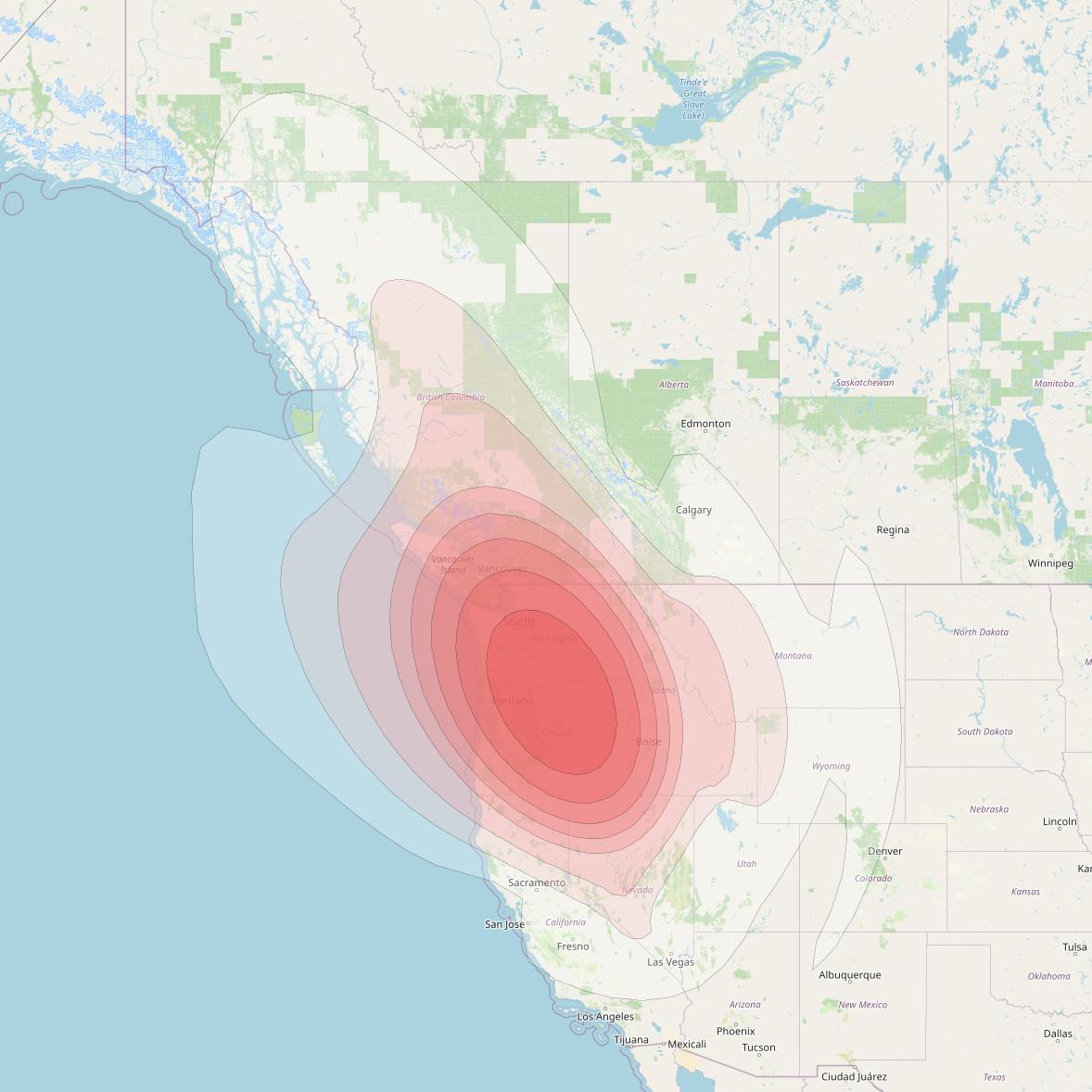

  • Directv 9S at 101° W downlink Ku-band BB10 (Portland) Beam coverage map

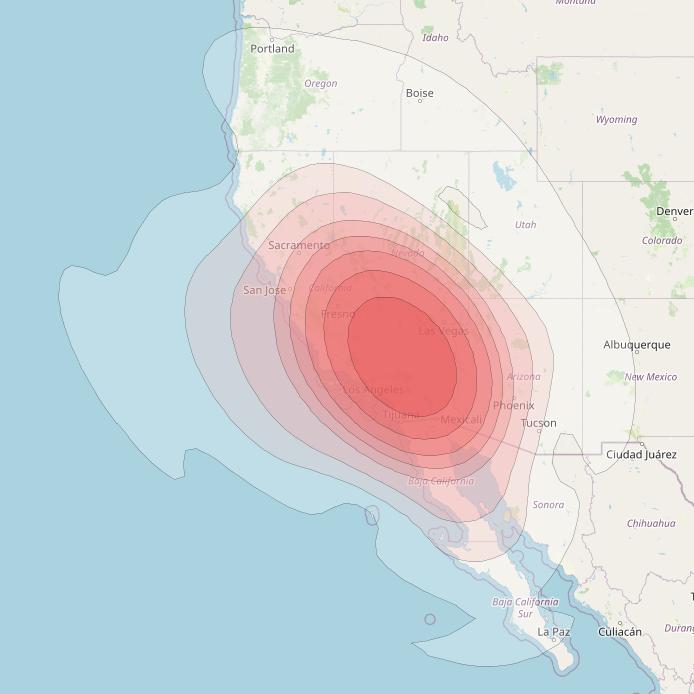

  • Directv 9S at 101° W downlink Ku-band BB11 (Los Angeles) Beam coverage map

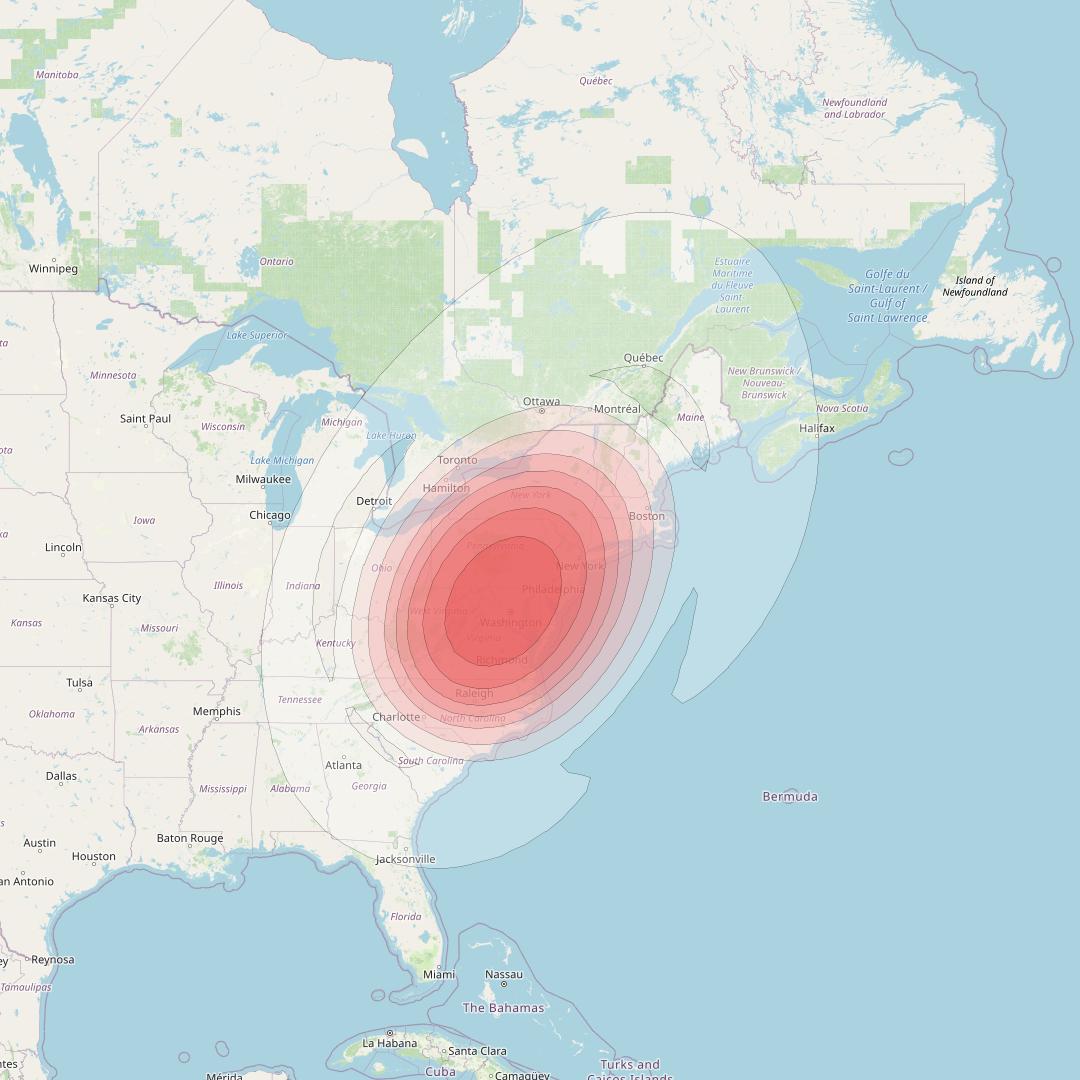

  • Directv 9S at 101° W downlink Ku-band BB21 (Washington) Beam coverage map

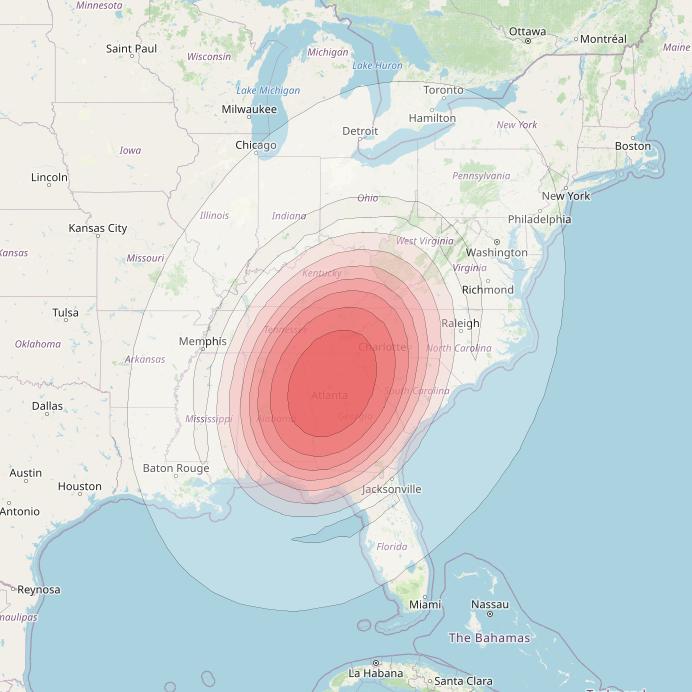

  • Directv 9S at 101° W downlink Ku-band BB22 (Atlanta) Beam coverage map

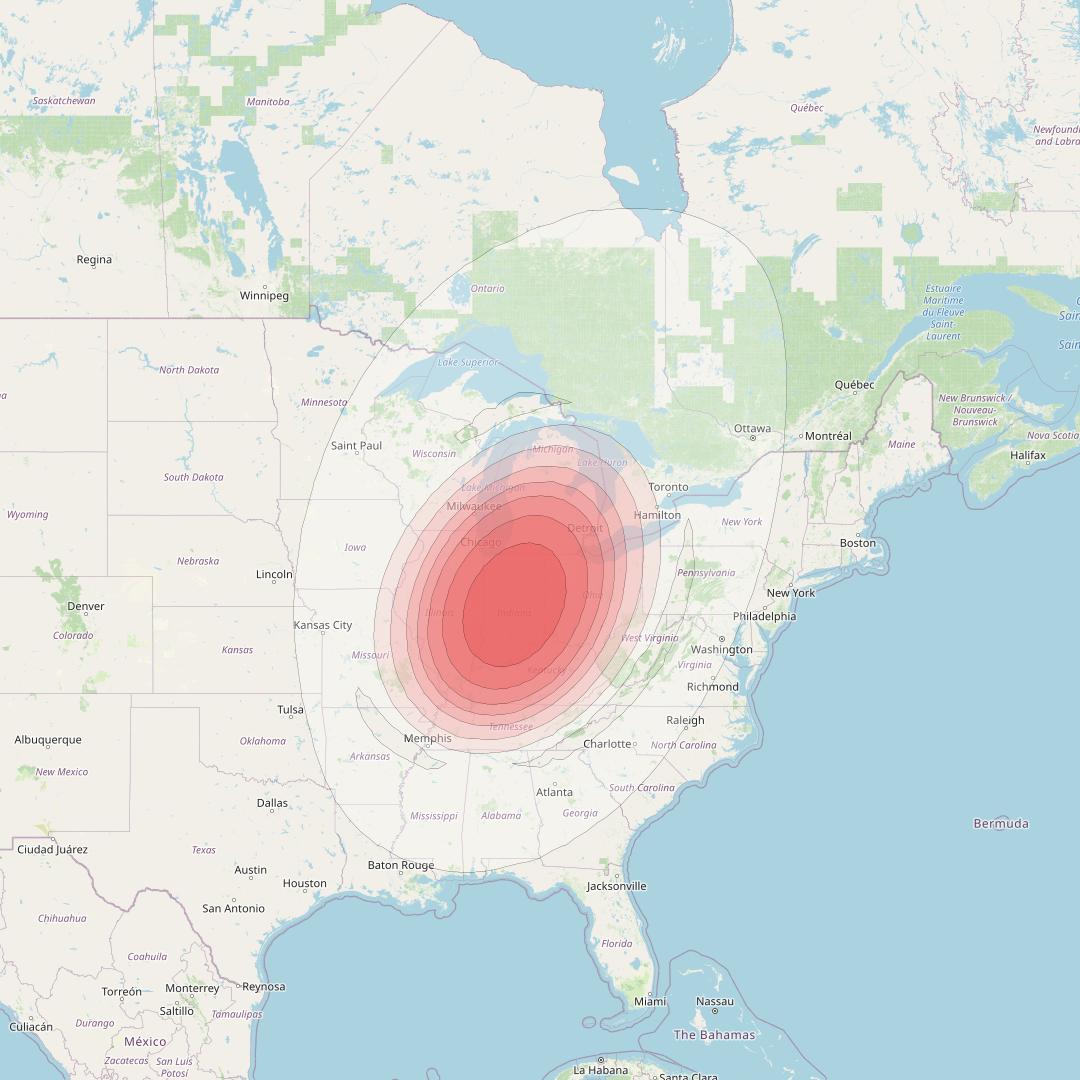

  • Directv 9S at 101° W downlink Ku-band BB23 (Indianapolis) Beam coverage map

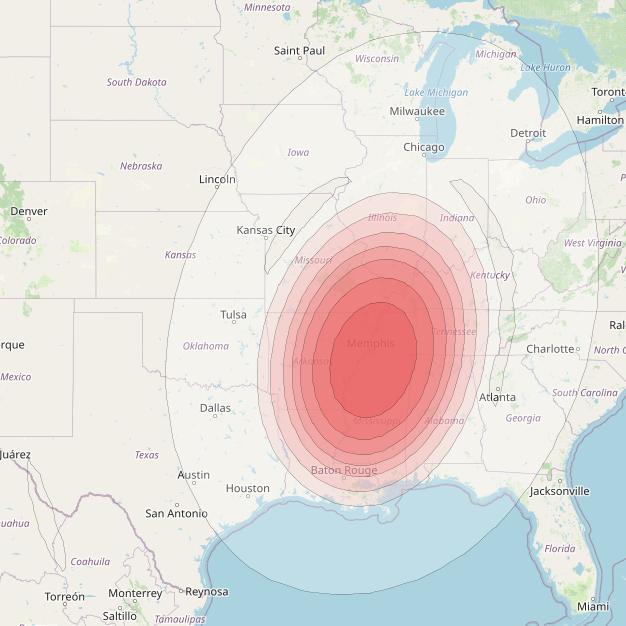

  • Directv 9S at 101° W downlink Ku-band BB24 (Memphis) Beam coverage map

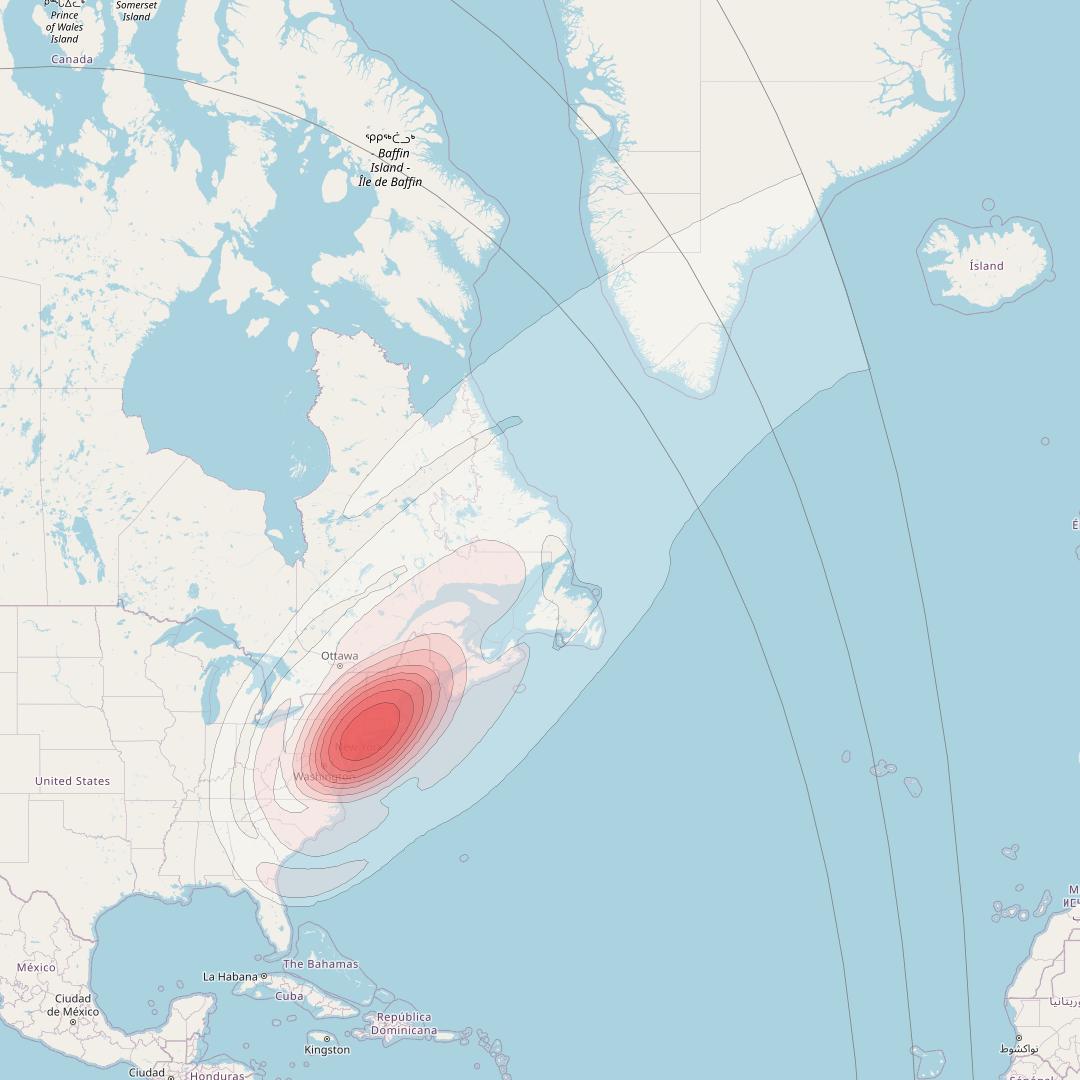

  • Directv 9S at 101° W downlink Ku-band CB12 (New York) Beam coverage map

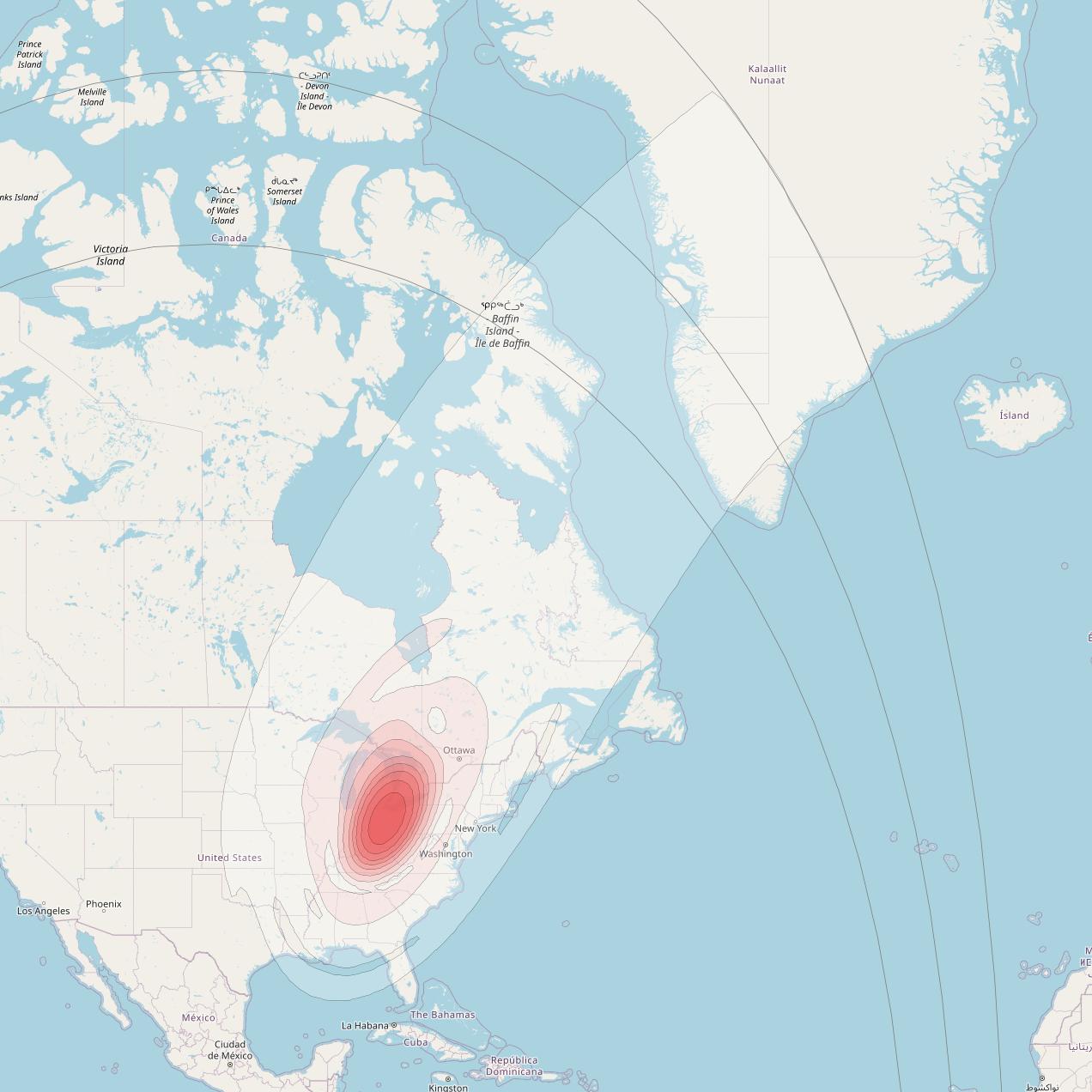

  • Directv 9S at 101° W downlink Ku-band CB13 (Detroit) Beam coverage map

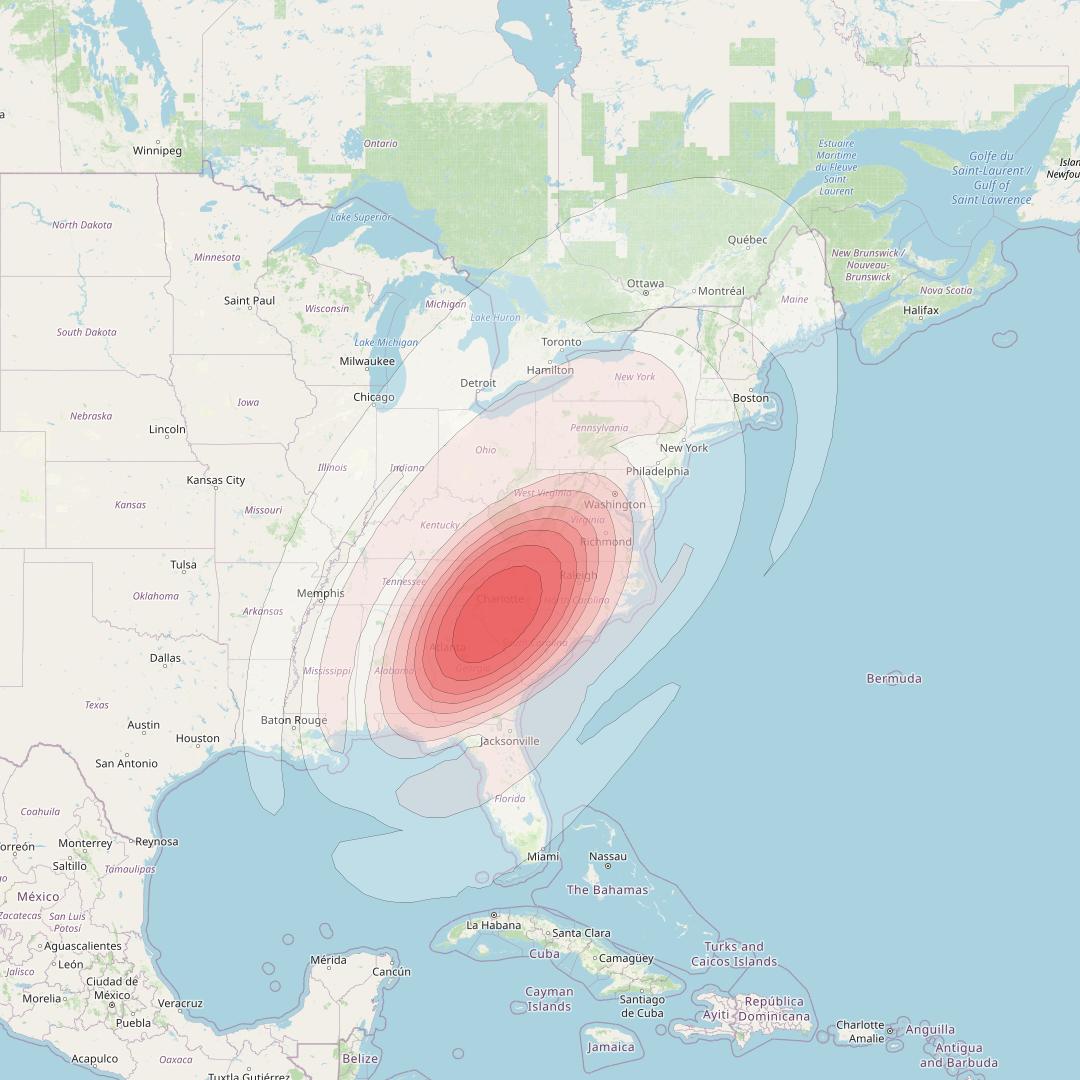

  • Directv 9S at 101° W downlink Ku-band CB14 (Charlotte) Beam coverage map

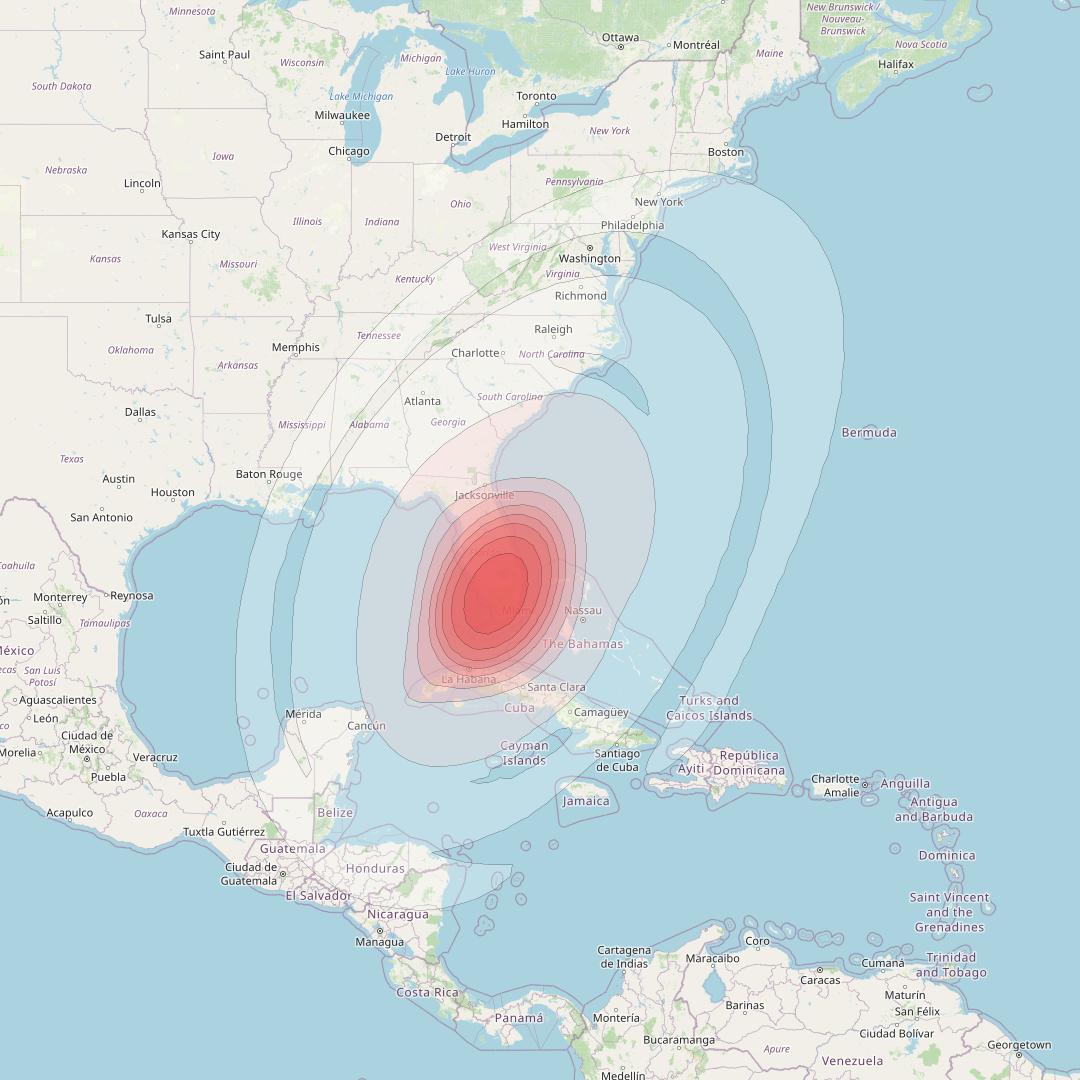

  • Directv 9S at 101° W downlink Ku-band CB15 (Miami) Beam coverage map

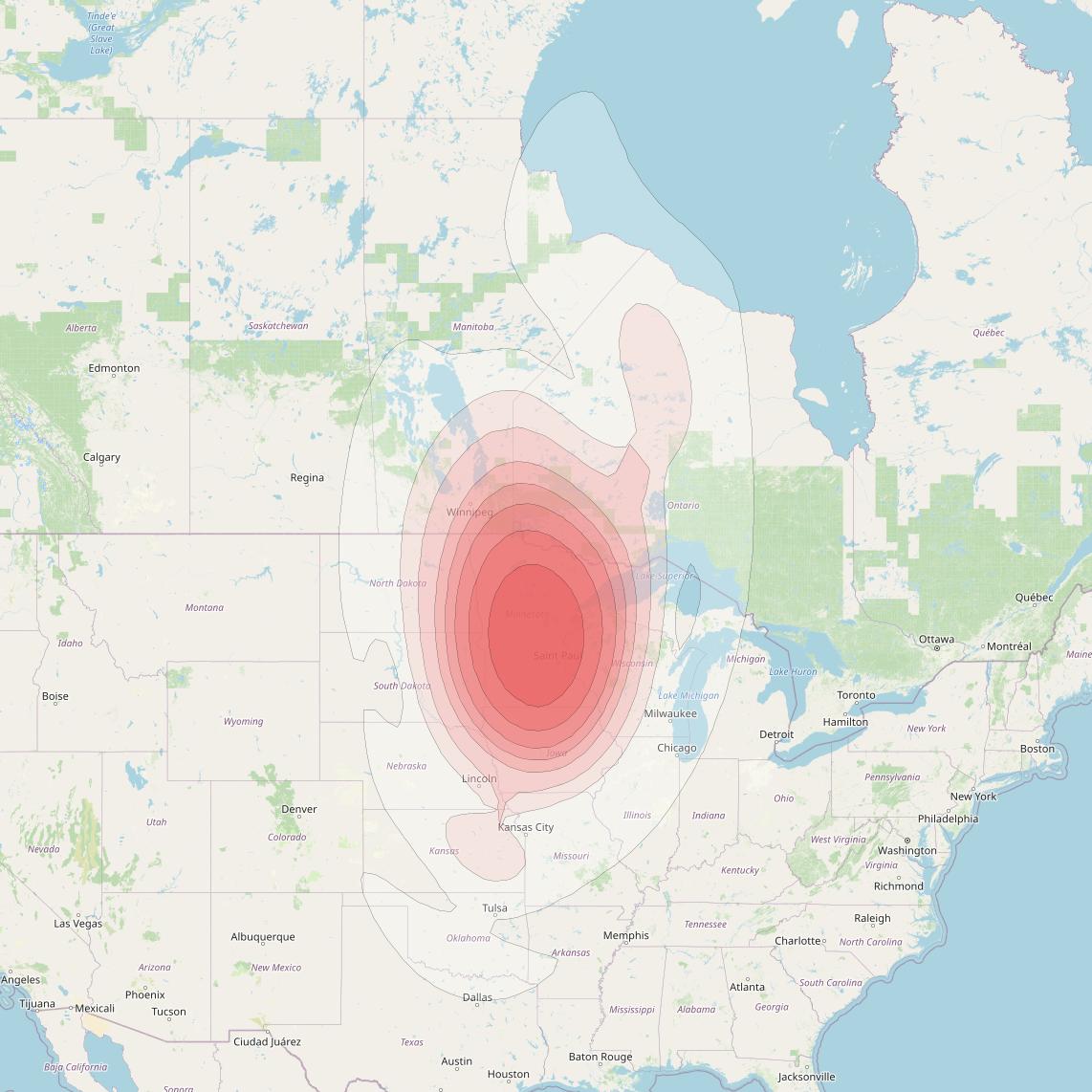

  • Directv 9S at 101° W downlink Ku-band CB16 (Minneapolis) Beam coverage map

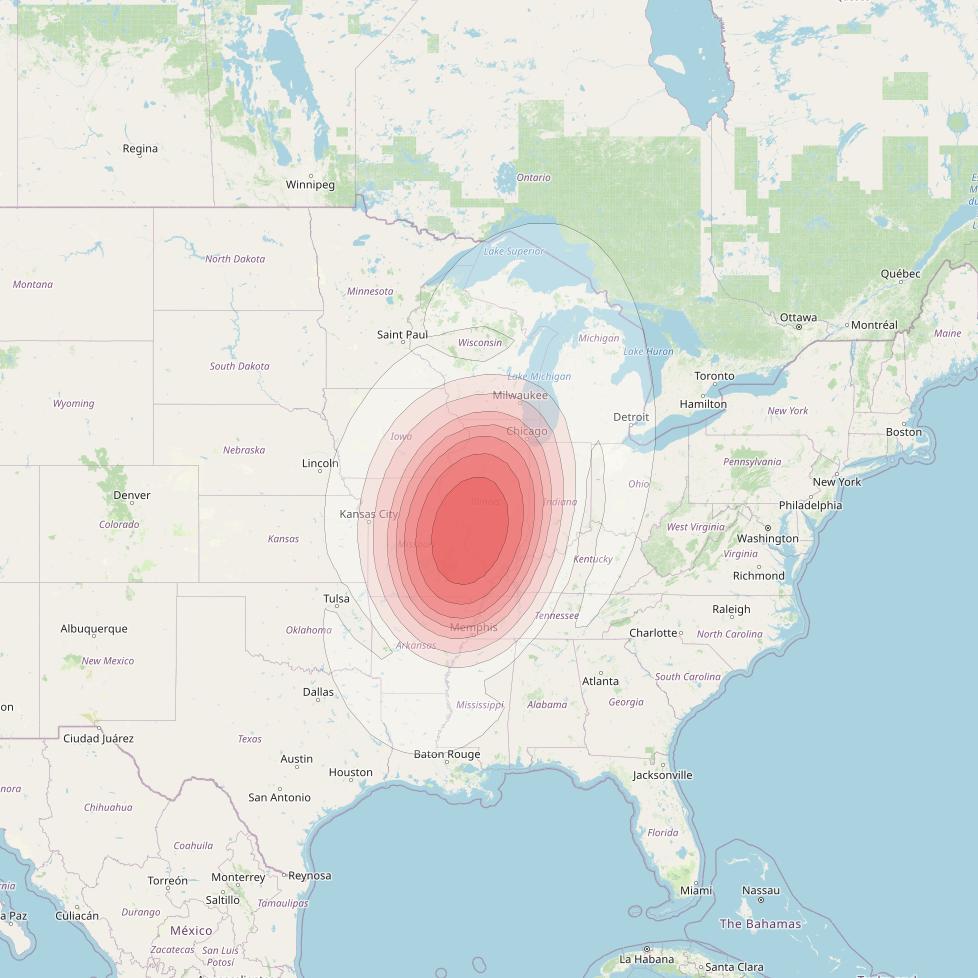

  • Directv 9S at 101° W downlink Ku-band CB17 (St Louis) Beam coverage map

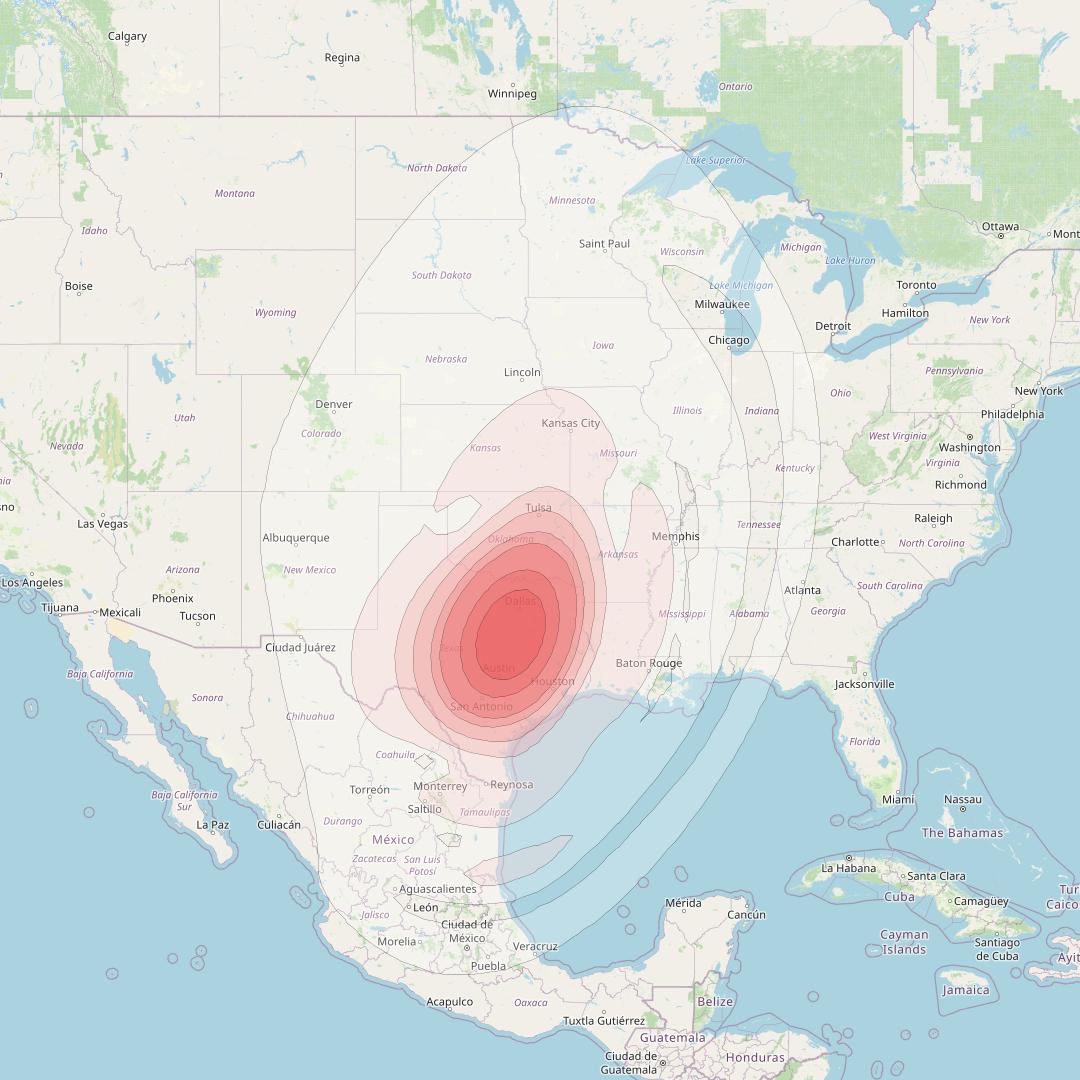

  • Directv 9S at 101° W downlink Ku-band CB18 (Dallas) Beam coverage map

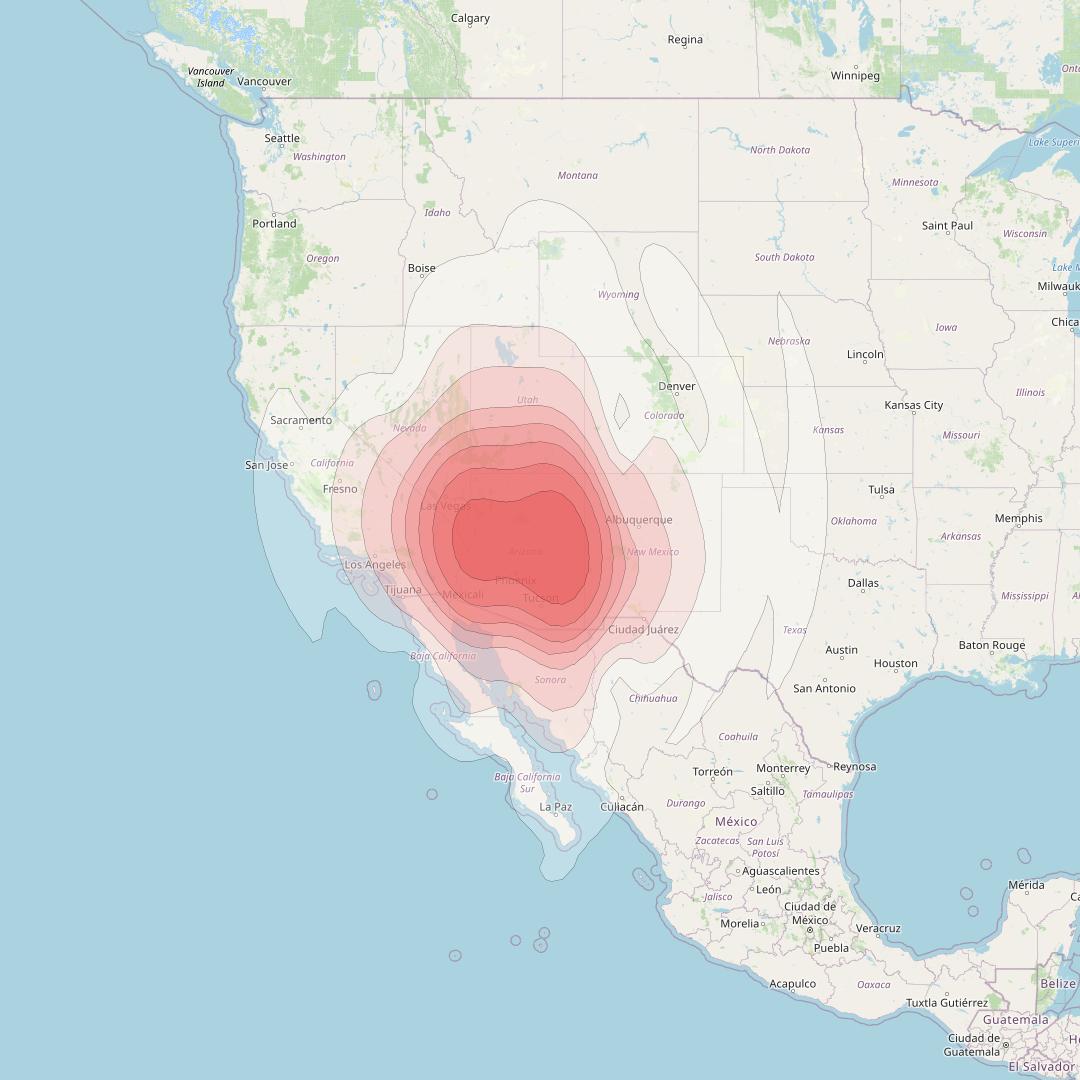

  • Directv 9S at 101° W downlink Ku-band CB19 (Phoenix) Beam coverage map

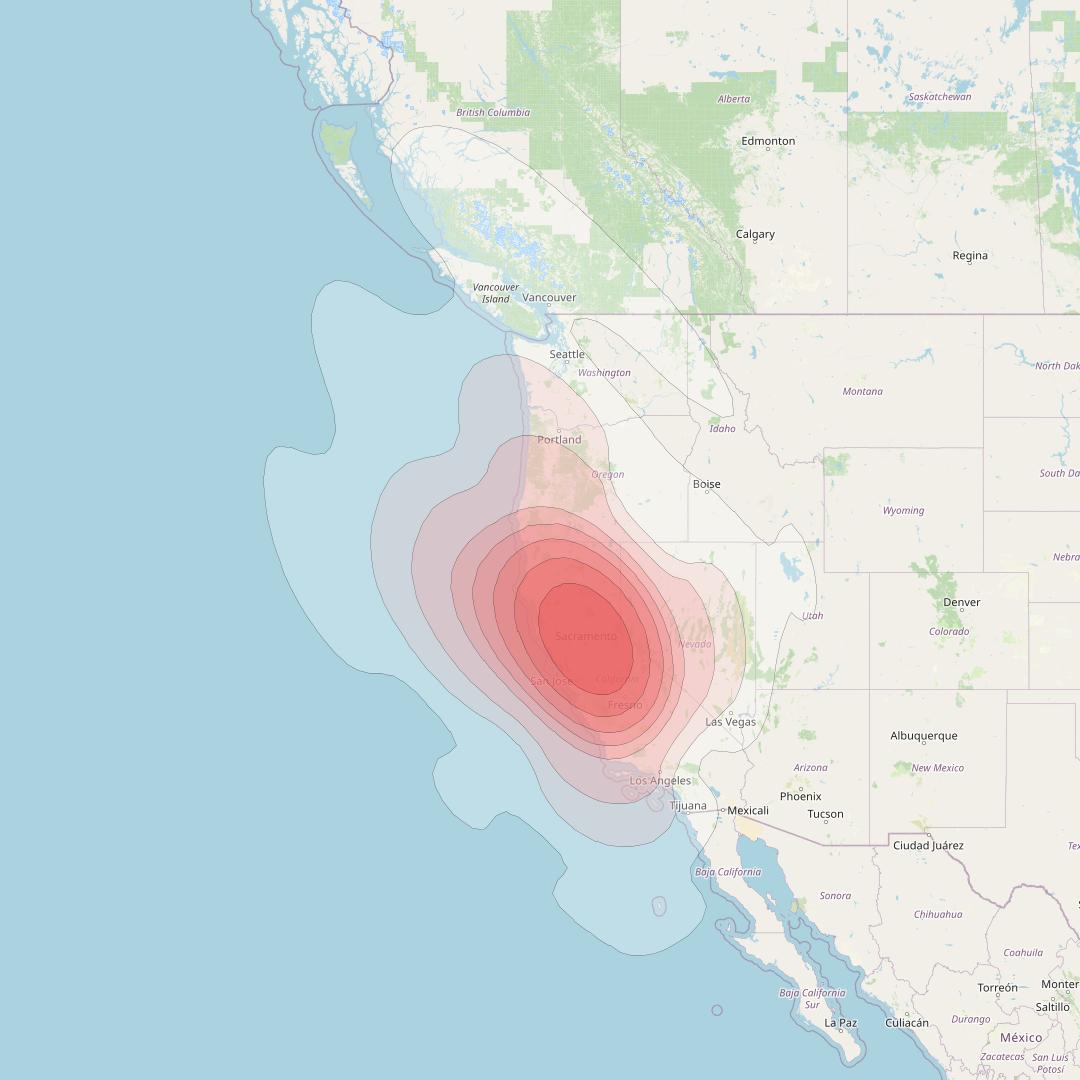

  • Directv 9S at 101° W downlink Ku-band CB20 (San Francisco) Beam coverage map

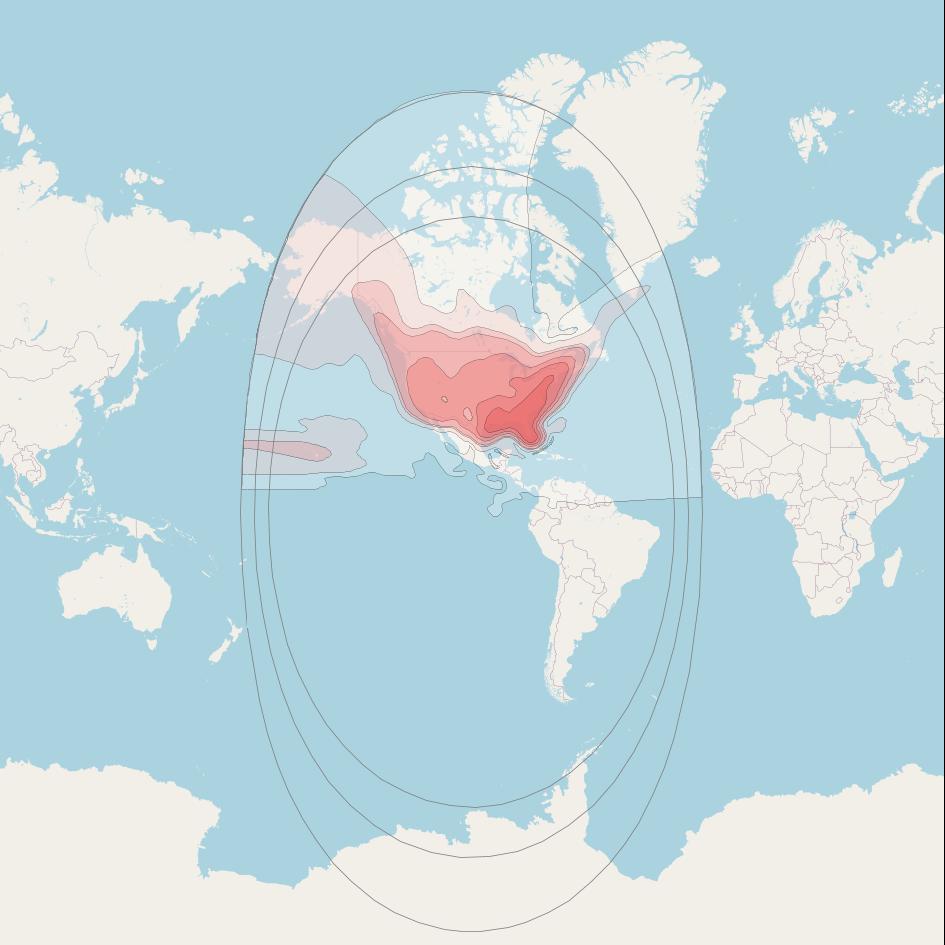

  • Directv 9S at 101° W downlink Ku-band  Conus Beam coverage map

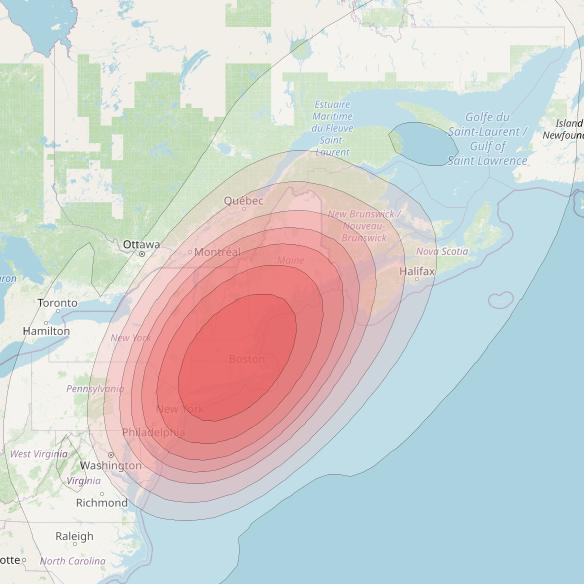

  • Directv 9S at 101° W downlink Ku-band RB01 (Boston) Beam coverage map

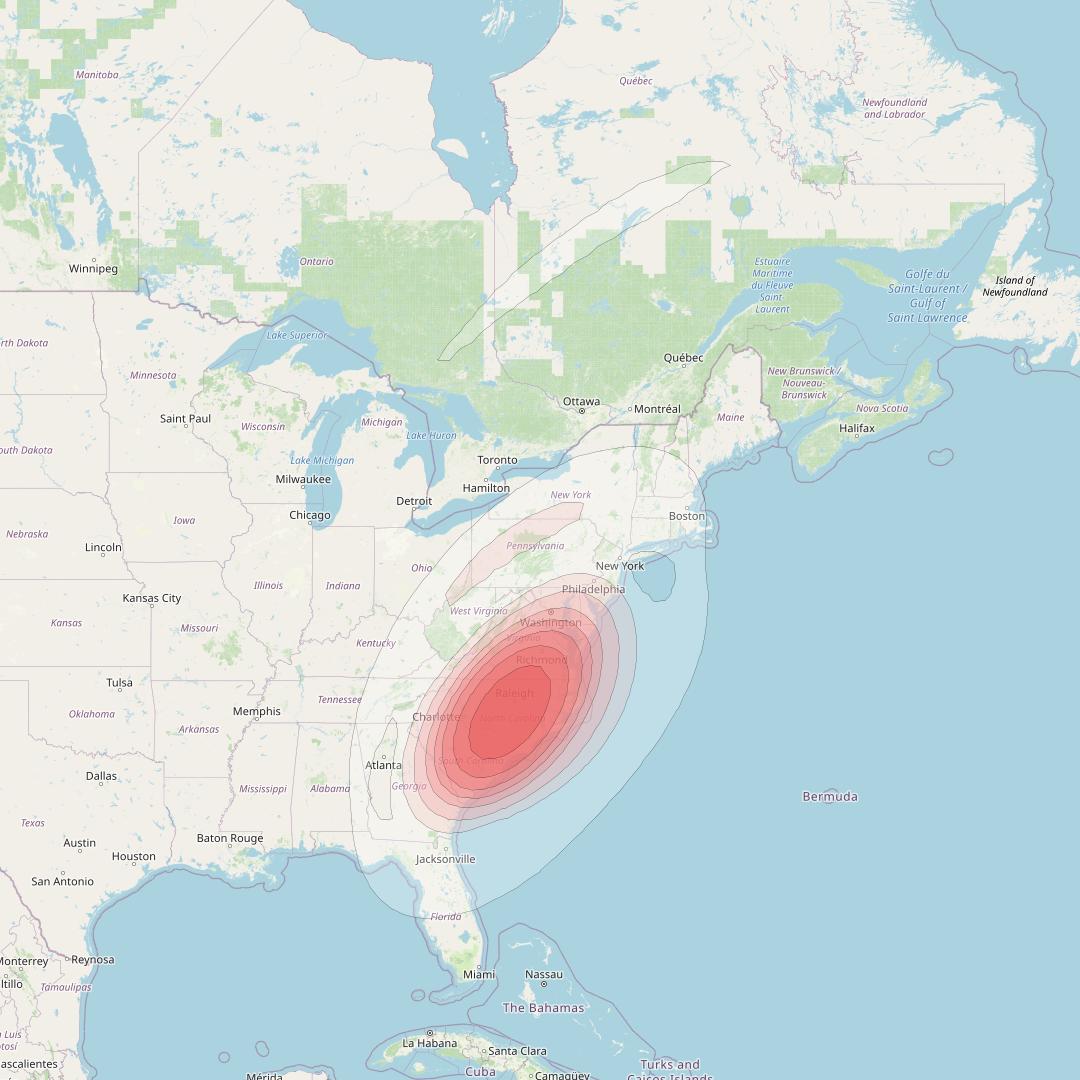

  • Directv 9S at 101° W downlink Ku-band RB02 (Raleigh) Beam coverage map

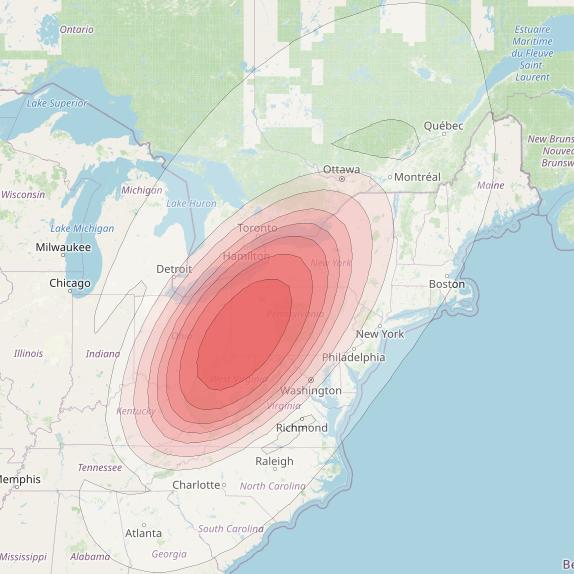

  • Directv 9S at 101° W downlink Ku-band RB04 (Pittsburg) Beam coverage map

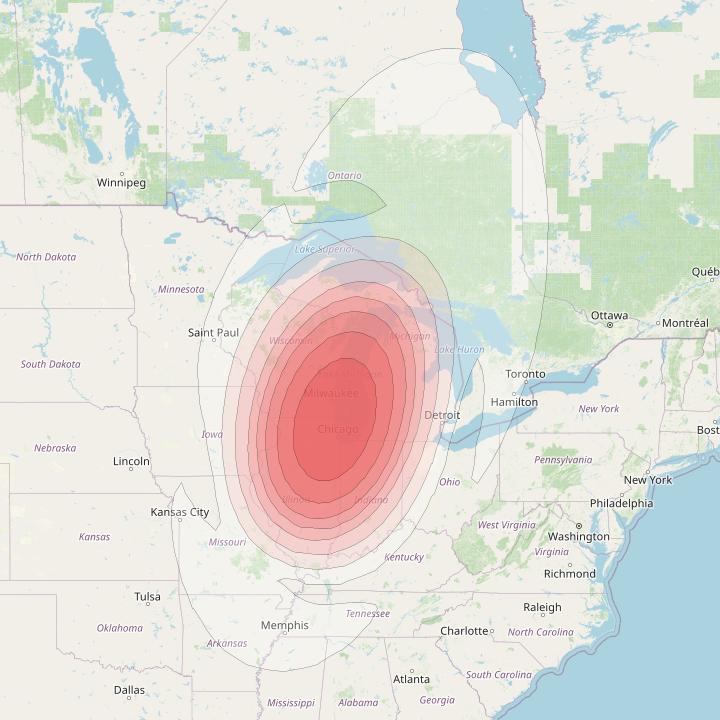

  • Directv 9S at 101° W downlink Ku-band RB05 (Chicago) Beam coverage map

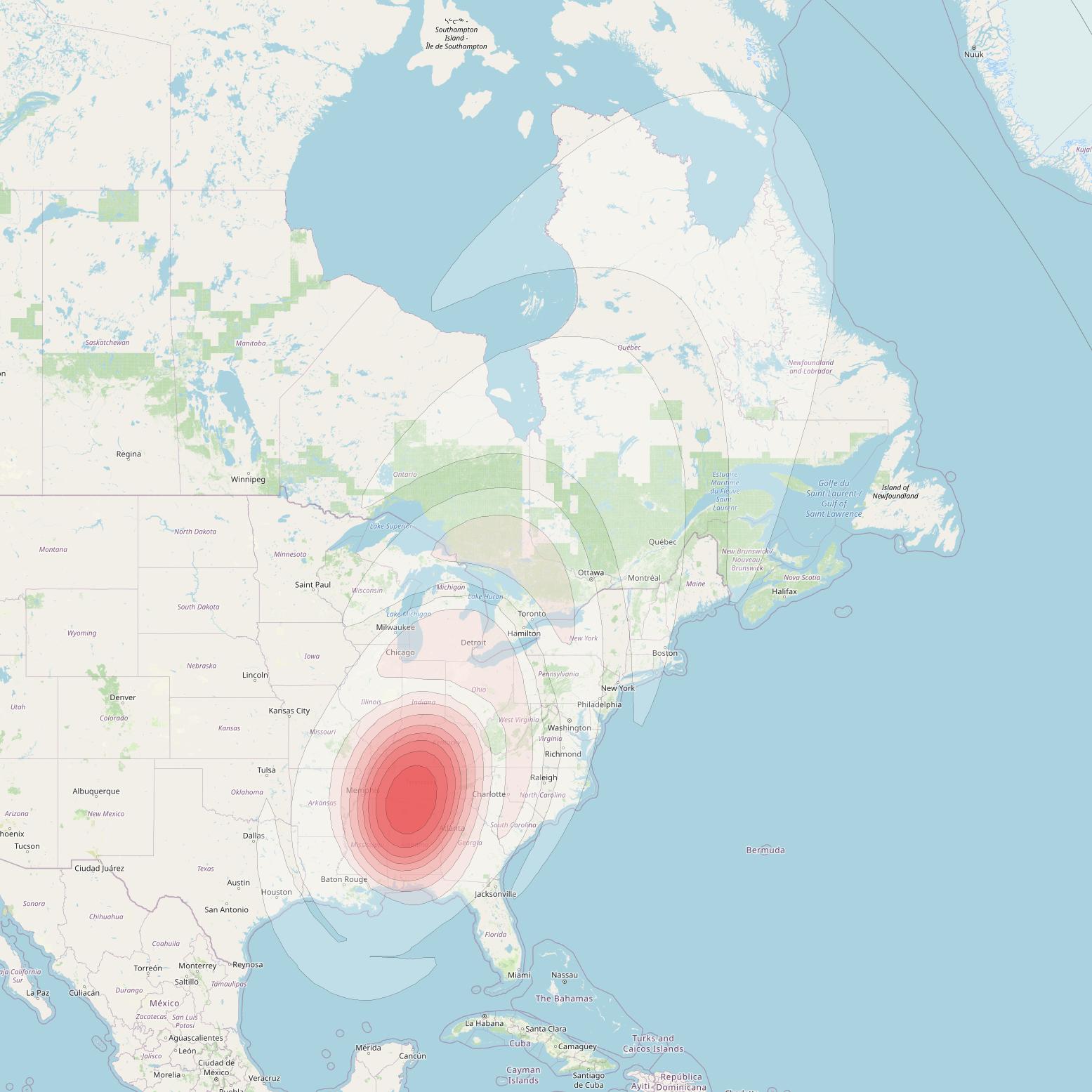

  • Directv 9S at 101° W downlink Ku-band RB06 (Nashville) Beam coverage map

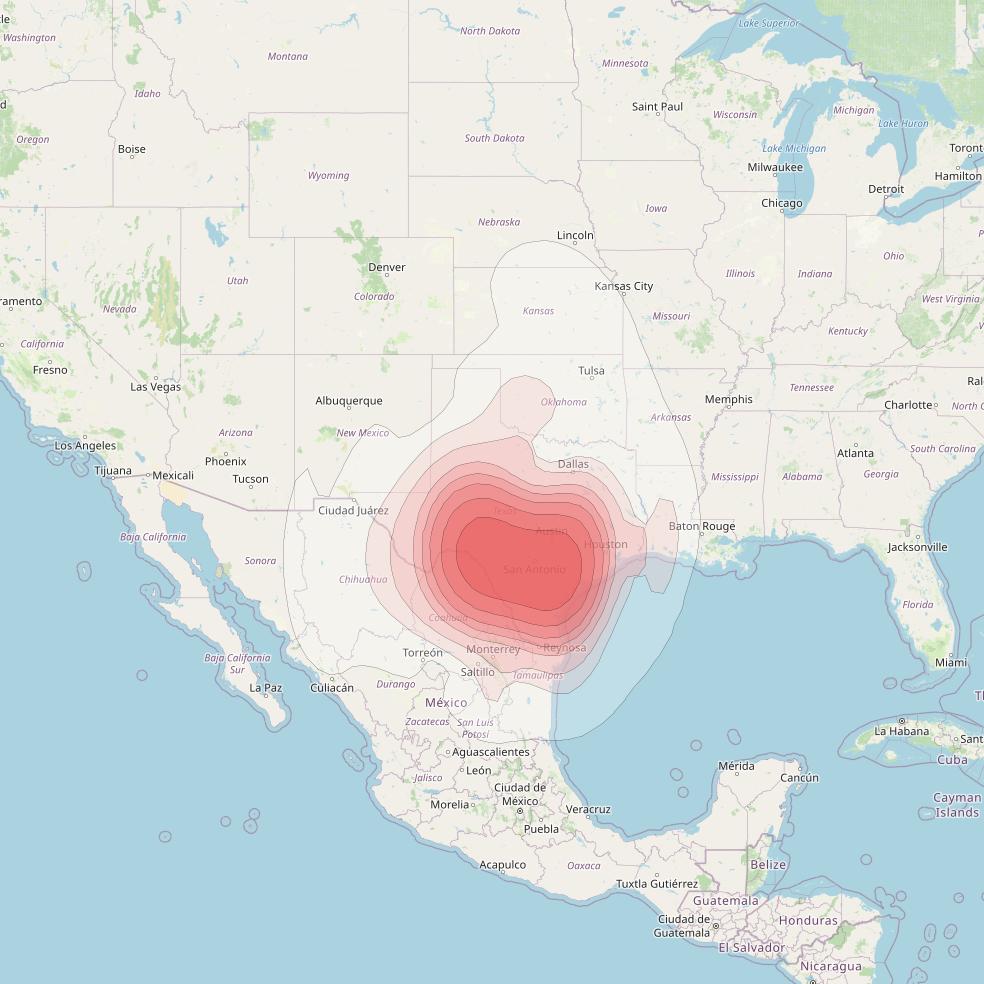

  • Directv 9S at 101° W downlink Ku-band RB25 (San Antonio) Beam coverage map
  • Directv 9S at 101° W downlink Ku-band RB26 (Salt Lake) Beam coverage map

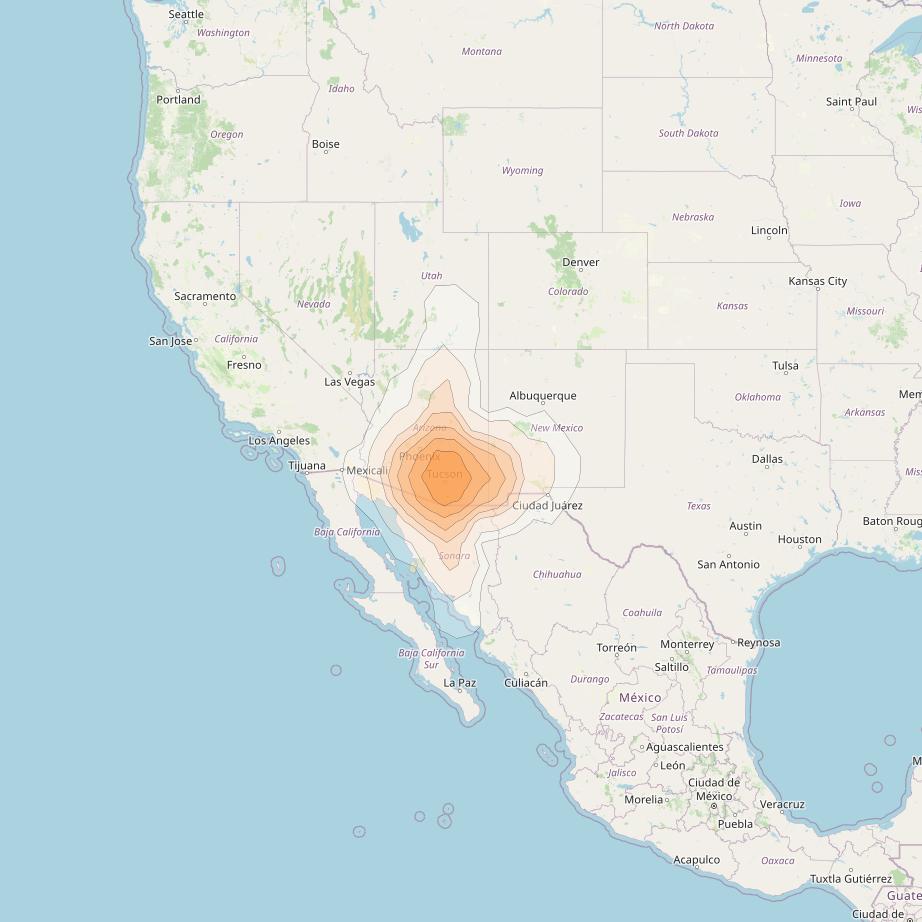

  • Directv 9S at 101° W downlink Ka-band DL1 Spot beam coverage map

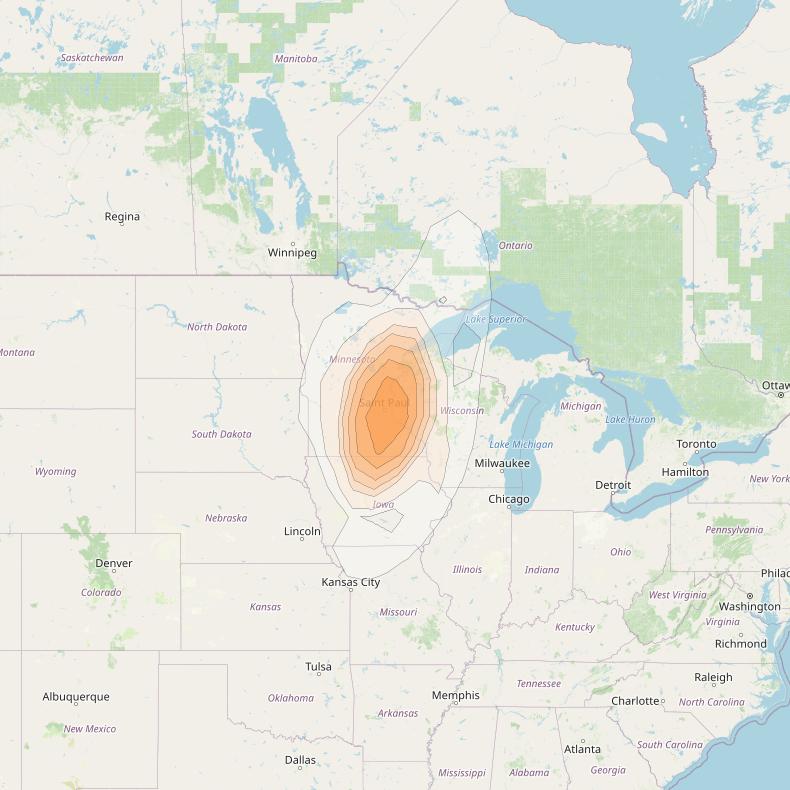

  • Directv 9S at 101° W downlink Ka-band DL2 Spot beam coverage map
