Satellite Name: Intelsat 10-02 (Intelsat 1002, Intelsat Alpha-2, Intelsat X-02, IS-1002)
Status: active
Position: 1° W (1° W)
NORAD: 28358
Cospar number: 2004-022A
Operator: Intelsat
Launch date: 16-Jun-2004
Launch site: Baikonur Cosmodrome
Launch vehicle: Proton M
Launch mass (kg): 5576
Dry mass (kg):
Manufacturer: EADS Astrium
Model (bus): Eurostar-3000
Orbit: GEO
Expected lifetime: 13 yrs.
Call sign: S2414
Beacon(s): 3950V, 3947.5R, 3948R, 3952R, 3952.5R, 11203, 11457, 11452
Details:
36 Ku-band, 70 C-band transponders providing television, data, and other telecommunication services to Europe, Africa and the Middle East.
Beams:Charts: list

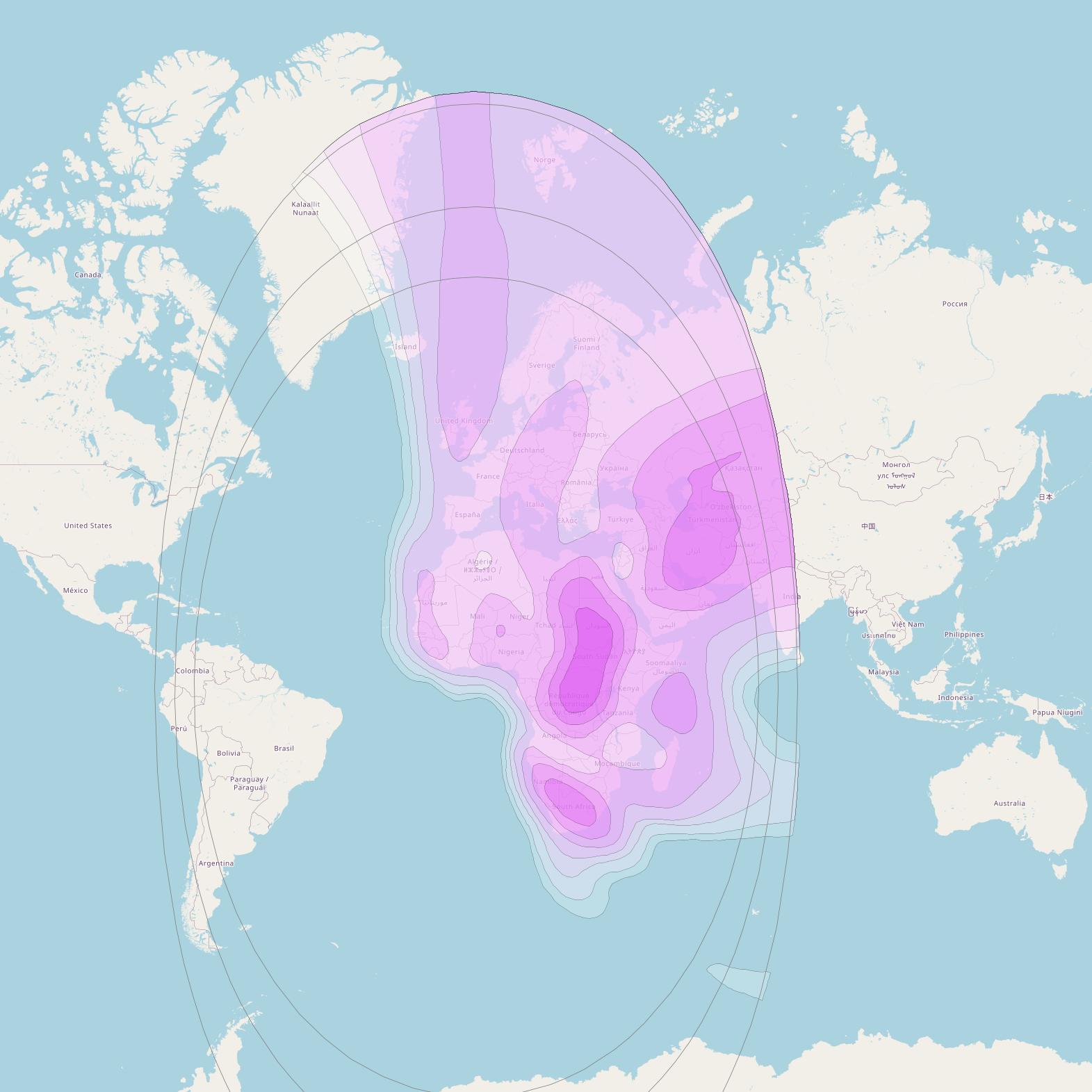

  • Intelsat 10-02 at 1° W downlink C-band East Hemi Beam coverage map

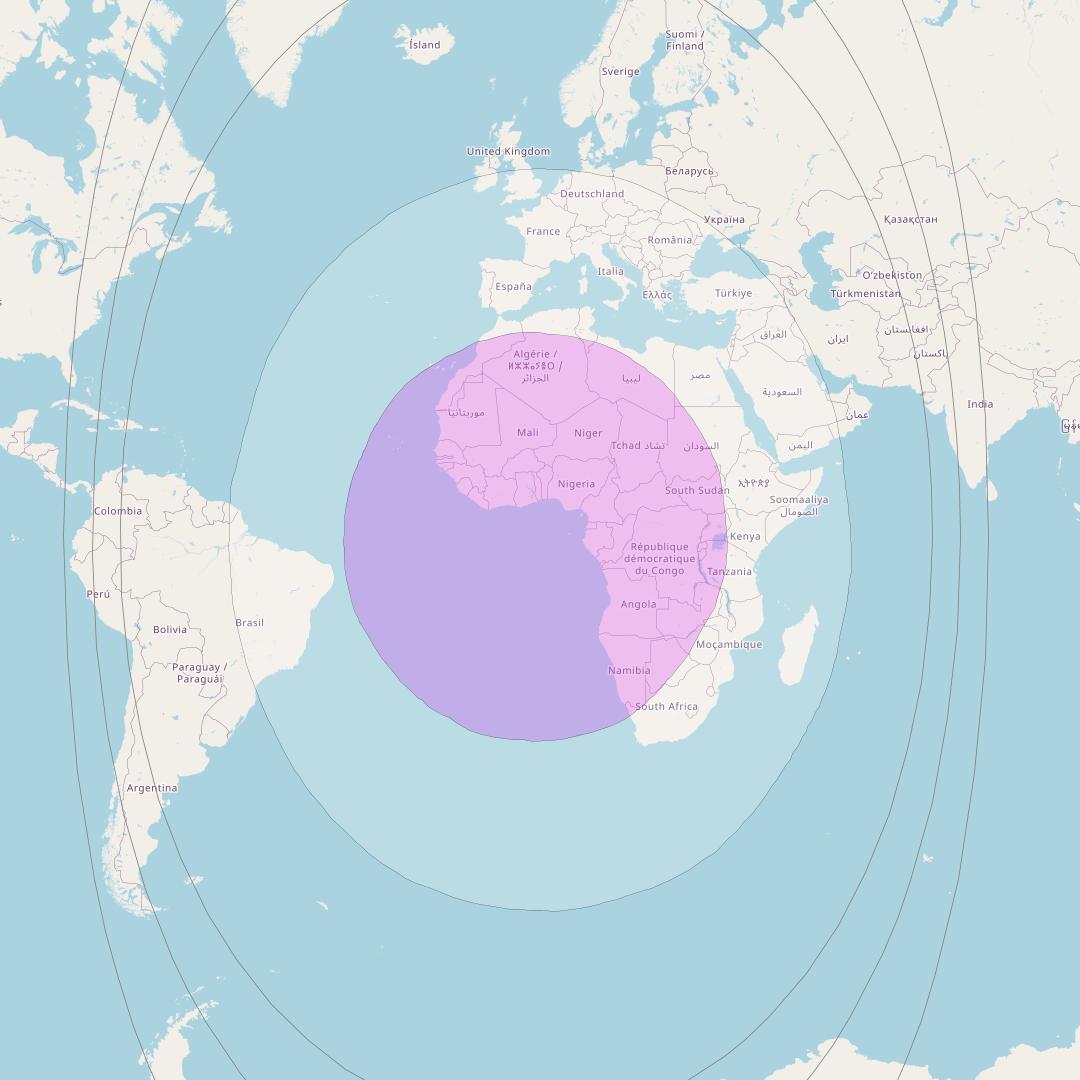

  • Intelsat 10-02 at 1° W downlink C-band Global Beam coverage map

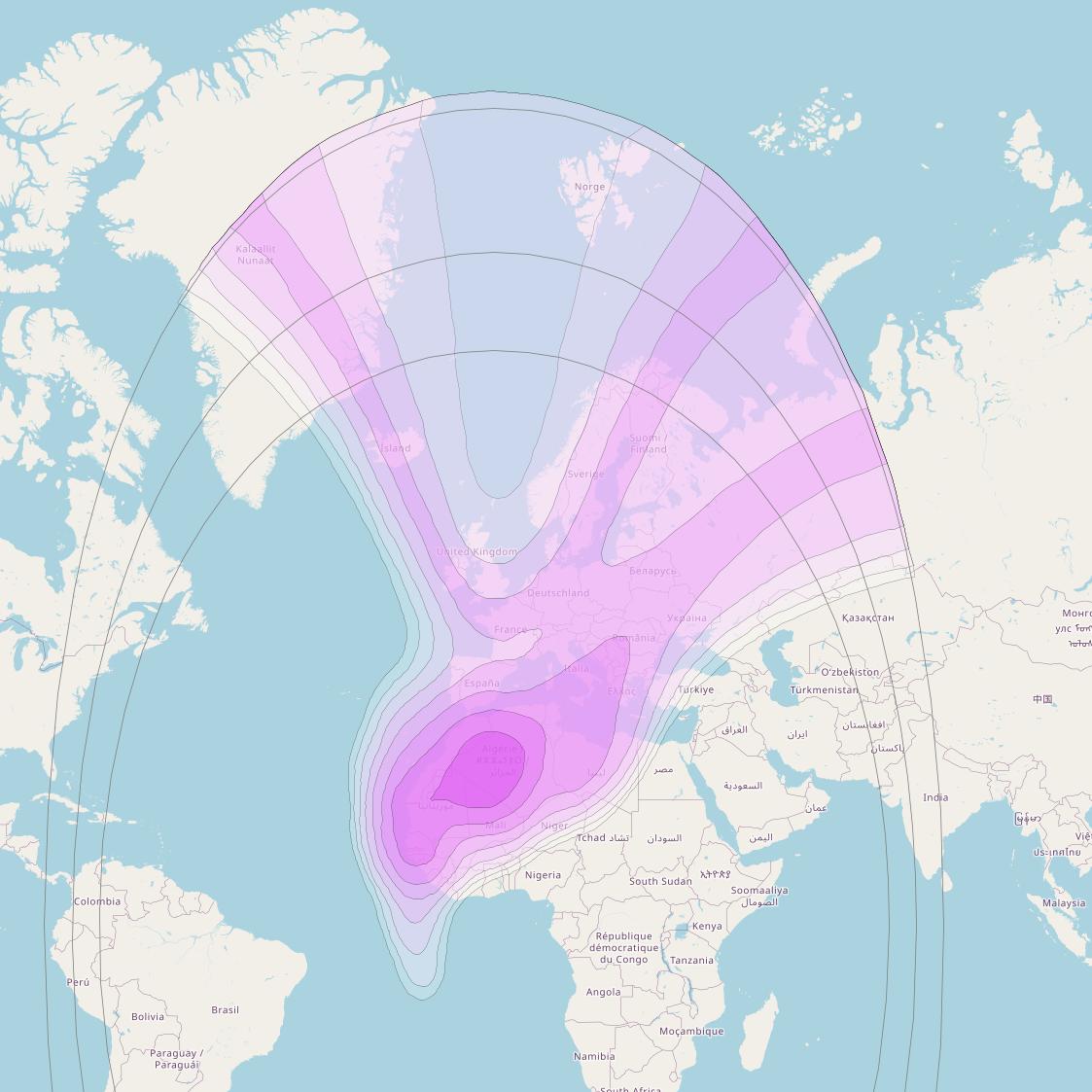

  • Intelsat 10-02 at 1° W downlink C-band North East Zone Beam coverage map

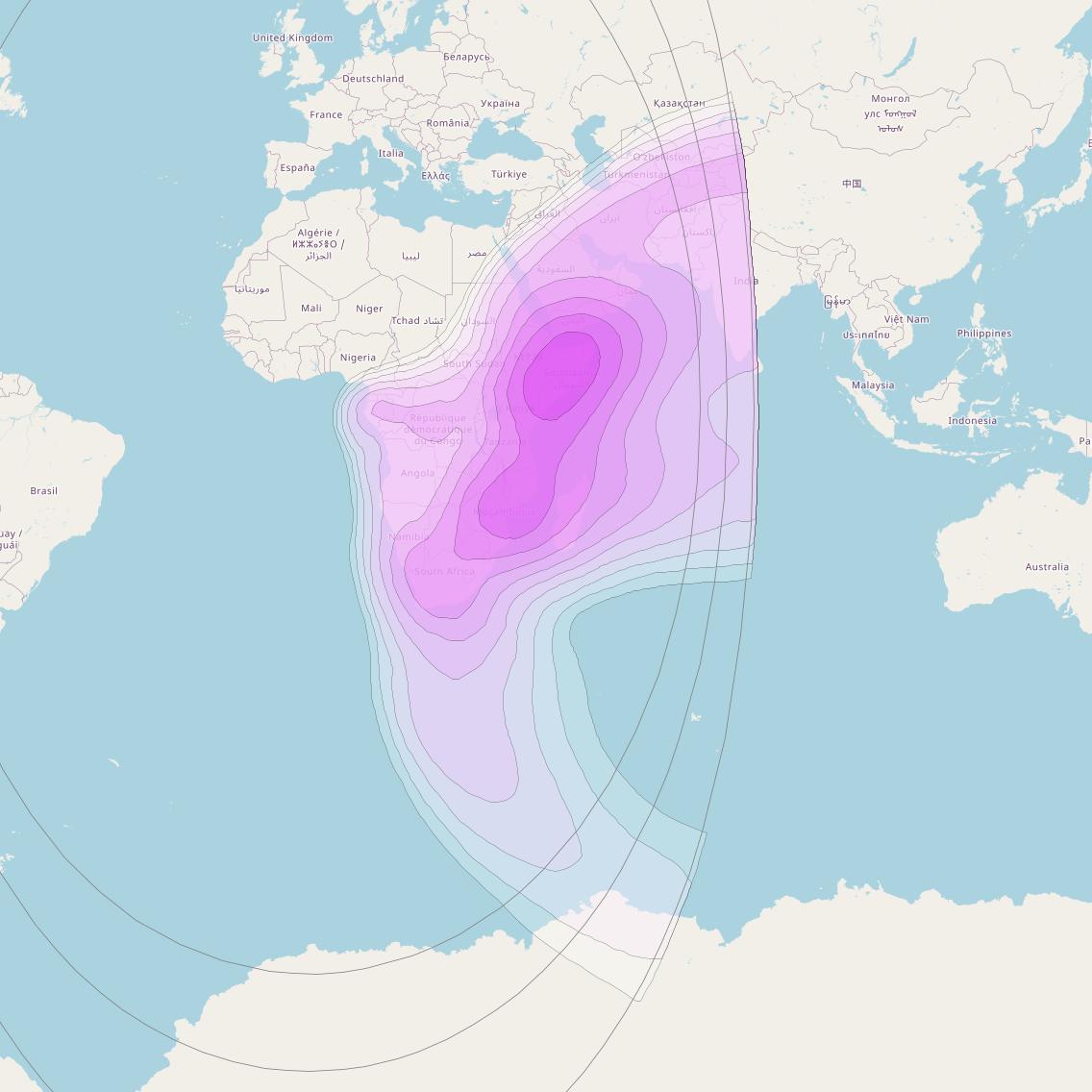

  • Intelsat 10-02 at 1° W downlink C-band South East Zone Beam coverage map

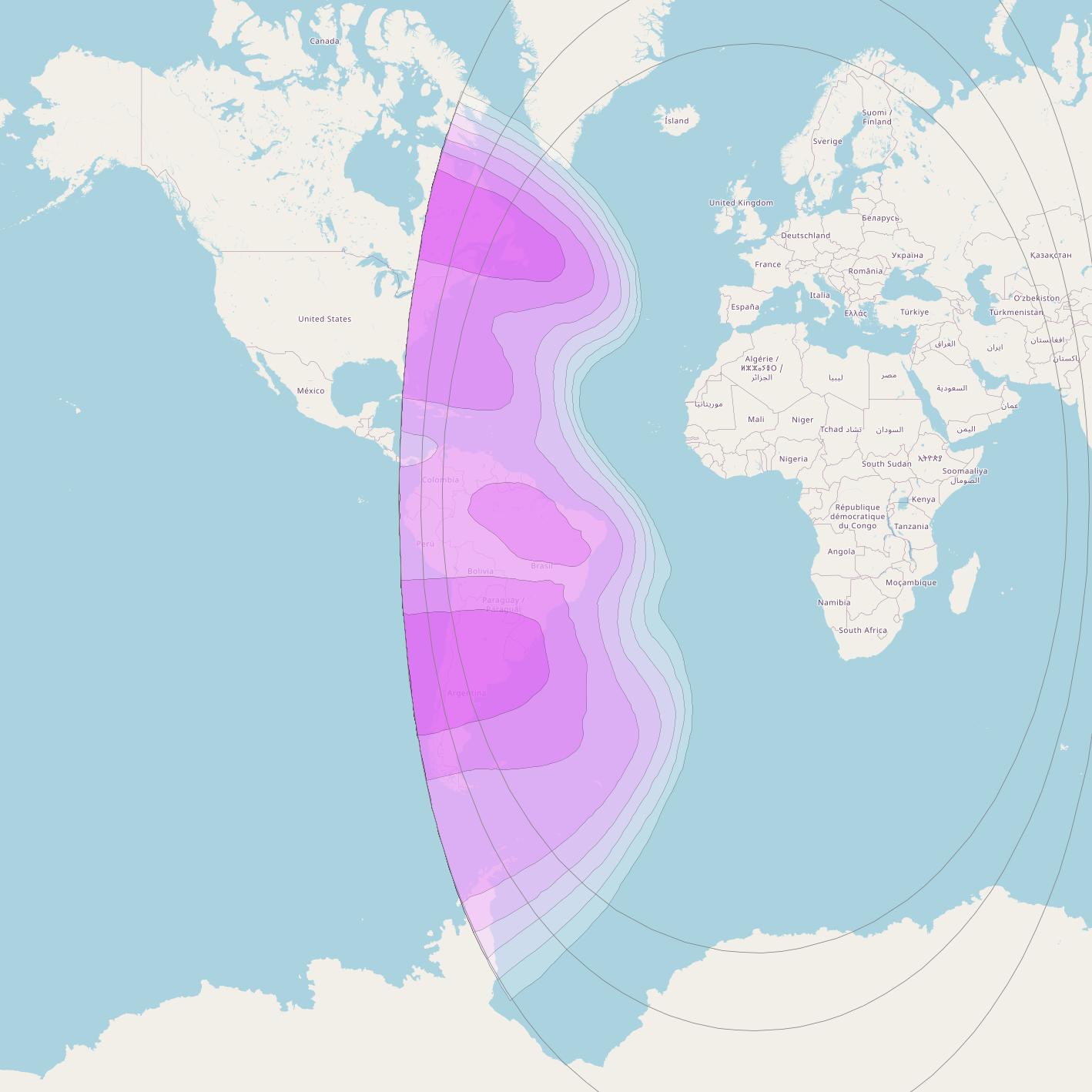

  • Intelsat 10-02 at 1° W downlink C-band West Hemi Beam coverage map

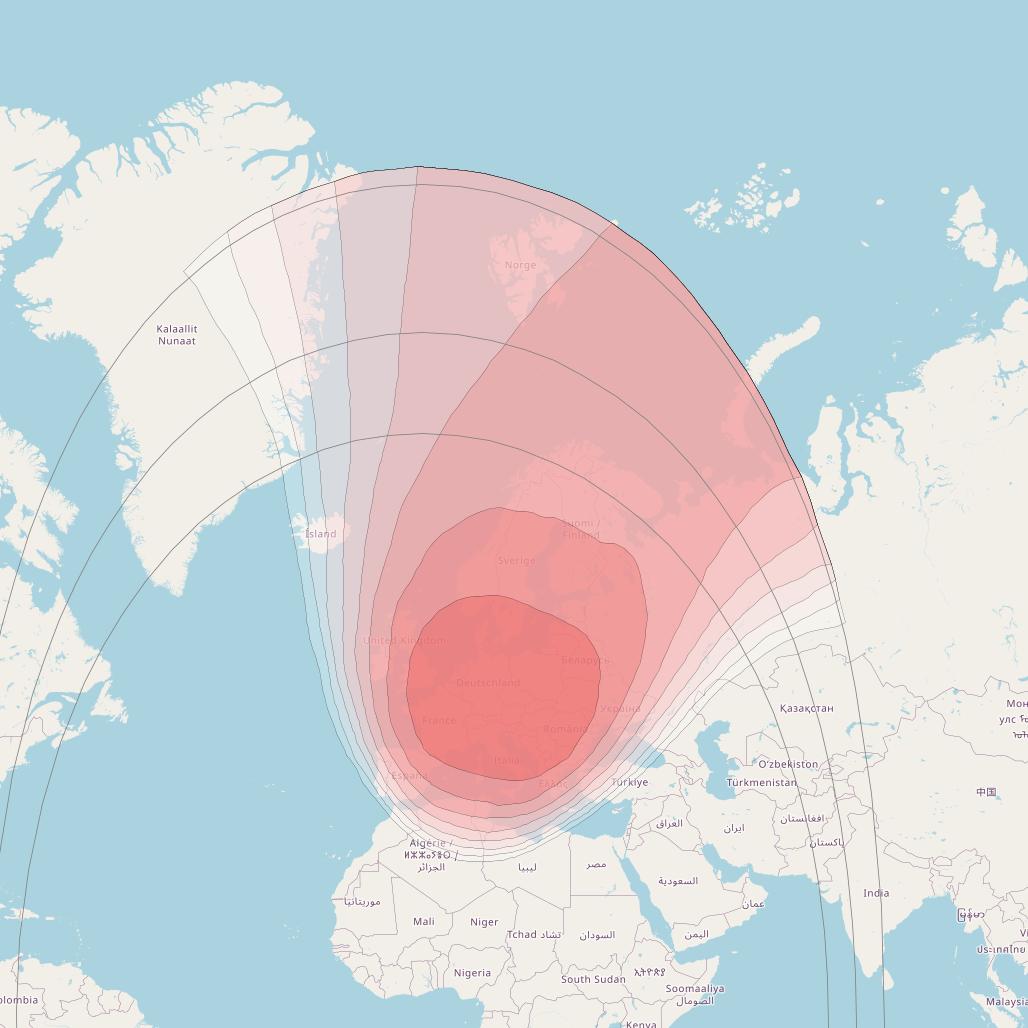

  • Intelsat 10-02 at 1° W downlink Ku-band Spot 1 Beam coverage map

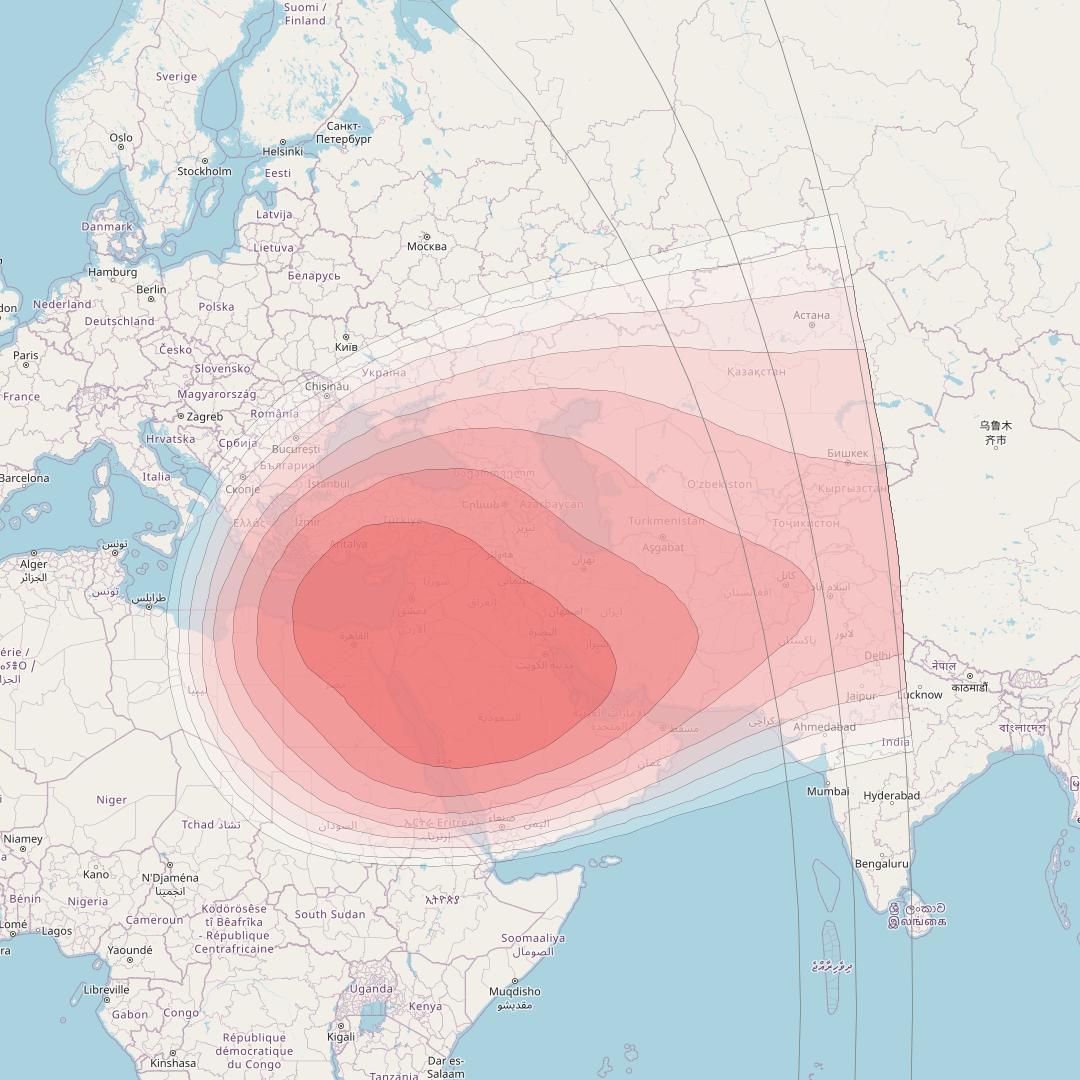

  • Intelsat 10-02 at 1° W downlink Ku-band Spot 2 Beam coverage map

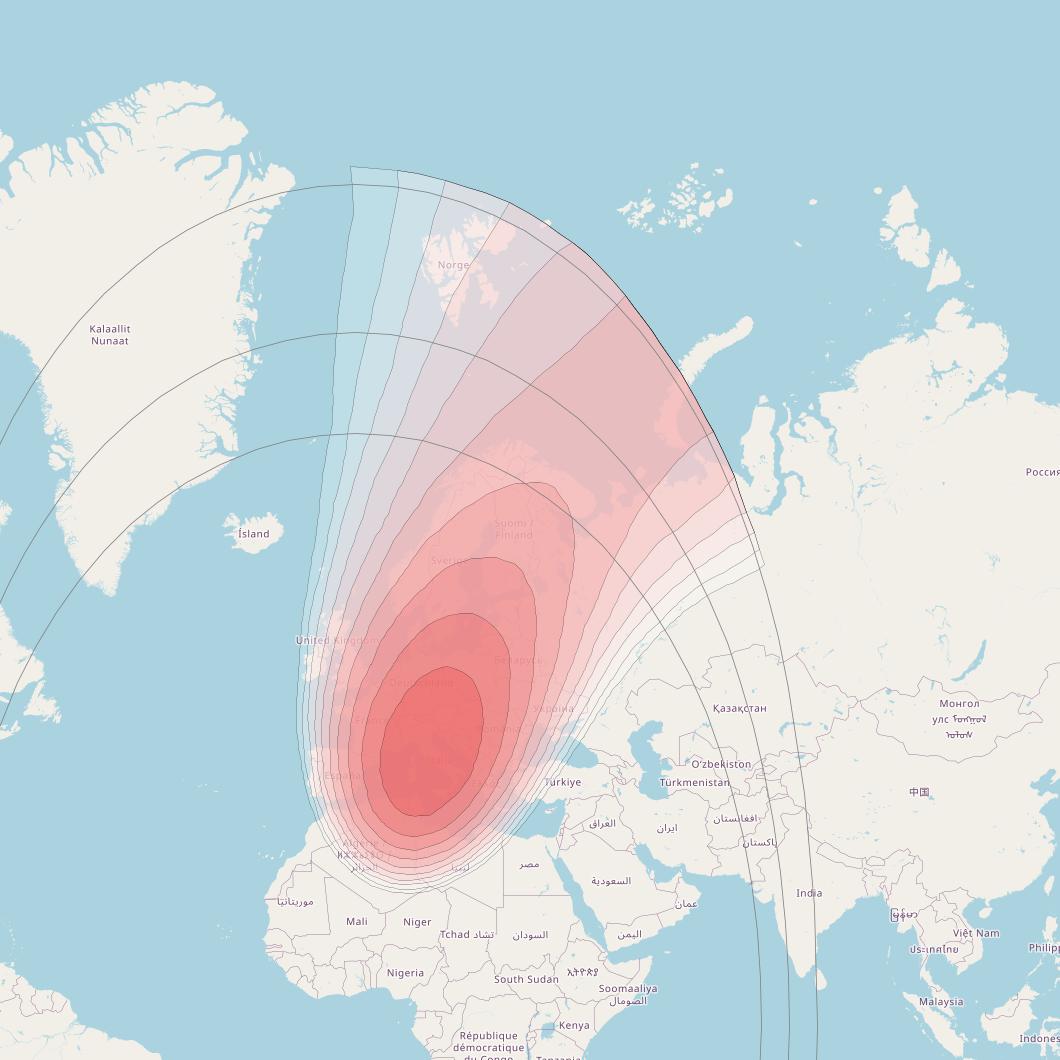

  • Intelsat 10-02 at 1° W downlink Ku-band Spot 3/3X Beam coverage map
